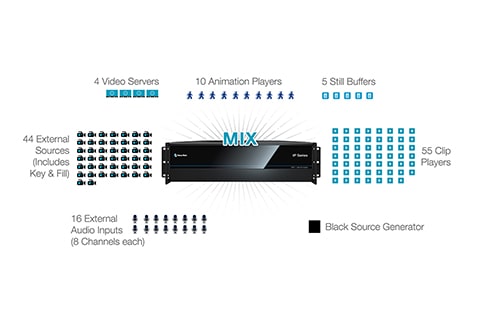

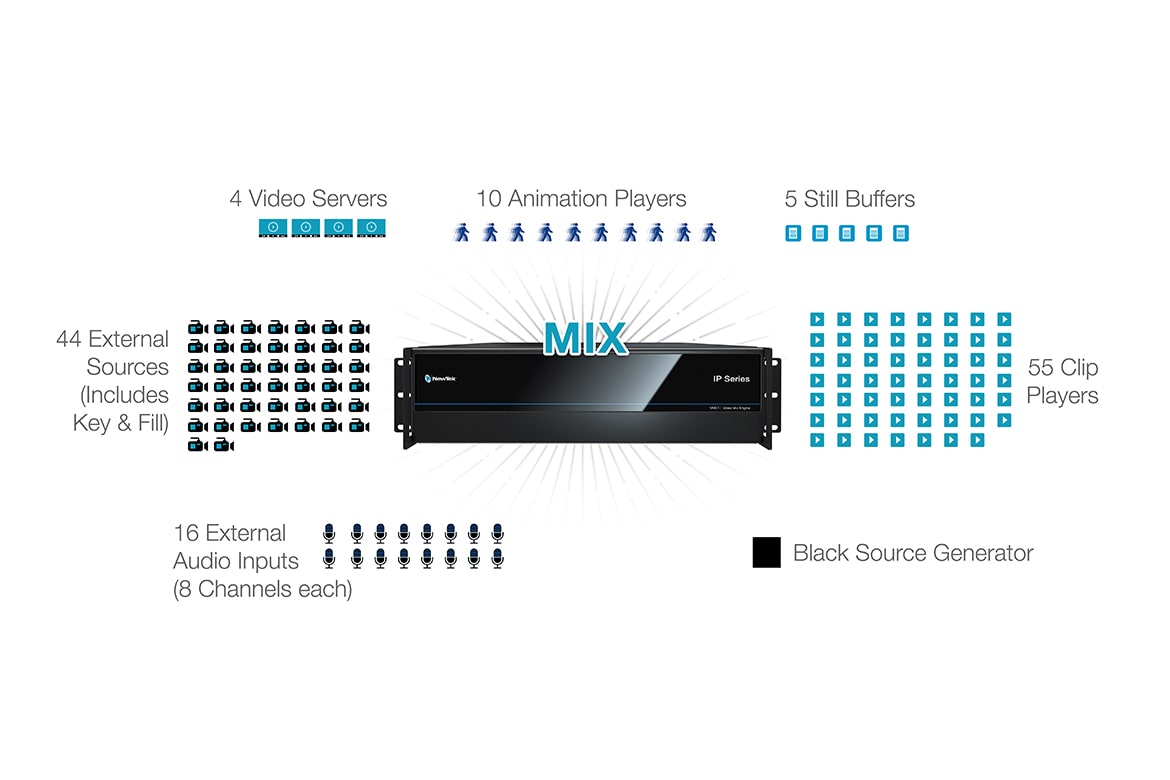

Product Highlights
- 4 Video Servers
- 10 Animation Players
- 5 Still Buffers
- 4 External Sources (Includes Key & Fill)
- 55 Klip Players
- 16 External Audio Inputs (8 Channel Each)
- Black Source Generator
- Overview
- Tech Specs
Live switching—without limits.
Rethink connectivity, creativity and performance with the ultimate platform for modern video production: the NewTek IP Series Video Mix Engine. A true IP switcher powered by NewTek’s industry-leading, software-driven live production technology, the Video Mix Engine is where the systems, devices, applications, and sources in your workflow converge for mixing, compositing, and delivery with incomparable configuration and control.
Transformative Production. For Inspired Storytelling.
Embrace the new era of live production, integrating the Video Mix Engine into your current infrastructure to accommodate even the most ambitious modern workflows, including hybrid SDI/IP, exclusively IP, 4K Ultra HD, and fully virtualized production. With the Video Mix Engine driving your video operations, your productions will be no longer be defined by the limits of conventional equipment, technology, and processes – but by your vision, imagination and ingenuity.
Virtualization Made Real.
Don’t just aspire to virtualized production—achieve it. Unbound by proprietary hardware or transport workflow restrictions, the NewTek IP Series Video Mix Engine is the only live production engine that can operate within a virtualized environment—interconnecting with other compatible technologies through software and moving video across your network infrastructure as part of a fully realized production workflow that dramatically expands your opportunities to increase efficiency, flexibility, and productivity.
Software-Driven Live Production of Epic Proportions
- Scalable, multi-source live video mixing of 64 source channels, each supporting key and fill, including 44 simultaneous external inputs

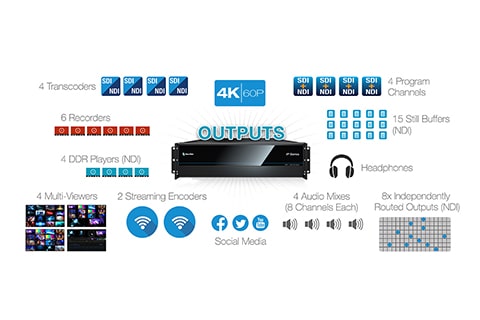

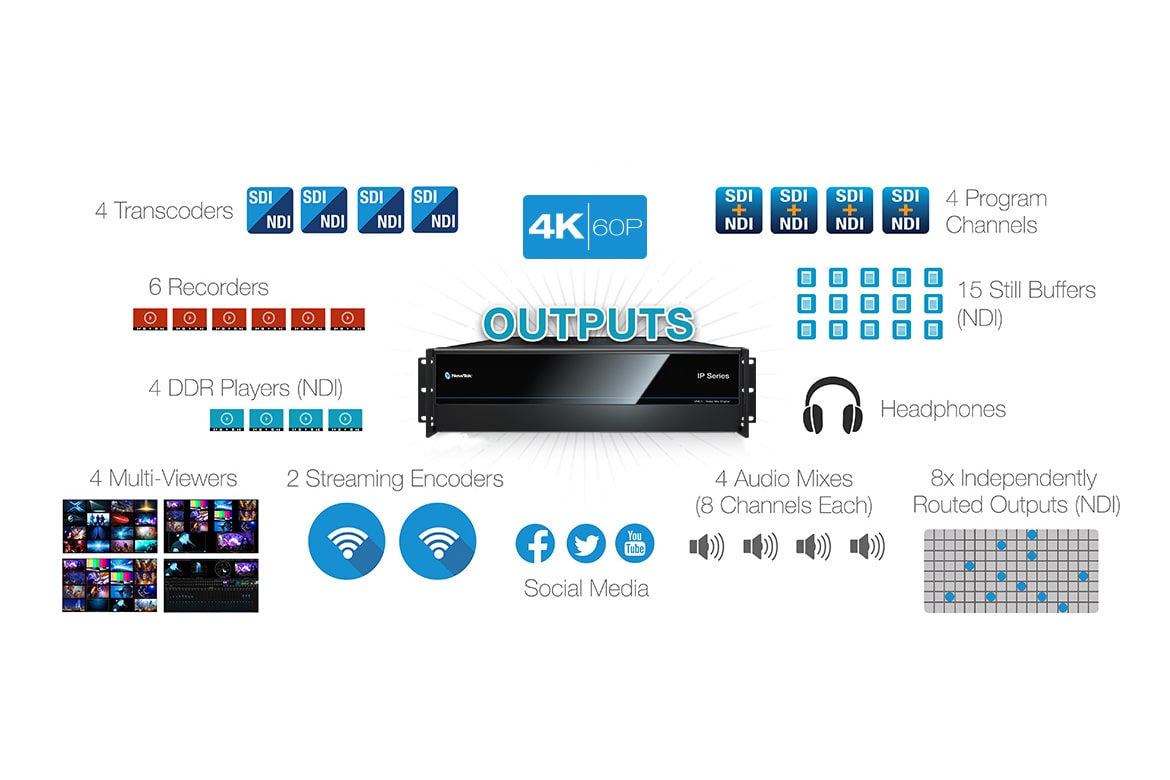

- Flexible, multi-destination delivery with 47 multi-format video outputs, including four produced outputs delivered simultaneously over SDI and IP
- Powerful, multi-bus mix effects, with eight M/E busses and PREVIZ configuration and preview bus, all supporting zero-latency video re-entry
- Superior stored media playback capabilities, with a total of 75 real-time multimedia players supporting an array of file formats
- Fully integrated quad-head multiviewer functionality, with dedicated monitor ports, configurable workspaces, and customizable windows
- Comprehensive audio integration, including 16 external audio mixer inputs and 4 x 8 x 8 channel routing to four audio mix outputs
| Tech Specs | |
|---|---|
| Video Input | 44 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94) |
| Network Video Input | 44 x IP inputs via NDI®, resolution-independent, with support for key and fill |
| SDI Video Input | 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
|
| PTZ | Support for up to 44 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system |
| Video Output/Pots | Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI |
| Network Video Output | 35 x IP outputs via NDI (HD and SD sessions only)
1 x IP output via NDI (4K UHD session)
|
| SDI Video Output | 4 x 3G/HD/SD-SDI connections, optionally configurable for
|
| Stream Output | 2 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive
|
| Mix/Effect Buses (M/E) | 8 x M/E buses supporting video re-entry
1 x PREVIZ configuration and preview bus |
| DSK Channels | 4 x DSK channels |
| Media | 5 x media players
15 x media buffers
55 x clip players (available for use as transitions or media depending on function) |
| Keyers | Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
|
| COMPs | Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
|
| Virtual Sets | Integrated LiveSet™ technology with 30+ live virtual sets and box effects included |
| DataLink | Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more |
| Macros | Record, store, edit and automate commands and user-configured operation sequences
|
| Recording | 12 x configurable video recording channels via IsoCorder™ technology
|
| Storage | 2 x 3TB internal drive
|
| Grab | Grab full resolution, deinterlaced still images from external video sources and outputs |
| Export | Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding |
| Audio Mixer | Integrated multi-channel audio mixer with support for 8-channel audio, DSPs and 4x8x8 audio input routing |
| Local Audio Input | 4 x SDI embedded 1 x Balanced XLR stereo pair (Line) 3 x Balanced 1/4” stereo pairs (Line) Support for USB audio device input via compatible WDM audio drivers |
| Local Audio Output | 4 x SDI Embedded 1 x Balanced XLR stereo pair 1 x Balanced 1/4” stereo pair 1 x Stereo 1/4" (phones) |
| Network Audio |
|
| Supported Media File Formats | Import, store, and play back multimedia files, with optional transcoding, including:
|
| Monitoring | Support for up to 4 multiviewer displays with configurable workspaces and viewports |
| Signal Monitoring | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| Processing | Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz |
| Throughput Latency | ~1.0-1.5 frames |
| A/V Standards |
|
| Tally | Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design® SDI tally standard |
| Genlock | Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals |
| GPI | Supports GPI signals via JLCooper Electronics eBox GPI interface |
| MIDI | Support for standard MIDI protocol enabling third-party device control |
| System Drive | 120GB SSD |
| NIC |
|
System Physical

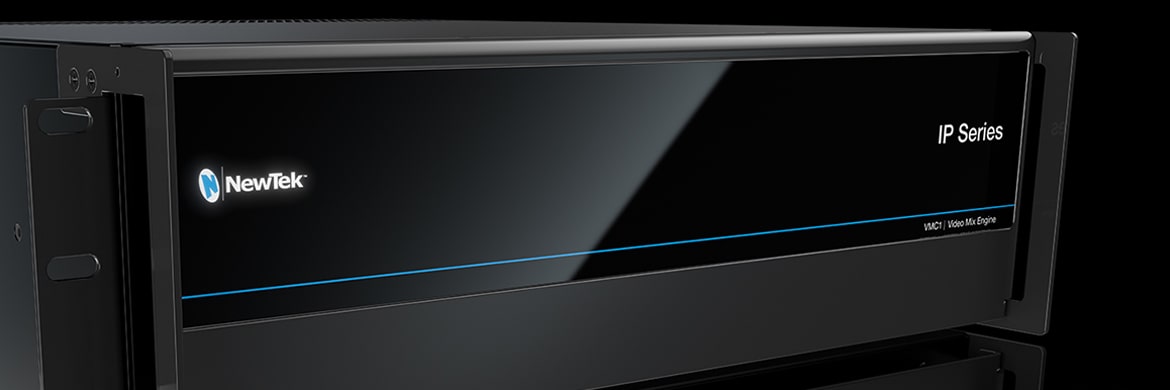

3RU chassis with 500W redundant PSU and multi-tiered hardware and software fail-safe
- 19.0 x 5.25 x 19.57 in (48.3 x 13.34 x 49.7 cm) with rack ears attached
