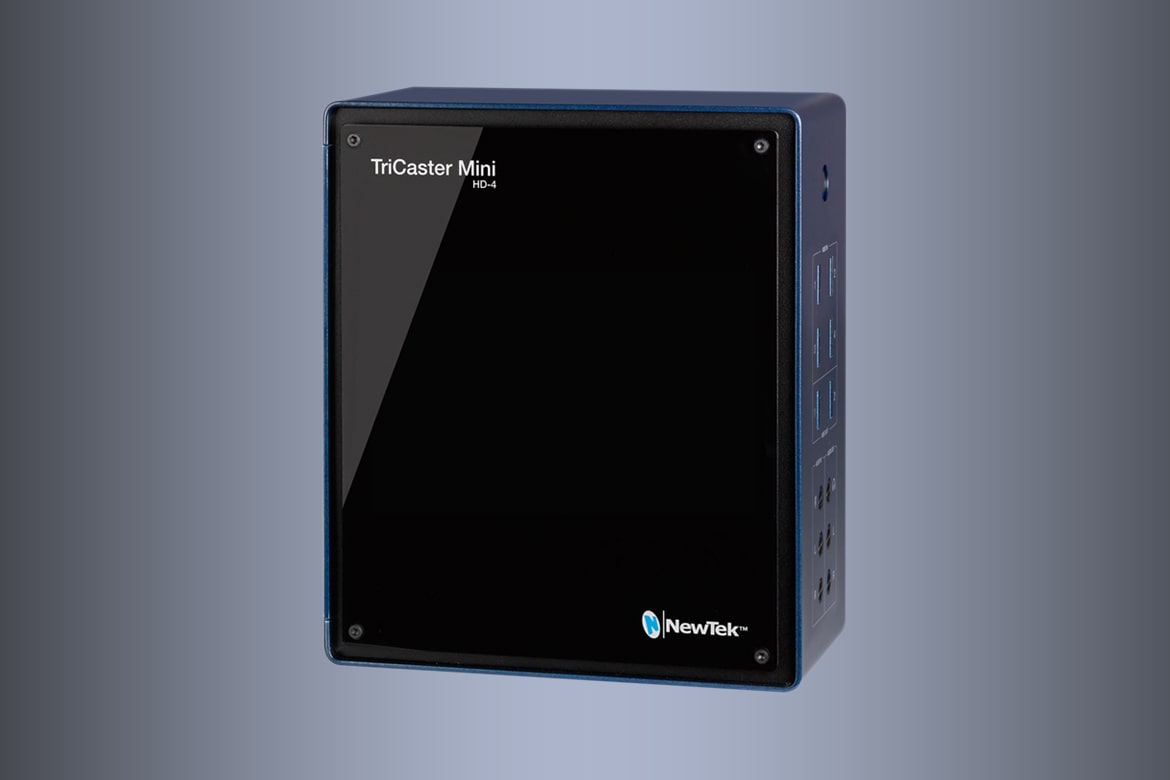

The NewTek TriCaster Mini Advanced HD-4 is a compact, all-in-one multimedia solution that allows you to simultaneously broadcast, stream, and record live productions from virtually anywhere. The eight-input switcher makes it easy to switch between four HDMI or eight NDI video sources, mix audio, add graphics and titles, and add advanced effects like virtual sets and animated transitions. Using the same intuitive and fully featured control software as the rest of the TriCaster professional line, the TriCaster Mini is suited for both new users and seasoned pros.

In addition to the four HDMI inputs, you can choose from four NDI devices on the network, including computers, PTZ cameras, or even wireless capture devices. Two HDMI outputs are provided for sending the Program output with audio to external devices, with video-only HDMI and DVI outputs available for monitoring the multiview output and user interface.

The TriCaster Mini can record up to four simultaneous video input or output signals at full resolution to the internal 750GB storage drive, providing up to 15 hours of HD video recording. You can also record to external drives connected via USB 3.0. The TriCaster Mini supports live streaming with presets available for industry-standard live content delivery networks such as YouTube and Facebook Live. Additionally, you can save a web-ready streaming file for later upload to popular social media or video-on-demand sites.

A cable retention bracket comes included, which doubles as a handle for the TriCaster Mini. Also included are a keyboard and mouse, which provide cordless operation via wireless Bluetooth technology. You can also add the optional TriCaster Mini Control Panel for traditional tactile control with T-bar and illuminated buttons.

All-In-One Multimedia Studio
The TriCaster Mini Advanced makes it possible for anyone to start creating multimedia content without the need for additional software or equipment. With just one system, you can switch between eight video sources, mix audio, add graphics and titles, and add advanced effects like virtual sets and animated transitions. You can also network with computers and wireless devices for presentations and screen sharing, stream to the web, publish to social media sites, and record content for later viewing.

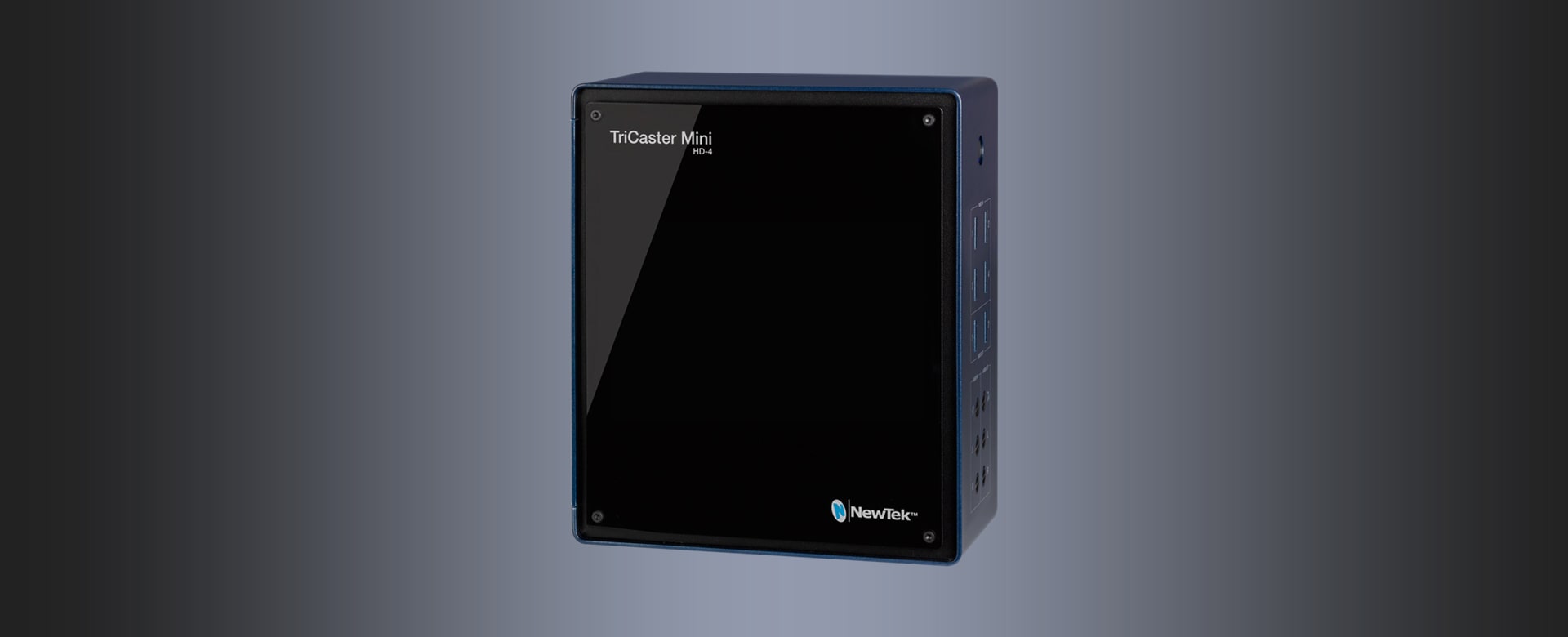

Compact, Travel-Ready Size
The compact size of the TriCaster Mini Advanced allows you to produce and stream content from virtually anywhere. It's small enough to fit into a backpack for easy travel, and doesn't require a studio full of gear to use.

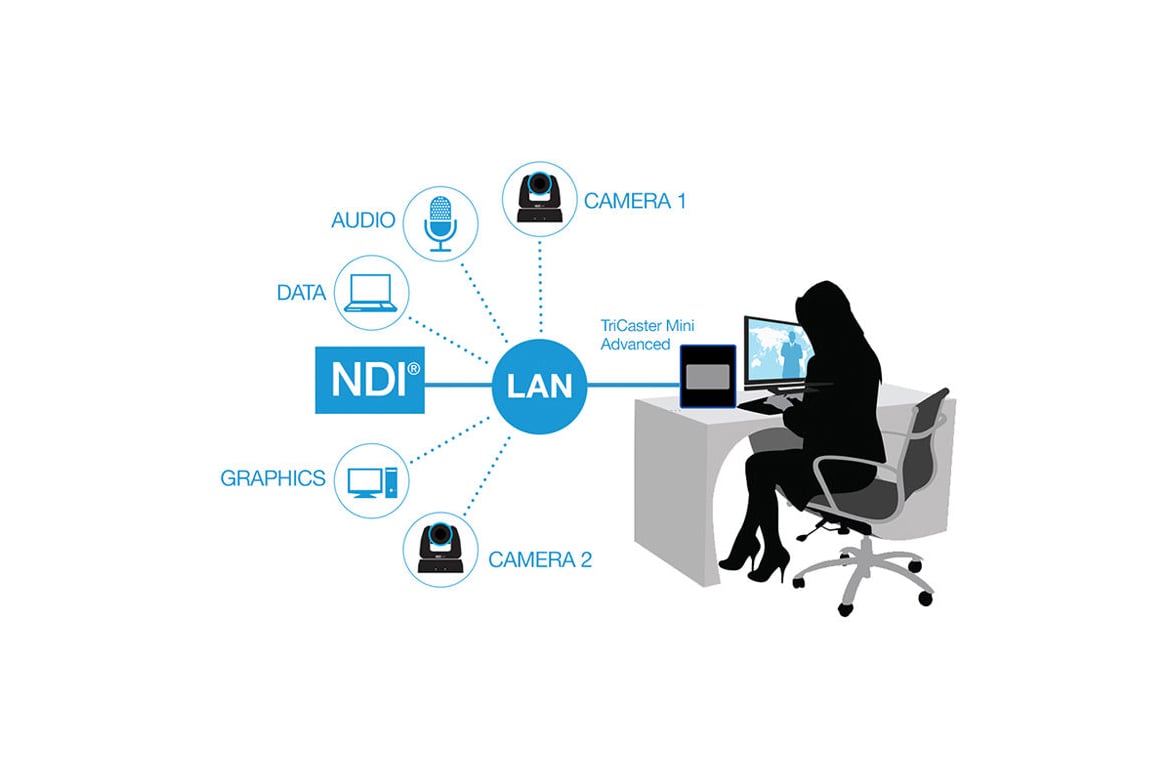

Network Device Interface
The Advanced TriCaster software built into the switcher provides compatibility with NewTek's NDI A/V protocol, as well as Audinate's Dante audio protocol (requires separate Dante Virtual Soundcard license). All available video and audio inputs can be utilized by network connectivity, allowing video and audio devices to exist on a standard IP network without the need for routing expensive and cumbersome video and audio cables.

Robotic Camera Support
Access up to four live Pan-Tilt-Zoom (PTZ) robotic cameras via standard serial and network protocols, with native preset system and user interface control over camera orientation, zoom, focus, and iris.

Multichannel Audio Mixer
The multichannel audio mixer within the TriCaster software lets you manage camera audio, including internal and external audio sources, outputs, recorded audio, stream audio, and headphone output. It supports Master and Aux output mixes.

• Pan control, solo auditioning, seven-band equalizer, and stereo compressor/limiter per input and output, with per-input audio delay control
• Multi-bus routing of audio source channels to any combination of outputs, with independent level control over channels 1/2 and 3/4 for quad sources
• Audio-follow-video system enabling audio to follow multiple video sources, with support for unlimited audio grouping combinations
• Digital audio inputs equipped with audio time base synchronizers
• Supports companion iPad audio mixing app and Avid Artist Mix audio control surface

Recording
Record up to four simultaneous video input or output signals at full resolution in QuickTime, MPEG-2, AVI, or H.264 file formats to internal or external storage.

Storage
Recorded media is stored to internal 750GB storage drive, accommodating approximately up to 15 hours of HD video recording. Media can also be recorded to external storage drives connected via USB 3.0.

Built-In Wi-Fi
Built-in Wi-Fi enables wireless connection to local network for streaming, publishing, and networking.

Streaming
TriCaster Mini supports HD live streaming with presets with common streaming profiles and custom multi-bit rate streaming profiles (including RTMP streaming and browser-based streaming applications), and autosave of web-ready stream files for video on demand (VOD) upload.

Publishing
Upload video and images directly to social media sites such as YouTube, Facebook, and Twitter; export content to FTP servers, and copy files to attached or networked storage locations.

Monitoring
An external monitor is required for viewing the user interface and for multiview display. The TriCaster Mini has HDMI and DVI outputs for hooking up an external display.

Multimedia
Five digital media players are provided for video, graphics, and sounds. You can also access up to 15 additional graphic sources instantly during live production with still and title buffers.

Mix Effects
The TriCaster Mini features four M/E buses, each with independent switcher and key layer, for advanced video mixing, compositing, effects, and virtual sets.

• Mix mode enables secondary switcher operation for output, submix, or recording, with Program/Preview workflow and transitions
• Effects mode enables multilayer compositing, effects generation, and virtual set application, with per-source 3D DVE, scaling, cropping, and keying

Transitions and Effects
The built-in effects engine lets you apply transitions, animation stores, and real-time 3D video warping. An Animation Store Creator is included for creating custom effects.

Virtual Sets
Over thirty HD live virtual sets are provided with multiple camera angles, shot presets, realistic virtual camera movements, and real-time reflections, plus support for custom holographic virtual sets.

Macros
Use macros to record your favorite go-to settings, commands, or operation sequences, and then create custom one-step shortcuts to simplify or automate control. Support for standard MIDI protocol enables third-party MIDI device control of TriCaster operations via macros

Grab Stills
Grab full resolution, de-fielded still images from Program output, and freely choose to add grabs to Publish queue, Media Player presets, and Buffer destinations.

Video Inputs	8 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input	8 x IP video inputs via NDI®, resolution-independent, with support for key and fill 080p: 29.97, 25 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 SD: 59.94, 50, 25
PTZ	Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Video Output	Configurable for up to 4 independent video mix outputs, with simultaneous digital and IP delivery
Network Video Output	4 x independent IP video mix outputs via NDI®
Digital Video Output	2 x independently configurable digital video outputs (HDMI or SDI, depending on model)
Stream Output	1 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs	1 x DVI user interface with multiviewer 1 x HDMI multiviewer 1 x DVI display output 1 x HDMI display output
Mix/Effect Buses (M/E)	4 x M/E buses, each supporting 2 configurable sources and 2 configurable KEY layers 1 x PREVIZ configuration and preview bus
DSK Channels	2 x DSK channels
Media	5 x media players 2 x DDR 2 x GFX 1 x Sound 15 x media buffers 5 x animation buffers 10 x graphic buffers
Keyers	Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses
Virtual Sets	Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web-based interface
Recording	5 x configurable video recording channels via IsoCorder™ technology 4 x QuickTime® archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode) 1 x H.264 distribution video recorders (multiple profiles) 1 x MP3 audio recorder
Storage	1 x 750GB internal drive Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 Supports shared storage integration and third-party partner solutions
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing	Integrated multi-channel audio mixer with configurable DSPs, 4 x 4 x 4 audio input channel routing, and 4 independent output mixes
Local Audio Input	4 x embedded digital audio inputs (HDMI or SDI, depending on model) 1 x 1/4” (6.35 mm) balanced mic 2 x 1/4” (6.35 mm) balanced line
Local Audio Output	2 x embedded digital audio outputs (HDMI or SDI, depending on model) 2 x 1/4” (6.35 mm) balanced line 1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio	Native support for network audio input and output via NDI® Embedded audio supported for all NDI® input and output video signals Integrated support for Dante™ networking protocol from Audinate®
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more mage: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-2.0 frames
A/V Standards	HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Tally	Support for network tally via NDI®
MIDI	Support for standard MIDI protocol enabling third-party device control
NIC	1 x 1 Gigabit NIC
Case Display	Case display not available
Built-In WiFi	Supports wireless connection to local network 802.11ac WiFi standard
Built-In Bluetooth	Support for keyboard and mouse using wireless Bluetooth technology
