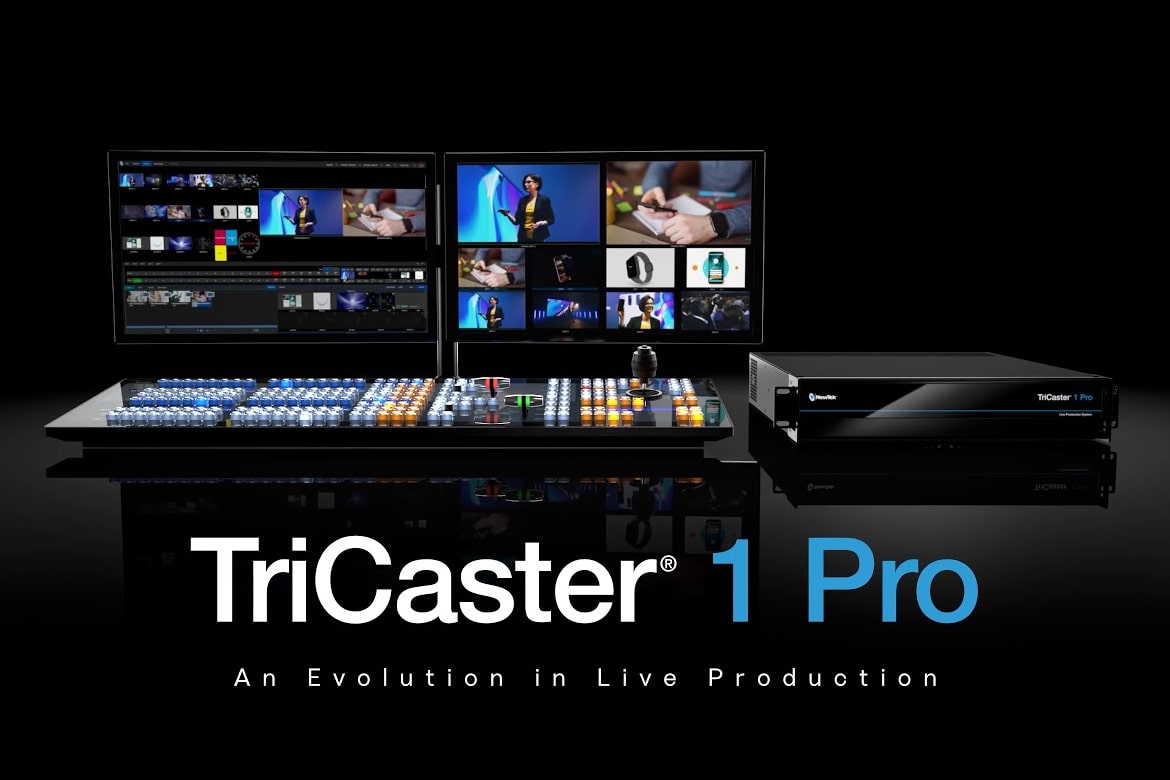

An Evolution in Live Production

TriCaster 1 Pro is an incredibly powerful production system for the modern producer, publisher, and content creator. Perfect for productions with intense demands on quality and feature set.

Remote Calling
Offering the revolutionary Live Call Connect for seamless integration of 4 remote callers.

Distributed Production
Countless features allowing users anywhere on the planet to deliver the most complex productions, with ease.

Integrated Flexibility
Opening a world of opportunities with the tightest integration of NDI available in any product.

Where the Magic Happens

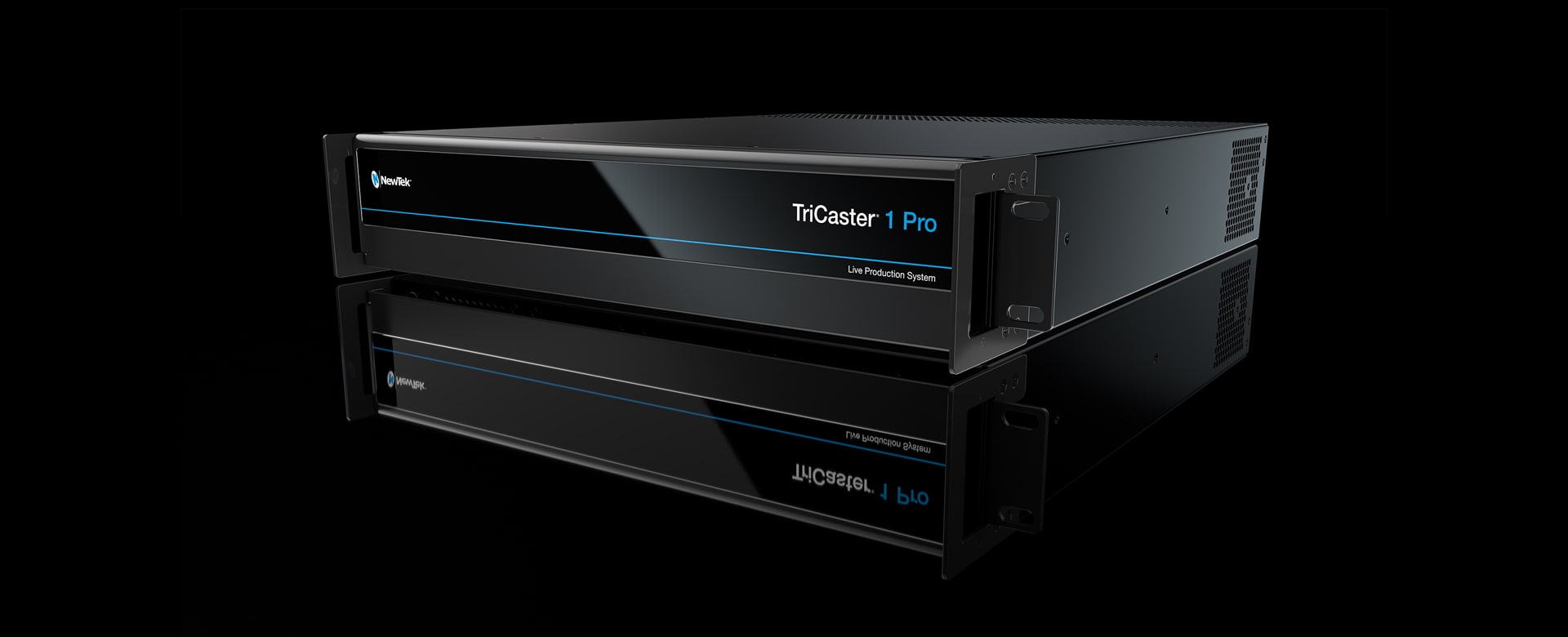

Tricaster 1 Pro is the perfect balance of investment and power, fully equiped with the industry's leading software-driven production technology and hundreds of future-ready capabilities.

Advanced Features As Standard

TriCaster 1 Pro offers countless new elements that can truly elevate your production – perfect for mid-sized productions with intense demands on quality and feature set.

• Live Call Connect
• Advanced Macros
• Neural Voice Isolation
• Live Streaming & Publishing
• Quality Monitoring
• Alpha Channel Outputs
• Live Story Creator
• LiveGraphics^™
• LivePanel^™

Live Call Connect
Seamless integration of 4 remote callers from popular video communication applications like Facebook Messenger, WhatsApp, and FaceTime, Zoom, Skype TX, Microsoft^® Teams, Discord, Slack and Tencent as unique video inputs.

Advanced Macros
A dynamic and powerful tool that allows operators to use variables in their macros to deliver complex productions more easily.

Live Streaming & Publishing
Supporting encoding of 3 channels; configure and launch live streaming video to the web with built-in streaming encoders supporting a choice of connection types, resolutions, and streaming providers, including multiple preset options and custom profile settings.

Alpha Channel Outputs
Operators can send Alpha Channel through one of the MIX outs. Bringing post-production closer to live, users can use the keying on TriCaster to feed graphics or real time 3D creation tools.

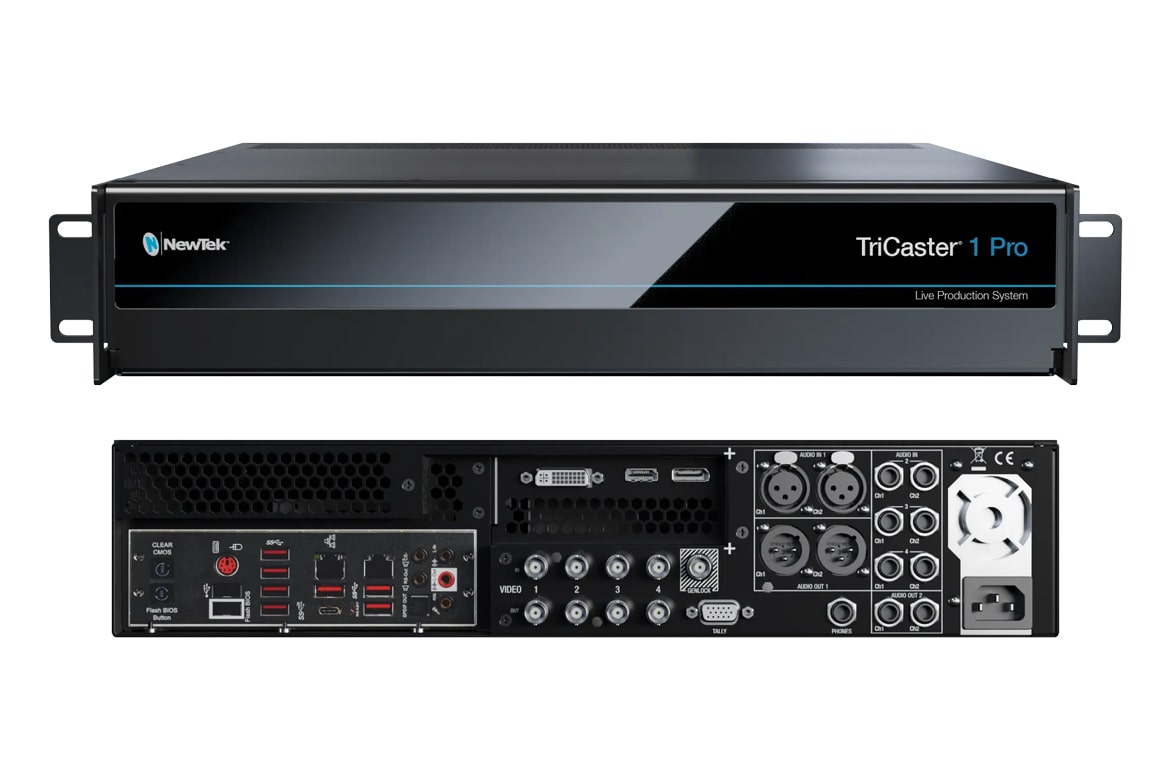

Video Input	16 x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)
Network Video Input	16 x IP video inputs via NDI®, resolution-independent, with support for key and fill
SDI Video Input	4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates 1080p: 59.94, 50, 29.97, 25 1080i: 59.94, 50 720p: 59.94, 50, 29.97, 25 576i 50 480i 59.94
PTZ	Support for up to 16 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system
Skype TX	Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Video Output	Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI
Network Video Output	IP video output via NDI, optionally configurable for 4 x independent video mix outputs 1 x 4K UHD video mix output
SDI Video Output	4 x 3G/HD/SD-SDI connections, optionally configurable for: 4 x independent 3G/HD/SD video mix outputs 1 x 4K UHD video mix output via 3G-SDI quad-link grouping
Stream Output	3 x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive
Multiviewer Output	3 x multiviewer outputs supporting standard display resolutions 1 x DVI user interface with multiviewer 1 x HDMI multiviewer 1 x DisplayPort multiviewer
Mix/Effect Buses (M/E)	4 x M/E buses supporting video re-entry 1 x Mix/Effect channel per bus with support for up to 4 sources 4 x KEY layers per bus 9 x memory slots per bus 1 x PREVIZ configuration and preview bus
DSK Channels	4 x DSK channels
Media	5 x media players 2 x DDR 2 x GFX 1 x Sound 15 x media buffers 10 x animation buffers 5 x graphic buffers 30 x clip players (available for use as transitions or media depending on function)
Keyers	Integrated LiveMatte™ chroma and luma keying technology on all source channels and M/E buses 16 x input keyers 4 x media player keyers 4 x M/E keyers 1 x PREVIZ keyer 15 x buffer keyers
COMPs	Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences 16 x configurable COMP presets per bus
Virtual Sets	Integrated LiveSet™ technology with 30+ live virtual sets and box effects included
DataLink	Integrated DataLink™ technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros	Record, store, edit and automate commands and user-configured operation sequences Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions Supports control via web-based interface Variables support allowing operators to use logic in macros to deliver complex productions more easily
Recording	16x configurable video recording channels 16x NDI® recordings 4 x QuickTime® archival video recorders 3x H.264 distribution video recorders (multiple profiles)
Storage	4TB internal media storage 2 x 4TB 7200 RPM, 128MB Cache, SATA 6.0Gb/s, 3.5" Internal Hard Drive Capacity varies by format, resolution and file specification Supports recording to external storage via USB 3.0 and eSATA Supports shared storage integration and third-party partner solutions
Grab	Grab full-resolution, deinterlaced still images from external video sources and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio MIxer	Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing
Local Audio Input	4 x SDI embedded 1 x Balanced XLR stereo pair (Line) 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output	4 x SDI embedded 1 x Balanced XLR stereo pair 1 x Balanced 1/4” stereo pair 1 x Stereo 1/4" (phones)
Network Audio	Native support for network audio input and output via NDI® Embedded audio supported for all NDI input and output video signals Integrated support for Dante™ networking protocol from Audinate® Support for AES67 protocol via compatible WDM audio drivers
Supported Media File Formats	Import, store, and play back multimedia files, with optional transcoding, including: Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more Audio: AIFF, MP3, WAV, and more
Monitoring	Support for up to 3 multiviewer displays with configurable workspaces and viewports
Signal Monitoring	Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHz
Throughput Latency	~1.0-1.5 frames
A/V Standards	4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split) 3G-SDI video conforms to SMPTE 424M (Level A) HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Tally	Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design® SDI tally standard
Genlock	Genlock input supporting SD (Bi-level), HD (Tri-level) or NDI® reference signals
GPI	Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI	Support for standard MIDI protocol enabling third-party device control
System Drive	120GB SSD
NIC	1 x 10 Gigabit Ethernet 1 x 1 Gigabit Ethernet
USB	1 x USB 3.2 Gen 2 Type-C 7 x USB 3.2 Gen 1 Type-A
