Spark Plus IO 4K

Spark Plus IO 4K

Your workflow, your choice
Product Highlights
  • Convert video up to UHD 60p and audio from HDMI to NDI®
  • Convert video up to UHD 60p and audio from NDI® to HDMI
  • Power Over Ethernet
  • Tally support via NDI

  • Overview
  • Tech Specs

NewTek Spark Plus video converters are the fastest, easiest, and best way to video over IP. Ultra-portable enclosures with resolutions up to UHD 60p, the groundbreaking benefits of NDI®, and a host of tools and capabilities makes NewTek Spark Plus video converters the right choice for all sorts of video applications.

Add Spark to your gaming
Plug into the action and get video from games, cameras, and other devices distributed to viewers on-site at events, or watching from the other side of the world, putting them right at the center of the competition.

Add Spark to your company communications
Easily connect your camera, laptop or webcam to Spark and deliver live video to your meetings, training, conferences, and more through Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and other communication platforms.

Add Spark everywhere: your venue, your classroom, your event & more
Whenever, wherever you need to get video signal from here to there, NewTek Spark is the fastest, easiest way to get it done. Just connect your device and like magic it appears on your network and is accessible to show and share.

Features In Depth

Compatible With Any NDI® WorkflowShare video over IP with any compatible system, device, or application that supports NDI, including NewTek solutions and products from third-party manufacturers and developers.

NDI® Transfer Modes
Transmit video to your network using your choice of supported NDI transfer modes, to include unicast and multicast UDP with forward error correction (FEC), and unicast TCP.

NDI® Input and Output
Acquire video from connected devices such as cameras and deliver as IP to networks with NDI or provide IP with NDI from networks to destinations such as displays.

Send and receive video with networks via Ethernet and be instantly available as NDI® sources and endpoints for any compatible system, device, or application.

Portable and Mountable
Carry NewTek Spark Plus video converters with you wherever you go, or optionally mount to a compatible camera or support using the industry-standard threaded screw mount.

Present high-quality audio with support for analog and embedded digital sources. Present high-quality sound, with support for embedded audio and analog audio.

Program and Preview Tally
Receive tally notification from compatible NDI® devices via a physical LED when video output from any NewTek Spark™ Plus product is visible on Program and/or Preview.

NDI® Virtual InputDesignate your video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more using the NDI® Virtual Input tool.

Web-Based Interface
Monitor video, manage login credentials, access recording controls, and configure audio, video, and network settings from any supported Web browser on any compatible networked device.

Multicast Mode
Permit multiple destinations as an option to receive your video source without individual point-to-point connections to conserve network bandwidth.

Network Identification
Easily identify devices on your network with the ability to apply custom device and channel names.

Network Visibility
Access devices connected to other networks via IP address and make them visible within your production environment using NDI® Access Manager.

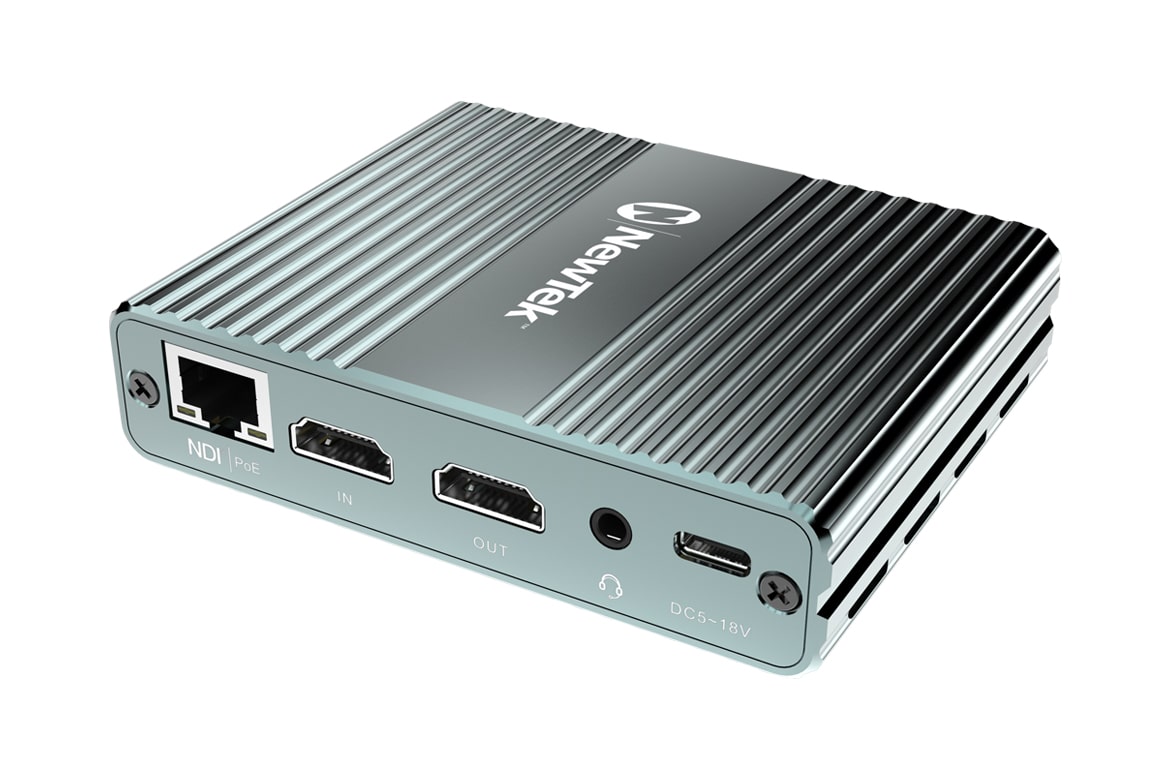

Video Input 1 x HDMI
Video Output 1 x HDMI
Audio Input 3.5mm Line Level
Embedded HDMI
Audio Output 3.5mm Line Level
Embedded HDMI
Encoding/ Decoding NDI®
Network 1 x RJ-45 port Gigabit Ethernet
Interface Web-based user interface for configuration and monitoring
Tally NDI with built-in tally light
Formats 2160p: 60, 59.94, 30, 29.97, 25
1080p: 60, 59.94, 50, 30, 29.97, 25
720p: 60, 59.94, 50, 29.97
576p: 50
480p: 60, 59.94
USB PTZ Control

  • Power over Ethernet or External power adaptor

  • Portable enclosure with threaded screw camera mount
  • 3.94 x 3.15 x .94 in (100 x 80 x 24 mm)
  • .53 lbs (.24 kg)
