NDI PTZ Camera


UHD | 30x Zoom | NDI®|HX | Sony Sensor
Product Highlights
  • ULTRA HD Perfection
  • Superior Feel & Handling
  • 30x Optical Zoom
  • Capturing action, motion, sports, and gaming video
  • Multiply your variety of shots and angles
  • Smooth pan, tilt, zoom because control matters

  • Overview
  • Tech Specs

Meet the world’s first NDI®|HX PTZ camera with Ultra High Definition (UHD) video. A precision engineered camera offering smooth PTZ action, a state-of-the-art Sony sensor and video, audio, control, tally and power with a single cable.

With NDI PTZUHD just plug in and deliver incredible live video across a standard Ethernet network, the ultimate way for you to deliver 4Kp60 video into any IP environment.

NewTek NDI® PTZ Camera Features

Imagine the possibilities of cameras that can serve as a live video input for any NDI®-compatible hardware or software—from anywhere on your network. NewTek NDI® PTZ Cameras, the faster, easier, and better way to acquire live video.

Multicast Mode
Optionally allow multiple destinations to receive video from your NDI® PTZ Camera without individual point-to-point connections to conserve network bandwidth.

NDI® Output
Acquire and deliver video to the network in full UHD or HD, with NDI® output via NDI® and native support for resolutions up to 2160p or 1080p at 60 frames per second.

Power over Ethernet
Streamline installation and reduce cabling complexity, optionally eliminating the need for a separate power supply connection with support for Power over Ethernet via POE+ (802.3at).

Perform real-time pan, tilt, and zoom camera movements with motor-driven PTZ camera control and configurable preset positions.

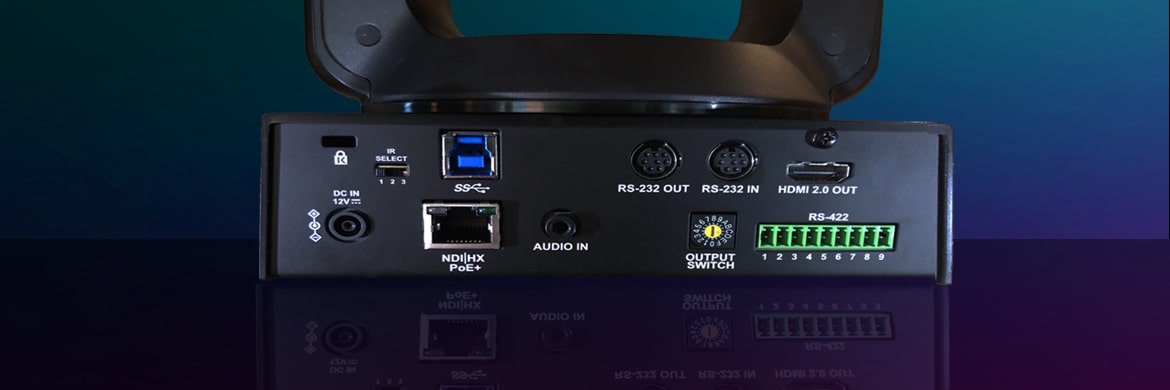

3G-SDI and HDMI Output
Optionally acquire and deliver video into conventional workflows with support for 3G-SDI and HDMI hardware output.

Program and Preview Tally
Receive tally notification from compatible NDI® devices via physical LEDs when video output from your NDI® PTZ Camera is visible on Program and/or Preview.

Remote Control & Monitoring
Operate camera controls, monitor video, manage login credentials, and configure audio, video, and network settings from any compatible networked device using the Web-based user interface or NewTek NDI® Studio Monitor.

Remote Recording
Capture live NDI® PTZ Camera video remotely from any compatible computer or device using NewTek NDI® Studio Monitor.

Video Bandwidth
Select from High, Medium, and Low bandwidth output to accommodate your specific network configuration and traffic.

Video Settings
Manage NDI® PTZ Camera options to include exposure, focus, iris, shutter speed, white balance, wide dynamic range, and more with configurable video settings.

Present high-quality audio, with support for mic and line level audio input, and adjustable volume control.

NDI® Virtual InputDesignate your NDI® PTZ Camera as the video input source in popular desktop video applications like Google Hangouts, GoToMeeting, Skype, Skype for Business, WebEx, Zoom, and more, via the included software driver.

Network Identification
Easily identify your NDI® PTZ Camera on the network with the ability to apply custom device and channel names.

Free Firmware Updates
Download and install free firmware updates to ensure your NDI® PTZ Camera is equipped with the latest features, capabilities, and performance enhancements.

Video Output Ethernet, HDMI 2.0, via NDI|HX
Video Formats 2160p: 59.94, 50, 29.97, 25
1080p: 59.94, 50, 29.97, 25
720p: 59.94, 50
Lens Zoom: 30x Optical
Shutter Speed 1/1 to 1/10,000 sec
Panning Angle -170° to +170°
Tilt Angle -30° to +90°
Flip Integrated image flip and mirror function for flexible installation
Audio Input 3.5mm stereo audio input (line)
Audio Output NDI®
Tally Tally support via NDI®
Sensor Sony 1/1.8" CMOS
User Interface Remote configuration, control
, and monitoring via Web-based
user interface or NewTek
NDI® Studio Monitor
Control NDI
Networking 1 Gigabit Ethernet

  • Power over Ethernet (IEEE 802.3bt)
  • r fixed power supply

  • Dimensions: 6.9 x 7.2 x 7.2 in
  • (175 x 183 x 183 mm)
  • Weight: 4.4 lbs (2.0 kg)
