Product Highlights
- Offers NDI|HX3 support
- Support for sophisticated devices with Professional XLR audio connection
- One ethernet cable for audio and video, PTZ control and tally
- Compatible with NDI version 5
- Smooth, motor-driven pan-tilt-zoom operation and movement between presets
- Integrated and automatic tally support via NDI®
- Native support for HD video formats up to 1080p 60
- Overview
- Tech Specs

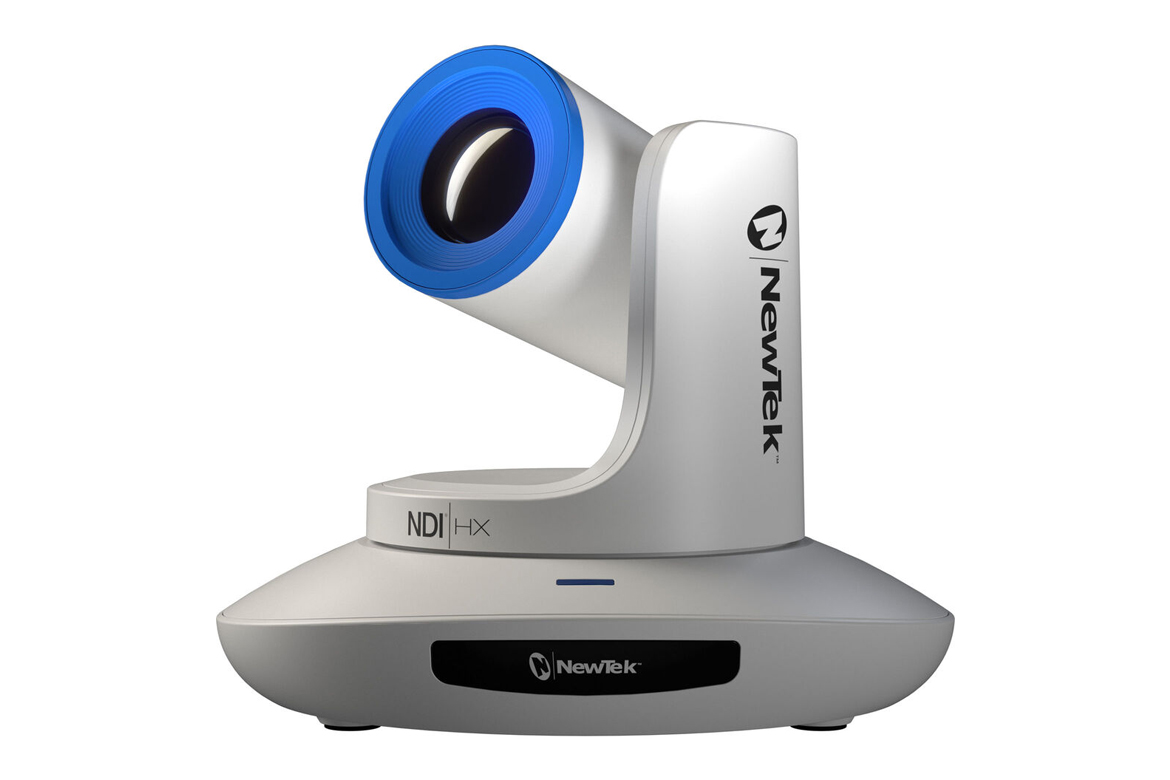

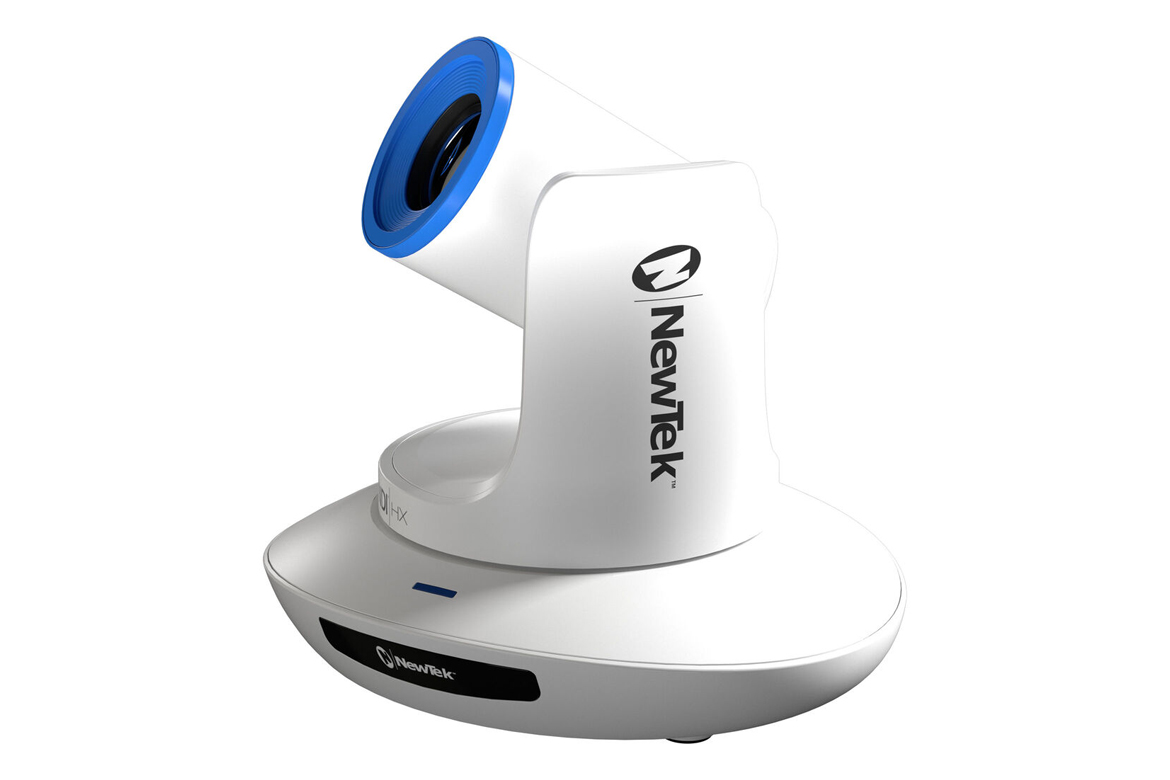

A world of new PTZ Capabilities at your fingertips
The NewTek NDI®|HX PTZ3 Camera is the very best and easiest way to acquire live video for input into any workflow - raising the bar for PTZ Cameras everywhere.
The PTZ3 allows video professionals, information technology managers, and system designers to explore new ways to expand, grow, and evolve their video productions using the network, while simultaneously streamlining integration and installation by incorporating power over Ethernet.
Advanced Flexibility and Simplicity
With one cable for power and connectivity, no other camera on the market offers this level of simplicity and control; eliminating the need for, and the increasing cost of, long cable runs, complex setups, and management time to maintain.A Future-Proofed PTZ Camera
NewTek NDI|HX PTZ3 offers countless new elements that add quality, simplicity and flexibility ensuring users can maintain pace with the evolving needs of any production.NDI at its best.
NDI|HX3 puts the user in control; striking the perfect balance of quality and efficiency with zero compromise. This new standard offers the quality and low latency of full NDI without the heavy bandwidth usage.
Advanced Audio
The PTZ3 has brought the need for superior audio right into focus with the Professional XLR audio input. Audio devices such as microphones and sound mixers are now easily connected.
Seamless Movement
The PTZ3 offers far superior visual quality with much smoother movement between camera presets and an improved lens and sensor meaning this all-new camera is as at home in low light environments like studios as in brighter classrooms or hospitals.
Better Connected Than Ever
Offering Tally, control, power, audio and video all using a single cable, the PTZ3 also includes the latest in NDI with NDI|HX3 and Professional XLR audio connectivity, for the very first time.
| Video Formats | 1080p: 60, 59.94, 50, 30, 29.97, 25, 24 1080i: 59.94, 50 720p: 60, 59.94, 50, 30, 29.97, 25 |
| Lens | 20x Optical & 2x digital zoom |
| Sensor | 1/2.86" CMOS |
| Shutter Speed | 1/30 to 1/10,000 sec |
| Panning Angle | -170° to +170° |
| Tilt Angle | -30° to +90° |

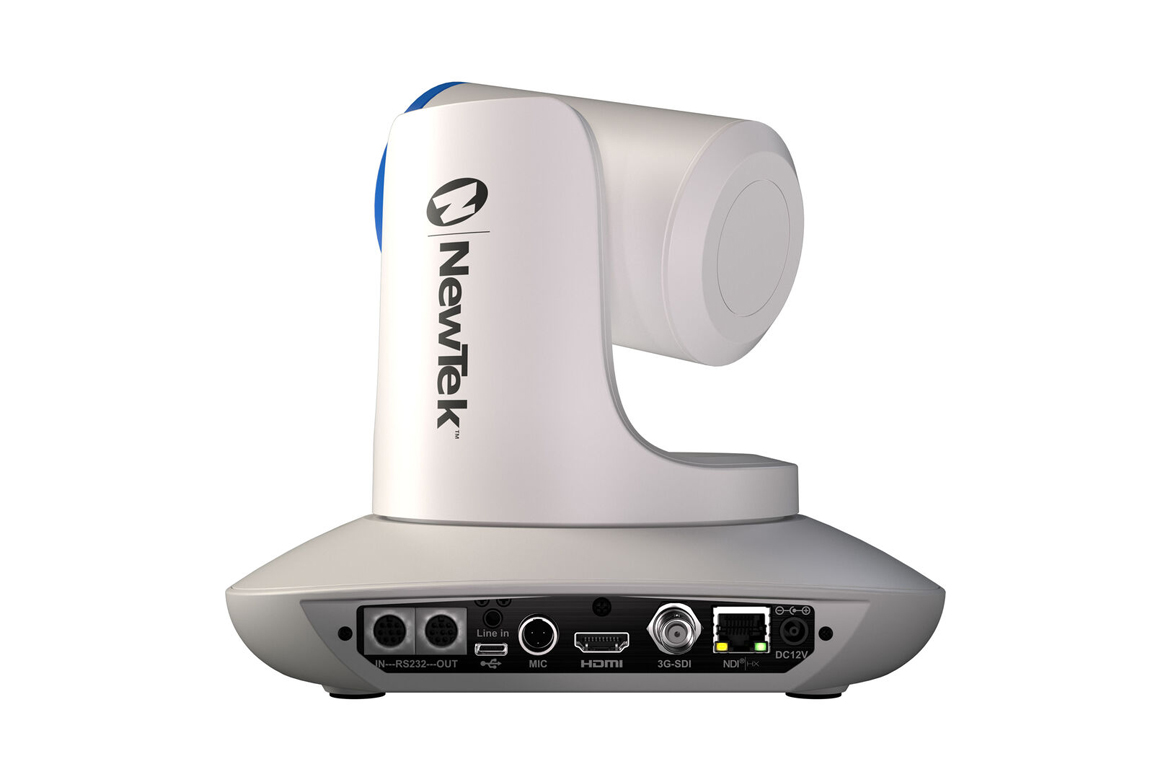

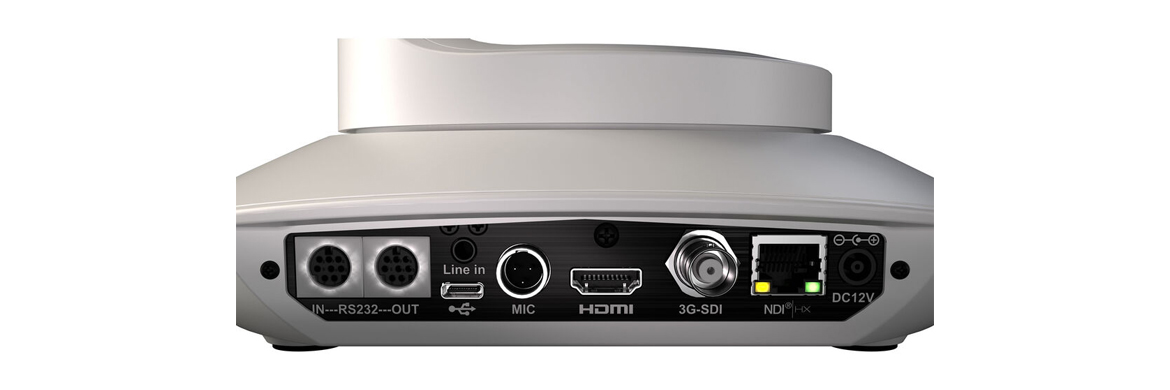

| Audio Input | Mini XLR (mic), 3.5mm stereo audio input (line) |
| Horizontal Viewing Angle | 60°(Far)-3,2°(Near) |
| Focal Length | 4.9~98mm |
| Aperture | F1 ~ F14 |
| Min. Object Distance | (Tele) 1.5M |
| Min. Illumination | 1.0 lux |
| Tally | Supported |
| User Interface | Web based or NewTek NDI® Studio Monitor applications for remote configuration, control, and monitoring |
| Networking | 1 Gigabit Ethernet |
| Control | NDI |
| Power | POE+ (IEEE 802.3 at) or DC12V Power Supply |
| Physical | Dimensions: 8.66 x 7.48 x 6.41 in (220 x 190 x 173 mm) Weight: 2.97lbs (1.35 kg) |
| Video S/N Ratio | > 50dB |
NDI. Better.
- NDI|HX PTZ3 is the world’s first camera to offer NDI|HX3. Delivering better video with reduced latency – using a fraction of the bandwidth.
Audio. Better.
- Better than ever audio is now possible with the Professional XLR audio input available in the NDI|HX PTZ3 Camera.
Connect. Better.
- The NDI|HX PTZ3 can be added into a workflow with one ethernet cable for audio and video, PTZ control, tally and PoE for power.
