Product Highlights
- Multi-channel video translation for delivery to compatible destinations and devices with near-zero latency
- Stackable, scalable architecture supporting systematic expansion and strategic deployment
- Fully equipped for facility installation with low-profile 1RU chassis, industry-standard hardware, and redundant power
- Designate for any supported I/O combination, with format and resolution independently configurable per channel
- Built-in video server function with extensive file format support and full-resolution playback
- Integrated NDI® KVM technology enabling remote module access and control
- Flexible audio integration, to include comprehensive support for Dante™, AES67, and ASIO sound devices
- Overview
- Tech Specs
All-purpose conversion to customize any workflow.

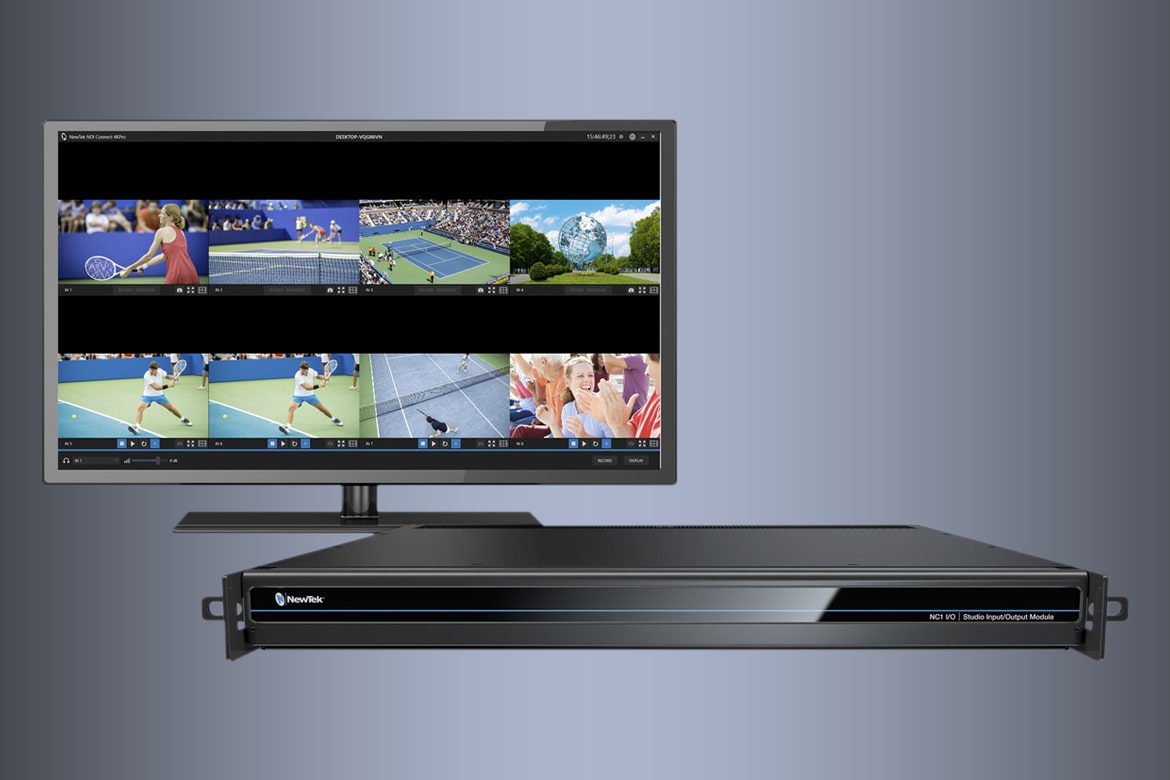

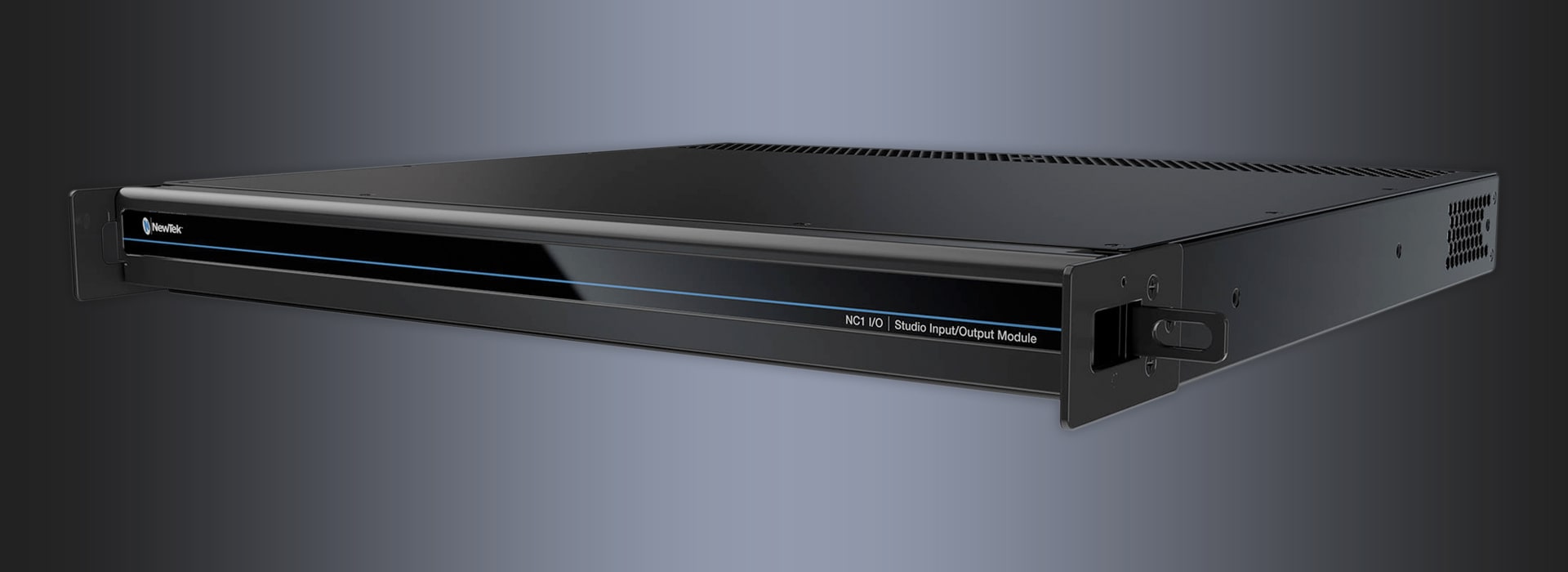

NewTek's NC1 Studio I/O Module is the bridge to your NDI infrastructure. Able to translate up to eight channels of SDI video (two channels in UHD 4K), this NC1 module can be set up anywhere across your network to transmit and receive SD, HD, or UHD video in a studio environment. Eight mini BNC terminals can connect to video sources, audio sources, decks, or monitors, and can each be configured for input or output. Since the module only needs to attach to your network, you can deploy multiple modules in different locations inside your network, instantly integrating that location into your production. Multiview video can also be locally displayed via HDMI or DVI. This unit mounts in a standard 19" equipment rack, so you can add more units for a greater number of inputs and outputs at a given location.
| Interoperability | NDI® and SDI |
| IP I/O | Up to 8x |
| 3G/HD/SD-SDI I/O | Up to 8x via HD-BNC |
| 4K UHD I/O | Up to 2x via quad-link 3G-SDI |
| Media Playback Channels | Up to 8x |
| Recording Channels | Up to 8x SDI Inputs Only |
| Supported Video Formats |
|
| Audio I/O | Up to 8x SDI embedded |
| Audio Networking |
|
| Signal Monitoring | Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709 |
| A/V Standards |
|
| Video Processing | Floating Point, YCbCr +A 4:4:4:4 |
| Audio Processing | Floating Point, 96 kHz |
| Genlock | Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals |
| Multiviewer | 1x HDMI or DisplayPort |
| NIC | 2 x 1 Gigabit NIC |
System Physical
- 1RU chassis with 280W redundant PSU
- 19.0 x 1.75 x 16.75 in (48.3 x 4.5 x 42.5 cm) with rack ears attached
