Simply. Better.

No single integrated system offers a more complete set of real-time capabilities, or—combined with the NewTek live production systems - a more complete, cost-effective, end-to-end production workflow for IP based live event production.

Replay. Better.

More channels, More moments, every last second of action.

Work. Better.

Teamwork isn't limited to the game; unrivalled connectivity and collaboration with industry leading tools.

Quality. Better.

You never have to drop the ball on quality; all the action and no compromise.

Why 3Play 3P2?

A complete, cost-effective, IP based live event production and replay system that takes advantage of software-driven video technology and modern networking to provide users with comprehensive capabilities, increased scalability and flexibility.

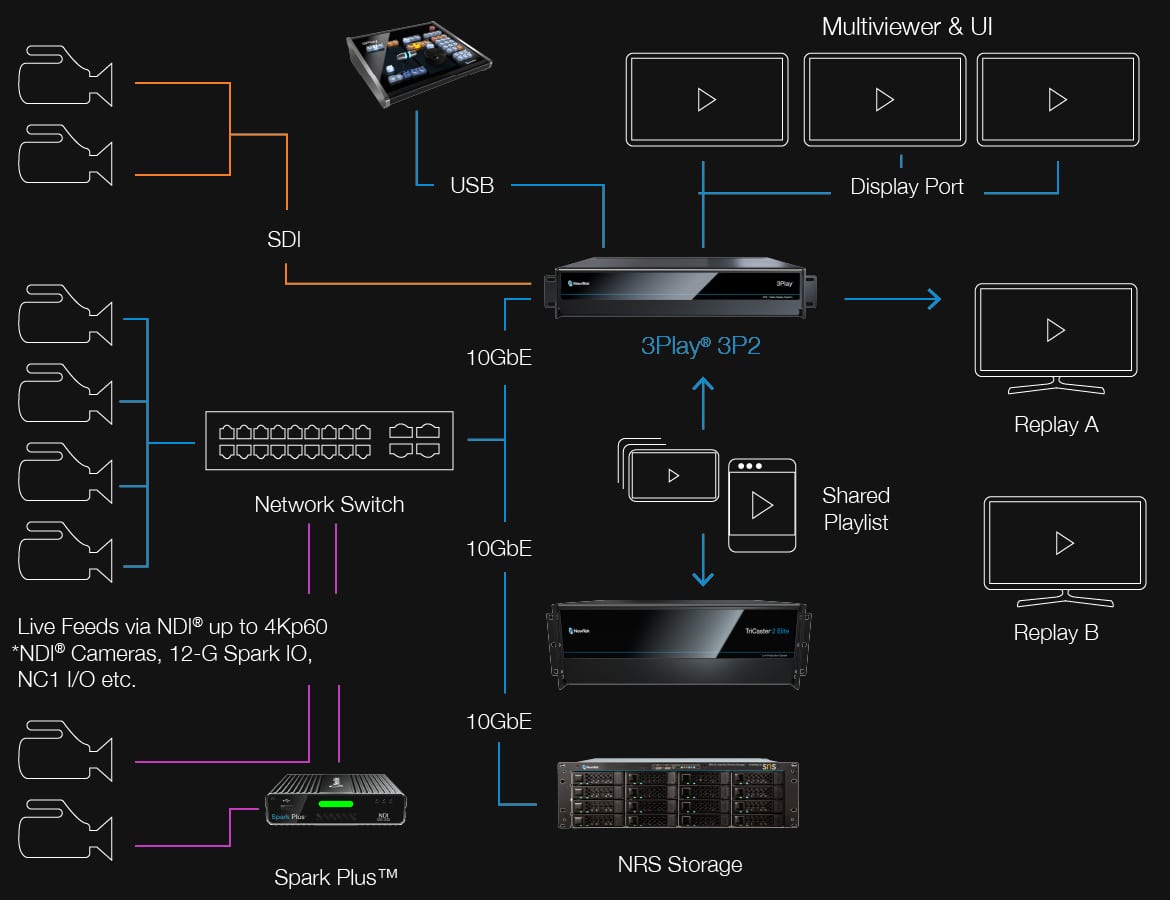

The Ultimate in Connected Production Workflow

Combined with NewTek’s industry-leading live production systems and control surfaces, 3Play^® 3P2 offers the most complete, cost-effective, end-to-end IP based live event production workflow ever available from a single solution supplier.

IP and SDI Production

3Play^® 3P2 is a 10-channel replay solution, offering and mix of 8 inputs via NDI®, 4 inputs of SDI, and 2 outputs of SDI or NDI®. In addition, a single quadlink SDI output is available for 2160p UHD output. 3Play 3P2 gives championship-level connection with any workflow.

Shareable Playlist

3Play^® 3P2 really is a team player, for the first time, it allows 3P2 and TriCaster^® devices to access shareable playlists; operators can simply sync the entire playlists on the network which can be tagged with player names or numbers.

Dual-Channel First Replay Telestration

Playback Zoom & Tracking

Give fans the best view of every critical and controversial plays—in real time, slow motion, or frame-by-frame. Quickly zoom in and out of replays to enrich the playback during live fast action games. 3Play^® 3P2 gives operators ultimate control.

Automatic Session Clean-Up

3Play^® 3P2 now offers operators the opportunity to manage their storage space by auto exporting marked clips, and when finished, delete unprotected sessions. This saves operators critical time and mitigate risk in production with intelligent drive management that runs behind the scenes.

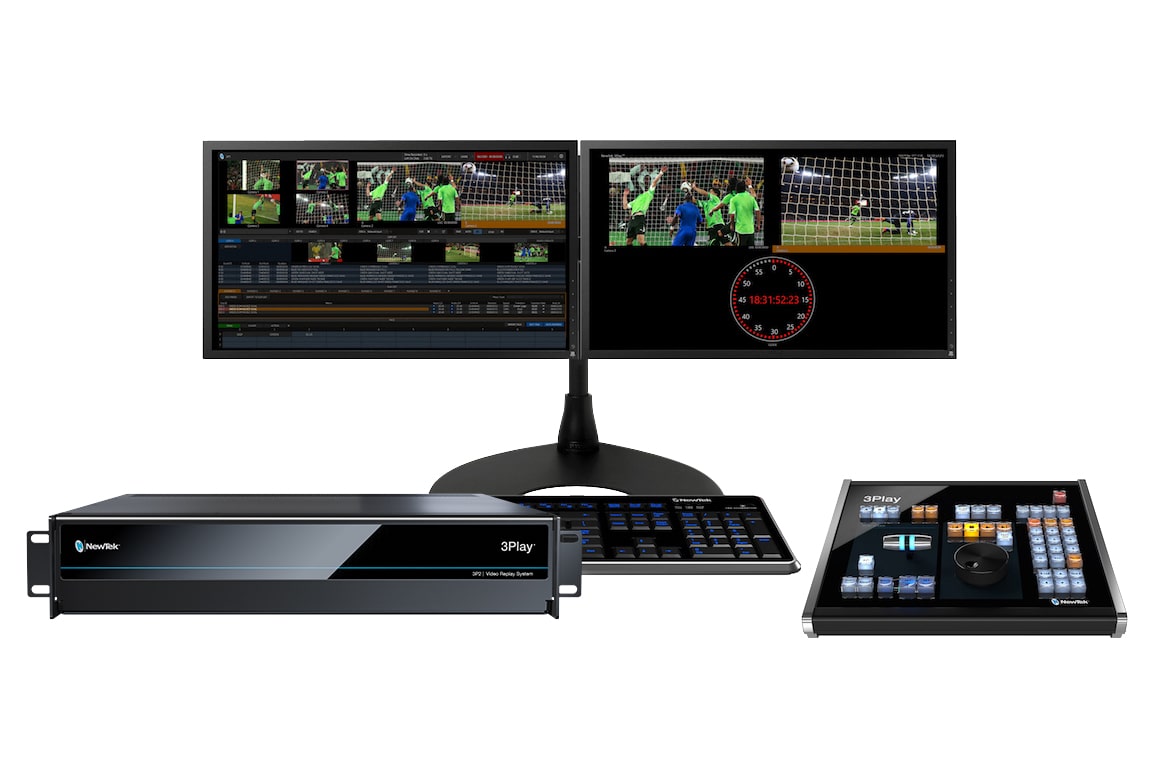

Control. Better.

3Play^® 3P2 allows operators to tailor their workspace to ensure they never miss a moment.

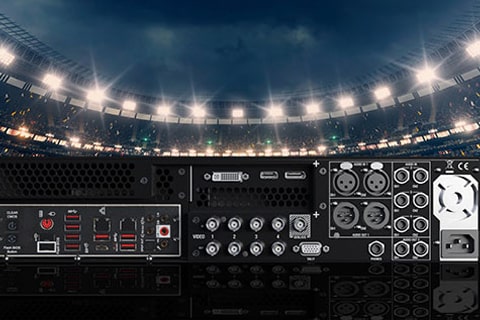

Network Video Input	8 x resolution-independent IP video inputs via NDI®
SDI Video Input	4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates 1080p: 59.94, 50, 29.97, 25 1080i: 59.94, 50 720p: 59.94, 29.97, 25 576i 50 480i 59.94
Video Output	2 x session-format video outputs, with simultaneous delivery via IP and SDI
Network Video Output	2 x session-format IP video outputs via NDI®
SDI Video Output	2 x 3G/HD/SD-SDI connections. 4 BNC connectors that can be either 3G-SDI Output A 3G-SDI Output A 3G-SDI Output B 3G-SDI Output B or 1x UHD 2160p output via quad-link – Output B
Multiviewer Output	1 x DVI user interface with multiviewer 1 x HDMI multiviewer 1 x DisplayPort multiviewer
Recording	8 x simultaneous recording channels
Recording Format	QuickTime® SpeedHQ (4:2:2 encoding, 32-bit audio)
Storage	10TB internal drive (capacity varies by format, resolution and file specification)
Grab	Grab full-resolution, deinterlaced still images from inputs and outputs
Export	Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK	1 x DSK channel per output, with independent source selection and transition
Transitions	Supports custom transitions between output channels and playlist clips
Telestration	Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management	Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input	4 x SDI embedded 1 x Balanced XLR stereo pair (Line) 3 x Balanced 1/4” stereo pairs (Line)
Local Audio Output	4 x SDI embedded 1 x Balanced XLR stereo pair 1 x Balanced 1/4” stereo pair 1 x Stereo 1/4" (phones)
Network Audio	Native support for network audio input and output via NDI®
Processing	Video: Floating Point YCbCr +A 4:4:4:4 Audio: Floating Point, 96 kHzg
A/V Standards	3G-SDI video conforms to SMPTE 424M (Level A) HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155
Genlock	Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros	Record, store, edit, and automate commands and user-configured operation sequences including support for cross-platform automation between supported systems
AMP	Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI	Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI	Support for standard MIDI protocol enabling third-party device control
System Drive	5 x 2TB SSD configured in RAID 0 Capacity: 10 TB
NIC	1 x 10 GbE NIC & 1 x 1 Gigabit NIC
