UA Bock 187
Universal Audio

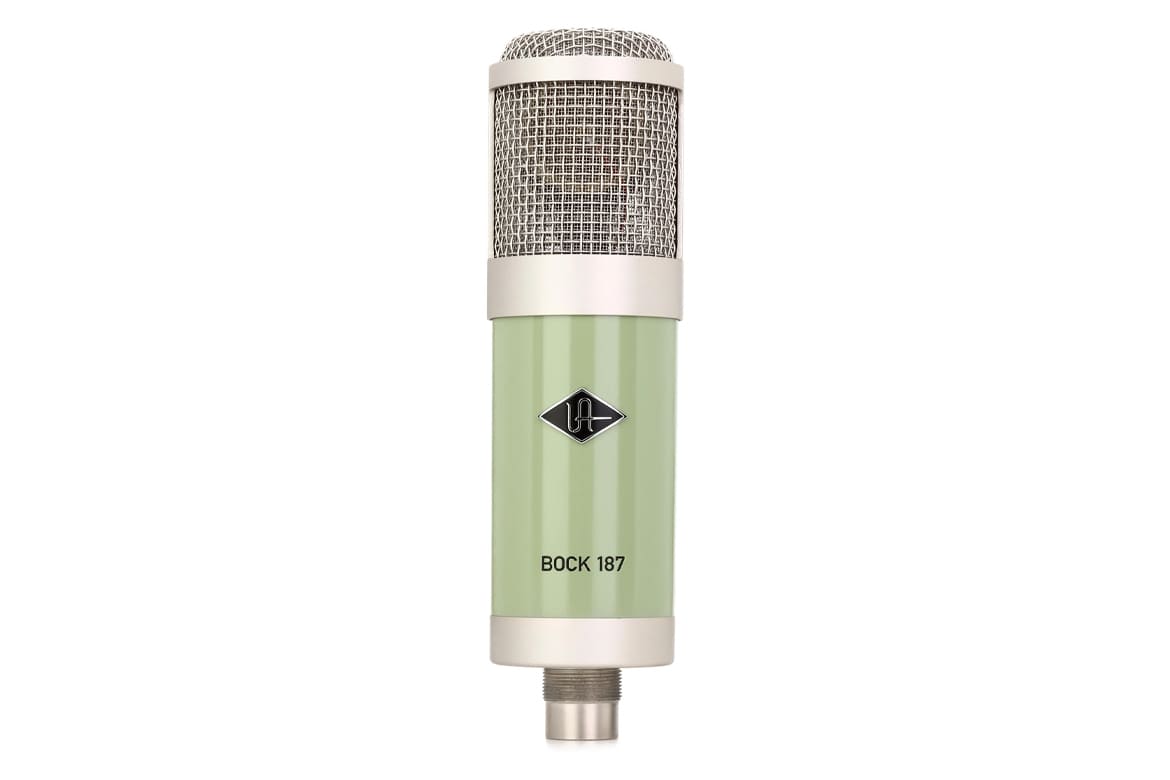

UA Bock 187 With Hemisphere Mic Modeling

Do it all with a Classic Mic that Never Leaves your Mic Stand
Product Highlights
  • Premium large-diaphragm cardioid FET studio condenser mic, lovingly handmade at the UA Custom Shop in Santa Cruz, California
  • Iconic, "golden unit" mic sounds with modern enhancements by David Bock
  • Minimalist Class A FET circuitry
  • Large Cinemag output transformer for rich bass and increased low-frequency headroom
  • "Fat" mode provides low-end boost between 10 Hz and 400 Hz
  • Lo-cut (120 Hz), Pad (-10 dB)
  • Frequency Response: 20 Hz - 16 kHz, ±2 dB
  • Max SPL: 125 dB SPL, 1% THD
  • Requires 48v phantom power
  • Premium wood storage case

  • Overview
  • Tech Specs

Easily capture tom drums, guitar cabs, horns, and more with natural open tone. A classic dynamic mic with high SPL handling, hypercardioid polar pattern, and best-in-class Hemisphere mic modeling — SD-7 gives you pro sound with precision, in any environment.

A Modeling Mic That Works for You
SD-7 and the included Hemisphere Mic Collection software work with or without UA hardware, and go way beyond subtle EQ curves to give you precise control over filter, proximity, and axis — an industry first. Just set up SD-7 and use the plug-in to quickly find that “sweet spot” for a guitar amp, or make horns pop through the mix.

Easily Capture Your Best Sounds
We fine-tuned the supercardioid polar pattern on SD-5 for use on stage or in the studio. And with its ultra-high SPL capability and exceptional isolation, you’ll capture all the thump, tone, and transients in your instrument without bleed from other sources.

Add a Pro Mic with Vintage Style
With all-metal construction, retro styling, and hand-selected capsules, SD-5 gives you a trusted companion to reliably capture valuable low-end frequencies for decades of solid performance.

Discover Your Best Sounds
From a rowdy stage to a quiet studio, SD-7’s ultra-high SPL capability makes it a perfect choice for loud, transient-rich sources. And thanks to its hypercardioid polar pattern, you're able to back the mic away for added "air" without sacrificing isolation.

Add a Pro Mic with Vintage Style
With rugged all-metal construction, cool retro look, and hand-selected capsules, SD-7 gives you a trusted companion, reliably capturing your sources for a lifetime of professional performance.

Microphone Type FET Condenser
Polar Pattern Cardioid
Capsule 1” diameter
Dual symmetrical backplate
Dual diaphragm K67 type
Maximum SPL 125 dB SPL, 1% THD
Adjustable Control PAD (-10 dB): Off/On
MODE: Fat/Normal
LOCUT: Off/On
Frequency Range 20 Hz - 16 kHz +/- 2 dB
Sensitivity -42 dB (8 mV) ref 1V at 1 Pa, 1 kHz
Output Impedance 200 Ohms
Recommended Load Impedance > 2K Ohms
Dynamic Range 113dB
Signal-to-Noise Ratio 82 dB
Power Phantom Power
48 VDC, 0.5 mA typical
Connectors 3-Pin XLRM

Dimensions
  • 2" x 7.7"

Weight
  • 1.6 lbs.
