Sonnet Echo™ 13 Thunderbolt™ 5 SSD Dock delivers next level storage performance — 6000 MB/s with Thunderbolt 5 computers, 3400 MB/s when used with a Thunderbolt 4 or 3 computer — with your choice of pre-installed Kingston® M.2 NVMe® SSD storage. Connections? Echo 13 has you covered with four Thunderbolt 5 ports, four USB-A ports, one 2.5Gb Ethernet port, one headphone jack, SD and microSD card slots, plus 8K display support.

Plug In

Your Peripherals and Power Your Computer with One Cable
Connect your Thunderbolt devices, monitor(s), USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? Echo 13 Thunderbolt 5 SSD Dock will even power it with up to 140W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

Thunderbolt 5

Tomorrow’s Performance. Today.
Echo 13 Thunderbolt 5 SSD Dock features the connections you expect from a Thunderbolt dock plus the ridiculously fast SSD storage you need. Transform a single cable connection from your computer into three Thunderbolt 5 peripheral ports. With up to 80Gb/s of bi-directional data speed — twice as fast as Thunderbolt 4 — and up to 120Gb/s for higher display bandwidth, you'll revolutionize your productivity.

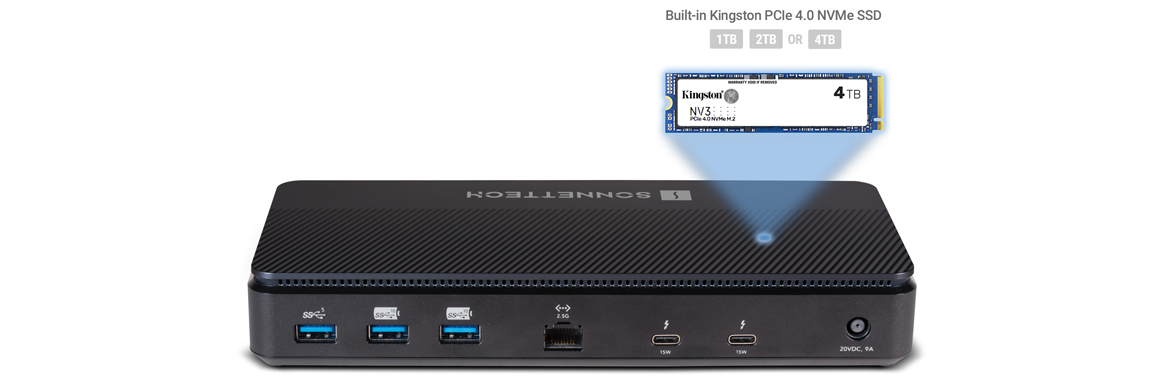

Internal SSD

M.2 NVMe Storage
The built-in M.2 NVMe SSD adds an additional 1TB, 2TB, or 4TB Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD storage capacity to your system without the need to connect another device to the Echo dock or the computer. Access data at up to 6100 MB/s — ideal for pro content creation and application storage — and effortlessly store large files, media libraries, or your Time Machine® backups.

Faster

Ethernet Transfers Across Existing Cabling
Featuring 2.5 Gigabit Ethernet, Echo 13 Thunderbolt 5 SSD Dock supports 2.5Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains — 250 percent the speed of Gigabit Ethernet — without rewiring! In case you’re connecting to a switch or NAS without 2.5Gb Ethernet support, the Sonnet dock also supports 1Gb/s and 100Mb/s link speeds.

Speedy

10Gbps USB Ports for Bus-powered Devices
Echo 13 Thunderbolt 5 SSD Dock features three USB 3.2 Gen 2 (10Gbps) Type A ports — one on the front, two on the back— to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 13 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Thunderbolt Certified for Mac, Windows, ChromeBook, and iPad ProEcho 13 Thunderbolt 5 SSD Dock is certified for use with Apple® M series Mac computers; Thunderbolt 3 Intel® Mac computers; Thunderbolt 5 and most Thunderbolt 4 Windows computers; Thunderbolt 5 and 4 Chromebook computers; and M series iPad Pro tablets. See Tech Specs for current computer and OS compatibility information.

Part Number	ECHO-DK13-1TB5 (with 1TB SSD) ECHO-DK13-2TB5 (with 2TB SSD) ECHO-DK13-4TB5 (with 4TB SSD)
Hardware
Form Factor	Thunderbolt dock
Internal Built-in SSD Storage	Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD Configured with 1TB, 2TB, or 4TB module

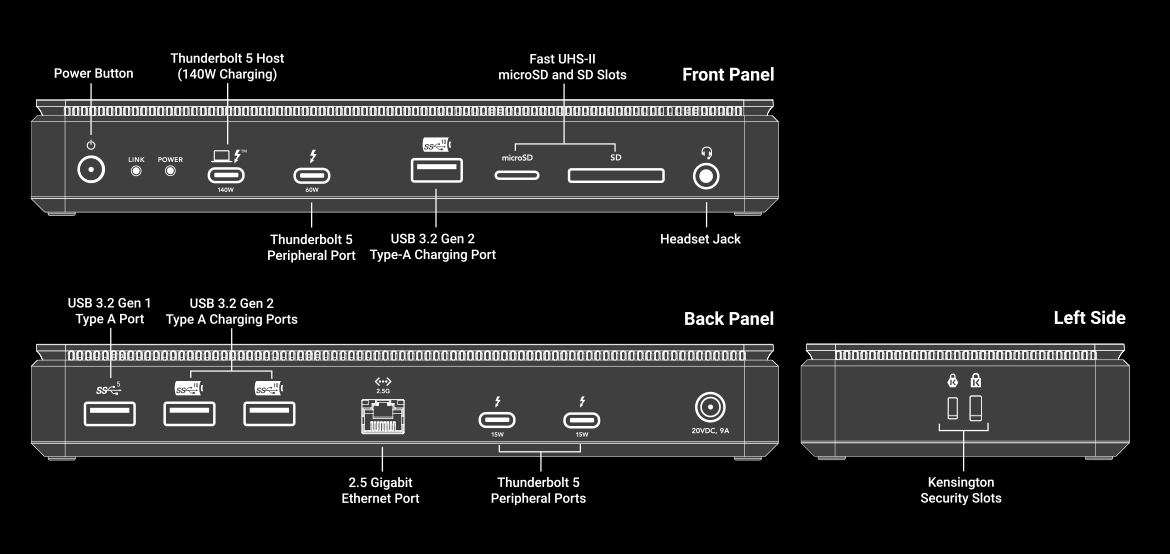

External Connectors	Four Thunderbolt 5 ports Three USB3.2 Gen2 (10Gbps)Type A charging ports USB 3.2 Gen 1 (5Gbps) Type A port RJ45 2.5 Gigabit Ethernet port 3.5 mm combination audio headphone/microphone jack UHS-II SD card slot UHS-II microSD card slot Power connector
Thunderbolt 5 Computer Port	Power Delivery Provides laptop charging up to 140W Cables Supported Any Thunderbolt 5 cable (0.8-meter included)
Thunderbolt 5 Peripherals Ports	Connectivity With USB-C connector Peripherals Supported — Thunderbolt 5 — Thunderbolt 4 — Thunderbolt 3 — USB4 v2 USB4 — All USB 3, 2.0 and 1.1 devices — USB hubs — Thunderbolt 4, Thunderbolt 3, and USB-C monitors — DisplayPort and HDMI monitors Charging (Front Panel Peripheral Port) — 60W capacity to fast charge iPad, iPhone, or other device — USB Type-C charging — Supports simultaneous charging and syncing Charging (Back Panel Peripheral Ports) — 15W capacity each to charge iPad, iPhone, or other device — USB Type-C charging — Supports simultaneous charging and syncing
USB 3.2 Gen 2 Type A Ports	Connectivity — With USB Type A connector Peripheral Supported — USB 3, 2.0, and 1.1 devices — USB hubs Data Transfer Rate — USB 3.2 Gen 2 (previously USB 3.1 Gen 2): 10Gbps Charging — 7.5W capacity to charge iPad, iPhone, or other device — USB Battery Charging 1.2–compliant — Supports simultaneous charging and syncing
USB 3.2 Gen 1 Type A Port (Rear Panel)	Connectivity — With USB Type A connector Peripherals Supported— USB 3, 2.0, and 1.1 devices — USB hubs Data Transfer Rate — USB 3.2 Gen 1 (previously USB 3.1 Gen 1, USB 3.0): 5Gbps
RJ45 (Ethernet) Port	Network Support— Supports 2.5GBASE-T, 1000BASE-T, and 100BASE-TX network speeds and Auto-MDI/MDI-X Standard— Compliant with 802.3bz-2016 and 10/100/1000 IEEE 802.2 Specifications Packets — Maximum packet size: 9000 bytes (Jumbo packets) Chip — Realtek RTL8156B
SD and microSD Card Slots	Cards Supported SD, SDHC, SDXC microSD, microSDHC, and microSDXC
Power Delivery	Provides laptop charging up to 140W
Power Adapter	Universal 180W, 100-240V AC, 50-60 Hz
Operating Temperatures	0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH)	Dock: 8.7 x 3.8 x 1.3 in. (22.0 x 9.7 x 3.4 cm) P ower Supply: 3.2 x 6.6 x 1 in. (8.2 x 16.8 x 2.6 cm)
Weight	Dock and Power Supply: 1.75 lbs (0.8 kg) Complete Package: 2.65 lbs (1.2 kg)
