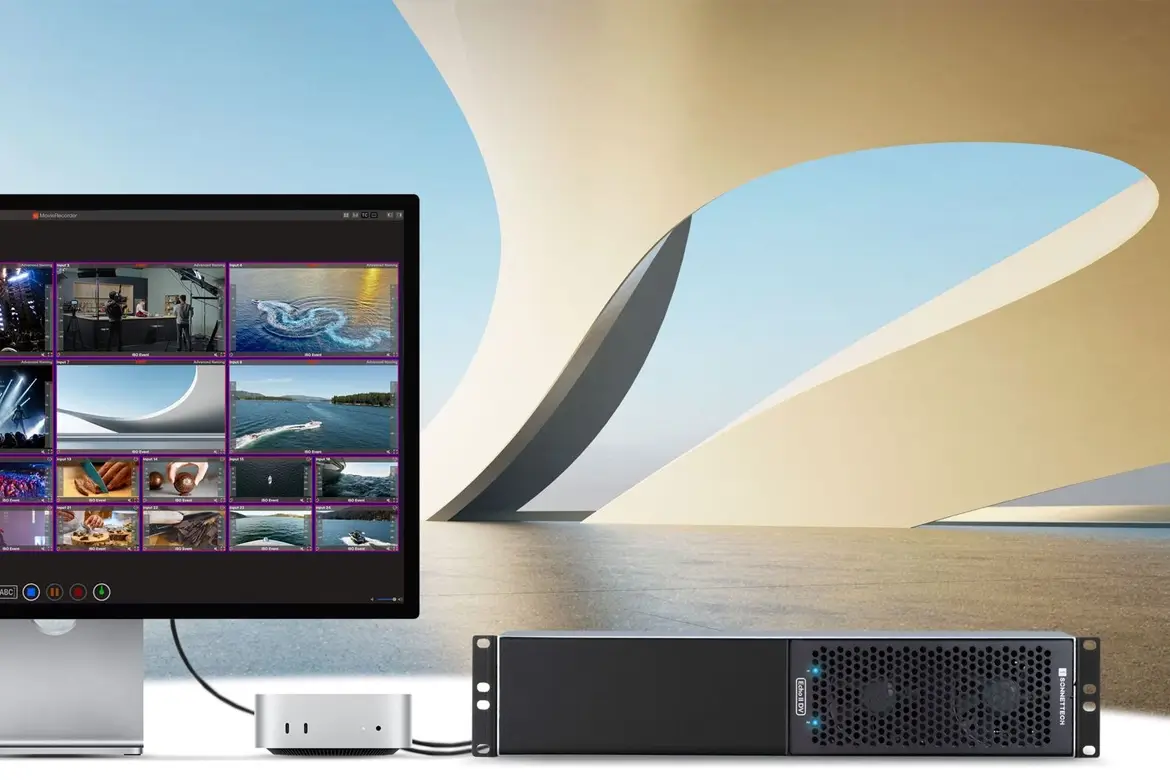

Create a Broadcast Studio in a 2U Rack Space

Run Two High-bandwidth Cards at Full 6000 MB/s – Simultaneously
Do you use one of the hot new laptops or mini desktops with ultra-high-performance Thunderbolt™ 5 ports in your creative pro workflow? Without PCIe expansion slots, those computers’ onboard processing power alone is probably not enough to get your job done. You still need the specialty cards that add needed video and audio I/O, transcode data, and connect to high-speed networks and shared storage.

Sonnet Echo™ II DV T5 Rackmount eliminates the limitation. This professional Thunderbolt 5 to PCIe card expansion system connects two full-length, single-width PCIe cards to your computer, each to a separate Thunderbolt port for maximum bandwidth to each card — it’s the ultimate solution for connecting cards with high bandwidth requirements.

2x 6000 MB/s

Specially Designed to Support Maximum Performance from Two Cards

Two PCIe 4.0 Card Slots. Dual Thunderbolt 5 Interfaces for Double the Bandwidth.
Some of the latest computers — including MacBook Pro (M4 Pro/M4 Max) , Mac mini (M4 Pro), Mac Studio (M3 Ultra/M4 Max), and select Windows PCs — offer multiple Thunderbolt 5 ports, each with its own independent bus delivering 6000 MB/s of PCIe bandwidth. Echo II DV T5 Rackmount is designed to fully exploit that speed. Instead of sharing bandwidth across slots, it uses a dedicated Thunderbolt 5 interface for each slot, delivering full PCIe bandwidth to both cards at the same time. This means you can run two high-demand PCIe cards at full performance simultaneously — perfect for DV I/O, ultra-fast NVMe storage, and multi-port 10 and 25Gb Ethernet workflows.

2x the Bandwidth!

Separate Thunderbolt 5 Interface for Each Card Slot
Echo II DV T5 provides full Thunderbolt PCIe bandwidth to each slot when connected to two computer Thunderbolt ports that also provide independent PCIe bandwidth — 6000 MB/s with Thunderbolt 5 computers, and 2880 MB/s with Thunderbolt 4 and 3 computers.

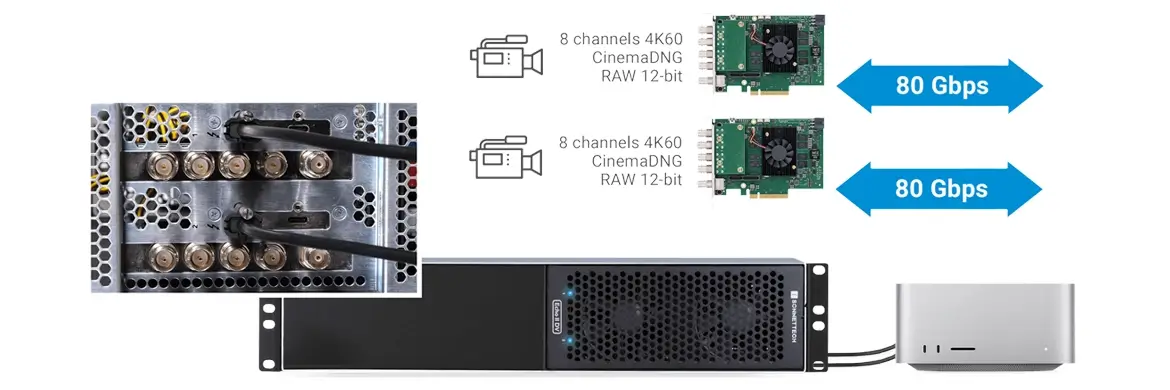

Dual Thunderbolt 5 Ports Connection Option for Maximum Performance

Connect Two DV I/O or Other High-bandwidth Cards Directly to Two Thunderbolt 5 Ports On Your Computer for Full 6000 MB/s PCIe Bandwidth to Each Card

Single Thunderbolt Port Connection Option

Also Works with Computers with Only One Available Thunderbolt Port to Support Two Cards

Performance Meets Possibility

Two PCIe 4.0 Slots and Power to Spare
Echo II DV T5 Rackmount features two x16 PCIe slots with support for a wide variety of cards. For power-hungry cards, Echo II DV T5 integrates a universal 400W power supply and includes dual 75W auxiliary power connectors (one for each card slot) for cards that require extra power, including AJA Kona 5, Blackmagic DeckLink 8K Pro G2 (with main board [SDI ports] only), and Avid Pro Tools | HDX. Designed without a power switch, Echo II DV T5 powers on and off automatically with the connected computer, saving energy in the long run. With no power switch, you can’t forget to turn off the system!

Flexible PCIe Card Support

Supports Thunderbolt Compatible, Single-width, Non-GPU Cards
Echo II DV T5 Rackmount supports Thunderbolt compatible, single-width, non-GPU PCIe 4.0, 3.1, 2.0, and 1.1 cards including video capture, streaming and transcoding; SSD storage; audio DSP; multi-port 10Gb and 25Gb Ethernet; SAS or SATA host bus adapter; and other specialty types.

Not sure if a card you own or are considering is compatible? We’ve put together a compatibility list that identifies many cards conforming to Thunderbolt technology requirements and organized by fit and power compatibility with specific expansion systems.

Expand Without Limits

More Space, More Expansion Potential

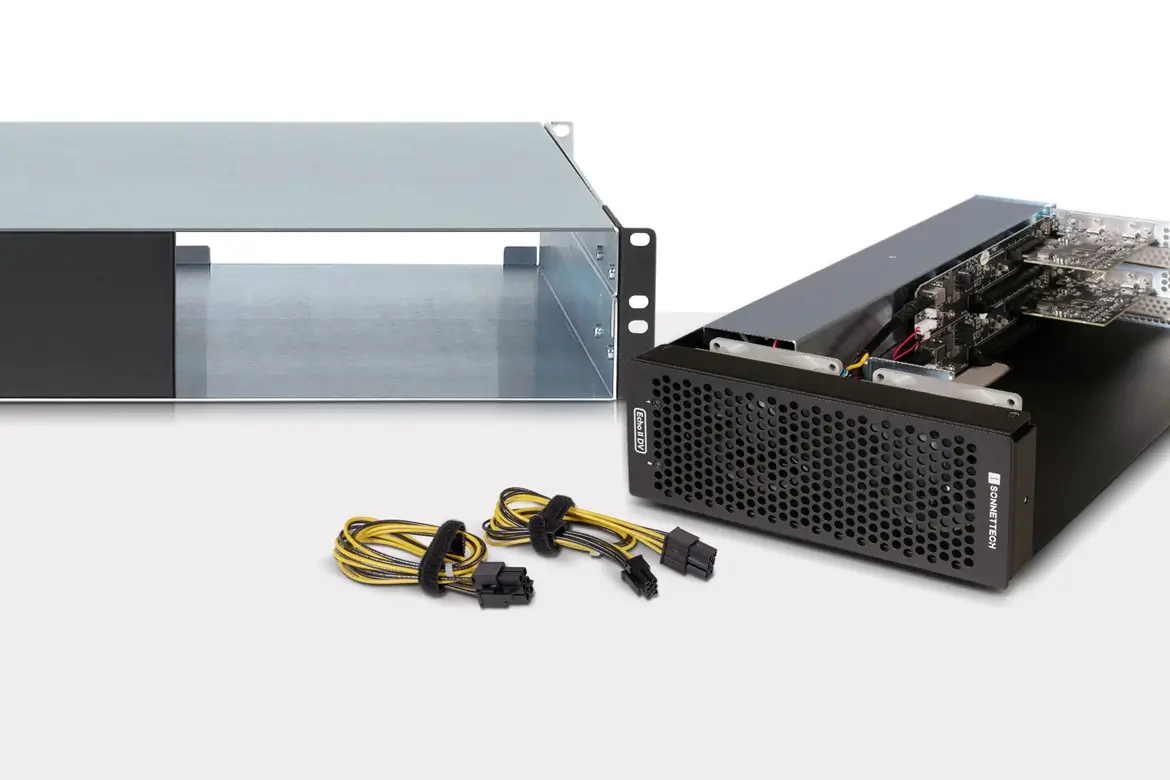

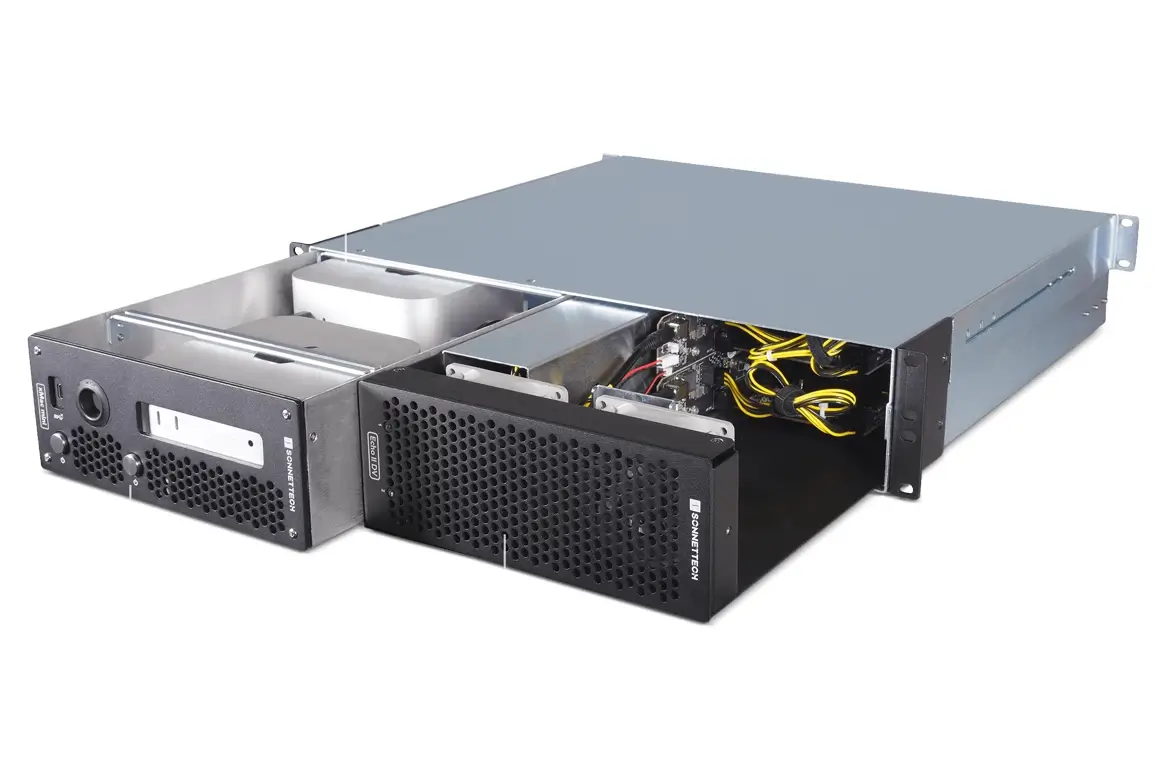

Echo II DV T5 Module — the core component of Echo II DV T5 Rackmount — occupies half of the rackmount enclosure, leaving space for an additional Sonnet expansion module to customize the system for your specific needs. If your computer (such as the M4 Max or M3 Ultra Mac Studio) has four Thunderbolt 5 buses, you can install a second Echo II DV T5 Module to fully harness your system’s capabilities, enabling four high-performance PCIe cards to run at maximum bandwidth. Alternatively, choose the Echo III Module to connect three full-height, full-length cards through a single Thunderbolt cable.

The Coolest Thing In Your Rack

Built for Cool and Quiet Rackable Expansion

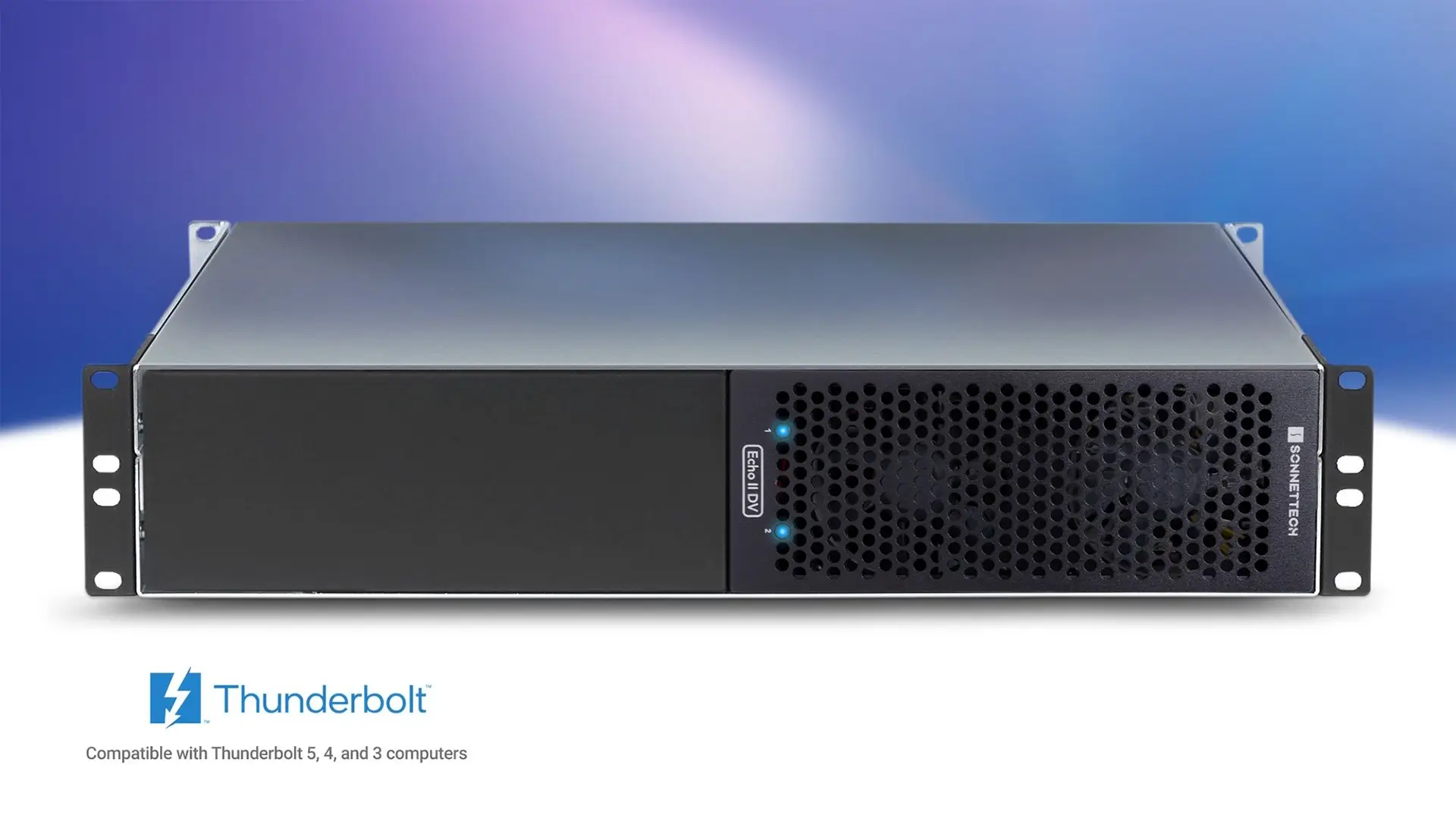

Occupying a rack space 2U tall, the 16.5-inch deep Echo II DV T5 Rackmount is ideal for use in a wide range of popular mobile racks, carts, and rack cases, and in server rooms, too. Its heavy-duty steel enclosure provides secure mounting for the Echo II DV T5 Module and protection for the PCIe cards installed inside, and supports maximum airflow for cooling, regardless of where you install it in a rack.

Dual Noctua Fans

Ultra-quiet Operation
Echo II DV T5 Rackmount can be comfortably used in noise-sensitive environments. Delivering ultra-quiet operation, its dual Noctua fans operate at below the recommended 20dBA limit for recording and broadcast studios and spread their noise across a range of frequencies, reducing the impact at any one frequency. To further guarantee trivial noise levels, the fans are temperature-controlled, automatically speeding up and slowing down smoothly as necessary, and the enclosure supports optimized airflow over the installed cards to effectively and efficiently cool the system.

Secure Connections for High Performance

Thunderbolt 5 Cables and ThunderLoks Included
Sonnet includes two Thunderbolt cables engineered to deliver Thunderbolt 5’s full bandwidth and power delivery performance. The cables are fully compatible with Thunderbolt 5, 4, and 3, and USB4 computers. Three Sonnet ThunderLok Thunderbolt connector locks are also included to prevent accidental cable disconnections.

More Than Just the Fastest External Interface Available

Echo II DV T5 Rackmount features two dual-port, ultra-high speed Thunderbolt 5 interfaces that deliver the PCIe bandwidth needed to support most cards at maximum performance. While two ports are reserved for connecting your computer, the secondary ports enable connection of additional Thunderbolt or USB peripheral devices:

Part Number	ECHO-2RDV-T5
Hardware
Form Factor	2U Thunderbolt rackmount enclosure
External Connectors	Four Thunderbolt ports Power (C14-type)
Thunderbolt 5 Computer Ports	Cables Supported - Thunderbolt 5 or Thunderbolt 4 cables Cables Not Supported - Thunderbolt optical cables
Thunderbolt Peripheral Ports	Connectivity - With USB-C connector Peripherals Supported Thunderbolt 5, 4, 3 devices USB4, 3, 2, 1 devices Thunderbolt 5, 4, 3, and USB-C monitors DisplayPort and HDMI monitors (Thunderbolt compatible adapter required, sold separately)
Internal Connectors	Two 6-pin auxiliary power; provide up to 75W of power each for PCIe cards that require supplemental power
Expansion Slots	Two x16 mechanical (x4 electrical) PCIe 4.0
PCIe Cards Supported	Two full-length, full-height, single-width PCIe cards
Power Supply	Universal 400W, 115-230V AC, 50-60 Hz
Operating Temperatures	0°C to 35°C (32°F to 95°F)
Dimensions (WxDxH)	19 x 16.5 x 3.6 in. (48.3 x 41.9 x 9.1 cm)
Weight	23.15 lbs (10.50 kg)
Compliance	RoHS 3 (Directive 2015/863) IEC62368-1 and IEC62368-2
Package Contents	Echo II DV T5 Rackmount System Region-specific power cable Two 6-pin PCIe auxiliary power cables (installed) Two 0.8-meter Thunderbolt 5 cables Three ThunderLok-A connector locks Documentation
