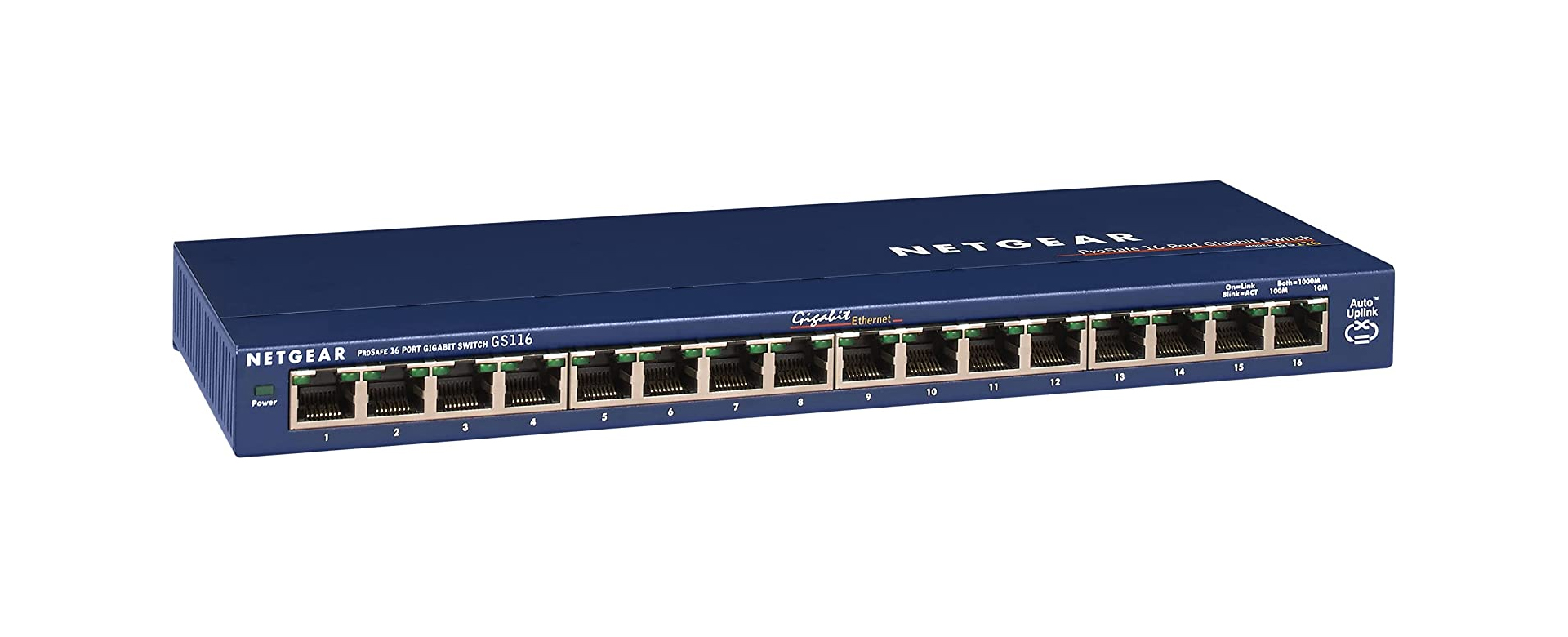

Gigabit 16-port Unmanaged Switch (GS116)
16-Port Gigabit Ethernet Unmanaged Switch
Product Highlights
- 16 Gigabit Ethernet ports
- Simple plug-and-play setup with no software to install or configuration needed
- Supports desktop or wall mount placement
- Energy efficient design compliant with IEEE8023az
- Silent operation ideal for noise sensitive environment
- Overview
- Tech Specs
Get networks up and running with plug-and-play unmanaged switches. Set it and forget it, energy-efficient switches are built like tanks and last for decades.
PLUG & PLAY
- Simple setup with no software or configuration needed
FLEXIBLE MOUNTING
- Mount on rack, desktop, or wall
SMALL SIZE, METAL CASE, AND SILENT OPERATION
- Durable quality, space saver, and quietness for peace of mind
LIFETIME LIMITED WARRANTY & NEXT BUSINESS DAY REPLACEMENT
- NETGEAR has your back to ensure your network is up and running
STURDY METAL CASE, DESKTOP/RACKMOUNT FORM FACTOR WITH QUIET FANS
- Can be placed on desk or on mounted rack and will operate quietly with assured durability
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Desktop or rackmountable
Speed | 10/100/1000Mbps Gigibit Ethernet |
Number of Ports | 16 |
PoE ports | N/A |
Total PoE Budget | N/A |
Loop Detection | N/A |
Short cable power saving | N/A |
Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
Jumbo Frame Support | 9KB |
Queue WRR Ratio | 1:2:4:8 |
MAC Table Size | 8K |
Packet buffer size | 2MB |
IEEE 802.1p QoS | Yes |
Max Power Consumption | 9.5W |
Operating Temperature | 0 to 50° C |
MTBF (hours) | 554,582 |
FCC Class | A |
Dimensions (WxDxH) @mm
- 285 x 102 x 27
Weight (kg)
- 0.896
