Product Highlights
- Plays CD media and digital audio files
- Super-fast loading, slot-in CD mechanism
- Random, repeat and power-on-play playback modes
- Supports removable USB thumb drive
- 3.5mm AUX input for playback of other audio devices

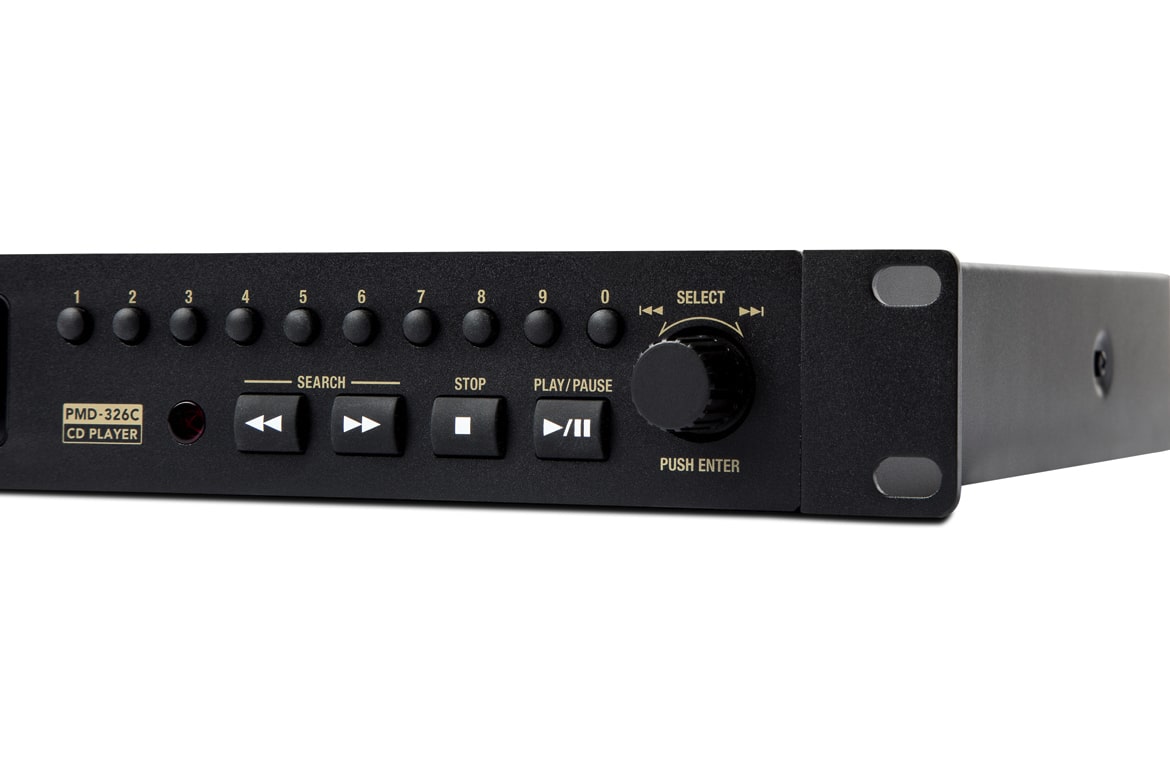

- 10-key direct track access buttons
- IR remote included

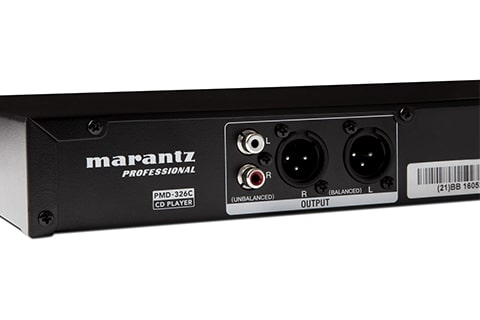

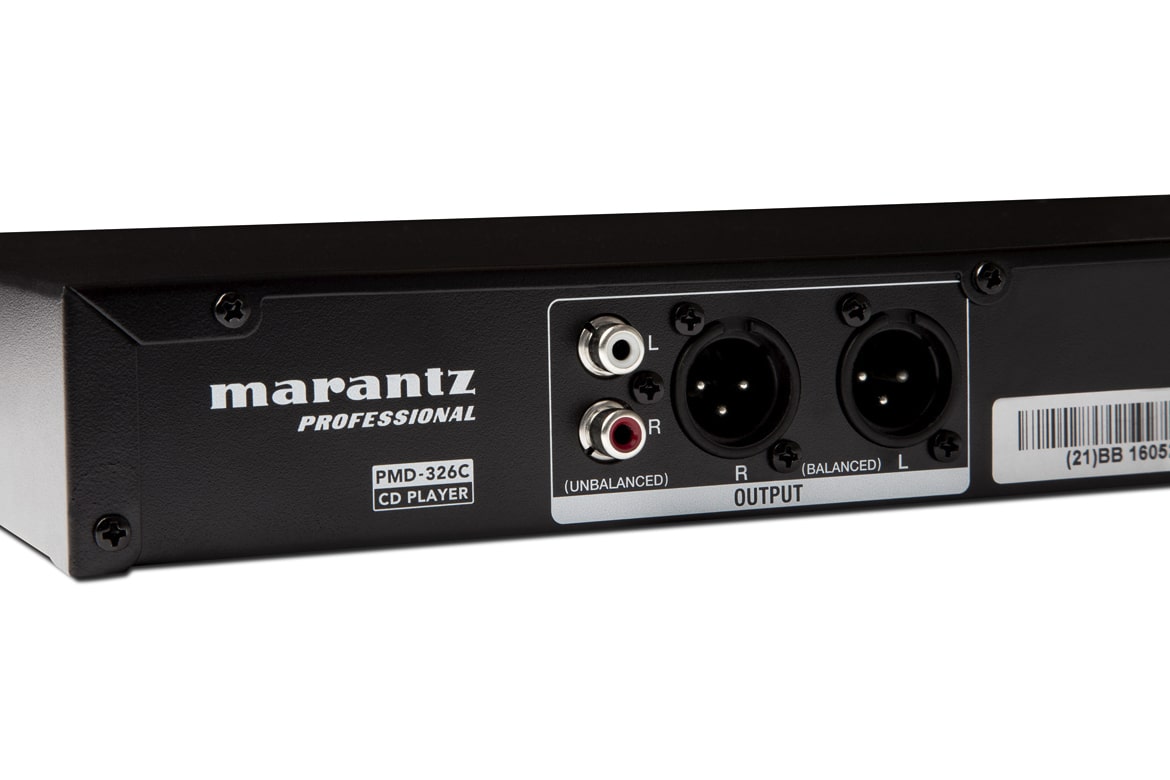

- Balanced XLR and unbalanced RCA line outputs
- Overview
- Tech Specs

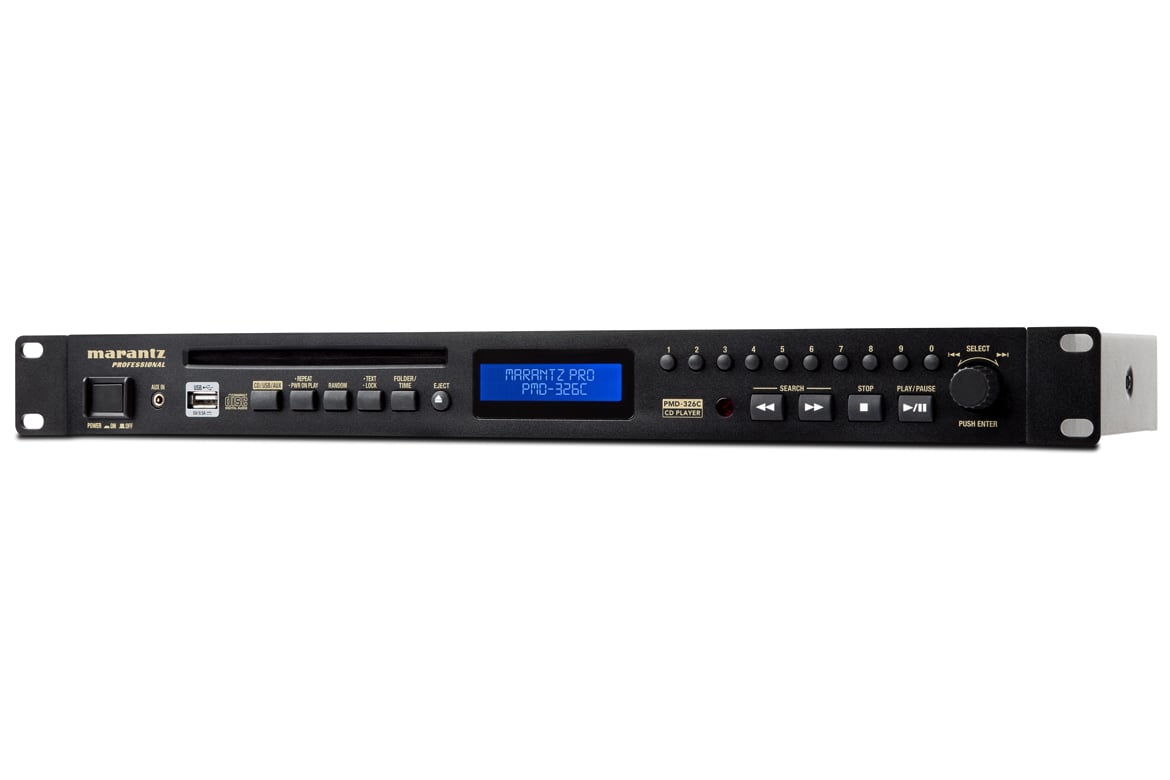

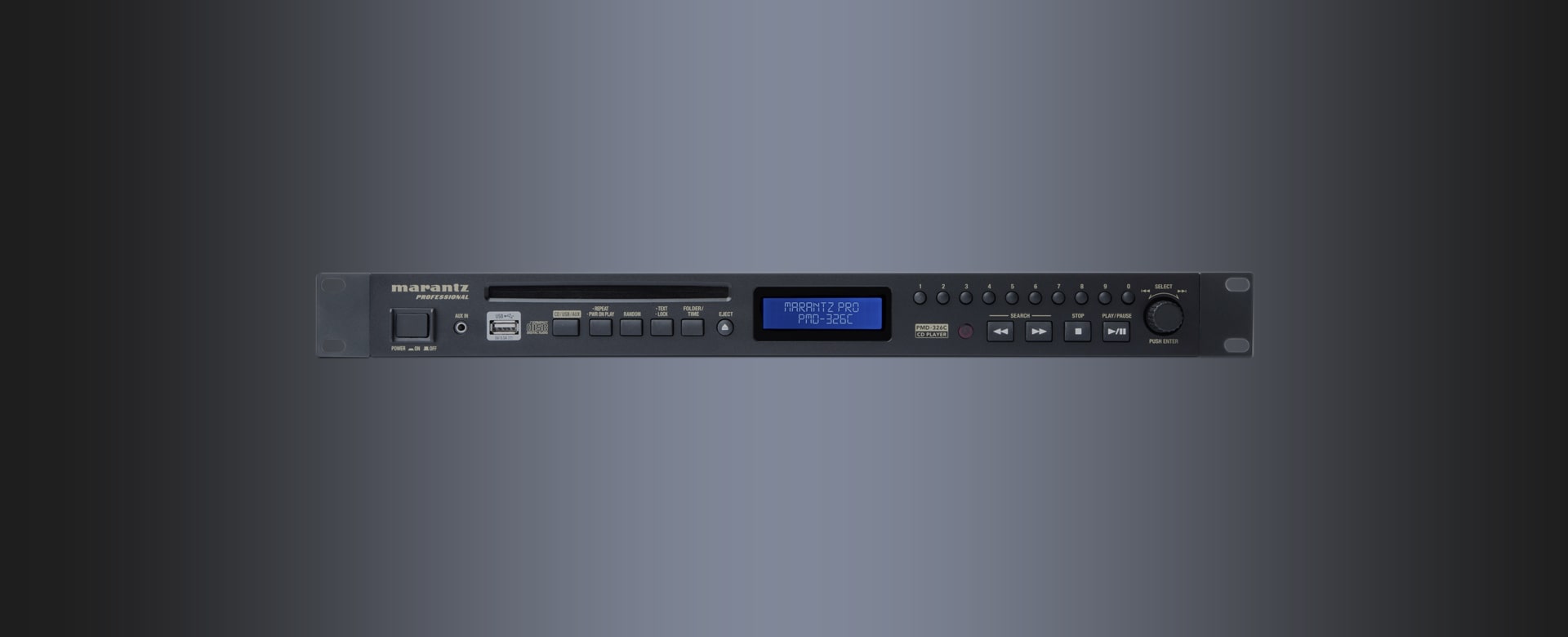

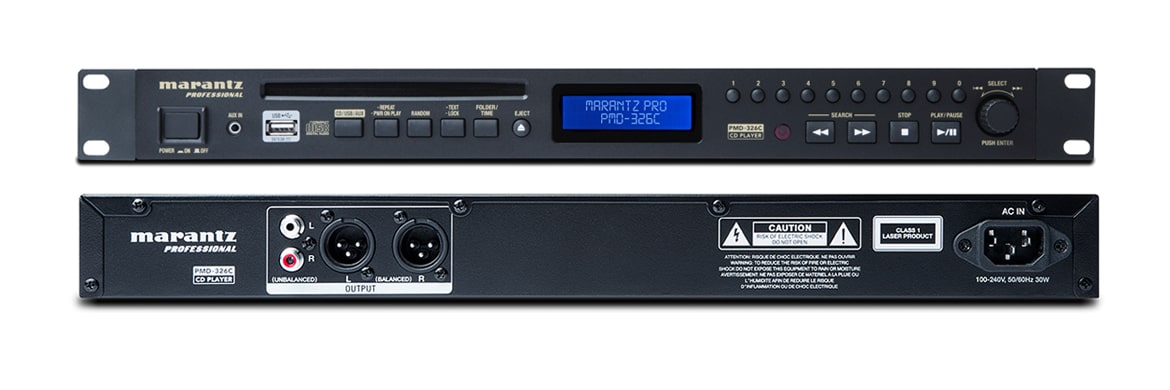

CD/Media Player
The PMD-326C is a high-performance professional CD player with USB and 3.5mm AUX inputs designed for the commercial installation market. The PMD-326C has features normally found on higher-priced players, such as Front Panel Lock, Power On Play, direct access to tracks, memory of settings after loss of power, and balanced XLR output. Ten dedicated buttons on the front panel provide instant access to tracks while a rotary/push knob offers even greater navigation flexibility. This player is perfect for retail, education, and hotel/conference applications.
| Audio Specification | |
| Number of Channels | 2 (stereo), 1 (mono) |
| Frequency Response | 20 Hz–20kHz (± 1.0dB) |
| S/N Ratio | > 95 dB (A-Weighted) |
| Total Harmonic Distortion (THD) | < 0.01% |
| Dynamic Range | > 85 dB |
| Channel Separation | > 80 dB |
| File Systems | |
| CD | CD-DA (CD-TEXT), CD-ROM (ISO9660), CD-R, MP3-CD |
| USB | FAT16 / FAT32 |
| USB Thumbdrive Specs | |
| Max storage capacity | Up to 32 GB |
| Max file size | 2 GB |
| Supported Audio File Formats | |
| WAV files ( 44.1kHz/16-bit ) MP3 files (44.1kHz with sampling from 64 to 320kbit/s) MP2 WMA (without DRM protection) |
|
| Output | |
| Balanced XLR Unbalanced RCA Maximum output level: 3 Vrms |
|
| Input | |
| Aux in | TRS (3.5mm) |
| Input impedance | Over 10k ohms |
| Maximum input level | 1 Vrms |
| Environmental | |
| Operating temperature | 5-35 degrees Celcius (41-95 degrees Fahrenheit) |
| Operating humidity | 25-85%, no condensation |
| General | |
| Dimensions (with rack ears) | 19.00 x 13.66 x 1.73” (483 x 347 x 44mm) |
| Dimensions (without rack ears) | 17.09 x 13.66 x 1.73” (434 x 347 x 44mm) |
| Weight | 7.94 lbs. (3.6 kg) |
- Dimensions (with rack ears): 19.00 x 13.66 x 1.73” (483 x 347 x 44mm)
- Dimensions (without rack ears): 17.09 x 13.66 x 1.73” (434 x 347 x 44mm)
- Weight: 7.94 lbs. (3.6 kg)
