Product Highlights
- Low-mass ribbon diaphragm
- Polar Pattern: Dipole (Figure-of-eight )
- Frequency Response: 20–20kHz ±3dB
- Low-frequency attenuation switch
- Sensitivity: -34dB ±2dB
- Output Impedance: 200Ω
- Max SPL: 135dB
- S/N Ratio: 79dB
- Phantom Power Requirement: 48VDC

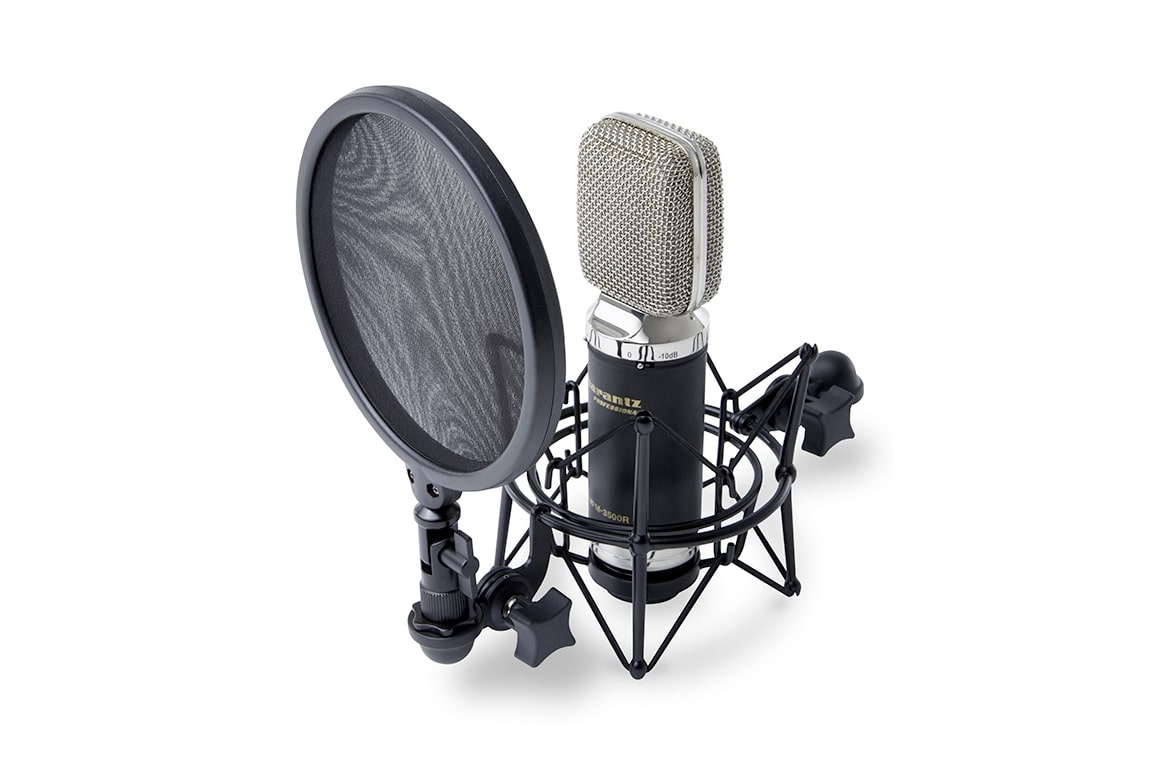

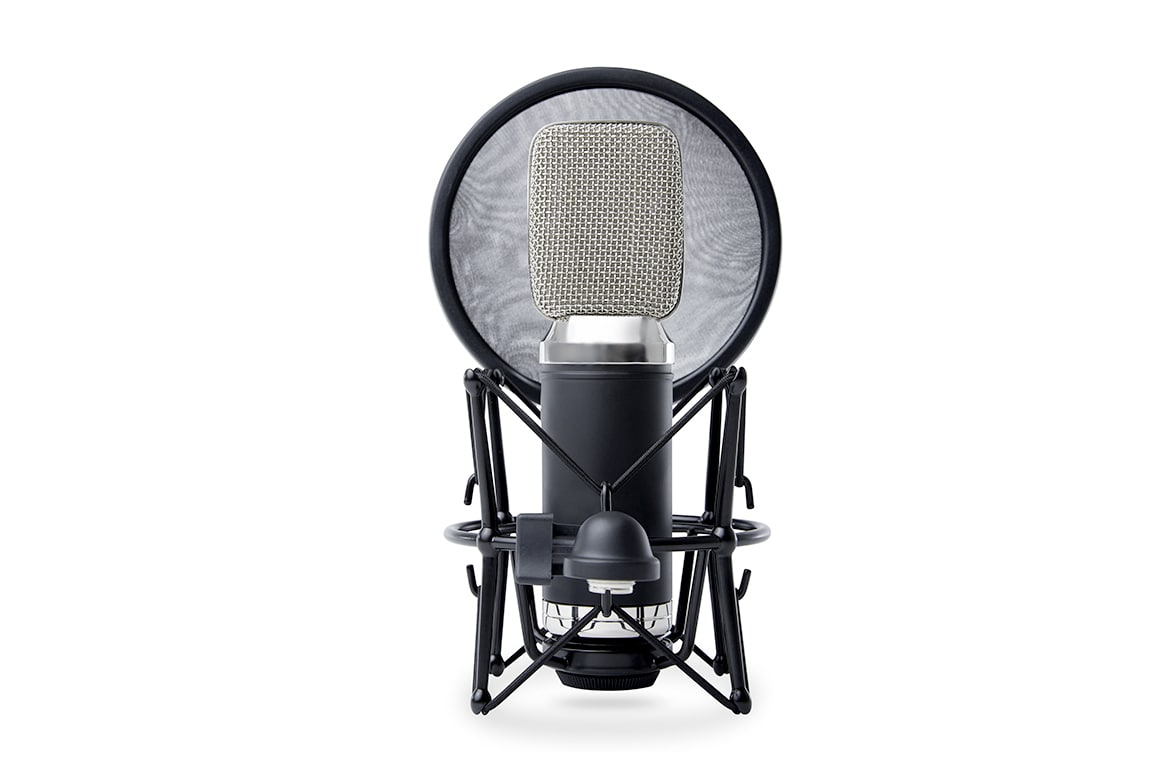

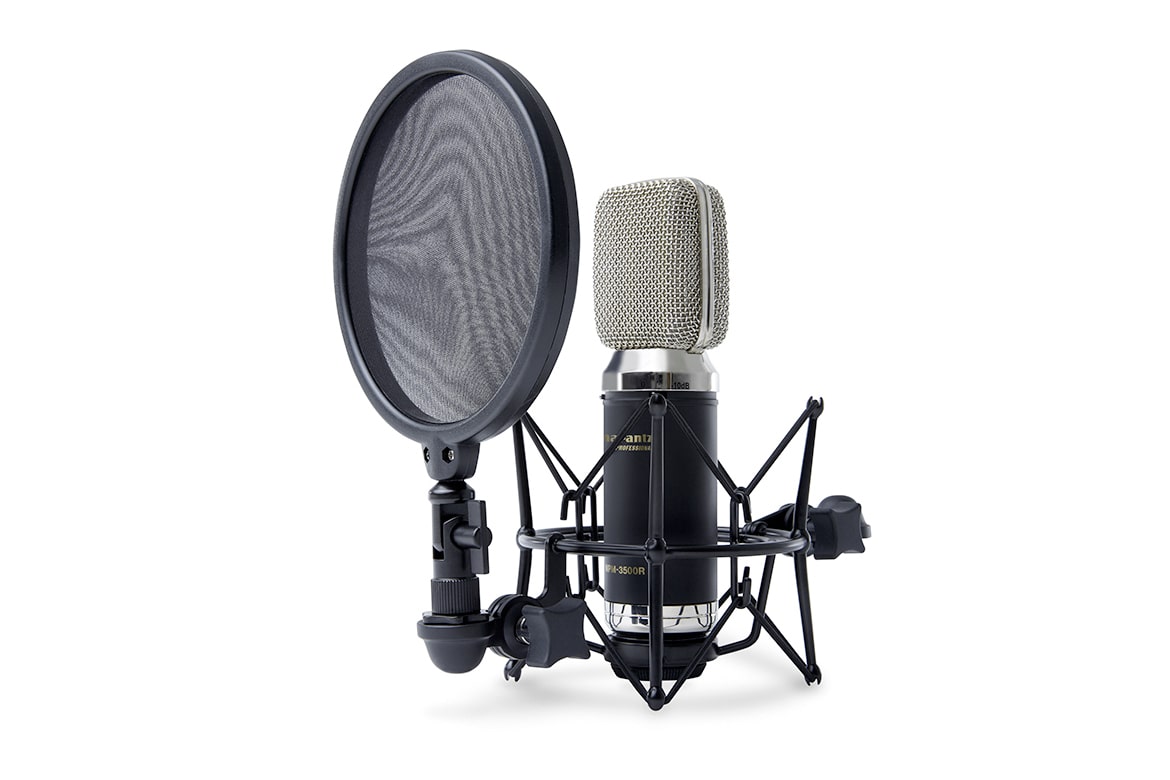

- Integrated pop filter and shock mount
- Overview
- Tech Specs
Ribbon Microphone with Ultra Low-Mass Diaphragm
The MPM-3500R is a high-quality ribbon microphone that faithfully captures every sound from the subtle nuances of stringed instruments to rock vocals and percussion. Superbly designed and crafted with high-grade components, the result is a durable microphone with high sensitivity, low noise and wide dynamic range. Its dipole (figure-eight) pickup pattern enables it to be placed between instruments and capture both equally.
The MPM-3500R’s low-mass ribbon pick-up diaphragm is specially designed to resolve the extremely subtle details often missed by conventional microphones, yet it remains warm-sounding and natural—never harsh or strident—resulting in a particularly vibrant, lifelike recording.
| Element | Ribbon |
| Polar pattern | Dipole (figure-eight) |
| Frequency response | 20-20,000 Hz |
| Sensitivity | -34dB ±2dB (0dB=1V/Pa @ 1kHz) |
| Impedance Output | 200Ω ±30% (@ 1kHz) |
| Load | >1kΩ |
| Self noise | 15dBA |
| Max. SPL | 135dB (THD <1% @ 1kHz) |
| Signal to Noise ratio | 79dB |
| Phantom power requirement | 48VDC, 3mA |
| Low frequency attenuation | -10dB pad |
Dimensions
- 8.07" x 1.97" x 2.09" (205 x 50 x 58mm)
Weight
- 1.08lbs (490g)
