Lynx HILO [TB] (Silver)
- Overview
- Tech Specs
Reference A/D D/A Converter System with LT-USB USB Card

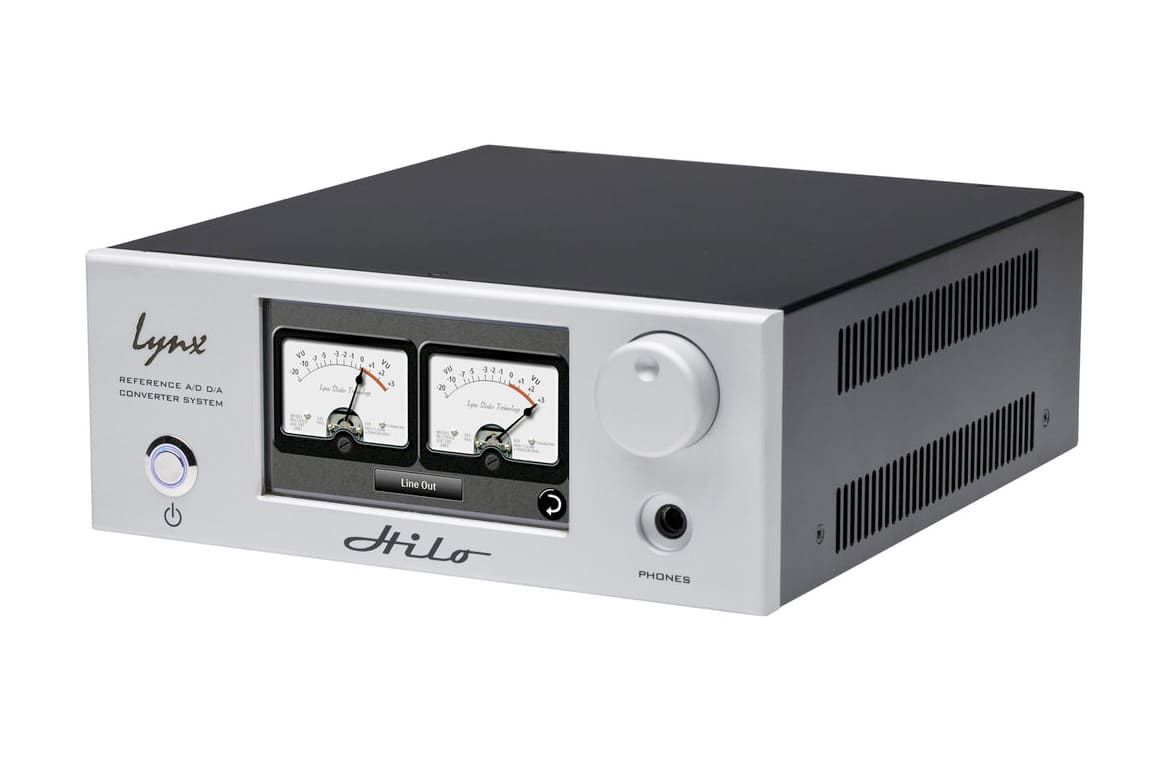

The silver Hilo Reference A/D D/A Converter System from Lynx Studio Technology offers two channels of mastering-quality 24-bit/192 kHz analog to digital conversion, up to six channels of digital to analog conversion, a secondary monitor output, and a world-class independent headphone amplifier, in a compact, half-rack size. Lightweight (at 6.75 lb) and portable, it provides audio professionals and audiophiles alike with pristine, open, and transparent audio quality, whether working in the studio, in the field, or as part of a home theater setup.
A/D Converters | 2 x channels, 24-bit |
D/A Converters | 6 x channels, 24-bit |
Sample Rates | All standard rates up to 192 kHz using SynchcroLock sample clock generator |
Line Input L/R | Connectors: 2 x XLR, female THD+N: -114 dB at 1 kHz, -1 dBFS, 20 kHz filter, +22 dBu trim Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.01 dB, 20 Hz to 20 kHz Crosstalk: 140 dB maximum at 1 kHz, -1 dBFS signal Full-Scale Trim Settings: + 0 dBV, +2 dBV, +4 dBV, +6 dBV, +18 dBu, +20 dBu, +22 dBu, +24 dBu |
Line Output L/R | Connectors: 2 x XLR, male Volume control with 0.5 dB increments THD+N: -109 dB at 1 kHz, -1 dBFS, 20 kHz filter, +22 dbu trim Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -135 dB maximum at 1 kHz, -1 dBFS signal Full-Scale Trim Settings: + 0 dBV, +2 dBV, +4 dBV, +6 dBV, +18 dBu, +20 dBu, +22 dBu, +24 dBu |
Monitor Output | Connectors: 2 x male XLR THD+N: -107 dB at 1 kHz, -1 dBFS, 20 kHz filter, volume at maximum Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -135 dB maximum at 1 kHz, -1 dBFS signal Output Level at Maximum Volume: +24 dBu or +10 dBu, jumper-selectable |
Headphone Output | Connectors: 1 x 1/4" jack, front panel Volume control with 0.5 dB increments THD+N: -107 dB at 1 kHz, -1 dBFS, 20 kHz filter, volume at maximum Dynamic Range: 121 dBA, -60 dBFS signal method Frequency Response: ± 0.02 dB, 20 Hz to 20 kHz Crosstalk: -130 dB maximum at 1 kHz, -1 dBFS signal Output Level at Maximum Volume: +19 dBu |
Digital I/O | AES/EBU I/O: transformer-coupled, on XLR connectors Coaxial S/PDIF I/O: transformer-coupled on RCA jacks Optical S/PDIF I/O Optical: on optical connectors ADAT I/O: 8 x channels at 48 kHz, when selected on optical connectors Dual Thunderbolt ports |
Synchronization Options | Internal External word clock I/O, 75 Ohms TTL signal on BNC connectors AES/EBU or S/PDIF inputs |
LCD Display | 480 x 282, touchscreen |
Power Requirements | AC Power: 110-230 VAC, 30 W Battery Power: 9-18 VDC, on 4-pin XLRV |
System Requirements | Windows Intel Core 2 at 1.6 GHz, or AMD equivalent PC or laptop manufactured after January 2006 1 GB RAM One functional USB 2.0 port Windows XP with SP3 (32-bit only), Vista with SP2, Windows 7, 8, 10 Windows 32-/64-bit drivers provided by Lynx Mac OS X Intel processor OS X 10.6.4 or higher 1 GB RAM One functional USB 2.0 port Macintosh OS X drivers provided by Apple iOS For iPad 7 or higher (excludes original iPad) Apple iPad 2 or newer iPad camera kit for USB connection |
Dimensions | 8.5 x 10 x 3.25" / 216 x 254 x 83 mm Half-rack, 2 RU |
Weight | 6.75 lb / 3.1 kg |
Product Highlights
- Preinstalled LT-TB Thunderbolt Interface
- 2 Channels A/D 24-Bit/192 kHz Conversion
- 6 Channels of D/A Conversion
- Independent Headphone Amplifier
- AES/EBU, S/PDIF, ADAT
- SynchroLock for Jitter Elimination
- Large, Color LCD Touchscreen
- LSlot expansion bay
- Lightweight (6.75 lb), Half-Rack Size
