AES16e with sixteen channels of sample rate conversion

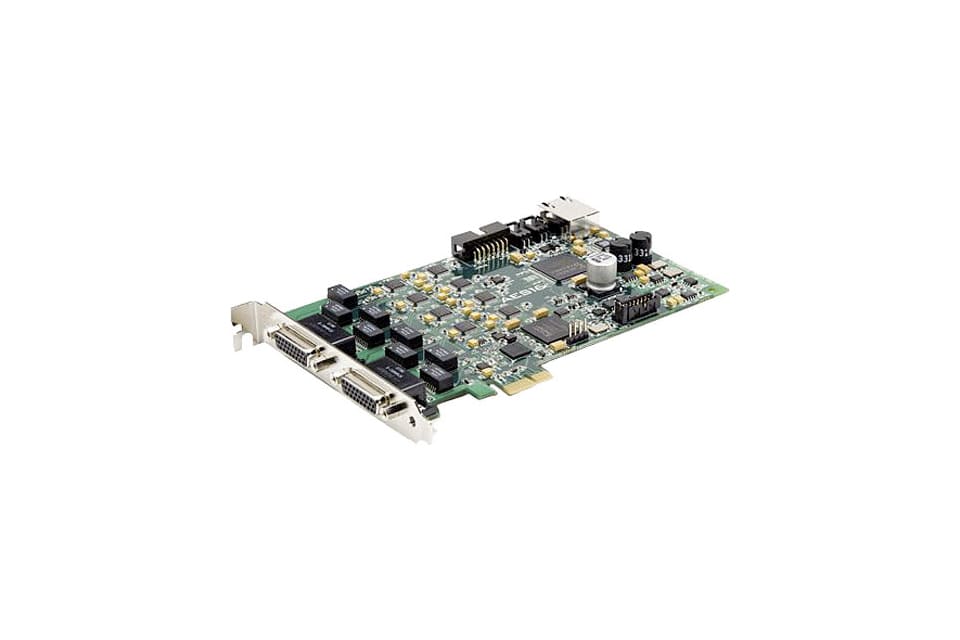

The AES16e-SRC from Lynx Studio Technology is a PCI Express card that provides up to sixteen channels of AES/EBU input and output to and from a computer. The card helps integrate digital consoles, multi-channel A/D and D/A converters and hard disk recorders with computer-based workstations.
The AES16e supports the single-wire, 192kHz standard and is compatible with existing dual-wire AES/EBU devices. Up to four cards can be installed into a single computer and with the included digital software mixer, the AES16 can turn a computer into a powerful digital router or patchbay with extensive flexibility and minimal cabling.
Offering a solution for jitter problems in AES signals, the card incorporates SynchroLock technology that provides extreme jitter tolerance at all inputs. By coupling statistical analysis with low-noise clock generation techniques, SynchroLock is able to extract a very clean clock from AES signals affected by long cable lengths and other noise sources.
The AES16e-SRC provides sixteen channels of sample rate conversion, which may be switched on for any or all of the eight digital inputs.
Sample Rates | Up to 192kHz |
Analog In | No |
Analog Outputs | No |
Digital Input Connectors | 4 x XLR AES/EBU on each of two optional breakout cables 1 x BNC Clock |
Digital Output Connectors | 4 x XLR AES/EBU on each of two optional breakout cables 1 x BNC Clock |
MIDI In/Out | No |
Sync In/Out | AES/EBU Wordclock |
Headphone Output | No |
THD + N | Not applicable |
Dynamic Range | Not applicable |
Frequency Response | Not applicable |
Minimum System Requirements | Mac G5 or later including Intel OS X 10.4 or higher Available PCI Express slot Video display with 1024 x 768 minimum resolution PC Windows compatible computer with PCI Express support Windows XP/Vista/Windows 7, 32- or 64-bit Available PCI Express slot Video display with 1024 x 768 minimum resolution |
Specialties | Includes an LStream expansion port for increasing I/O capabilities. Connecting a Lynx LS-ADAT adds multi-channel ADAT lightpipe I/O and supports format conversion between AES/EBU and ADAT |
Product Highlights
- PCIe Card
- 16 Channels of AES/EBU I/O
- 24-Bit/192kHz
- Multi-Channel Support
- 16 Channels of SRC
- Mac OS X
- Windows XP/Vista/7
