Kiloview U40

Kiloview U40 4K P60 HDMI to NDI Encoder

4K P60 HDMI encoder, full bitrate NDI converter with Tally and PoE
Product Highlights
  • 4K60p Input Supported
  • HDMI or USB to NDI High Bandwidth
  • Converts IP Streams into NDI|HX
  • PTZ Control
  • DC Out to Power Your Camera/Monitor
  • Dual Network Ports for DataTransfer

  • Overview
  • Tech Specs

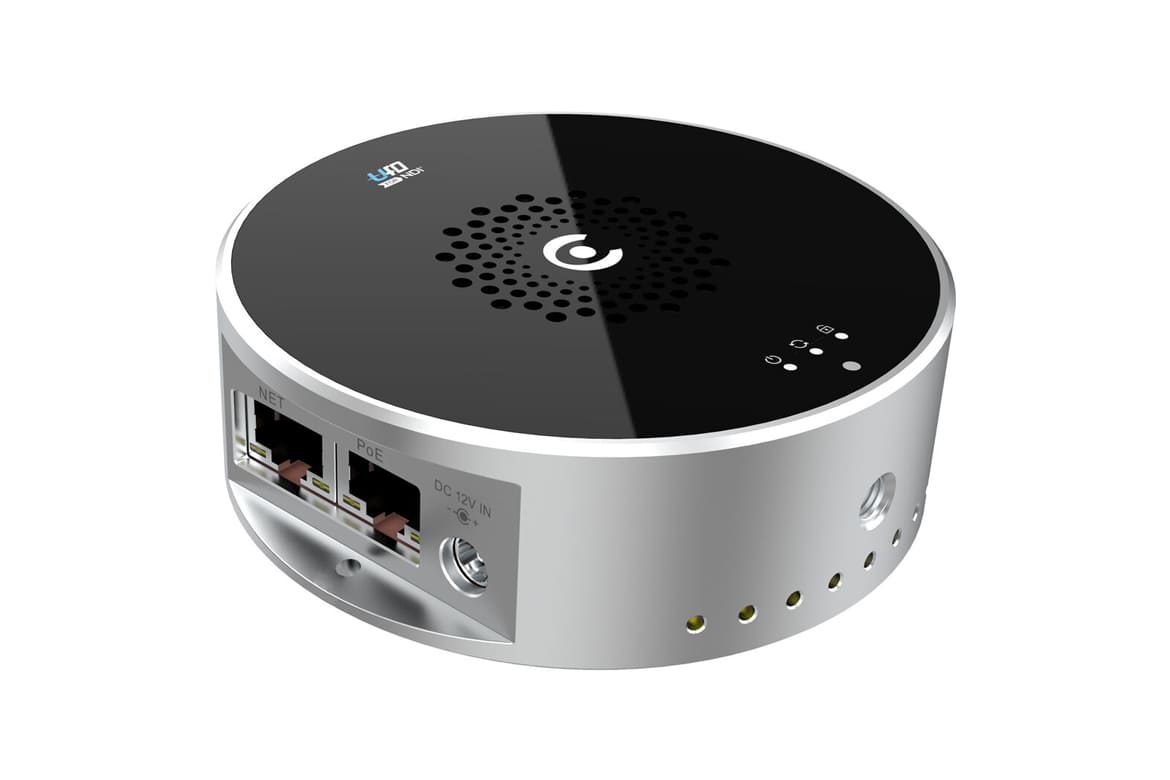

Kiloview U40 HDMI to NDI 4K Encoder
Kiloview U40 4K P60 HDMI to NDI encoder easily converts 4K P60 HDMI to NDI® high bandwidth. At the same time, it converts various IP streams such as RTSP, SRT, RTMP, and HLS into NDI|HX, SRT, RTMP, RTSP, TS-UDP etc. With such functions like PoE + DC Out, PTZ, Tally, cold shoe mounting on camera, the Kiloview U40 is the smallest and while most powerful NDI encoder. With only one cable, video sources from HDMI cameras can easily go into the NDI® world and enjoy the advantages of IP-based transmission featuring ultra-high image quality and ultra-low latency.

Real 4K P60
Kiloview U40 supports HDMI2.0 input, it’s a real 4K P60 HDMI to NDI Encoder. It makes no compromise on image quality.

Both Full NDI and NDI|HX, More Than NDI

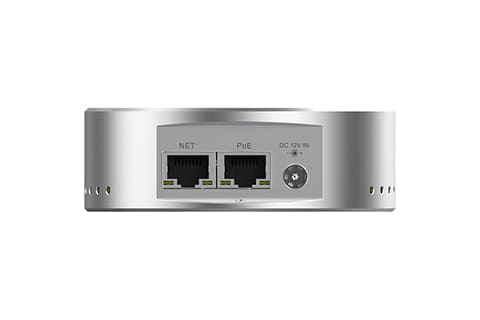

Kiloview U40 converts your 4K HDMI video to Full NDI. With two ethernet ports, it also converts IP streams such as RTSP, RTMP, SRT, TS-UDP, HLS to NDI|HX, which makes your camera more powerful and versatile.

Super PoE with DC Out
Super PoE with DC Out, it powers the U40 itself, at the same time powers other devices such as monitors, recorders, or cameras. One cable rules everything.

PTZ Control
With Kiloview U40, it supports PTZ control over USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required.

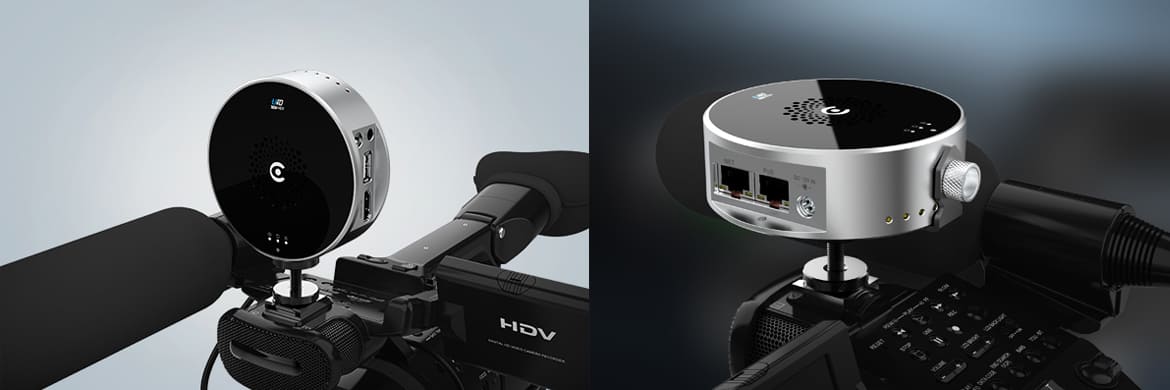

Camera Link
In Kiloview U40 web UI, you can manage your web-based camera using the function of camera link. U40 and your camera, a perfect match.

Built-in Tally
With U40 we have a batch of bright and distinct Tally lights for PVW/PGM indication – all is to make perfect cooperation for your team.

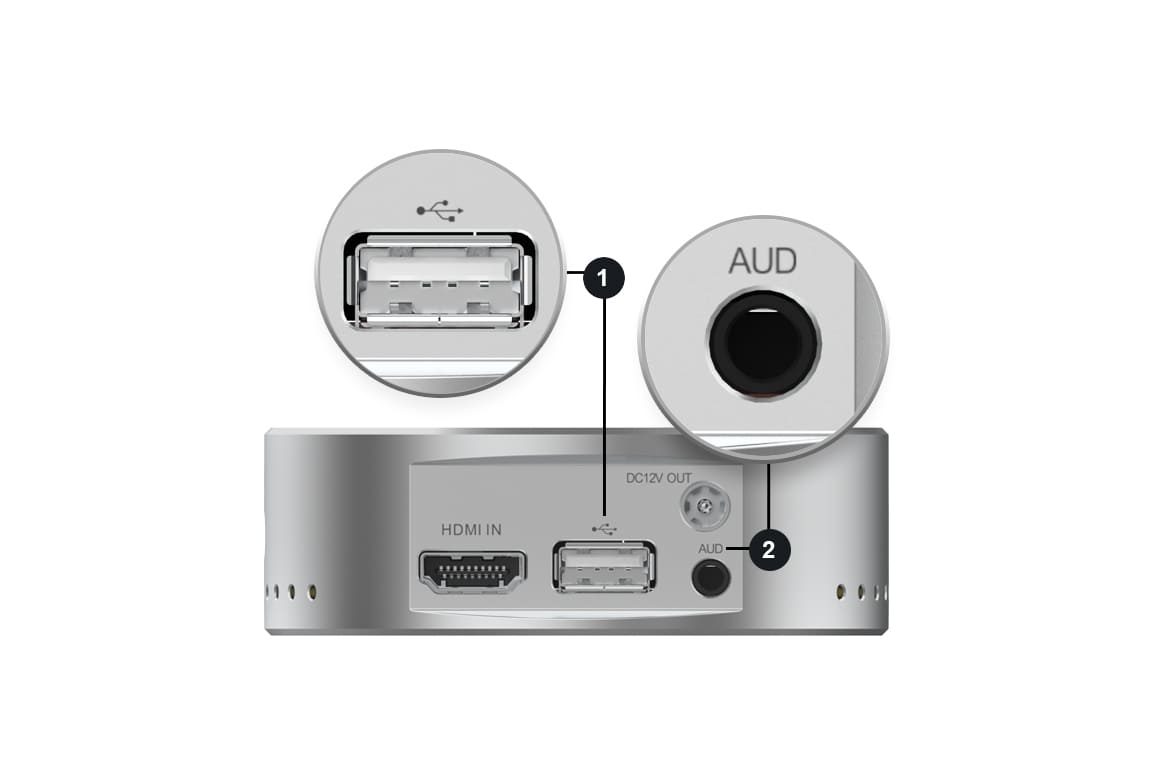

USB for Unlimited Expansion
It supports USB expansion functions such as USB to RS232/485/422, USB recording etc.

Audio and Intercom
Kiloview U40 supports 3.5mm analog audio line-in or embedded audio into NDI® It also supports voice intercom based on Kiloview Intercom software.

Model U40
Interface HDMI 2.0
Video resolution 4K60, compatible with HD
Ethernet port 2*1000M Ethernet port
USB interface 1*USB2.0
Analog audio interface 1*3.5mm analog audio
NDI performance Support HDMI to Full NDI®
Support 3.5mm analog audio embedded in NDI®
Support other IP streams to NDI®|HX
Tally light Built-in
PTZ control Support Sony Visca/Visca (Laia)/Visca (Kato)/PELCO-D/PELCO-P
PoE Support

  • Φ: 90mm, H:30mm; Φ3.54’’, H:1.18’’

Power/power consumption
  • DC 12V1A

  • 310g (10.9oz)
