Kiloview P3 5G Wireless Bonding Encoder
Unlock Seamless Streaming with P3 Anytime, Anywhere!
Product Highlights
- Four-Channel 5G Cellular Network
 - HDMI Input up to 4K30 Resolution
 - 3G-SDI Input up to 1080p60 Resolution
 - Supports NDI|HX, RTMP, SRT, RTSP & HLS
 - H.265 & H.264 Encoding
 - Wi-Fi and Ethernet Support
 - 4.3" Touchscreen LCD Display
 - Integrated Dual-Battery Module
 - Portable Form Factor

- Overview
 - Tech Specs

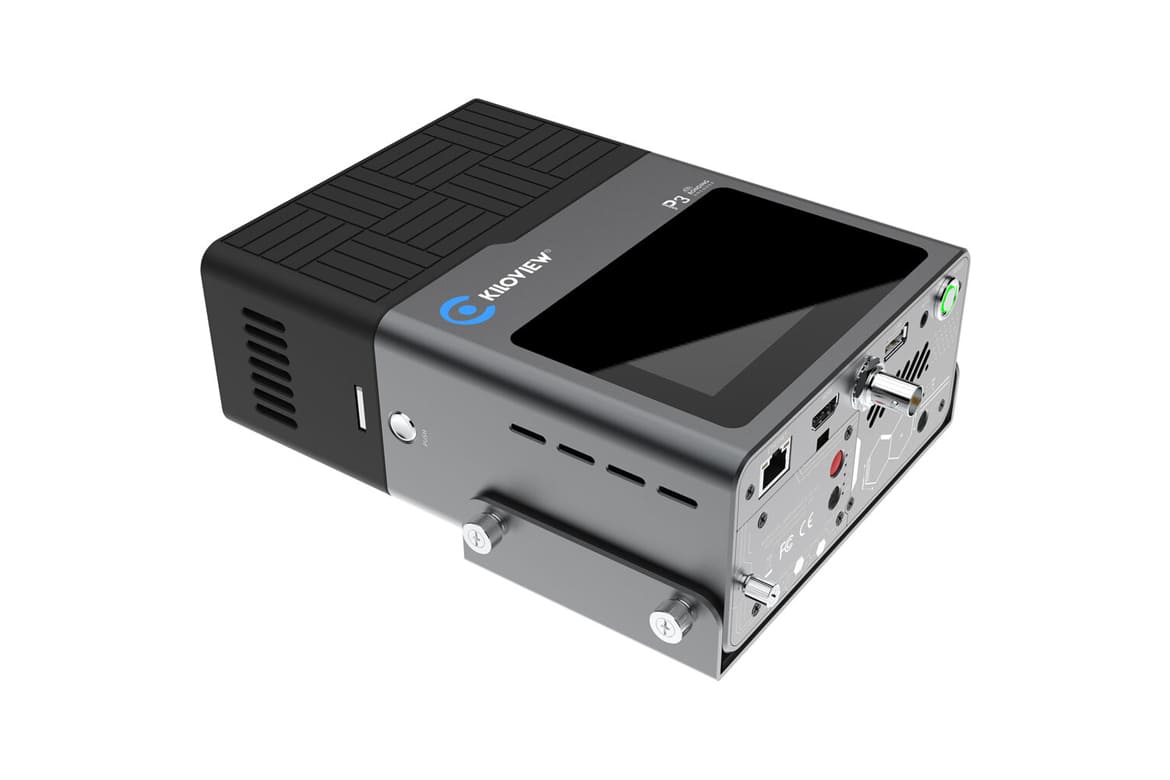

Kiloview P3 is the next-gen of 5G wireless bonding encoder based on KiloLink technology, supporting six network connections: 4-channel 5G cellular, WiFi (2.4G/5G dual-band) and Gigabit Ethernet. With a 3500mAh built-in battery and a 7000mAh external battery, it can guarantee your all-day use. In addition, P3 adopts a modular design, allowing users to choose between 5G/4G modules (WiFi/SD module is included in the package) and battery modules to meet the diversified business scenarios.

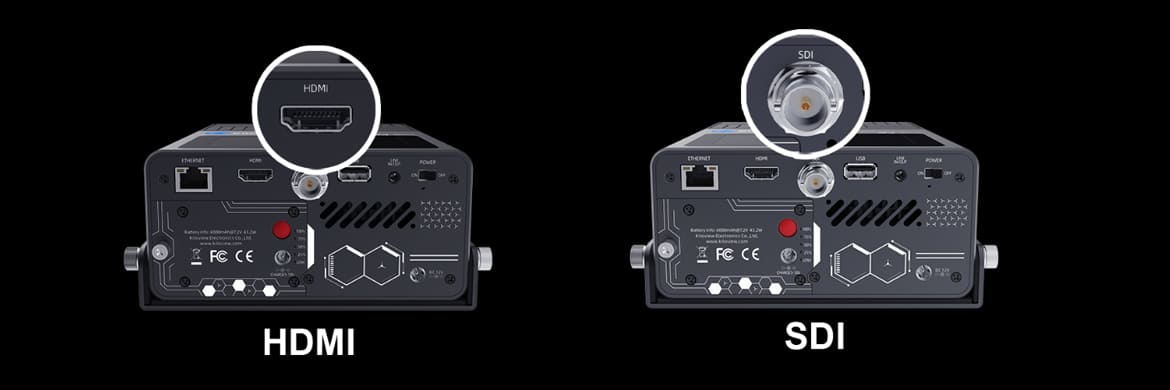

The P3 features 3G-SDI and 4K HDMI video inputs, supporting video inputs up to 4KP30 with H.265/H.264 encoding. With the permanent-free/ private-hostable KiloLink Server Pro, it truly achieves unlimited bonding and seamless streaming experience.
| Model | P3 |
| Voice Intercom | Support |
| Video Input | 1*4KP30 HDMI+1*3G-SDI |
| Video Encoding | H.265/H.264 |
| Resolution | Up to 4KP30 |
| Recording/Storage | SD card and USB expansion |
| Protocols | NDI HX/SRT/RTMP/RTSP/RTP/HLS/TS-UDP (with KiloLink Server Pro)  |
| Power Supply | DC 12V/3A |
| Power Consumption | 20w |
| Network | 5G / 4G / WiFi / Ethernet |
| Multi-channel Audio Encoding  |
HDMI: 4 channels SDI: 4 channels Line in: 2 channels  |
| Modular Design | DIY 5G/4G communication modules WiFi/SD storage modules, and battery modules  |
| Management | Web/KiloLink Server Pro |
| Display | 4.3" LCD touchscreen |
| Button | Power |
| Bonding Performance | WiFi/ 4 channels of 5G(Or 4 channels of 4G) cellular, WiFi (2.4G/5G), Ethernet  |
| Battery | Built-in 3500mAh 7.2V 25.2W battery External 7000mAh 7.2V 50.4W battery  |
| Audio Port | 1*3.5mm Line in or SDI/HDMI embedded |
Weight
- 2000g

Dimension (mm)
- 216.8*143*68mm
