Kiloview P1/P2

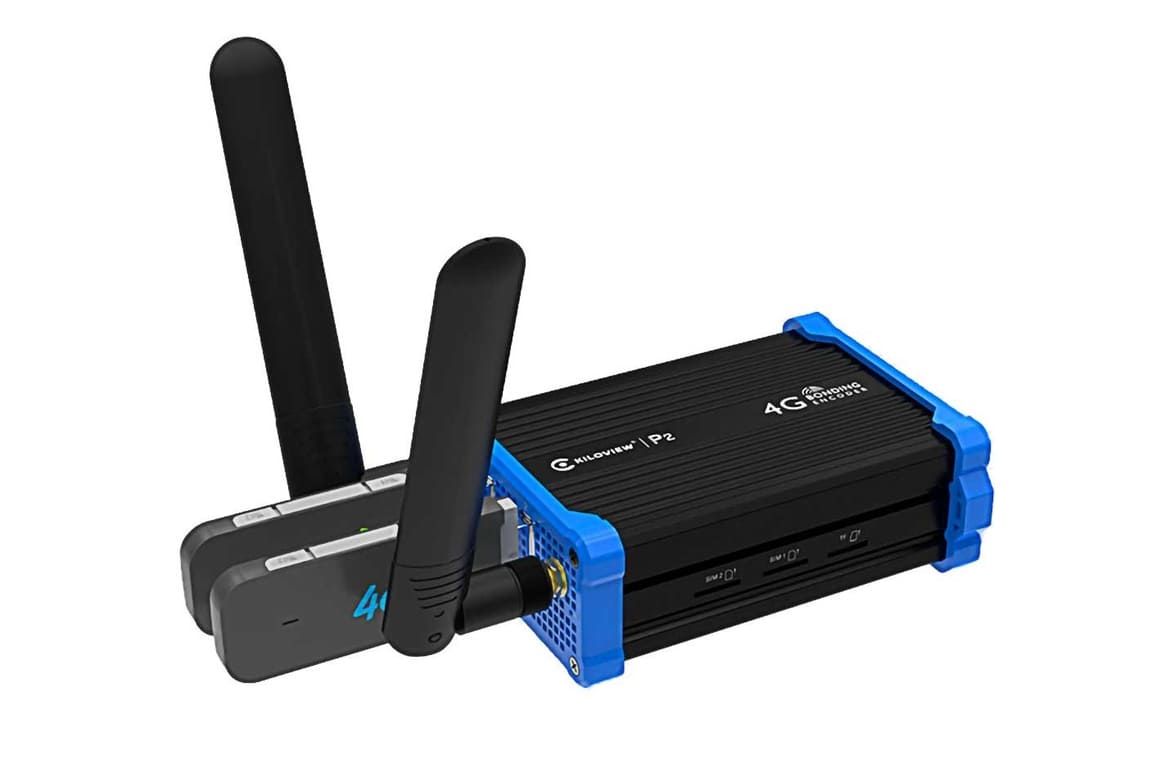

Kiloview P1/P2 Wireless NDI Encoder

P Series 4G Cellular Bonding Video Encoder - Perfect for Outdoor Live Streaming or IRL Streaming
Product Highlights
  • Dual-Stream Output, Main and Sub
  • 2 x Internal, 2 x External 4G Antennas
  • Convert SDI to IP (P1) - Convert HDMI to IP (P2)
  • Simultaneously Stream to 16 Platforms
  • Wi-Fi and RJ45 Outputs
  • Supports up to 1080p60
  • microSD Card Slot
  • Web-Based Interface
  • Supports RTMP/HLS/SRT/TS Protocols
  • Portable Form Factor
  • Overview
  • Tech Specs

Kiloview P series video encoder is a professional high-end encoding device specially designed for mobile applications. It adopts KiloLink – Kiloview’s patented algorithm to solve the problem of poor connectivity. It perfectly suits outdoor live streaming and transmission in such scenarios as live events, concerts, sports, field broadcast, emergency spots and more, anytime, anywhere.

Kiloview P series features ultra-low end-to-end latency (<1s) , meanwhile, it supports voice intercom with Kiloview KIS, it’s also perfect for remote program production or group interaction.

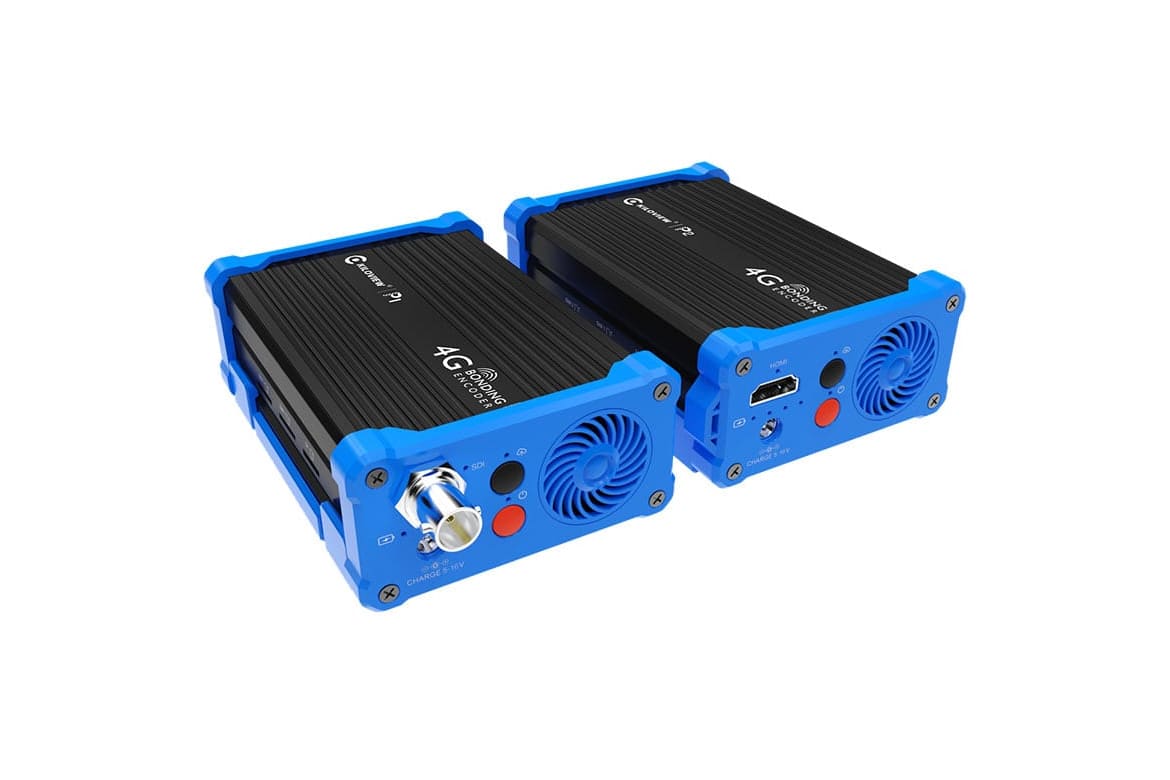

P1 supports SDI input, while P2 supports HDMI input.

Up to 5 Connections Bonding, Stream Like a Pro
2x Internal 4G Cellular + 2x USB 4G Cellular (LAN)+ 1x Wi-Fi (+1*RJ45) supported and it’s free configurable of any desired network.

With the patented bonding algorithm with KiloLink, P series encoders can automatically balance the data of all connections and adjust the bitrate accordingly to make sure the reliable streaming.

Besides, P series can support Wi-Fi hotspot for data and file transmission.

Ultra-Low Latency for End-to-End Video Transmission
With optimized technology, Kiloview P series offers an ultra-low latency video streaming experience, which is suitable for remote production, IRL streaming, or audience interaction with high quality. End-to-end latency with 4G-bonding server is less than one-second under normal working conditions.

Voice Intercom Supported
Together with Kiloview Intercom Server (KIS), you can take part in a group intercom with a USB earphone.

No matter you are using a single connection or the bonding connection, with Kiloview P series, you can not only stream your video to Youtube/Facebook and other platforms with RTMP(S), but also transmit your video remotely by SRT, and more other workflows using different protocols such as RTSP, UDP and HLS. Outdoor streaming is never so easy.

Multiple Platform Streaming
Kiloview P series encoder supports streaming to 16 platforms simultaneously by configuring the main and sub stream in the web console, that means you can stream to all the popular platforms with the same content.

(Main stream resolution up to 1080P60, sub stream resolution up to 720P60)

Video Rotate/Crop, and Image Overlay
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly. You can also mirror the stream, or adjust the color. Moreover, you can set your overlay image at any position such as adding a logo, text etc.

Model P1, P2
Input SDI (P1): HDMI (P2)
Transmission mode 4G-LTE, WIFI (2.4/5G dual band), Ethernet by USB expansion
4G bonding capacity 4 channels of 4G bonding (2 CH internal+ 2 CH external)
Video resolution Up to 1080P60Hz:
Video encoding H.264/AVC, Motion-JPEG
Audio encoding AAC/G.711
Encoding latency <67ms
Media protocol RTMP/RTSP/SRT/RTP/HLS/TS over UDP, custom for SIP
Graphic overlay User-defined text, image overlay

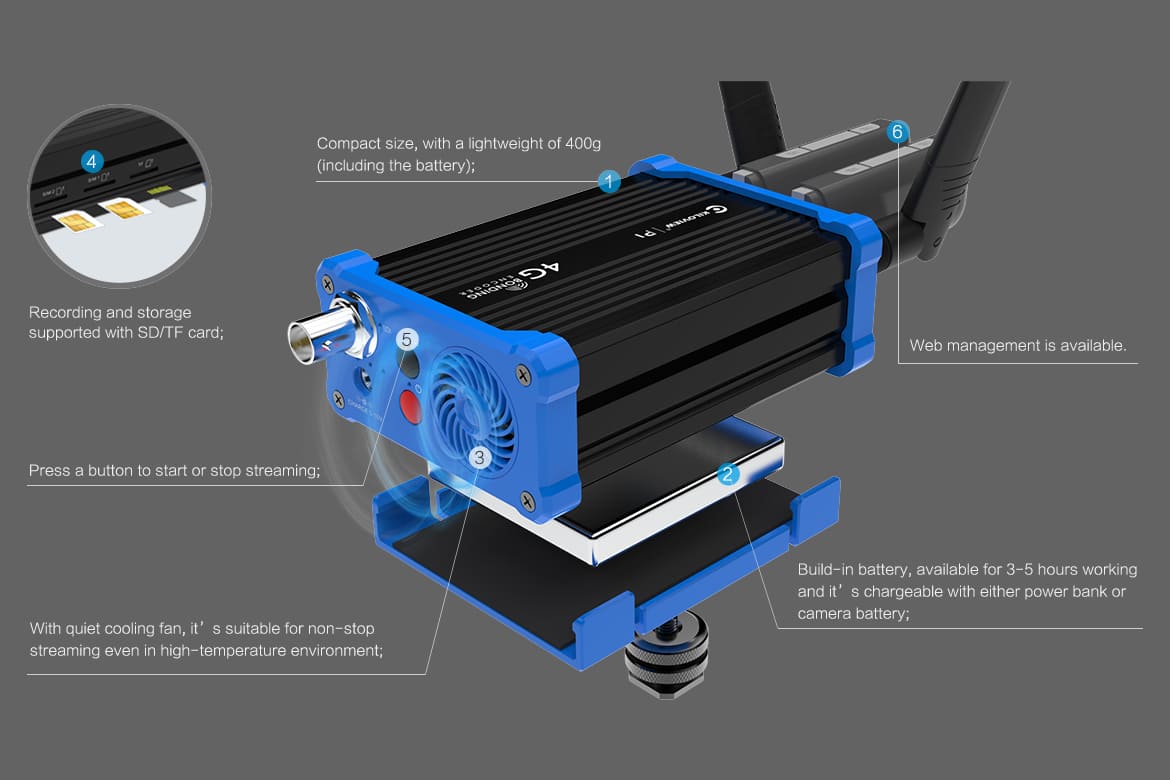

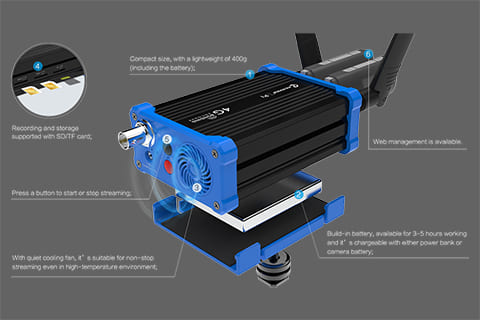

Recording TF card slot/hard disk by USB expansion for local recording and NAS network storage
Management Android APP/Web
Hot shoe Removable
Battery capacity 3.7V 6800mAh (29.6Wh)
Power supply DC 12V 1A
Power consumption 6.5w
Operating temperature -20°~45°

  • 115*75*35mm (4.53”*2.95”*1.38”)

  • 400g (14oz)
