Kiloview N40

Kiloview N40 4KP60 Video Encoder/Decoder

4K HDMI/NDI Bi-Directional Converter
Product Highlights
  • Low-Profile NDI Interface
  • HDMI Input and Loopthrough Output
  • Supports up to 4K60 fps
  • PTZ Camera Control
  • PoE and DC Power Options
  • Tally Communication

  • Overview
  • Tech Specs

Fantastic 4K NDI Converter

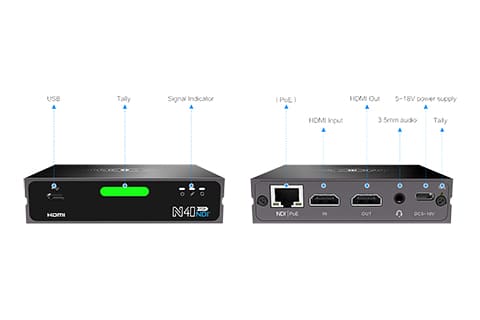

Kiloview N40 4K HDMI/NDI converter is a bi-directional converter that supports 4K HDMI video input (encoder) to full NDI with 4K HDMI loop-through for view on monitor, or 4K HDMI video output (decoder) from full NDI.

Featured with powerful functions such as PoE, built-in big tally light, PTZ control, 3.5mm audio mic in/out, multi-channel audio, intercom functions, the N40 is your best choice to get access to the fabulous NDI world!

Real 4K, Really Professional
With HDMI2.0 interface, It supports real 4Kp60 video input and convert it to full NDI and loop through for monitoring, at the same time it supports Full NDI to 4K HDMI output. It’s a real 4K NDI converter for high image quality.

Both NDI encoder and NDI decoder
This tiny device (100*80*28mm) can do both NDI encoding and decoding, so you get two for the price of one. Changing the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.

Audio Intercom
Kiloview N40 supports 3.5mm analog audio mic in/out or embedded audio. It also supports voice intercom by USB headset between devices directly, or with Kiloview Intercom server.

Video Source Auto-detecting
Thanks to the NDI discovery server, your video can be easily found and connected by users from another network when registered to the designated server.

Seamless Switching without Lagging
In decoding mode, with Kiloview’s unique technology, there will be no lag when switching the output NDI videos.

Control with USB Keypad
In decoder mode, you can preset the NDI sources from number 0-9. When your keypad is ready, you can easily choose the output source with a single press.
Or you can even use the USB Keypad to control a PTZ camera – the cheapest PTZ Keyboard you can get.

PTZ Control and Big-sized Tally
Kiloview N40 supports PTZ control through USB to serial RS232/485/422. It also supports PTZ control over IP, no extra cable required

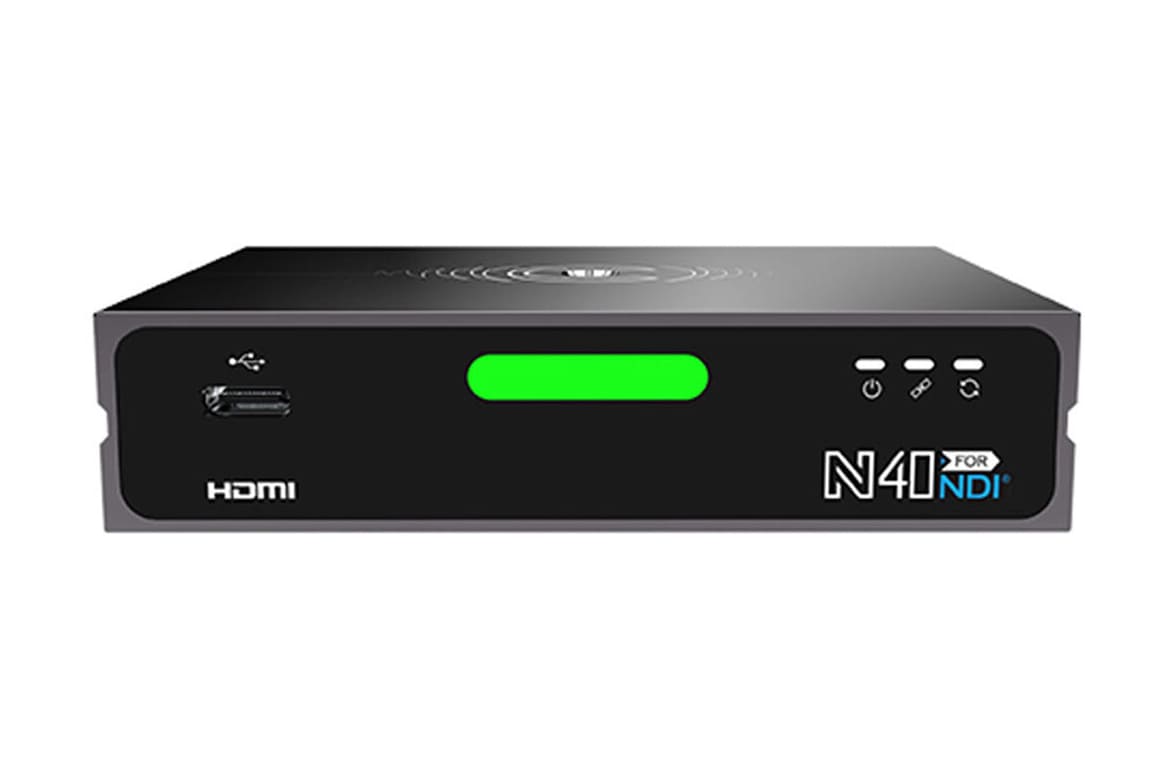

N40 has a big-sized while bright and distinct Tally for PVW/PGM indication – all is to make perfect cooperation for your team.

Power and Data

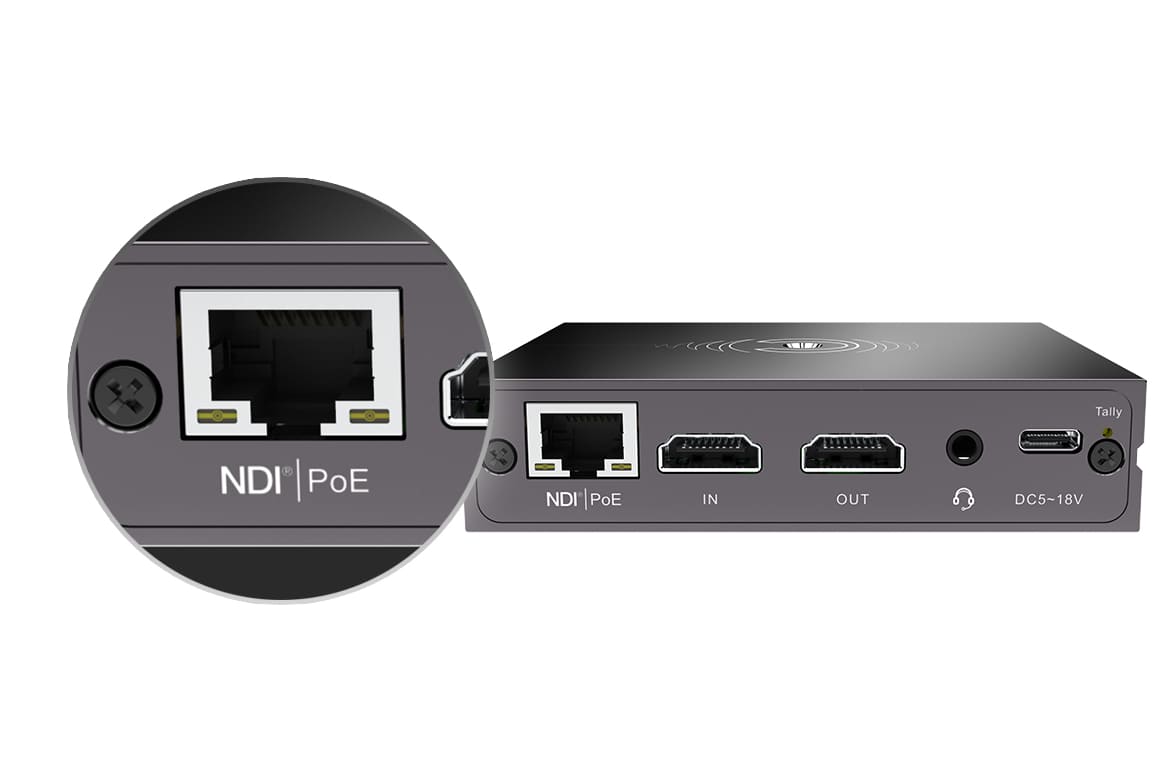

With PoE, the N40 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or camera battery.

Model N40
Video input 1*HDMI
Video output 1*HDMI(Loop or decoding output
Audio port 1*3.5mm
Network 1*RJ45 1000Mbps Ethernet port (with PoE)
Video resolution Up to UHD 4K60 (backward compatible with SD/HD/VESA)
NDI® codec capacity 1*NDI® encoding or 1*NDI® decoding
NDI® codec feature FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60
LED indicator Tally light, power light and status connection light
Power PoE, DC, D-Tap (camera) optional. 5-18V wide range supported
Voice intercom Customization
PTZ Control Network PTZ and Serial Port
DHCP Support
Management Web UI and remote management with KILOVIEW KiloLink Server
Power consumption 6w
Working Temperature -20~45°C (Storage temperature: -20~70°C)

  • 100x80x24 mm
