Kiloview N2

Kiloview N2 Wireless NDI Encoder

Battery powered, camera mounted, wireless, SDI to NDI HX encoder.
Product Highlights
  • HDMI to NDI Video Converter
  • Supports up to 1080p60 Video
  • Portable Form Factor, Lossless Quality
  • Enabled with Wi-Fi & USB/Wired Ethernet
  • Built-In Battery, Shoe Adapter & Mount
  • SD Card Recording to TS/MP4/MKV/AVI/MOV
  • Voice Intercom Support
  • Antennas & USB-to-RJ45 Adapter Included
  • Optional Serial Control via USB
  • Overview
  • Tech Specs

Professional & Affordable Wireless NDI|HX Encoder
N2 NDI wireless video encoder is a professional video encoding device for NDI video production. It can encode SDI/HDMI video source into NDI|HX, through Ethernet or WiFi. The network is used for video transmission for any compatible system, equipment or software in the network, and it also supports the SRT/RTMP transmission protocol. N2 supports HDMI input.

Stable Wireless Connection
Kiloview N2 contains a built-in 5GHz enhanced WiFi Module which achieves more stable wireless transmission. It also supports 4G-Lte USB dongle for mobile application.

Encoding Anywhere

  • Portable: Compact size with threaded screw, it can be installed on the camera when broadcasting outdoor;

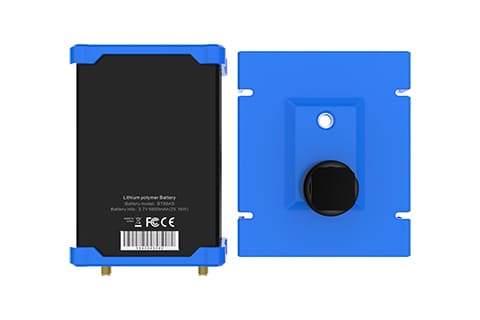

  • Battery Powered: With large capacity built-in battery, it lasts more than 3 hours streaming. It’s also chargeable with V-mount battery, making continuous working possible;
  • Cooling Fan: Active heat dissipation design is as stable and reliable as running outdoors in high temperature;

NDI Output with High Efficiency
It delivers SDI/HDMI video source to the network in full HD, with high-efficiency NDI® output via NDI|HX and native support for resolutions up to 1080p.

All Protocols All at the Same Time
Besides NDI|HX2, N2 supports full range protocols including RTSP, RTMP, RTMPS, RTP, SRT, HLS, TS-UDP, Onvif, live stream with RTMP/RTMPS, while live production with NDI|HX and remote production with SRT, all can be handled at the same time.
It also supports ONVIF 1.1/2.0 for easy access to security protection system/ NVR system.

Powerful Encoding with Dual Stream Output
Kiloview N2 supports dual stream output, by which 16 streaming services can be encoded at the same time into main and sub-streams, thus realizing multi-platform live broadcasting (Bitrate ranging from 64kbit/s~40Mbit/s adjustable).

Let’s go Social
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video which makes it social media friendly.

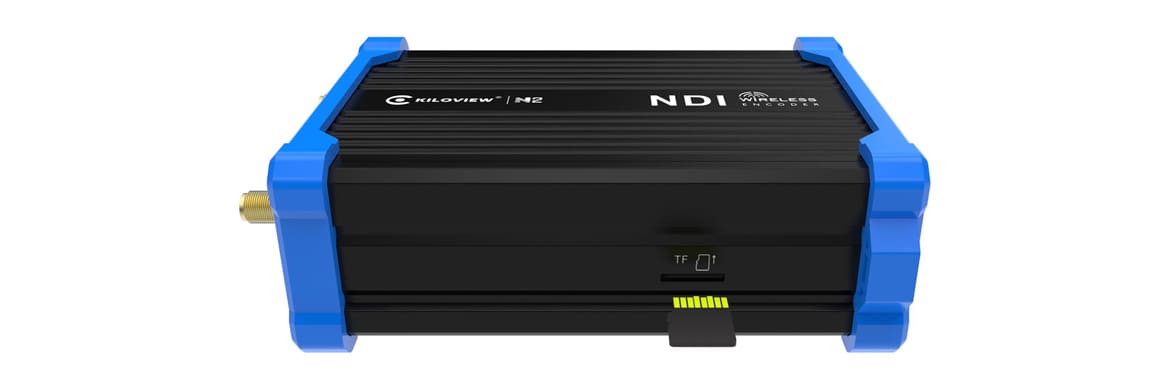

Micro SD/NAS Storage
N2 comes with Micro SD/TF card slot, which supports both local recording and NAS network storage with continuous recording files in the format of .ts, .mp4, .mov,.mkv, avi.

Compatible with TriCaster, vMix, OBS and other platforms, so your video production can be carried out anytime, anywhere.

Real-time Intercom
Both embedded and analog audio encoding are supported. What’s more, with Kiloview voice intercom software (optional), it can realize multi-party voice intercom function.

Model N2: HDMI
Input N2:1*HDMI
Transmission mode Enhanced WIFI, Ethernet by USB expansion
Media protocol NDI-HX/RTSP/RTMP/SRT/HLS/TS over UDP
Video resolution Up to 1080P60Hz:
Video encoding H264/AVC, Motion-JPEG
Audio encoding AAC/G.711
Latency Using NDI protocol for end-to-end latency by Ethernet is about 150ms
Graphic overlay Support custom text, image overlay function, and superimposed to any position on the screen
Management Web UI and remote management with KILOVIEW KiloLink Server
Audio Intercom Supported (KV Apps Required)
Recording Micro SD/TF card slot, local recording, NAS network storage
Hot shoe Removable
Battery Detachable
Battery capacity 3.7V 6800mAh (29.6Wh)
Power supply DC 12V 1A
Power Consumption 6.5w
Operating temperature -20°~45°

  • 115*75*35mm (4.52”*2.95”*1.38”)

  • 380g (13.4oz)
