At a Glance
- USB Pedalboard controller/audio interface for Mac/PC and iOS (MFi certified)
- Four onboard switches, expression pedal with optical switch
- 96kHz/24-bit built-in high-quality audio interface with input gain and volume control
- Hi-Z/Mic/Line Neutrik® combo input, balanced stereo, and headphone output
- Class A preamp with +48V phantom power for condenser microphones
- In/out LED bar VU-Meters
- MIDI in/out with two additional 1/4" switch/pedal controller inputs
- Integrated device bay for easy positioning of iPhone, iPad or Microsoft Surface
- Seamless, plug and play integration with AmpliTube (iOS/Mac/PC) and VocaLive (iOS)
- When used with iPhone and iPad it charges your device while you play
- Can also work as a standalone MIDI foot controller, without a device or computer
- Road-ready, rugged metal construction - can be carried anywhere
- Ideal for both studio and live use
- Optimal for guitar and bass players, singers, and vocalists
- Includes Mini-DIN/Lightning and USB-B/USB-A cable
- Overview
- Tech Specs
Your ultimate tone control rig. Ready to rock. Ready to record.
iRig Stomp I/O is a brand new type of USB pedalboard controller that integrates a professional, high-resolution, MFi certified audio interface with MIDI input/output for iPhone, iPad, Mac and PC.It comes bundled with state-of-the-art guitar, vocal processing, and recording software for flexibility and usability, both live and in the studio.

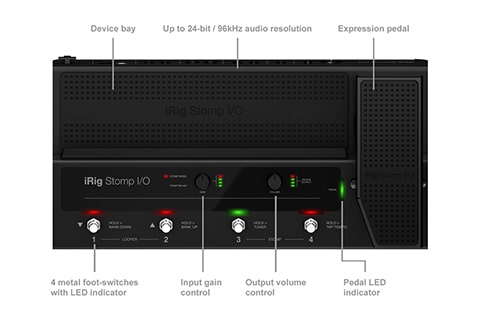

Sturdy and robust, yet easily transportable, iRig Stomp I/O features four onboard metal stomp switches plus an expression pedal with a switch, all with LED indicators.
To further extend its control possibilities, you can connect up to 2 additional switches or pedals. The MIDI IN/OUT ports make it possible to seamlessly control external processors when iRig Stomp I/O is used as a stand-alone MIDI foot controller, without any device or computer connected to it.
Ready to rock, ready to record
iRig Stomp I/O boasts an elegant all-in-one design that perfectly highlights its flexibility and versatility. In a single piece of equipment, you now have everything you need to record in the studio, rehearse, or go out on stage and gig, without having to assemble a bulky and costly hardware setup.
With its high-quality 96kHz/24-bit audio interface, iRig Stomp I/O lets you easily record your guitar, bass or microphone - including studio condensers requiring 48VDC phantom power with true studio quality on iPhone/iPad, Mac and PC. The seamless integration with AmpliTube and VocaLive makes it as easy as plug-and-play to record on multiple devices using IK’s powerful, state of the art, 64-bit software. iRig Stomp I/O features a Class A preamp that can rival, if not surpass, the sound quality of floor processors costing up to three times as much.
Ideal for guitar, bass, and vocals
iRig Stomp I/O is designed to give guitarists, both electric and acoustic, bass players, vocalists, and songwriters a new way to have full control over their tone, in any situation.
Its versatility works wonders even on hardware synthesizers, for sonic combinations never heard before.
Seamless software integration
iRig Stomp I/O is designed to seamlessly integrate with AmpliTube for Mac/PC and iOS as well as with VocaLive for iOS, for full-blown performance in the studio and live.
With your device or stand-alone
A unique advantage of iRig Stomp I/O is its plug-and-play ease of use. As an MFi certified audio interface, it is designed to work right out of the box with your iPhone and iPad using the included lightning cable as well as with Mac and PC via USB.
Common | |
Conversion | 24-bit A/D, 24-bit D/A |
Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz |
Power | USB bus powered (when used with a computer) or DC IN |
Device Connection | USB B-Type and Mini-DIN |
Enclosure | Metal sheet |
Microphone Input | |
Connector | Balanced female 3-pin XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground |
Microphone Input Level | From 6 mVpp to 1.4 Vpp |
Microphone Input Impedance | 3.2 kOhms |
Gain Range | 46 dB |
Phantom Power | +48V ± 4V |
Frequency Response | 20 Hz - 20kHz +/-1.5dB |
Input Noise | -100 dB RMS |
Instrument Input | |
Connector | Unbalanced, Hi-Z, TS 1/4" Jack. Tip: signal / Shield: ground |
Instrument Input Level | From 30mVpp to 6.9Vpp |
Instrument Input Impedance | 1MOhms |
Gain Range | Approx 27d |
Frequency response | 20 Hz - 20kHz +/-1.5dB |
Input Noise | -100 dB RMS |
Stereo Headphone Output | |
Connector | 1/4" TRS Jack. Tip: right / Ring: left / Shield: ground |
Headphone Level control | Potentiometer |
Headphone Output Power | 100mW into 50Ohms |
Stereo Line Output | |
Connector | 2x balanced female 1/4" TRS Jack. Tip: hot / Ring: cold / Shield: ground |
Maximum Output Level | +13 dBu into 600 Ohms balanced load |
Frequency Response | From 10 Hz to 21 kHz (+/- 0.2dB) |
Output Dynamic Range | 102 dB(A) |
Output Impedance | 50 Ohms balanced |
MIDI Input/Output | |
Connector | 2x 5-pin DIN |
Compatibility
iOS Devices
Compatible with iPhone 8 Plus, iPhone 8, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (10.5-inch), iPad Pro (12.9-inch) 2nd generation, iPad Pro (12.9-inch) 1st generation, iPad Pro (9.7-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 5th generation, iPad 4th generation. iOS 6 or later is required.
Computers
Mac®: Mac OS X 10.6 or later. One free USB port.
Windows®: Fully supports Windows 10 WASAPI for low latency audio. One free USB port.
