IK Multimedia iRig Pro DUO
True mobility meets professional audio
Features
- Truly mobile dual input audio interface for iPhone, iPad, Android, Mac and PC
- Simultaneous dual track recording interface for all instruments
- Ultra-compact housing for extreme portability
- Dual identical XLR/TRS combo input jacks
- Dual ultra-low noise studio-quality IK preamps
- Individual input gain controls
- 48V phantom power
- Self-powered (2 AA batteries), device powered or DC power adapter (not included)
- 24-bit AD-DA converters
- Dual 1/4” switchable TRS balanced outs
- 1/8” 3.5mm Headphone out w/ level control
- MIDI IN/OUT jacks
- Ultra-compact housing fits in the palm of your hand
- Includes Lightning, OTG and USB cables (optional 30-pin cable can be used for older iOS devices)
- Overview
- Tech Specs
2-Channel Audio and MIDI Interface for iOS, Android, and Mac/PC

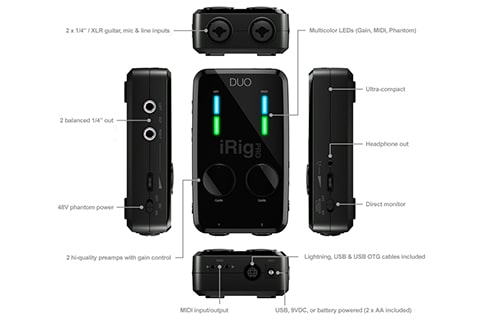

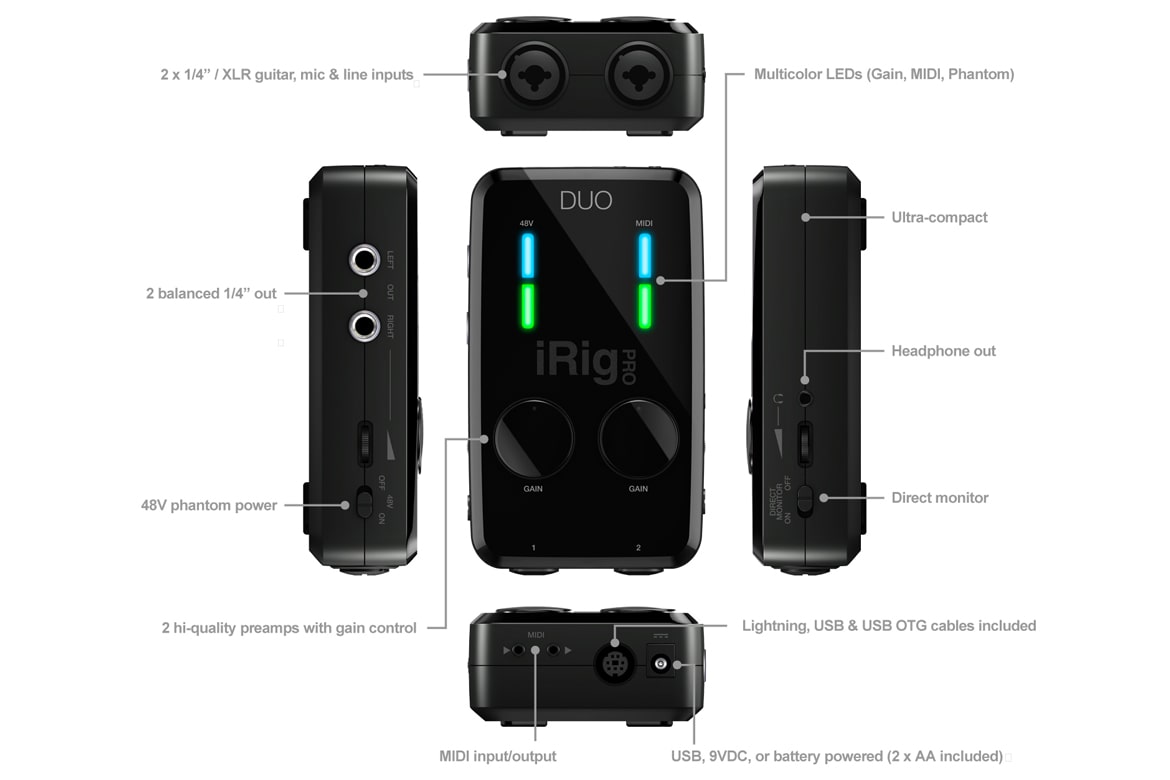

he iRig Pro DUO from IK Multimedia is a universal, 2-channel mobile audio and MIDI interface with a compact design, intended for producing and recording high quality music at home, in the studio, or on-the-go with iPhone, iPad, Mac/PC and Android devices. The iRig Pro DUO features two combo XLR/1/4” mic/line inputs for connecting microphones or instruments, MIDI I/O, a headphone output, and two balanced TRS outputs for connecting monitor speakers. The high-quality preamps are equipped with phantom power, and can be used with dynamic and condenser microphones.
Additionally, the inputs can accept line level sources, as well as high-impedance instrument signals such as guitar and bass. The MIDI I/O is available via the included TRS to MIDI DIN cables, which can be used to interface with keyboards, drum machines and more. Other features include dedicated preamp gain controls, direct monitoring for latency-free recording, and multicolor LED indicators for monitoring recording levels.
| Microphone Input | |
| Microphone Input | 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground |
| Microphone Input Level | from 6 mVpp to 1.4 Vpp |
| Microphone Input Impedance | approx 2 kOhms |
| Gain Range | 48 dB |
| Phantom Power | +48V ± 4V |
| Frequency Response |
|
| Input Noise |
|
| Instrument Input | |
| Instrument Input | 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground |
| Instrument Input Level | from 30 mVpp to 6.9 Vpp |
| Instrument Input Impedance | 1 MOhms |
| Gain Range | 27 dB |
| Frequency Response |
|
| Input Noise |
|
| Line Output | |
| Line Output | 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground |
| Floating Balanced Outputs | with automatic level compensation when working in unbalanced mode |
| Maximum Output Level | +16 dBu into 600 Ohms balanced load |
| Frequency Response | from 10 Hz to 21 kHz (-3dB) |
| Output Dynamic Range | 106 dB(A) |
| Output Impedance | 150 Ohms balanced |
| Common | |
| AD and DA Resolution | 24-bit |
| Sampling Rate | 44.1 kHz and 48 kHz |
| Power | USB bus power, battery power (2xAA - included), or DC power supply (9VDC, from 500mA up, positive outside - not included) |
| Metering | Multicolor LED |
| Size | 75mm/2.95" x 127mm/5" x 37mm/1.46" |
| Weight | 197.2g/6.96oz (batteries excluded) |
| Battery Life |
|
Package includes
- iRig Pro Duo universal dual channel Audio-MIDI interface
- Lightning to Mini-DIN connection cable (60cm/23.62")
- Micro-USB-OTG to Mini-DIN connection cable (60cm/23.62")
- USB to Mini-DIN connection cable (60cm/23.62")
- 2 x 2.5mm jack to MIDI cable (160cm/63")
- 2 x 1.5V AA Battery
Dimensions
- Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
- Weight: 197.2g/6.96oz (batteries excluded)
- Lightning to Mini-DIN connection cable: 60cm/23.62"
- Micro-USB-OTG to Mini-DIN connection cable: 60cm/23.62"
- USB to Mini-DIN connection cable: 60cm/23.62"
- 2.5mm jack to MIDI cable: 160cm/63"
