Digital, high definition microphone interface with studio quality preamp for iPhone, iPad, Mac and PC

Grab your favorite microphone, plug it into your iRig Pre HD and record straight to your device with true studio-quality sound anytime and anywhere. Simple as that. As pioneers of the mobile music revolution, we know very well what it takes to produce great content on a portable device. Whether you are a musician, podcaster, journalist, videographer or vlogger, you instinctively know how important it is for your content to be the highest quality possible to be well received and how audio plays a critical role in the process.

Your best mic’s best friend

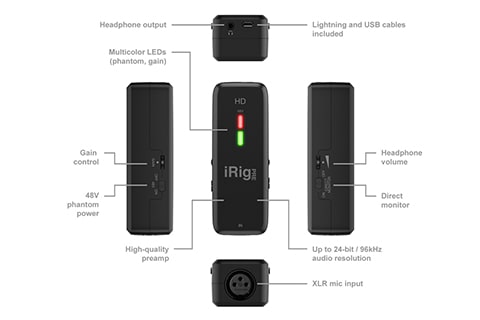

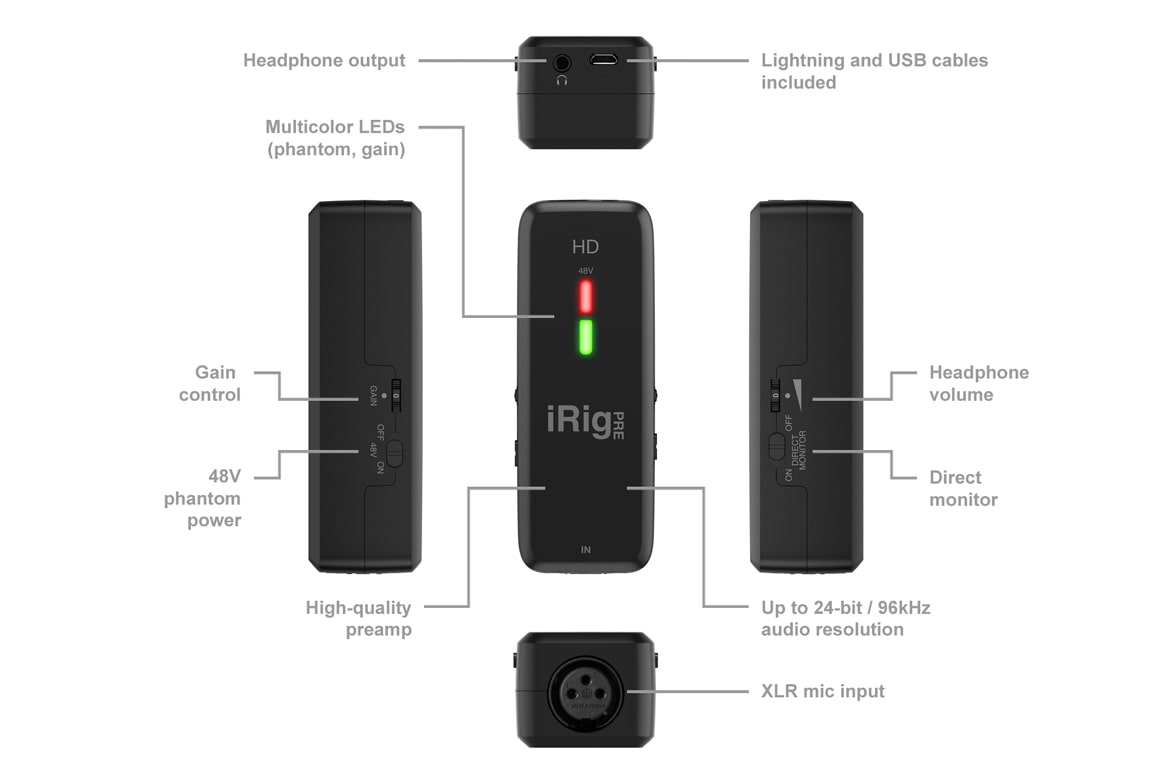

iRig Pre HD allows you to record with astounding quality using your favorite XLR microphones on the go. This means you can easily achieve authentic studio sound with your portable device regardless of where you are. As a superb, flexible, high-resolution microphone interface for studio recording, film, radio, television and broadcast applications, iRig Pre HD packs an incredible amount of punch in an ultra-compact enclosure that you can easily carry with you and delivers outstanding results with even the most gain-hungry microphones. Its integrated, high quality Class A preamp ensures that you can easily record the full dynamics of the sound being captured by your microphone down to the finest details and with crystal-clear quality. The elegant multicolor LEDs will help you visually set the right amount of gain needed for your applications and will tell you whether phantom power is in use.

A versatile performer, in the studio and on the go
iRig Pre HD is a versatile performer in virtually every professional context. If you are a musician or a singer, you can use it with a dynamic microphone to mic up a guitar amp or to record amazing vocal takes with your trusted large condenser mic, (just engage the +48V phantom power and you are set). You can even use it with ribbon microphones to faithfully capture their gently rolled-off character. If you are a journalist or a correspondent, you now have a tool that allows you to capture ready-to-stream hi-res digital audio on your device during interviews, on-the-ground news reports and much more. If you are a video-maker you can take advantage of iRig Pre HD’s ultra-compact portability (without adding significant weight to your bulky video equipment) to capture ready-to-use audio during a location shoot.

Integrated headphone out with level control
iRig Pre HD features an onboard headphone output with dedicated volume control that can serve a variety of useful purposes.

Direct monitoring
The direct monitor switch allows you to listen to the sound being recorded in real time. This means you can easily monitor yourself while recording a vocal take with a backing track or listen to your interview guest in a noisy environment without any latency. With the simple flick of the switch you can change back to regular monitoring and check the playback or listen to other audio files.

Microphone Input
Microphone Input	balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level	from 6 mVpp to 1.4 Vpp
Microphone Input Impedance	2 kOhms
Gain Range	40 dB
Phantom Power	+48V ± 4V
Frequency Response	20 Hz - 20 kHz +/-1.5dB
Input Noise	-97 dB RMS, -105 dB(A)
Stereo Headphone Output
Connector	1/8” TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Control	numbered thumbwheel
Headphone Level Power	100mW into 50 Ohms
Other Input/Output
Device Connector	micro-USB
Common
Conversion	24-bit A/D, 24-bit D/A
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power	USB bus powered when used with a computer Battery powered (2xAA included) needed for +48V phantom only
Cable Length	23.6" / 60.0 cm (without batteries)
Dimensions (L x W x H)	4.3 x 1.6 x 1.3" / 110.0 x 39.9 x 34.0 mm
Weight	2.6 oz / 75.0 g
