iRig Acoustic Stage is the new hi-tech solution for accurately reproducting the full sound of acoustic guitars and other instruments with studio-quality sound live on stage and in the studio. The combination of its advanced MEMS microphone and hi-quality preamp and DSP processing unit provides — for the first time ever — a break-through solution that offers hi-quality natural sound, advanced features, ease of installation and a convenience never seen before.

Until now, getting your acoustic to sound like it does in the studio when playing on stage has been a difficult, if not impossible, task. Playing an acoustic on stage typically falls into two scenarios: using the onboard piezo or magnetic pickup system to project a fractional representation of your acoustic’s natural warm tone, or sitting stationary on stage with microphones in “the sweet spot” on your acoustic, dramatically limiting your ability to move.

With iRig Acoustic Stage, you no longer have to sacrifice great acoustic tone when playing live. iRig Acoustic Stage gives you the best of both worlds — the beautiful, rich sound of your acoustic guitar as if it were mic’d up in the studio AND the freedom to move around without compromising your sound. Sound impossible? Read on…

iRig Acoustic Stage is a patented, revolutionary digital microphone system that makes your guitar sound exactly as if it was captured with a classic recording studio setup, giving you full rich studio-quality sound on the stage.

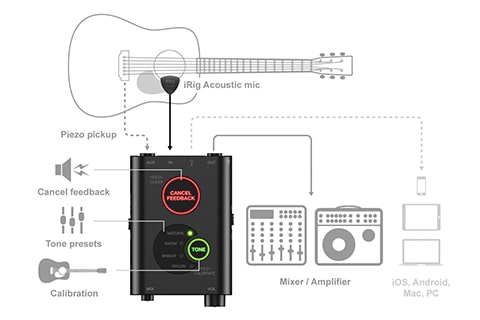

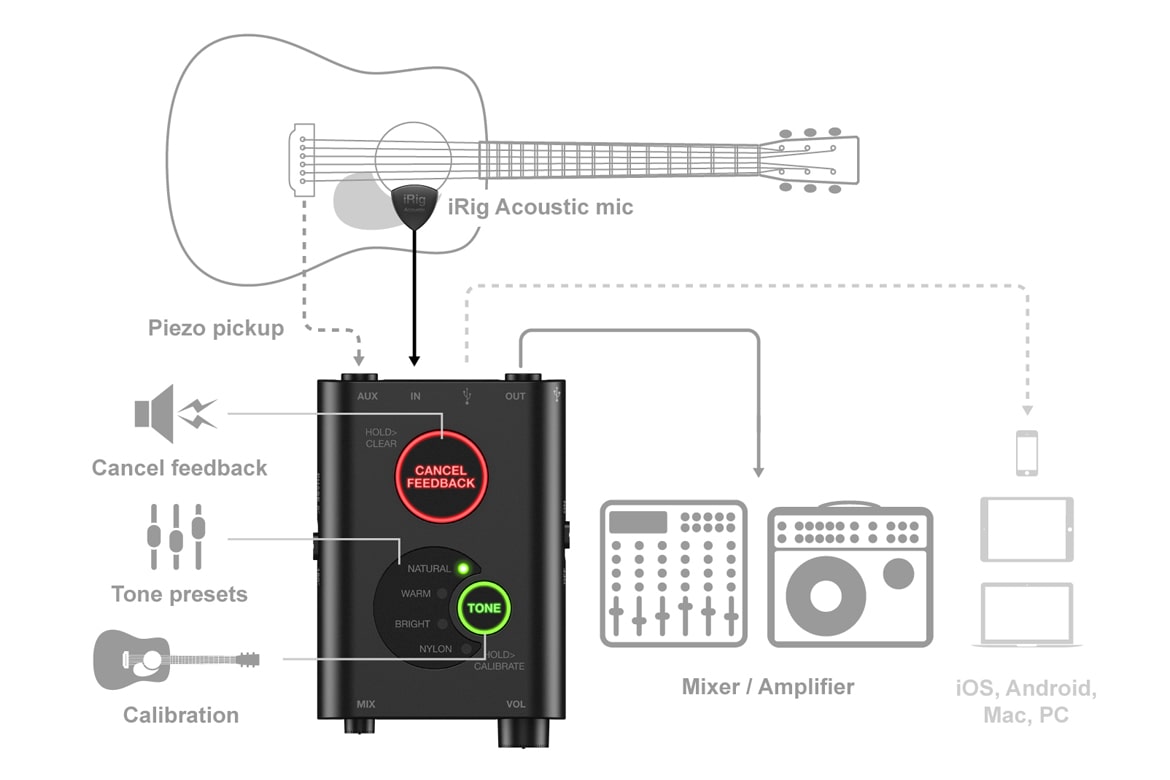

It’s a compact acoustic microphone and advanced digital preamplifier and processing unit that recreates a studio microphone set-up providing you with all of the true character and tonal nuance of your acoustic in live playing situations. Simply clip the iRig Acoustic Stage’s microphone to the sound hole, attach it to the iRig Acoustic Stage pre-amplifier processor, then connect the preamp to your amplifier or mixer. iRig Acoustic Stage also features a “Cancel Feedback” button that gets rids of annoying frequency feedback during performance.

Once installed and active, you’ll immediately hear what you’ve been missing with your traditional live setup as your acoustic tone comes alive with vibrance, warmth, depth and earthy, woody tone. If you currently perform with an acoustic-electric, iRig Acoustic Stage can greatly enhance your guitar’s live tone. iRig Acoustic Stage features an AUX input with a blend control that lets you blend your guitar’s current pickup system with iRig Acoustic Stage giving you even greater tonal flexibility and a roundness to your sound like you’ve never heard before.

Built for the Stage and Project/Home Studio

iRig Acoustic Stage provides an enhanced acoustic sound that's perfect for live performance and recording. Getting that "studio" sound in project or home studios with your acoustic is now easier than ever. If you have an audio interface, simply plug iRig Acoustic Stage into the analog input. No interface? No problem! iRig Acoustic Stage also features an integrated class-compliant USB audio output for direct connection to your computer or compatible device. Not only will you get that fantastic sound, but you can also move around freely allowing you to get into the groove and capture your best acoustic performance in your studio.

How does it work?

iRig Acoustic Stage uses a patented system composed by an hi-tech MEMS microphone and a preamplifier / processor that includes an advanced digital signal processing component performing multiple functions, from instrument calibration to EQ, to feedback cancel. The microphone that clips on to the soundhole of the guitar and captures all of the “air”, harmonics and sonic nuances of your instrument and playing style that is simply missed with traditional piezo and magnetic pickups. The synergy between the microphone and the 32-bit DSP-based preamp system provides amazingly rich, full-spectrum acoustic sound on stage like never before.

MEMS Microphone

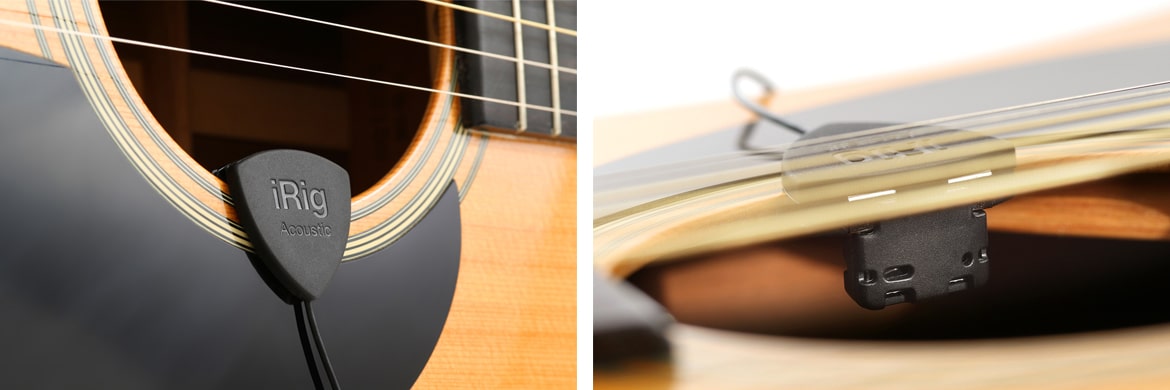

iRig Acoustic Stage uses an ultra-compact MEMS microphone to capture your acoustic’s sound from the soundhole. It can be quickly slid into place in the soundhole of the instrument and easily removed with zero modification to the instrument required. This lets you use iRig Acoustic Stage on all of your acoustic steel string guitars, classical nylon strings guitars and even ukuleles or other stringed instruments with a soundhole.

Acoustic Preamp / Built-in DSP

The magic of iRig Acoustic Stage comes from the combination between the microphone, the preamp and the signal processing unit. iRig Acoustic Stage analyzes the incoming signal from your guitar — both the overall sound and nuance of the instrument AND the playing technique — and builds the optimum tone profile for the instrument that delivers a warm, round and balanced acoustic sound. The tone profile can then be enhanced through the use of 6 selectable tone presets, depending upon the playing situation. iRig Acoustic Stage gives you 3 presets for steel string instruments — natural, warm, bright — and the same 3 optimized for nylon string instruments.

The iRig Acoustic Stage processor features high-resolution, 32-bit A/D and D/A audio conversion that accurately reproduces the full range nuance, character and acoustic tonal quality of your guitar — you’ll clearly hear the tones that made you choose that guitar in the first place! Now you can get that sound everywhere you play.

Dedicated iRig Acoustic Microphone
Microphone Type	MEMS
Polar Pattern	omnidirectional
Frequency Response	30 Hz - 20 kHz, +/-3dB
Max SPL	130dB SPL
Signal-to-Noise Ratio	101 dBA
Maximum soundboard thickness	4mm / 0.16"
Connections
Dedicated iRig Acoustic Microphone Input	2.5mm / 3/32" TS mono jack
AUX Instrument Input Connector	6.3mm / 1/4" TS mono jack
AUX Instrument Input Impedance	1 MOhms
Analog Output Connector	6.3mm / 1/4" TS mono jack, line-level, low impedance
Analog Output Impedance	50 Ohms (can drive long cables without any loss)
Digital Output Connector	micro-USB
DSP/Interface
AD and DA Resolution	32-bit
Sampling Rate	48 kHz
Interface Output	USB class compliant audio output via micro-USB port
Power	battery power (2xAA), USB bus power
Battery Life	approximatively 12 hours of continuous usage with alkaline batteries and 15 hours with rechargeable high quality Ni-MH AA cells (2000 mAh and up)
