Product Highlights
-
Professional reference-quality sound
- Advanced digital control with 56-bit DSP, controlled diffraction / low resonance enclosure and time-aligned crossover, deliver superior audio with ultra-linear frequency response.
- Powerful Class D bi-amplification system (50W RMS) provides plenty of headroom with lightning-fast transient response.
- High-rigidity custom composite material woofer plus large flare bass reflex port produces “best in class” bass response down to 55Hz.
- High-quality woofer and tweeter — like ones found in high-end systems — without the high-end price.
-
Ultra-compact
- The smallest footprint of any reference quality studio monitor system.
- Fits anywhere — provides high-definition monitoring in the tightest spaces.
- Can be placed closer to you than other monitors reducing the effects of room reflections and standing waves.
- The first monitor system you can easily carry with you anywhere you go.
-
Flexible placement and connections
- Desktop or monitor stand placement with selectable EQ correction and adjustable integrated isolation base optimized for your setup.
- Mounts on regular mic stands for free-field positioning with no need for additional accessories.
- Wired connection with 1/8” stereo mini-jack and RCA inputs for recording, mixing and mastering.
- Wireless Bluetooth connection for listening to your music anywhere.
- Overview
- Tech Specs
High-end sound without the high-end price
iLoud Micro Monitor is two extremely portable, high-performance bi-amped speakers that delivers a combined 50W RMS of power for solid bass, plenty of headroom and a stunningly defined stereo image. Whether you’re recording, editing, mixing or mastering audio, editing video, sound designing or gaming, iLoud Micro Monitor ensures your production will translate well to the huge variety of consumer devices — headphones, home stereo systems, gaming consoles, car audio systems, TVs, and other listening systems.With iLoud Micro Monitor, you will hear the truth in your music no matter whether you’re mixing in your bedroom, mastering in a small studio or just listening to your favorite tunes at home. And best of all, it offers high-end features that can be found only in monitors in big budget studios, but without the high-end price tag.
High power, smallest footprint

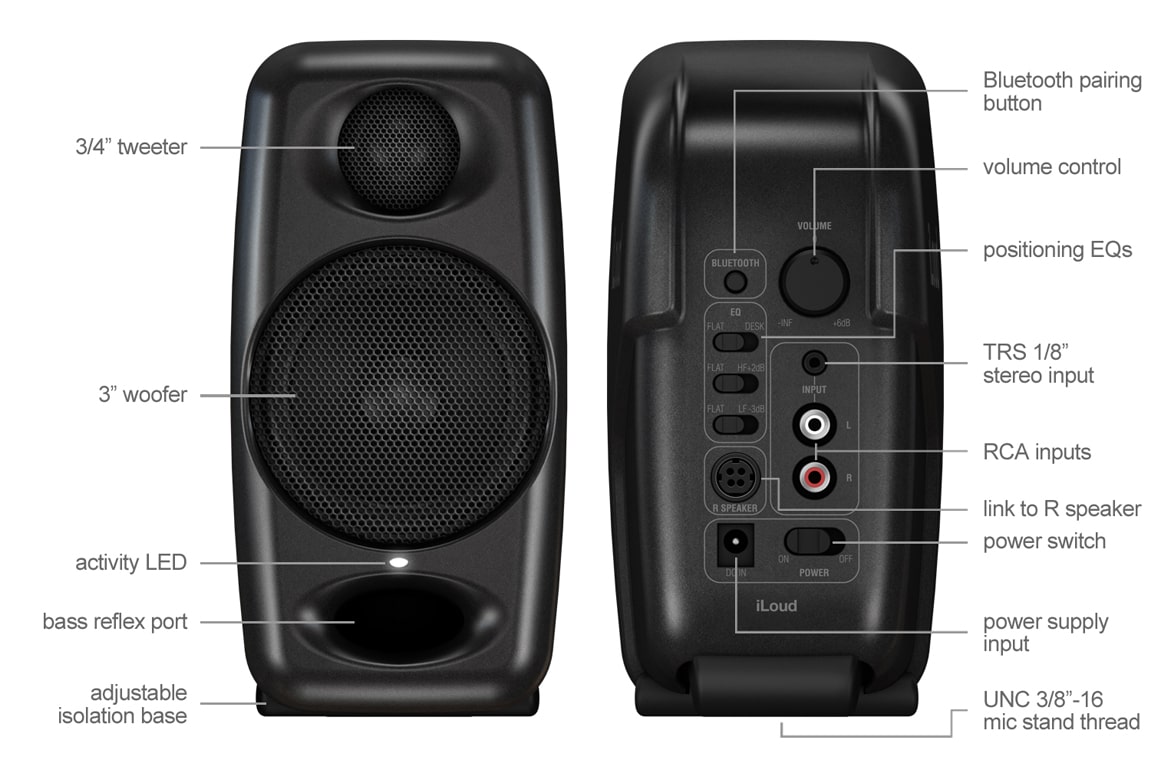

Each tweeter and woofer is powered by ultra-efficient class D power amplifiers that push a total of 50W RMS with amazing low-end response down to 55Hz (-3dB) — the best bass response in its category. Each monitor sports a 3/4” silk dome tweeter, a 3” high-rigidity custom composite material woofer and a large-flaring front-firing bass reflex port. Thanks to these features, it’s able to deliver smooth and extended high frequencies, an exceptionally open, focused midrange and a solid, controlled low end. Simply put, iLoud Micro Monitor's sound is so good that it’s nearly inconceivable for a speaker system of this size and at this price point.

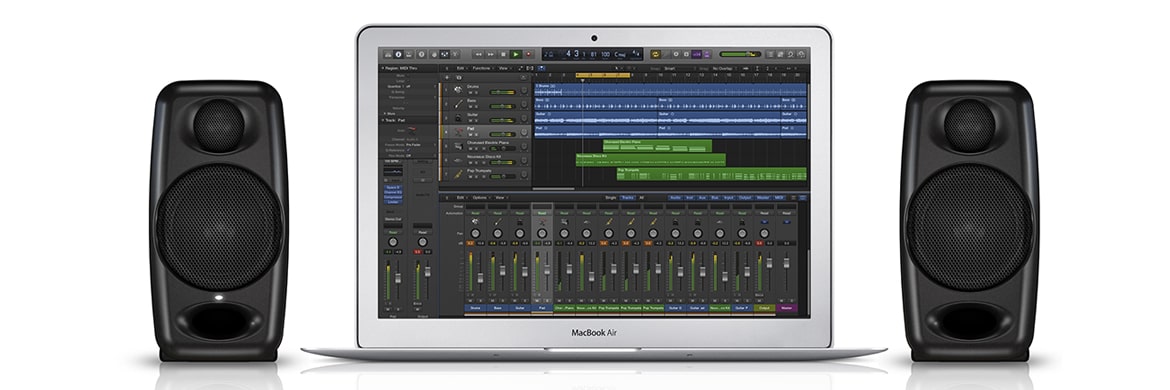

Ideal for small studios
Most home studios offer less than ideal space when working on audio and often resemble just a desk with a computer and speakers beside it placed against a wall. Most speakers are not designed for these small environments and sound boomy and undefined, but iLoud Micro Monitors have been designed to be the best possible reference monitor in these challenging “small room” situations.
Free-field positioning
iLoud Micro Monitors also feature an integrated mic stand thread (UNC 3/8”-16) so you can easily place them on any regular pair of mic stands giving you the best possible monitoring conditions in the smallest places without adding expensive accessories.
Superior monitoring, superior metering
iLoud Micro Monitor also gives you the T-RackS 5 Metering Suite for free upon registration. This broadcast-ready suite provides you with precision Peak, RMS and Dynamic Range meters, spectogram, real-time analyzer, phase and correlation meters and more. It’s a couple set of tools to manage all the aspects of your audio material with reference-class accurary. This convenient plug-in can be inserted on your master bus or any single track so your metering is as professional as your monitoring.
Get connected
You can easily use iLoud Micro Monitor with all your favorite gear. Sending an audio signal to it couldn’t be easier. It has inputs for both RCA and 1/8” connectors, and it can also receive audio via Bluetooth from any Bluetooth-enabled device.
The first monitor that can travel with you
Because iLoud Micro Monitors are the smallest - and lightest (1.7kg / 60.7oz) - monitors in the world, you can now for the first time ever have a true reference monitor system everywhere you go.
| Type | 2-way active, bi-amped studio monitor |
| Frequency response (-3dB) | 55Hz - 20kHz" |
| Frequency response (-10dB) | 45Hz - 22kHz |
| Crossover frequency | 3kHz |
| Tweeter | 3/4" silk dome, neodymium magnet |
| Woofer | 3" high-rigidity custom composite material |
| Maximum SPL @ 50cm (with two speakers playing, averaged sinewave from 100 Hz to 10 kHz) | 107dB |
| Number of amplifiers | 4 |
| Amplifiers type | High Efficiency Class-D |
| Total output power (both speakers) | 70W (peak) - 50W RMS |
| Low frequency output power (single speaker) | 18W RMS |
| High frequency output power (single speaker) | 7W RMS |
| Acoustic settings | High shelf (0dB or -3dB from 4kHz up); low shelf (0dB or -3dB from 250Hz down); desktop (+3.5dB between 1kHz and 10kHz and -1dB below 400Hz) |
| System total latency (analog input) | 1.02 ms |
| System total latency (Bluetooth input) | 155 ms (depends on host implementation, tested on iPhone 6S / iOS 10.0.1) |
| Connectors | 2 x RCA input (cable included); TRS 1/8" stereo input; 4-pin speaker connector (cable included) |
| Size | 180mm/7.09" x 135mm/5.31" x 90mm/3.54" |
| Weight | 920g/32.45oz (left speaker), 800g/28.22oz (right speaker), 1,720g/60.67oz (left + right speaker) |
Package includes
- 2 x iLoud Micro Monitor speakers
- Power supply unit
- Power supply cable
- 4-pin speakers connection cable (1.5m/59.1")
- TRS 1/8" stereo to 2 x RCA cable (1.5m/59.1")
Dimensions
- Size: 180mm/7.09" x 135mm/5.31" x 90mm/3.54"
- Weight: 920g/32.45oz (left speaker), 800g/28.22oz (right speaker), 1,720g/60.67oz (left + right speaker)
System Requirements
- iLoud Micro Monitor is equipped with a wired connection (RCA and TRS 1/8" stereo input) compatible with Mac, PC, iPhone, iPad, iPod, Android smartphones and tablets and MP3 players. It’s also compatible with most Bluetooth®-enabled devices compatible with A2DP protocol.
