IK Multimedia iKlip A/V

The first smartphone broadcast mount for pro-quality audio/video
Product Highlights
  • Professional audio and video broadcast recording system for smartphones
  • XLR mic preamp with phantom power and gain
  • Integrated wireless receiver support
  • 1/8” TRRS analog audio output
  • Headphone output for real-time monitoring
  • Standard UNC 1/4”-20 tripod and camera mount threads
  • Powered by two standard AA batteries

  • Overview
  • Tech Specs

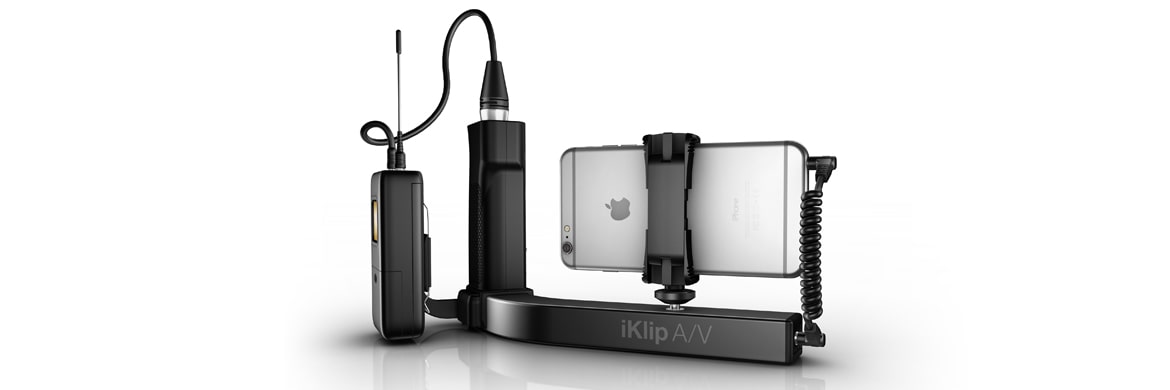

iKlip A/V is a complete mobile solution for professional audio and video recording with your smartphone. An industry first, it's a system that now gives you the ability to capture and monitor pro-quality audio on the go thanks to an integrated high-quality mic preamp and built-in wireless receiver support. With iKlip A/V you can take your best shot, capture your best take and get professional broadcast-ready results with just your smartphone and your favorite microphone.

Exceptional audio

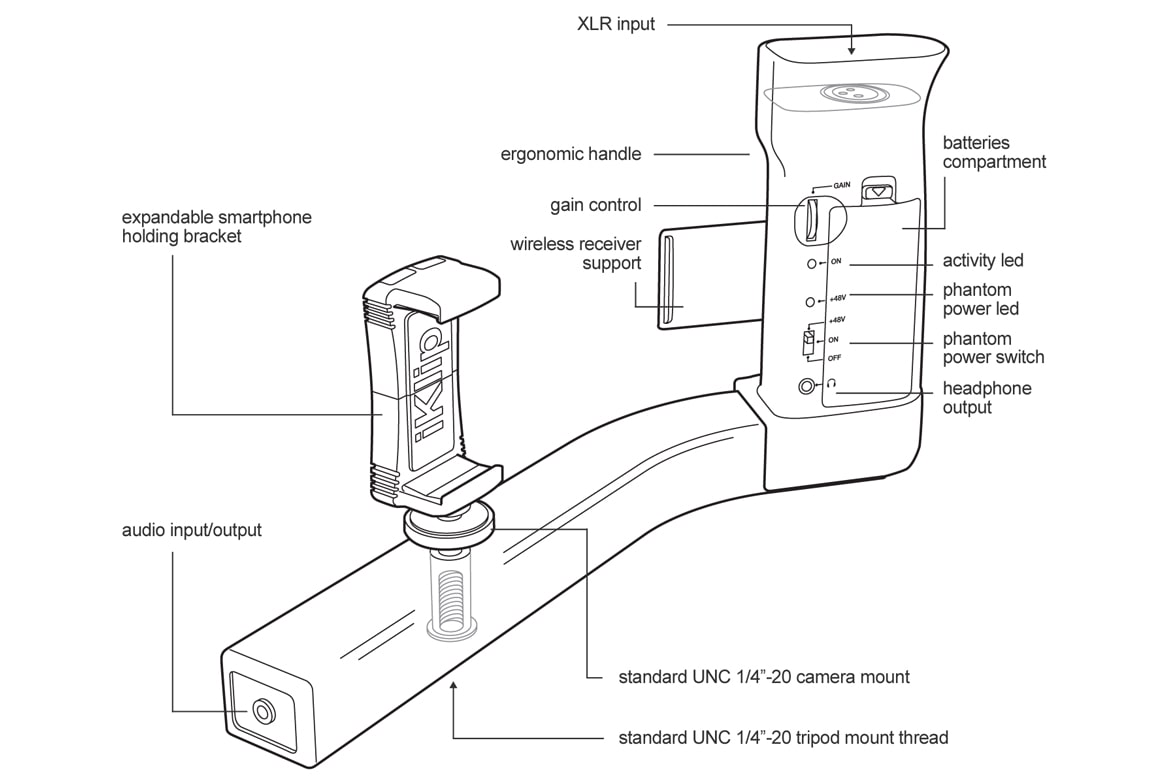

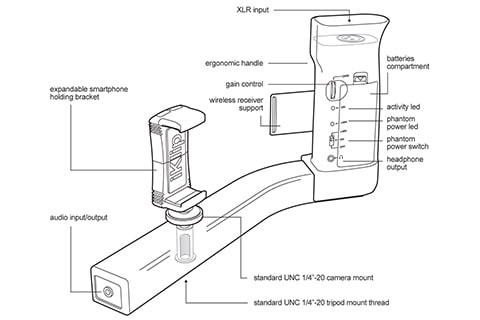

First, iKlip A/V is designed for mobile broadcast professionals to provide pro-quality audio to your mobile videos. It features an integrated microphone preamp with phantom power that lets you use a high-quality external microphone for audio capture. Simply plug your microphone or wireless receiver into the preamp’s XLR input, then plug the 1/8” TRRS cable into your smartphone’s headphone/mic jack. It’s that simple. Need phantom power to your mic? No problem! iKlip A/V provides 48v of power via two AA batteries, and also features built-in support for holding most popular wireless microphone receivers.

For the best recording quality possible, iKlip A/V also provides real-time monitoring and gain control options: It comes with an input gain knob plus an 1/8” headphone output. And, the best part of all is that all these extra features are all built into the grip itself, which makes for a streamlined recording experience that can't be found anywhere else.

Steady and secure

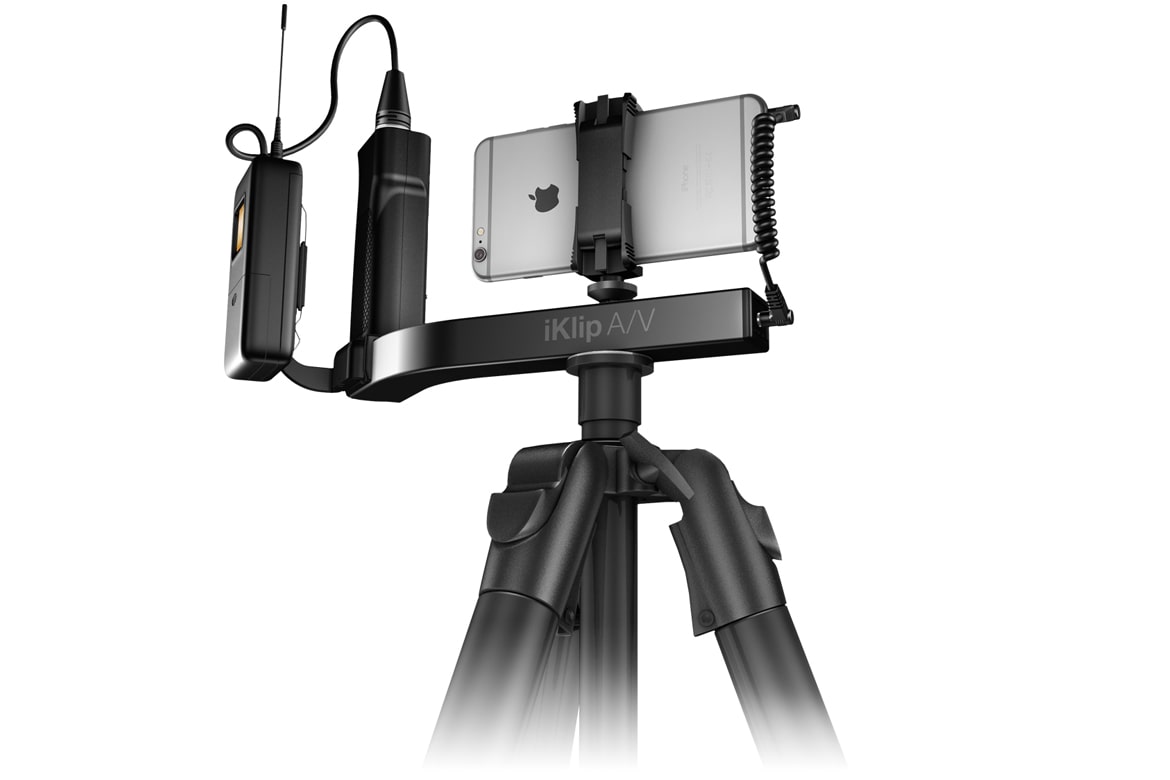

iKlip A/V features a steady-shot hand grip and expandable holding bracket — the same technology as iKlip Xpand Mini — that can securely hold any iPhone, iPod touch or Android device with a screen size from 3.5” to 6” You can attach iKlip A/V to a monopod or tripod thanks to its standard UNC 1/4”-20 female threads on the underside for even more stability, and you can remove the iKlip Xpand smartphone holder an attach other types of compact video cameras to its standard camera mount. Whether using iKlip A/V as a handheld or on a tripod, you'll always capture a more superior picture and audio than you would if you were just holding your smartphone.

Completely connectible
iKlip A/V works seamlessly with your iPhone, iPod touch or other smartphone. The reason it's so easy to use and universal is because its mic preamp plugs into your device via a 1/8” TRRS analog audio jack. This means you can use it — and get great broadcast-quality results — with any device that can either fit on its grip or fit on iKlip A/V's standard UNC 1/4”-20 thread tripod/camera mount.

Similarly, iKlip A/V is compatible with all your favorite mobile video recording apps. This includes favorites like Apple's Camera app as well as third party apps that provide more control, like FiLMiC Pro.

Frequency response From 20 Hz to 20 kHz +/- 1.5dB
Input & Output 1x XLR input
1x 1/8" TRRS output
1x 1/8" headphone output
Noise -98 dB fullband, phantom power ON
Maximum output level 2 Vrms
Distortion 0.025% THD
Phantom max current 6mA
Battery duration (Alkaline AA) Approx 60 hours when phantom is off, approx 20 hours when phantom is on
Material Thermoplastic / Aluminum

Package includes
  • iKlip A/V
  • 1/8” TRRS to 1/8” TRRS cable
  • Holding bracket
  • Wireless mic receiver and XLR cable are not included

Dimensions
  • Weight: 353g / 12.45oz
  • 1/8” TRRS to 1/8” TRRS cable lenght: 20cm / 7.87”
  • Holding bracket width: 54mm (min) - 91mm (max) / 2.13” (min) - 3.58” (max)
  • Wireless mic receiver support size: 62mm x 31mm / 2.44” x 1.22”
