AXE I/O
High-end sound meets best-in-class guitar tone
Connections
- 2 in / 5 out (one low-noise Amp out)
- 2 ultra-low noise mic in/balanced line in
- Triple topology guitar input with Z-TONE™
- 2 balanced monitor out / 2 line out
- Reference headphones out
- 2 fully configurable external control input
- MIDI input/output
- USB 2.0 compatible with Mac/PC
Best-in-class guitar tone
- Selectable Active/Passive/discrete JFET/Pure instrument preamp
- Patent pending Z-TONE™ input for a tonal palette never heard before
- Amp out can connect to amps and stomps without ground noise
- Connect up to 2 expression pedals, single and double-switches
- Fully assignable data-knob – for AmpliTube preset browsing and more
- Built-in Tuner
- Rugged/compact metal housing
- Includes AmpliTube 4 Deluxe
Premium studio sound
- High-resolution ultra low-noise Class A microphone preamps
- Best-in-class conversion and superior analog design
- Asynchronous USB audio, ultra low conversion jitters for premium quality
- 117dB dynamic range
- Includes control software
- Up to 192 kHz sampling rate
- Includes 10 T-RackS high-end plug-ins and Ableton Live 10 Lite
- Overview
- Tech Specs

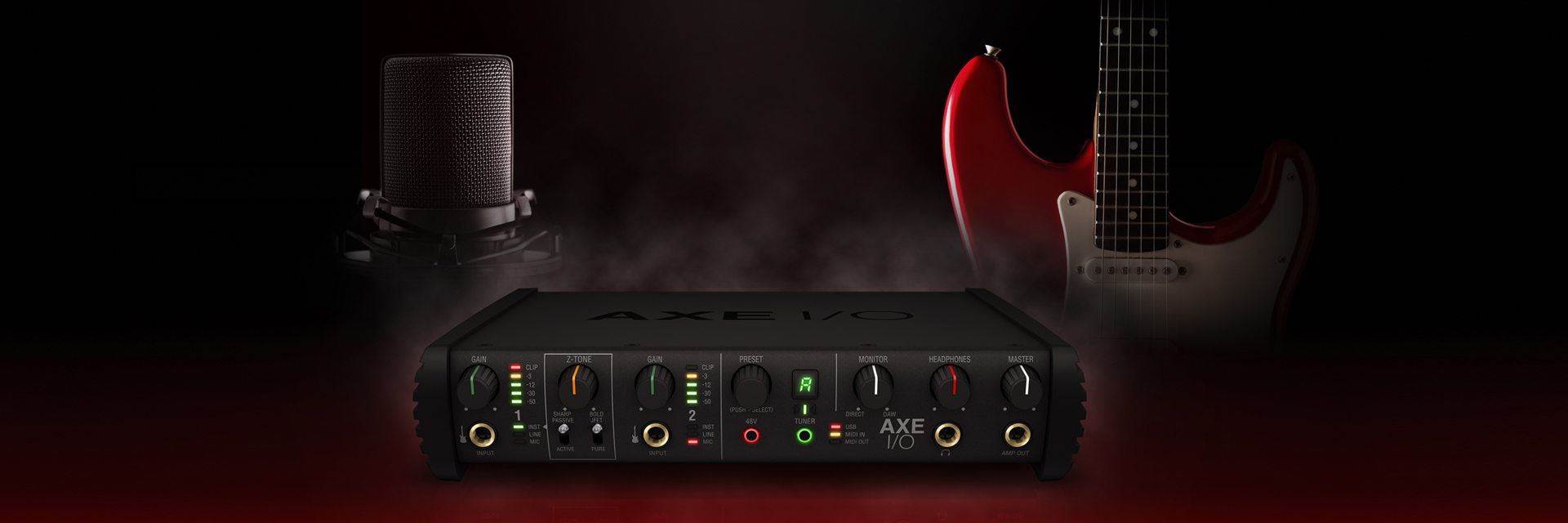

Premium audio interface with advanced guitar tone shaping
AXE I/O is a professional 2 in/5 out audio interface – and controller - designed specifically with the needs of the recording guitarist in mind, providing best-in-class sound quality and powerful features aimed squarely at making your recordings faster, easier and better than ever.AXE I/O offers an exclusive triple-topology, fully discrete input circuit, with both PURE and JFET input stages, to go from transparent to tube-like with just a single switch.
Its patent-pending Z-Tone™ impedance-adapting circuit interacts with your guitar's pick-ups to give you a massive range of tonal flexibility, you’ve never heard before.
Plus AXE I/O includes a dedicated Amp Out, so you can process your recording with real guitar amps and stomps without the need for external accessories (and without having to unplug your existing connections!). This low-noise out also eliminates ground loops, to keep even the highest-gain re-amplification as quiet as possible.
And AXE I/O seamlessly integrates with the included AmpliTube 4 Deluxe to select presets and control values via the front input knob, and lets you connect pedals and switches to get the most from your virtual rig without ever taking your hands off your axe.
We even included an onboard tuner so you can be ready to record in an instant whenever inspiration strikes.
Every element of AXE I/O has been created with no-compromise quality and real-world usefulness.
It’s the interface we wish we’d had all along.
A truly high-end audio interface for everybody
117 dB dynamic range, 3 Hz – 32 kHz frequency response – these aren’t the specs you typically find on instrument inputs. But they’re essential to capturing the most accurate details of your performance, for coaxing the best performance from your instrument, and for keeping your sound pure and transparent.
AXE I/O provides 2 Hi-Z front ¼" inputs for guitars and basses, 2 rear combo inputs with phantom power to connect mics and line instruments, and clear precision front peak meters to conveniently monitor the signal level at the channels input. Two floating balanced outputs, two unbalanced and one floating unbalanced Amp out plus a high-current headphone out let you connect monitors, mains and headphones, with independent volume for both. A Monitor knob makes it easy to blend direct monitoring and the audio from your computer for zero latency monitoring.
24-bit, 192 kHz conversion and an ultra-stable, low jitter internal clock ensures the highest fidelity, whether you’re capturing vocals, acoustic instruments, amplified guitar or just direct signal for use with AmpliTube.
Your guitar’s golden channel
AXE I/O’s main channel offers 3 different circuit topologies – that means you have 3 different options to adapt to any type of guitar, pick-up and style so you can always dial in the perfect tone from any instrument.
All three stages offer 117 dB dynamic range to ensure the cleanest signal. And the 3 Hz – 32 kHz frequency response preserves the full sonic impact of your instrument. Unlike the 20 Hz bass response in budget interfaces, AXE I/O captures the full impact of even the deepest bass and won’t artificially cut off sounds above 20 kHz.
Tone and feel like you’ve never heard
Guitar pickups can dramatically change their character depending on the impedance of your preamp. Many guitar amps offer a load of 1 MOhms, while pedals can run much lower. That’s why the tone and responsiveness of your guitar can change so much when plugging into different gear.
PURE mic preamps for transparent recording
When it comes to recording with microphones, AXE I/O offers two PURE mic preamps designed for transparent and clean recording. These mic pres offer a wide, flat frequency response: 5 Hz to 32 kHz, ± 0.5 dB (at 96 kHz) to avoid unwanted coloration and perfectly preserve the sonic character of your acoustic guitar, piano or other instrument, and maintain the signature of whichever mics you connect. They offer 116 dB of dynamic range, for ultra-quiet sound perfect for recording even the most delicate instruments, but make it easy to also pull back and record the loudest amp stack.
Re-amplification made easier than ever
Many guitarists have tried to integrate their amps and stomps with recording setups only to discover it’s not an easy task! AXE I/O makes this all easier than ever with its Amp Out. It features a dedicated ground-isolated low noise ¼” output right on the front panel for easy access.
Common | |
Conversion | 24-bit A/D, 24-bit D/A |
Sampling Rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz |
Power | DC IN |
Device Connection | USB B-Type 2.0 |
Enclosure | Metal sheet |
Line Outputs 1-2 (Monitor) | |
Configuration | Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot. |
Output impedance | 150 Ohms balanced, 75 Ohms unbalanced |
Output Level | 0 dBFS corresponds to +21 dBu |
Frequency response | From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 116 dB(A) |
THD+N | -106 dB(A) at -1 dBFS |
Channels 1-2 crosstalk | 115 dB(A) |
Line Outputs 3-4 | |
Configuration | Unbalanced |
Output impedance | 75 Ohms |
Output Level | 0 dBFS corresponds to +16 dBu |
Frequency response | From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 115 dB(A) |
THD+N | -102 dB(A) |
Channels 3-4 crosstalk | 112 dB(A) |
Output 5 (Amp output) | |
Configuration | Unbalanced, floating, with selectable ground lift |
Output impedance | 100 Ohms |
Output Level | 0 dBFS corresponds to -6 dBu |
Frequency response | From 10 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 110 dB(A) |
THD+N | -104 dB(A) |
Headphones Out | |
Output impedance | Virtually ideal source (zero Ohms) until clipping |
Maximum Output level | +12 dBu into 50 Ohms load (approx 180 mW) |
Frequency response | From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 112 dB(A) |
THD+N | -100 dB(A) |
Mic Inputs 1-2 | |
Configuration | Class-A discrete differential microphone preamp, pin 2 hot |
Input impedance | 4 kOhms differential |
Input level, min gain | 0 dBFS is obtained with a +12 dBu signal at the XLR input |
Input level, max gain | 0 dBFS is obtained with a -37 dBu signal at the XLR input |
Frequency response | From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 116 dB(A) |
THD+N | -106 dB(A) at -10 dBFS |
Line Inputs 1-2 | |
Configuration | Class-A discrete differential line receiver, tip hot |
Input impedance | 20 kOhms differential |
Input level, min gain | 0 dBFS is obtained with a +26 dBu signal at the TRS input |
Input level, max gain | 0 dBFS is obtained with a -24 dBu signal at the TRS input |
Frequency response | From 5 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 116 dB(A) |
THD+N | -106 dB(A) at -10 dBFS |
Instrument Inputs 1 | |
Configuration | Multiple topology instrument preamp |
Input impedance, PASSIVE mode | Variable from 1 MOhms down to 2.2 kOhms |
Input impedance, ACTIVE mode | 10 kOhms |
Input level, min gain | 0 dBFS is obtained with a +14 dBu signal at the TS input |
Input level, max gain | 0 dBFS is obtained with a -17 dBu signal at the TS input |
Frequency response | From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 117 dB(A) |
THD, PURE mode | 0.0015 % |
THD, JFET mode | 0.5 % |
Instrument Inputs 2 | |
Configuration | Hi-Z instrument preamp |
Input impedance | 1 MOhms |
Input level, min gain | 0 dBFS is obtained with a +14 dBu signal at the TS input |
Input level, max gain | 0 dBFS is obtained with a -17 dBu signal at the TS input |
Frequency response | From 3 Hz to 32 kHz within 0.5 dB (96 kHz sample rate) |
Dynamic Range | 117 dB(A) |
THD | 0.006% |
Connections and Controls | |
Front Panel |
|
Rear Panel |
|
Package includes
- AXE I/O
- USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
- DC power supply
Dimensions
- Size: 23.8cm/9.37" x 21.1cm/8.31" x 5.3cm/2.09"
- Weight: 1.3kg/2.9lb
Compatibility
- Computers
64-bit application. Requires a 64 bit CPU and Operating System. - Mac® (64-bits)
Minimal: macOS 10.11 or later. One free USB port. - Windows® (64-bits)
Minimal: Windows 7 or later. One free USB port.
