RedNet HD32R
32x32 Pro Tools | HD I/O With Dual PSUsProduct Highlights
- 32x32 Pro Tools | HD I/O for Dante audio-over-IP networks
- Primary and Expansion DigiLink mini connections
- Up to 24-bit, 192kHz sampling rates
- AES67 compliant
- Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
- Word Clock and Loop Sync I/O for increased flexibility and integration with other Pro Tools | HD hardware
- Comprehensive remote control and remote signal metering through RedNet Control
- Overview
- Tech Specs

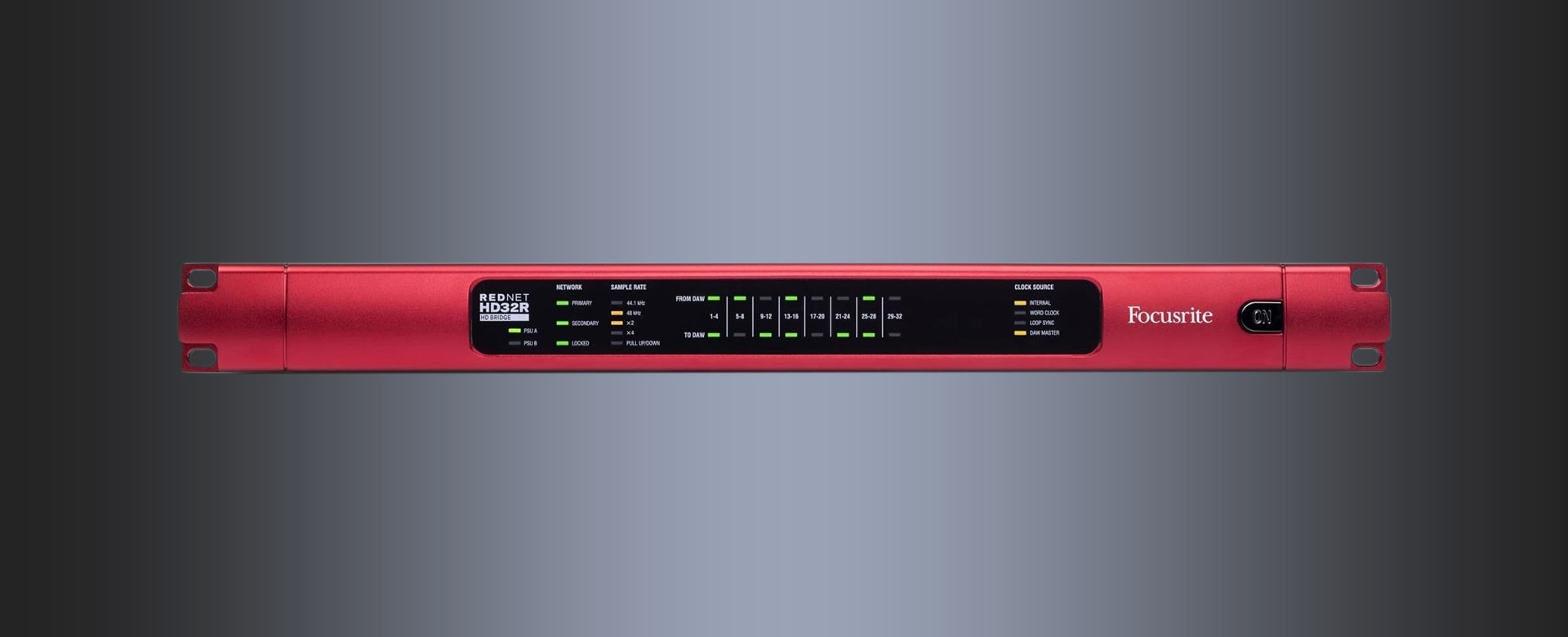

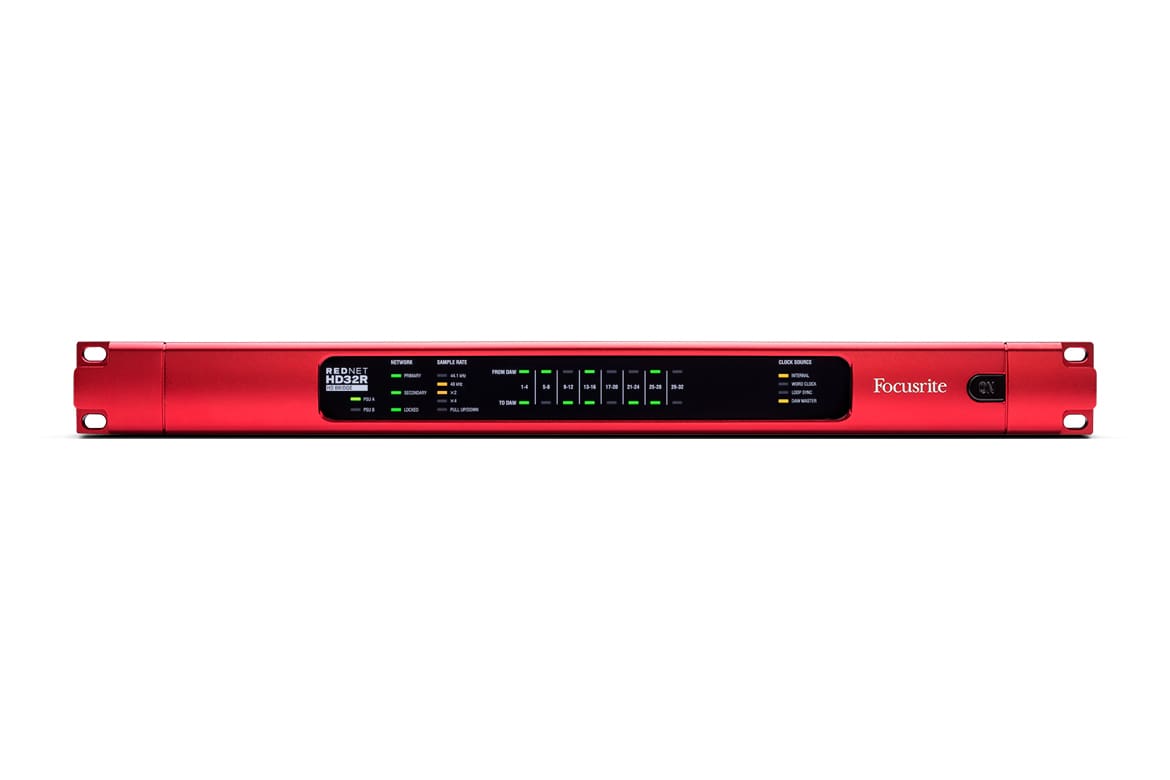

RedNet HD32R is a 1U, 32x32 Pro Tools | HD™ interface for any Dante™ audio-over-IP network. Featuring network and power supply redundancy, RedNet HD32R is the ideal choice for integrating your Pro Tools HD system into a Dante networked I/O environment in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.
A pair of DigiLink mini connectors allows RedNet HD32R to connect directly to any Pro Tools | HD system whether it's Native, HDX or even a legacy TDM system. Multiple RedNet HD32R units can be on the same Pro Tools system up to the maximum I/O channel count of Pro Tools, and Loop Sync I/O allows seamless integration with other Pro Tools interfaces such as HD I/O and Sync HD I/O.
| DIGITAL PERFORMANCE |
|
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
| Clock Sources | Internal, Word Clock, Loop Sync (master or slave) or from Dante Network Master |
| External Word Clock Range | Nominal sample rate ±7.5 |
| NETWORK MODES |
|
| Redundant | Allows unit to connect two independent networks |
| Switched | Connects both ports to integrated network switch allowing daisy-chaining of device |
| DIMENSIONS |
|
| Height | 44.5mm/ 1.75" |
| Width | 482.6mm/ 19" |
| Depth | 263mm/ 10.35" |
| WEIGHT |
|
| Weight | 3.9kg |
| POWER |
|
| Power PSU | 2 x Internal, 100-240V, 50/60Hz, consumption 30VA |
| HEAT PERFORMANCE |
|
| Operating Temperature | Operates at up to an ambient temperature of 50 degrees Celcius |

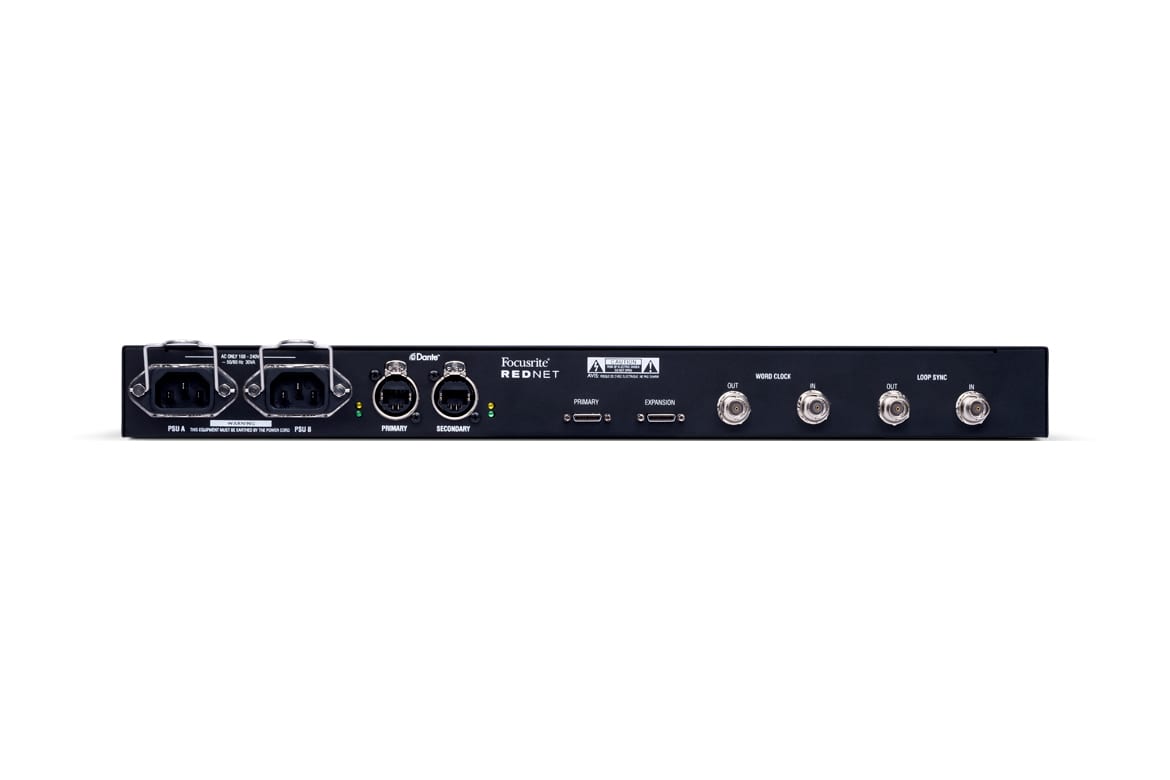

REAR PANEL CONNECTIVITY
- Primary Port: 1 x Mini DigiLink
- Expansion Port: 1 x Mini DigiLink
- Word Clock Input: 1 x BNC 75O port (switchable termination)
- Word Clock Output: 1 x BNC 75O port
- PSU: 2 x IEC Inputs with retaining clips
- Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
FRONT PANEL INDICATORS
- Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present
- Primary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
- Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
- Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
- Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master
- Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
- Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
- Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS
- Clock Source: Orange LED for each: Internal, Word Clock, Loop Sync and DAW Master
