RedNet D16 AES
16x16 AES3 I/OProduct Highlights
- 16x16 AES3 I/O for Dante audio-over-IP networks
- Up to 24-bit, 192kHz sampling rates
- AES67 compliant
- Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
- Flexible input options: DB25, XLR, RCA with sample rate conversion
- Word Clock I/O and DARS input for increased flexibility
- Combined digital I/O to AES59 standard on DB25 connectors
- Comprehensive front-panel metering and indicators
- Remote monitoring software with powerful graphic user interface
- Overview
- Tech Specs

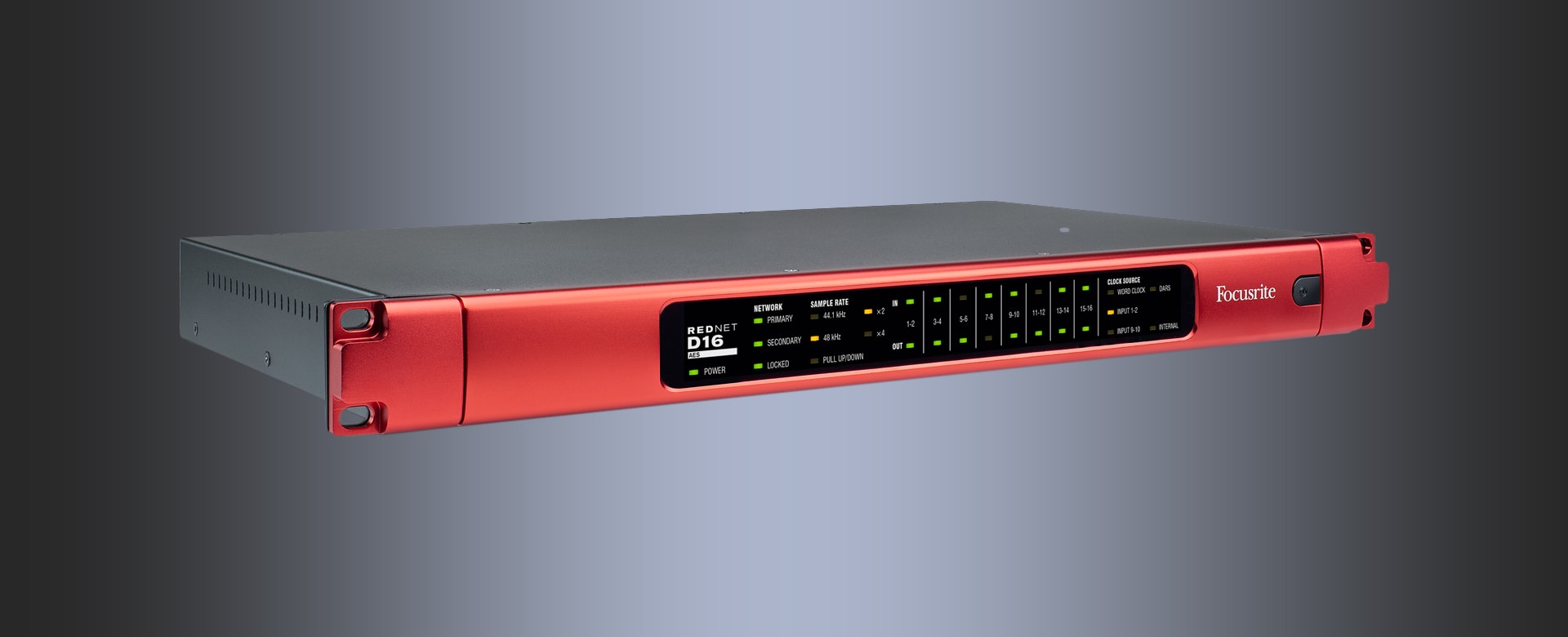

RedNet D16 AES is a 1U, 16x16 AES3 interface for any Dante audio-over-IP network. Featuring network redundancy, RedNet D16 AES is the ideal choice for providing AES3 I/O in many applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.

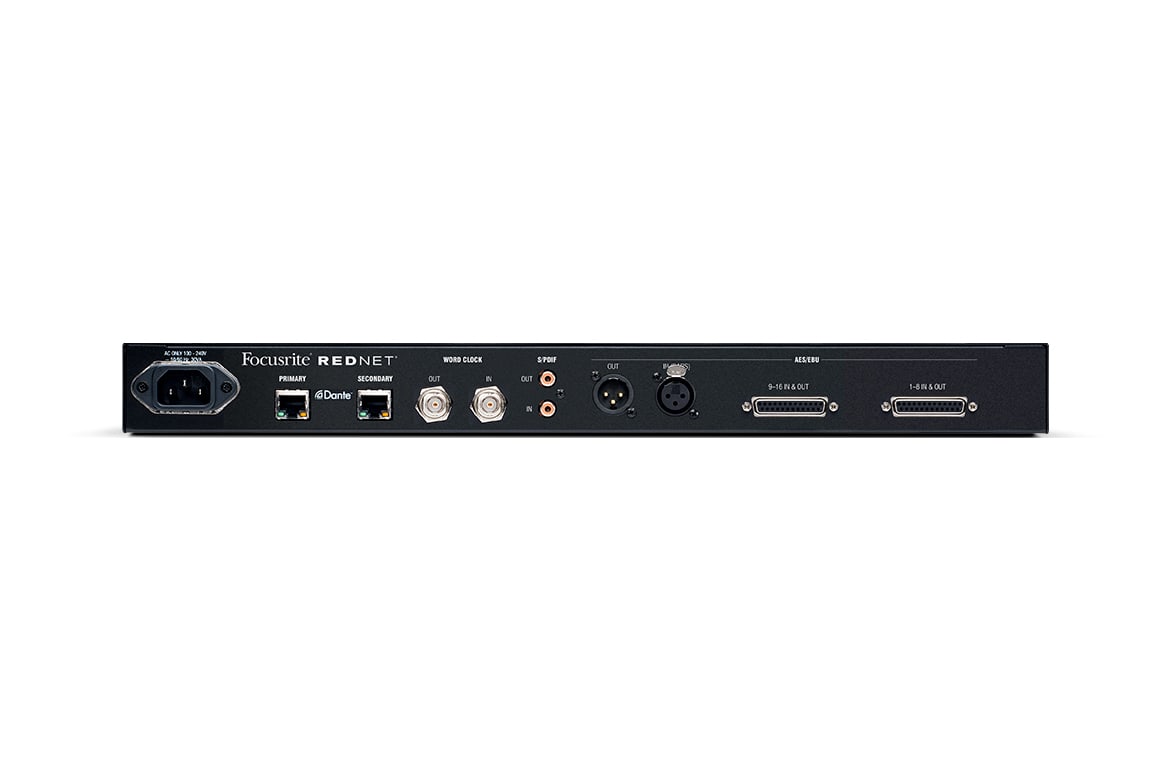

Four rear-panel DB25 connectors wired to the AES59 standard provide eight pairs of AES3 I/O, while an additional pair of XLR connectors allows flexibility in cabling choice for one pair of I/O. Additional RCA connectors allow the connection of consumer S/PDIF equipment. All external audio inputs include sample rate conversion, further reducing cabling and clocking complexity.Word Clock I/O on BNC connectors allows external devices to clock to RedNet D16 AES, or alternatively allows RedNet D16 AES to act as a network clock grand master slaved to external input. Power is supplied through a pair of locking IEC power inlets, and network connections are provided with a pair of locking Neutrik etherCON connectors; providing redundant operation or daisy-chained operation.
| INPUTS |
|
| AES/EBU | 16 channels, synchronous with unit sample rate |
| AES/EBU Connectors Inputs | Channels 1–16: 2x 25-way female D-Sub, each wired to AES59 (combined I/O)/Tascam Digital |
| S/PDIF Input | Channels 3–4 (switchable) |
| S/PDIF Connector Inputs | RCA Phono socket |
| Input Format | Channel status ignored. Assumed to be 24 bit, 2-channel audio |
| INPUT SAMPLE RATE CONVERTERS |
|
| Input Sample Rate Range | 32 to 216 kHz |
| Dynamic Range | > 138 dB (-60 dBFS method) |
| THD N | < -130 dB (0.00003); 0 dBFS input |
| OUTPUTS |
|
| AES/EBU Connectors | Channels 1–16: 2x 25-way female D-Sub, each wired to AES59 (combined I/O) |
| S/PDIF Output | 2 channels, synchronous with unit sample rate |
| S/PDIF Connector | RCA Phono socket |
| Output Format | AES3 |
| AES/EBU Outputs | 16 channels, synchronous with unit sample rate |
| DIGITAL PERFORMANCE |
|
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
| Clock Sources | Internal or from network master device |
| Local Clock Sources | Internal, DARS, Word Clock, Input 1–2, Input 9–10 |
| External Word Clock Range | Nominal sample rate ±7.5 |
| NETWORK MODES |
|
| Redundant | Allows unit to connect to two independent networks |
| Switched | Connects both ports to integrated network switch allowing daisy-chaining of devices Power |
| POWER |
|
| PSU | Internal, 100-240V, consumption 30 VA |

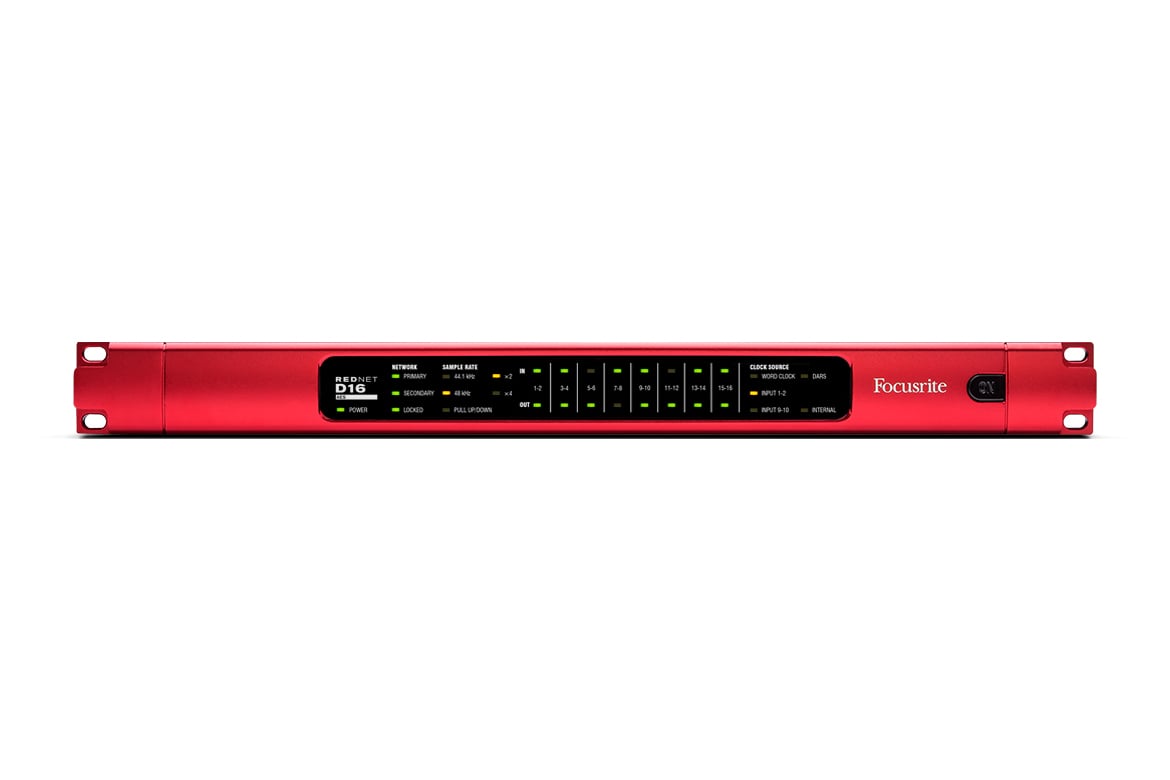

FRONT PANEL INDICATORS
- Power Indicator: Green LED
- Primary Network: Green LED, indicates that a network connection is present on primary port when in redundant mode
- Secondary Network: As Primary network indicator. Not used in switched mode
- Locked: Green LED
- Unit Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
- Pull Up/Down: Indicates unit is set to operate on a Dante pull up/down domain
- Signal Indicators: 16 Green LEDs, 8 input/8 output indicators. Illuminate at -126 dBFS
- Clock Source Indicators: Orange LED for each: Internal, Word Clock, DARS, Input 1–2, Input 9–10
