RedNet AM2
Stereo Headphone And Line Output, PoE SuppliedProduct Highlights
- Stereo line output and headphone for Dante audio-over-IP networks
- Power-over-Ethernet supplied: IEEE 802.3af compliant
- Up to 24-bit, 96kHz sampling rates
- Robust steel and aluminium chassis
- Powerful headphone output even with high-impedance headphones
- Up to 24dBu line output levels
- Independent level control of headphone and line outputs
- Mute switch for line output
- Mic stand mount
- Kensington security slot
- Integrated network switch allowing daisy-chaining of network devices
- Overview
- Tech Specs

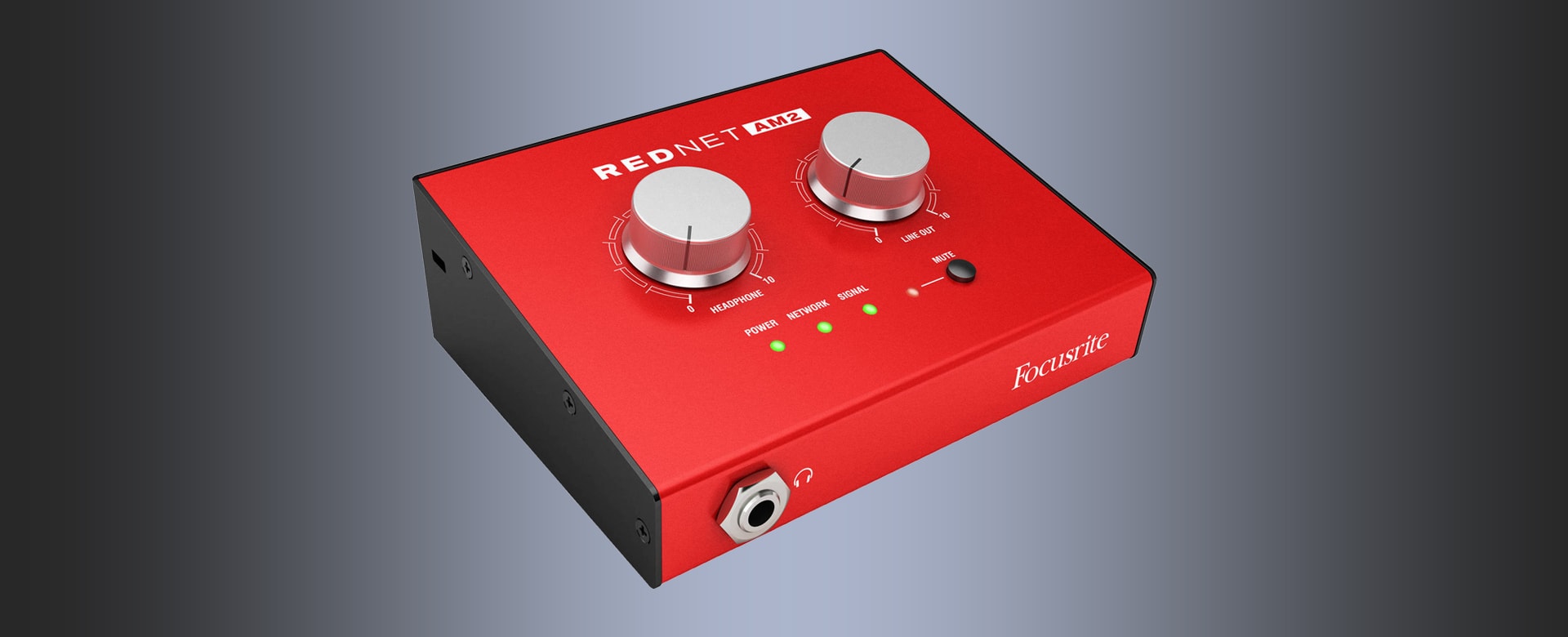

RedNet AM2 is a compact, Power-over-Ethernet (PoE) -supplied stereo analogue output device for any Dante audio-over-IP network. Featuring a powerful headphone amp, capable of driving both high and low impedance headphones, RedNet AM2 is the ideal signal monitoring device to add extra functionality to your audio network.

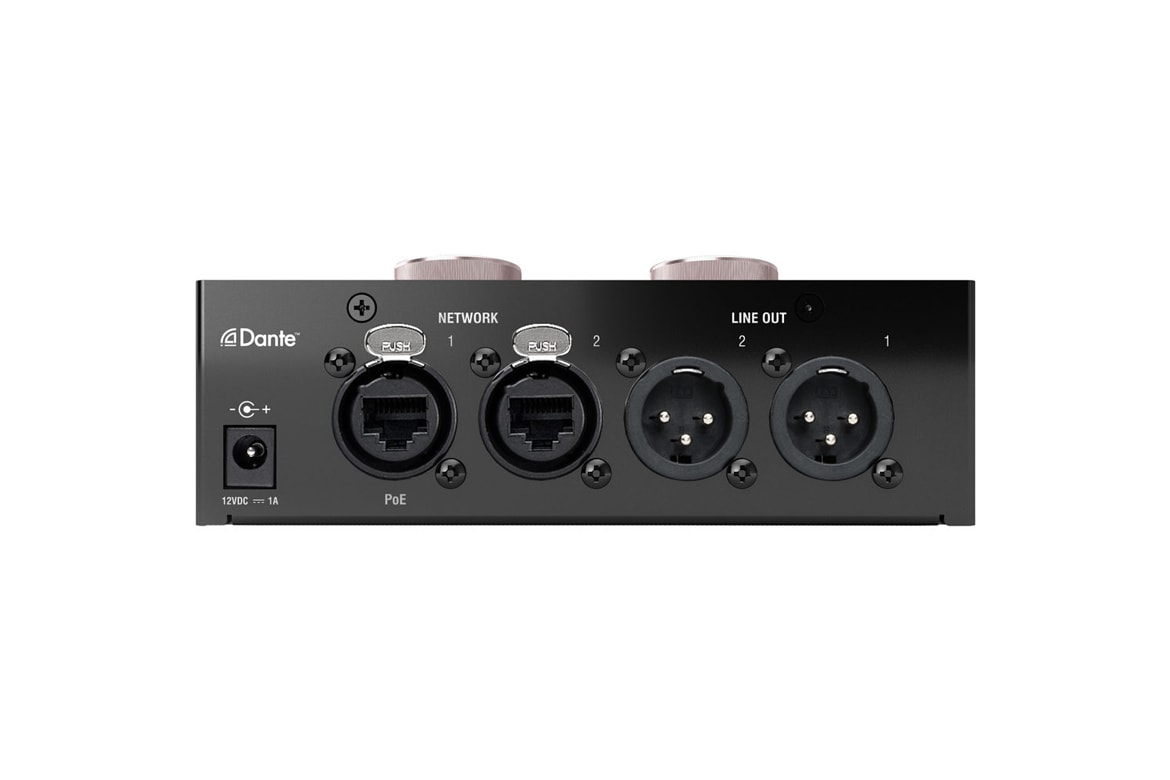

A pair of rear-panel XLR outputs offers line level signals of up to 24dBu with top panel level control and mute switch, while the front panel 1/4" headphone output is capable of driving high signal levels perfect for monitoring in high-SPL environments. The bottom of the sturdy aluminium and steel chassis features a threaded mic stand boss allowing RedNet AM2 to be placed in any convenient location whether on a desk or at a performer's fingertips on a stand. Finally, the IEEE standard PoE input allows a single Ethernet cable to provide power, remote control, clocking and audio data to RedNet AM2.
| LINE LEVEL OUTPUTS |
|
| 0 DBFS Reference Output Levels | 18 or 24dBu (switchable) |
| Frequency Response Output | 20Hz - 20kHz ±0.05dB |
| THD N Output | <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input |
| Dynamic Range | 120dB A-weighted (typical), 20Hz - 20kHz |
| CROSSTALK |
|
| Output To Output | <-100dB unweighted, 20Hz - 20kHz; -20dBFS input |
| HEADPHONE OUTPUT |
|
| 0 DBFS Reference Levels Headphones | 19dBm |
| Headphone Frequency Response | 20Hz - 20kHz ±0.05dB |
| Headphone THD N | <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input |
| Headphone Dynamic Range | 118dB A-weighted (typical), 20Hz - 20kHz |
| Output Impedance | 5O |
| Headphone Impedance | 32O - 600O |
| DIGITAL PERFORMANCE |
|
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
| Clock Sources | Internal or from Dante Network Master |
| Minimum Latency | 1ms |
| POWER |
|
| Power Over Ethernet (PoE) | Complies with IEEE 802.3af class 0 Power-over-Ethernet standard |
| DC Power Supply | 1 x 12V 1.2A DC Power Supply |
| Power Consumption | PoE: 11.0W - DC: 9.8W |
| Operating Temperature | Operates at up to an ambient temperature of 50 degrees Celcius |
FRONT PANEL CONNECTIVITY
- Headphone Outputs: 1 x 1/4" stereo jack
- Line Outputs: 2 x Male XLR
- PSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector
- Network: Green LED: Indicates device is network master or network slave, shows valid network lock

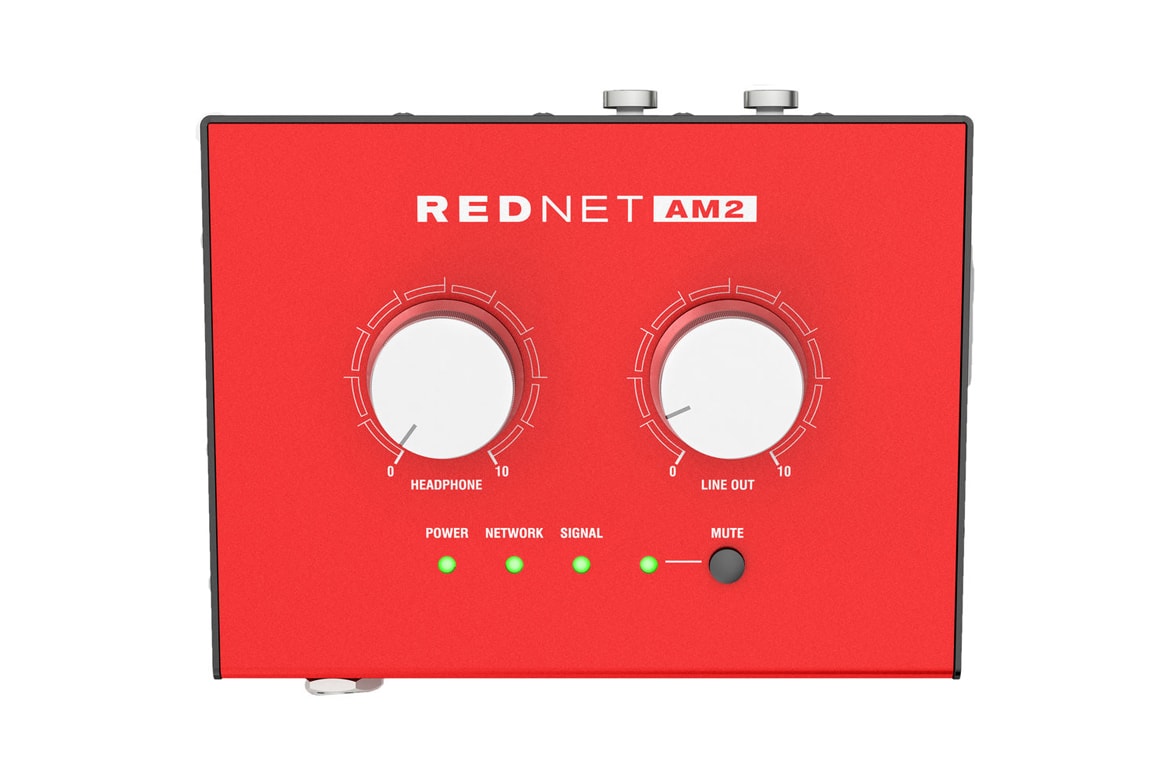

TOP PANEL INDICATORS
- Power: LED illuminates Green when PoE is connected and Red when DC power is connected
- Signal: Signal indicator LED for both network input channels
- Mute: Red LED
- Control Functions: 2 x Pots
DIMENSIONS
- Height (Chassis Only): 48mm/ 1.89"
- Height (Inc. Pots And Feet): 58mm/ 2.28"
- Width: 140mm/ 5.51"
- Depth (Chassis Only): 106.5mm/ 4.19"
- Depth (Inc. Connectors): 116mm/ 4.57"
WEIGHT
- Weight: 0.81kg
