REDNET A8R
8x8 analogue I/O with dual PSUsProduct Highlights
- Eight channels of high-quality line-level analogue I/O for Dante audio-over-IP networks
- 24-bit precision conversion up to 192kHz
- 119dB dynamic range, flat from 20Hz - 20kHz, +/-0.15dB
- Software-selectable +24dBu or +18dBu level alignment
- AES67 compliant
- Dual power supplies and network connections with full power and network redundancy including locking connectors for maximum reliability
- Word Clock I/O and DARS input for increased flexibility plus an additional two channels of AES3 I/O
- Analogue I/O to AES59 standard on DB25 connectors
- Comprehensive front-panel metering and indicators
- Remote monitoring software with powerful graphic user interface
- Overview
- Tech Specs
8X8 Analogue I/O With Dual Psus

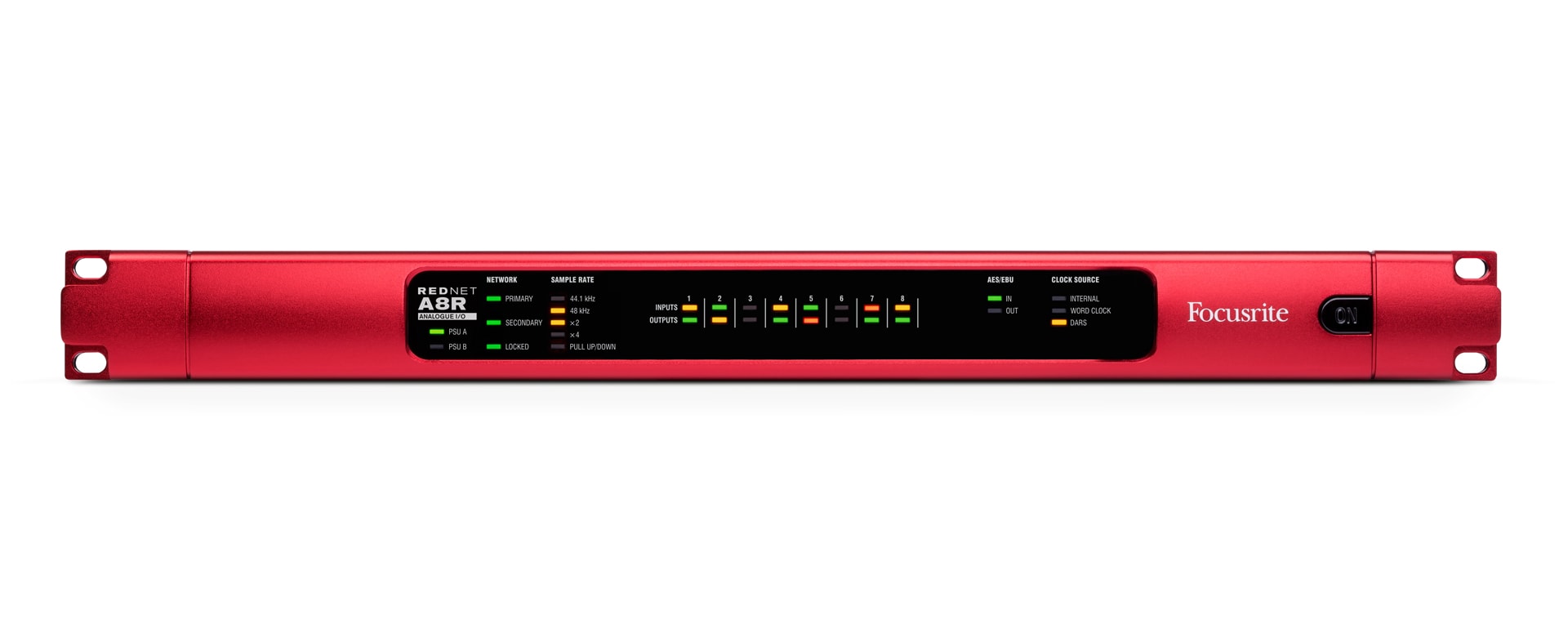

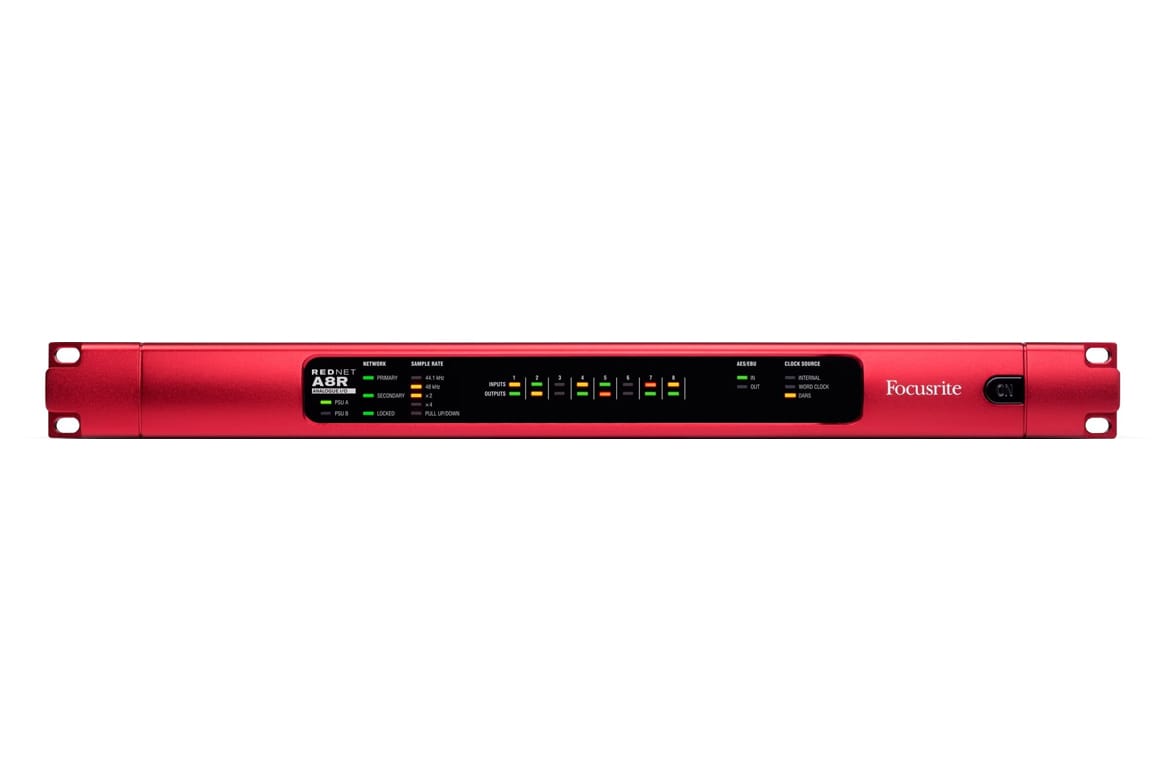

RedNet A8R is a 1U, 8x8 analogue line-level I/O interface for any Dante audio-over-IP network. Featuring network and power supply redundancy, RedNet A8R is the ideal choice for providing analogue I/O in many critical-path applications, whether in Post Production, Broadcast, Live Sound or the Recording Studio.
High-quality conversion with up to 119dB of dynamic range is provided through two rear-panel DB25 connectors while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A8R, or alternatively allows RedNet A8R to act as a network clock grand master slaved to external input. Power is supplied through a pair of locking IEC power inlets, and network connections are provided with a pair of locking Neutrik etherCON connectors; providing redundant operation or daisy-chained operation.
| Line Input | |
| 0 dBFS Reference Levels | elements 18 or 24dBu (switchable) |
| Frequency Response | 20Hz - 20kHz ± 0.1dB |
| THD+N | <-130dB (0.00003) |
| EIN | -96dBu A-Weighted (typical) |
| Signal-to-Noise Ratio | 120dB A-Weighted (typical) |
| Converter Dynamic Range | 120dB A-Weighted (typical), 10Hz – 20kHz |
| Line Outputs | |
| 0 dBFS Reference Levels | 18 or 24dBu (switchable) |
| Frequency Response | 20Hz - 20kHz ± 0.1dB |
| THD+N | <-100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input |
| Noise in Presence of Signal | -94dBu A-Weighted (typical) |
| Dynamic Range | 118 dB A-Weighted (typical) |
| Crosstalk | |
| Input to Output or Input | <-100dB unweighted, 20Hz – 20kHz; 23dBu input |
| Output to Input or Output | <-100dB unweighted, 20Hz – 20kHz; -1dBFS input |
| Digital Input Sample Rate Converters | |
| Sample Rate Range | 32kHz to 216kHz |
| Gain Error | -0.3dB |
| Dynamic Range | >138dB |
| Latency | 11 to 45 samples (network and sample rate dependent) |
| Digital Performance | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit |
| Clock Sources | Internal or from Dante Network Master. |
| External Word Clock Range | Nominal sample rate ±7.5% |
| Network Modes | |
| Redundant | Allows unit to connect to two independent networks. |
| Switched | Connects both ports to integrated network switch allowing daisy-chaining of devices |

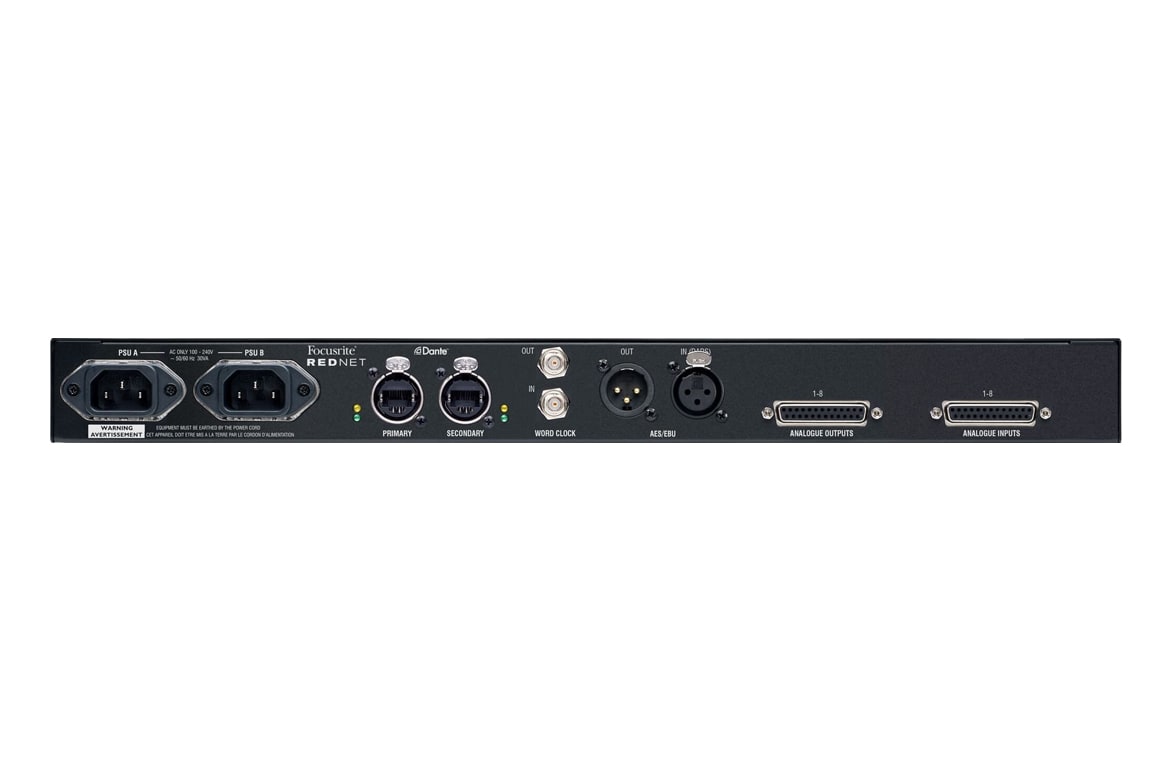

Rear Panel Connectivity
- Line Inputs: 1 x DB-25 connectors Analogue Outputs
- Line Outputs: 1 x DB-25 connectors
- Channel Count: 2 x 2 AES/EBU channels
- Input (optional DARS): 1 x Female XLR
- Output: 1 x Male XLR
- Word Clock Input: 1 x BNC 75O port (switchable termination)
- Word Clock Output: 1 x BNC 75O port
- PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 24W
- Network: 2 x etherCON NE8FBH, also compatible with standard RJ45 connectors
Front Panel Indicators
- Primary PSU (A) : Green LED
- Secondary PSU (B): Green LED
- Primary Network: Green LED
- Secondary Network: Green LED
- Network Locked : Green LED
- Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
- Pull Up/Down: Orange LED
- AES/EBU signal indicators: 2 I/O signal indicator LEDs
- Clock Source: Orange LED for each: Internal, Word Clock and DARS
