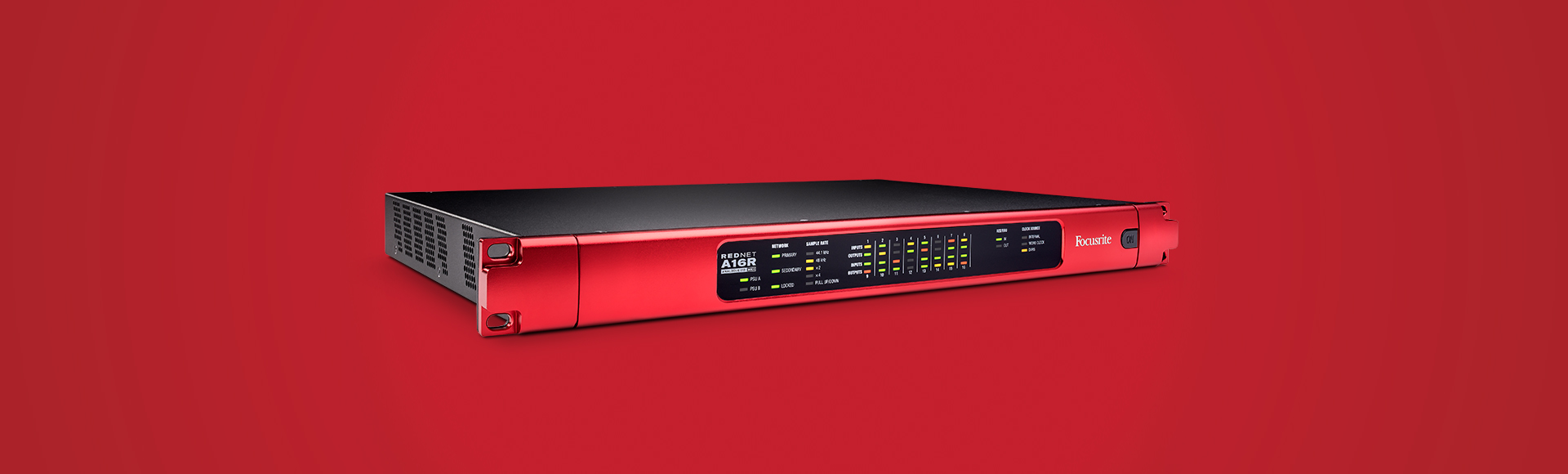

RedNet A16R MkII
16x16 analogue interface for Dante networks, with channel level control for individual inputs and outputsProduct Highlights
- 16-channel bi-directional analogue interface for Dante networks, with additional two-channel AES3 I/O.
- Precision A-D and D-A conversion with 119dB dynamic range, flat from 20Hz - 20 kHz (+/- 0.15dB).
- Individual input/output channel level control using RedNet Control software.
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors for Primary and Secondary network connections.
- Power supply and ethernet redundancy with auto switchover in case of failure.
- Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
- Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate.
- Analogue I/O on four AES59 standard DB25 connectors.
- Digital I/O on a pair of XLR connectors (AES3).
- Rear panel XLR connector can either be used as a DARS input or as a traditional AES3 audio input.
- BNC connectors for Word Clock input and output.
- Compact 1U chassis allows maximum functionality in minimum rack space.
- AES67 and AES70 compliant.
- SMPTE ST 2110 compliant when used with Dante Domain Manager (sold separately).
- Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
- Remote control with RedNet Control, and route via Dante Control.
- Overview
- Tech Specs
RedNet A16R MkII is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O. Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.
Analogue inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, synchronised to external input. RedNet A16R MkII is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.
| Line Inputs | |
| 0 dBFS Reference Levels | +18 or 24dBu (switchable) (will this need to be restated due to variable level control |
| Frequency Response | 20Hz - 20kHz ± 0.1dB |
| THD+N | <-100dB (0.001%) unweighted, 20Hz - 20kHz; -1dBFS input |
| EIN | -96dBu 'A'-Weighted (typical) |
| Signal-to-Noise Ratio | 120dB 'A'-Weighted (typical) |
| Converter Dynamic Range | 120dB 'A'-Weighted (typical), 10Hz - 20kHz |
| Line Outputs | |
| 0 dBFS Reference Levels | +18 or +24dBu (switchable) |
| Frequency Response | 20Hz - 20kHz ± 0.1dB |
| THD+N | <-100dB (0.001%) unweighted, 20Hz - 20kHz; +23dBu input |
| Noise in Presence of Signal | -94dBu 'A'-Weighted (typical) |
| Dynamic Range | 118 dB 'A'-Weighted (typical) |
| Converter Dynamic Range | 120dB 'A'-Weighted (typical), 10Hz - 20kHz |
| Crosstalk | |
| Input to Output or Input | <100dB unweighted, 20Hz - 20kHz; +23dBu input |
| Output to Input or Output | <-100dB unweighted, 20Hz - 20kHz; -1dBFS input |
| Digital Input Sample Rate Converters | |
| Sample Rate Range | 32kHz to 216kHz |
| Gain Error | -0.3dB |
| Dynamic Range | >138dB |
| THD + N | <-130dB (0.00003%) |
| Latency | 11 to 45 samples (network and sample rate dependent) |
| Digital Performance | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit |
| Clock Sources | Internal or from Dante Network Master. |
| External Word Clock Range | Nominal sample rate ±7.5% |
| Network Modes | |
| Redundant | Allows unit to connect to two independent networks. |
| Switched | Connects both ports to integrated network switch allowing daisy-chaining. |

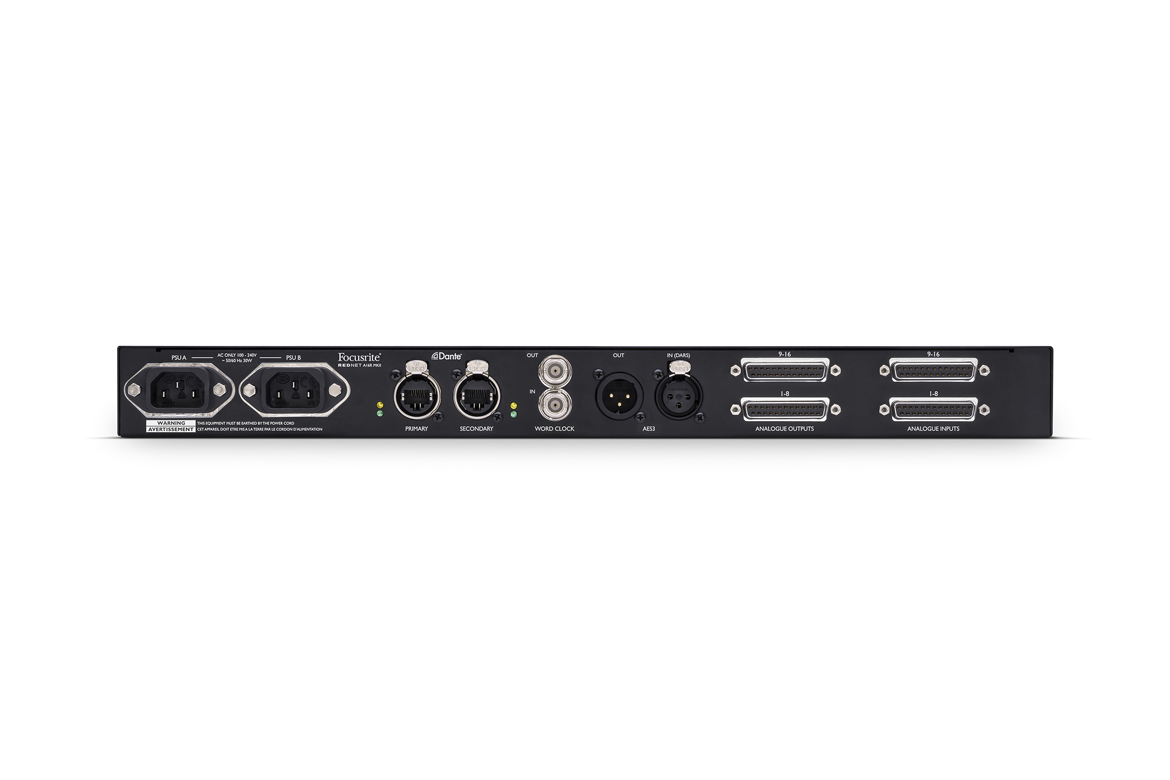

Rear Panel Connectivity
- Line Inputs: 2 x DB-25 connectors
- Line Outputs: 2 x DB-25 connectors
- Channel Count: 2 x 2 AES/EBU channels
- Input (optional DARS): 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates)
- Output: 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates)
- Word Clock Input: 1 x BNC 75O port (switchable termination)
- Word Clock Output: 1 x BNC 75O port
- PSU: 2 x IEC Inputs with retaining clips.
- Network: 2 x etherCON NE8FBH, also compatible with standard RJ45 connectors

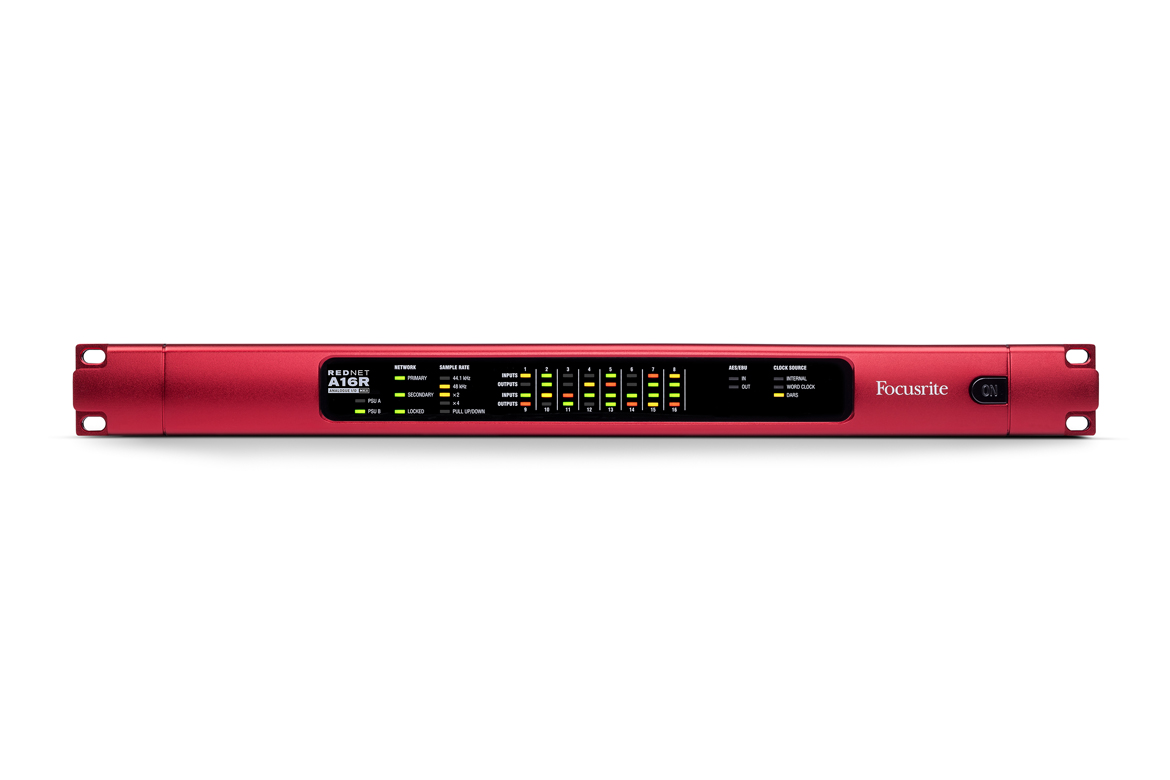

Front Panel Indicators
- Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present
- Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present
- Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode
- Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode
- Network Locked: Green LED. When unit is network slave, shows valid network lock
- Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
- Pull Up/Down: Orange LED. Indicates that the unit is set to operate on a Dante pull up/down domain
- AES/EBU signal indicators: 2 I/O signal indicator LEDs
- Clock Source: Orange LED for each
