Focusrite Pro RedNet 6
64x64 MADI I/OProduct Highlights
- 64x64 MADI I/O for Dante audio-over-IP networks
- Up to 24-bit, 192kHz sampling rates
- Input and output sample rate converters
- AES10 and AES67 compliant
- Multi-mode optical MADI transceiver
- Simultaneous optical and coaxial output
- Word Clock I/O for increased flexibility
- Auto MADI input switching mode: when selected, input will favour optical, and quickly switch to coaxial if optical input is lost
- Comprehensive remote control and remote signal metering through RedNet Control
- Overview
- Tech Specs

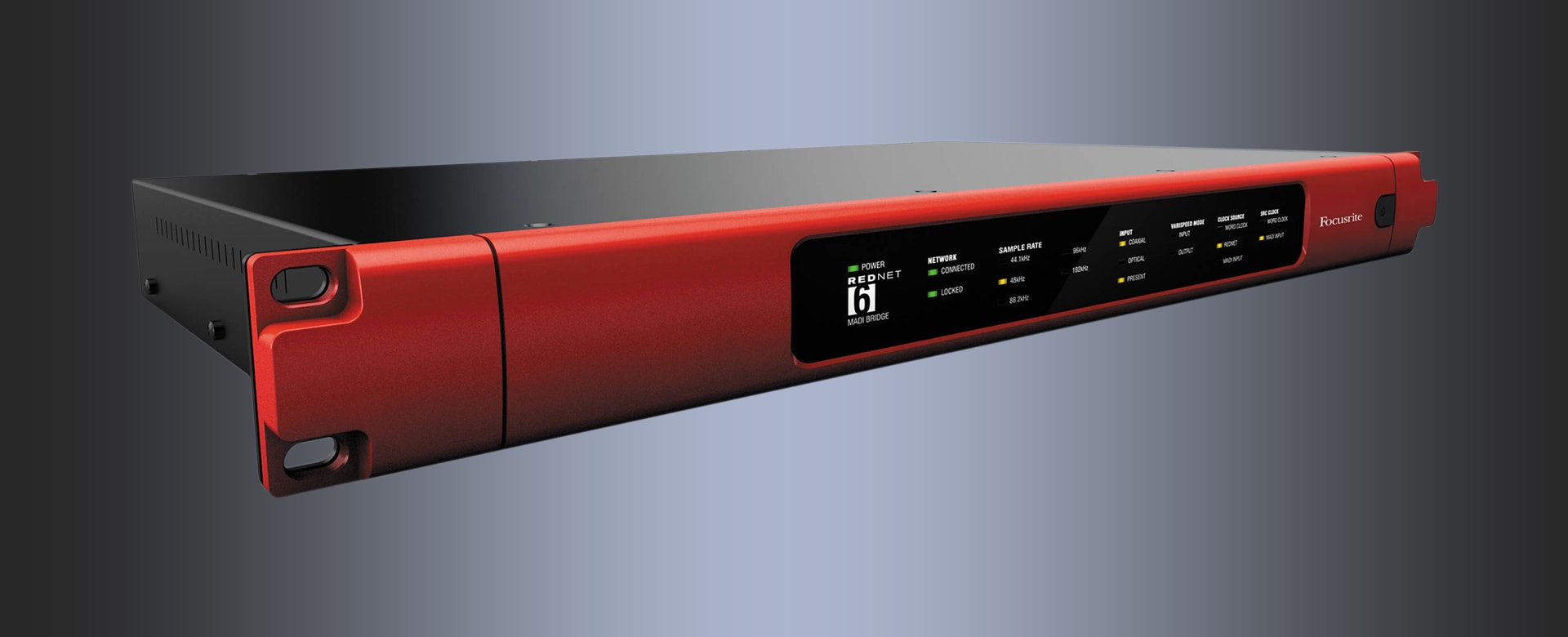

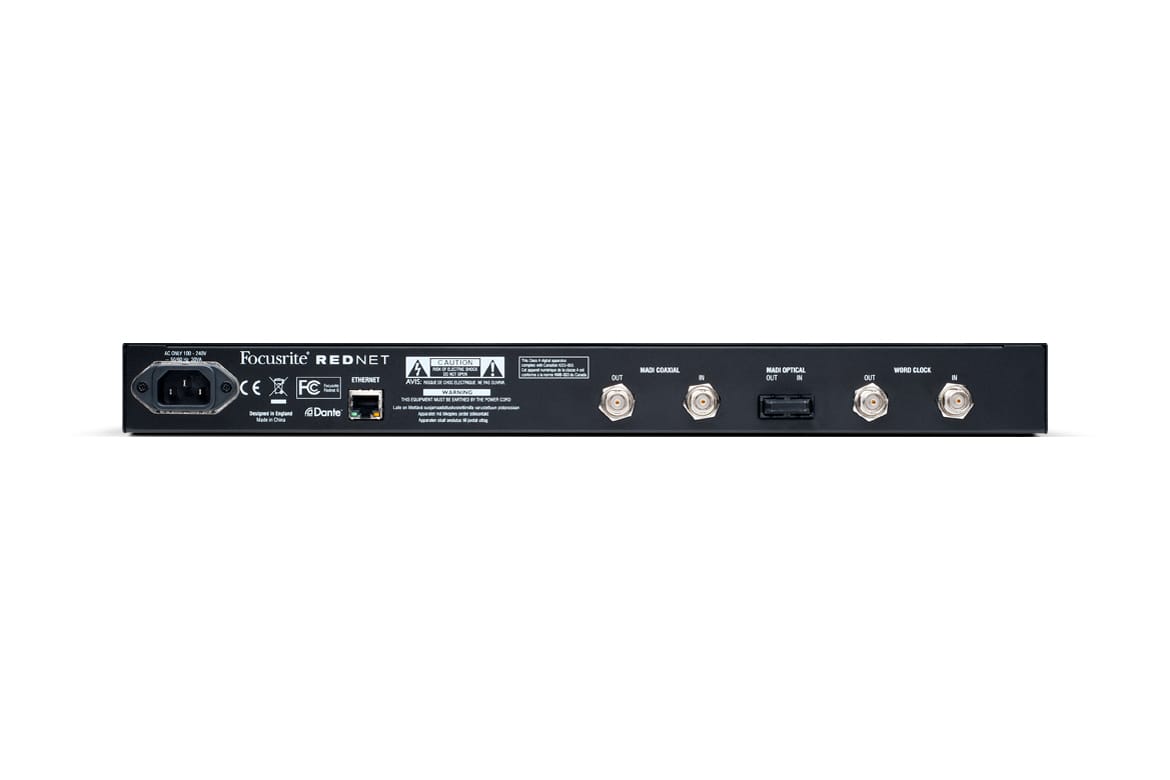

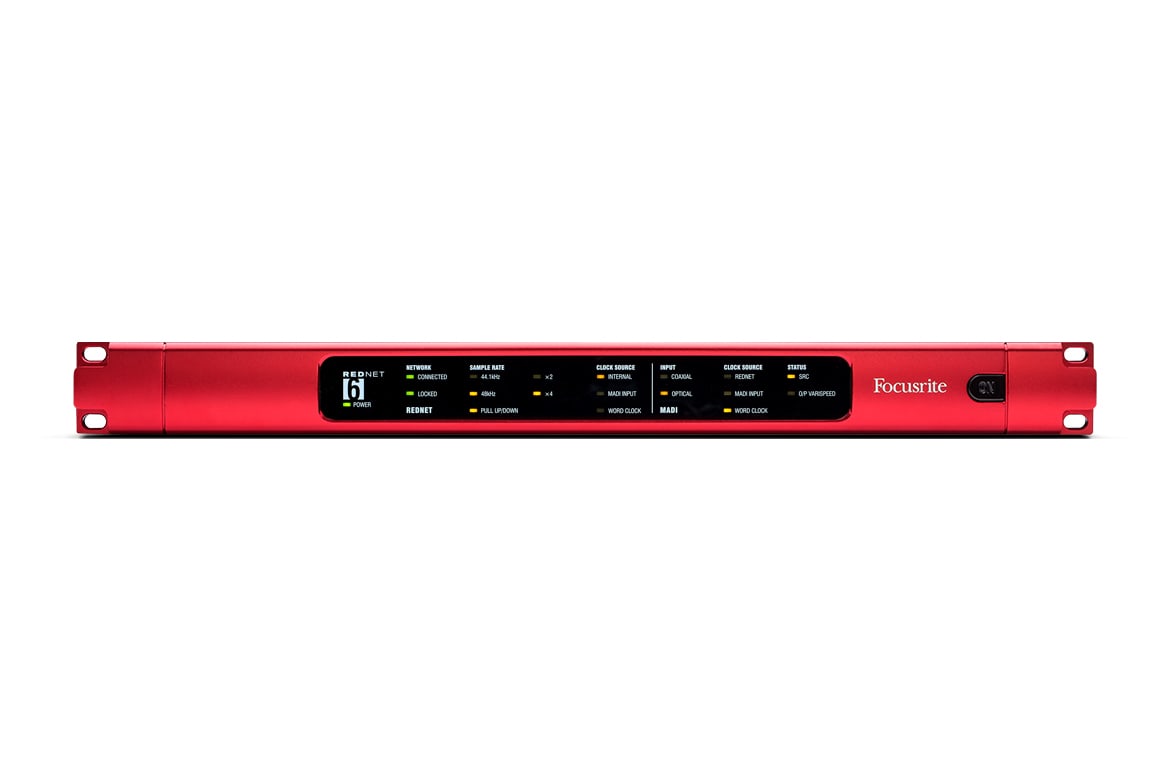

RedNet 6 is a 1U, 64x64 MADI interface for any Dante™ audio-over-IP network. MADI connectivity is provided in the form of coax through two rear-panel BNC connectors, as well as optical through an SC-Duplex connector. Word Clock I/O allows RedNet 6 to provide clock to external equipment, or alternatively to sync the Dante network to an external clock. The word clock input can additionally be used as the sync source for the unit's sample rate converters, allowing asynchronous operation between the network and the MADI domains. Front panel status LEDs provide visual feedback of signal presence, SRC status, PSU status and more.
| MADI COAXIAL | |
| Electrical Standard | as per AES10:2008 |
| Recommended Cable | 75O characteristic impedance |
| Connector | BNC 75O |
| MADI OPTICAL | |
| Optical Standard | as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166) |
| Recommended Optical Cable | Multi-mode, Graded-index, 62.5µm core, 125µm cladding |
| Optical Connector | Duplex-SC |
| SRC | |
| SRC Lock Range | 41kHz to 216kHz (MADI) |
| Sample Rate Ratio Limit | 6:1 |
| THD | -130dB typical |
| Latency | 43 to 196 samples (Network and MADI sample rate dependent) |
| WORLD CLOCK | |
| Connectors | BNC 75O |
| Output | 5V 75O DC-coupled |
| Input | locks down to 0.2V AC-coupled (75O software switchable termination) |
Dimensions (WxDxH)
- 19.00 x 9.80 x 1.75" (483 x 249 x 44 mm)
Weight
- 8.2 lb (3.7 kg)
