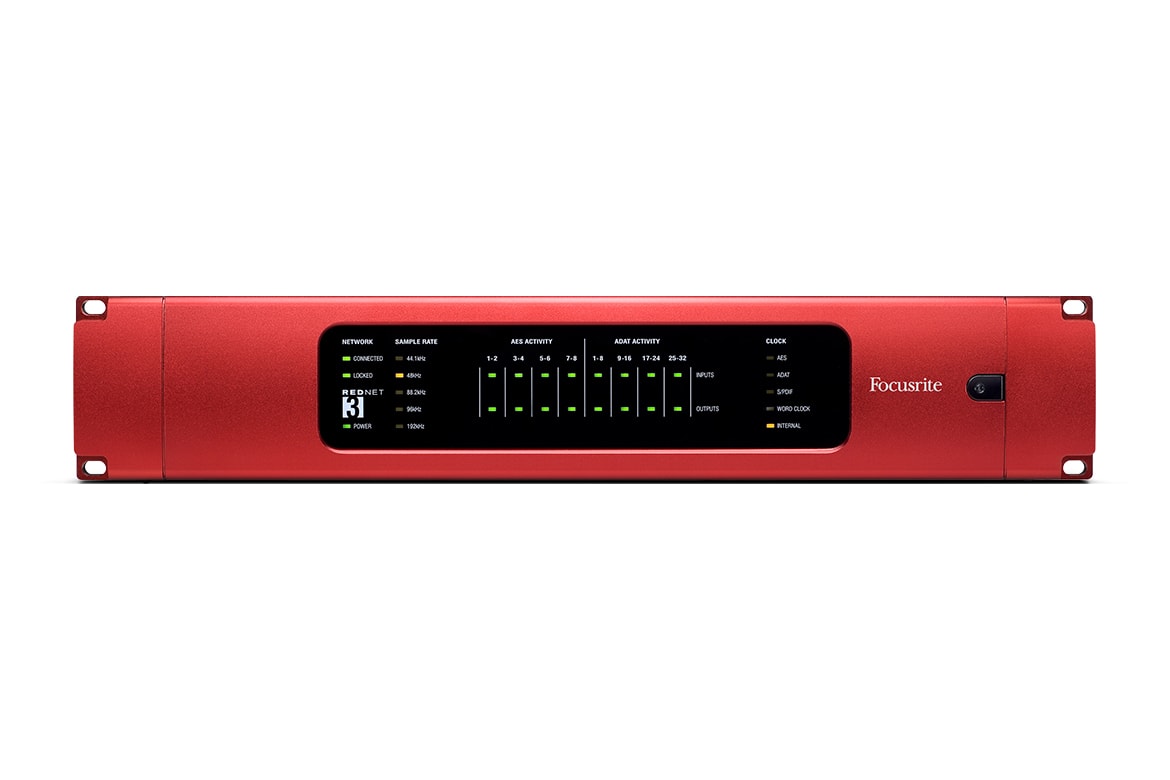

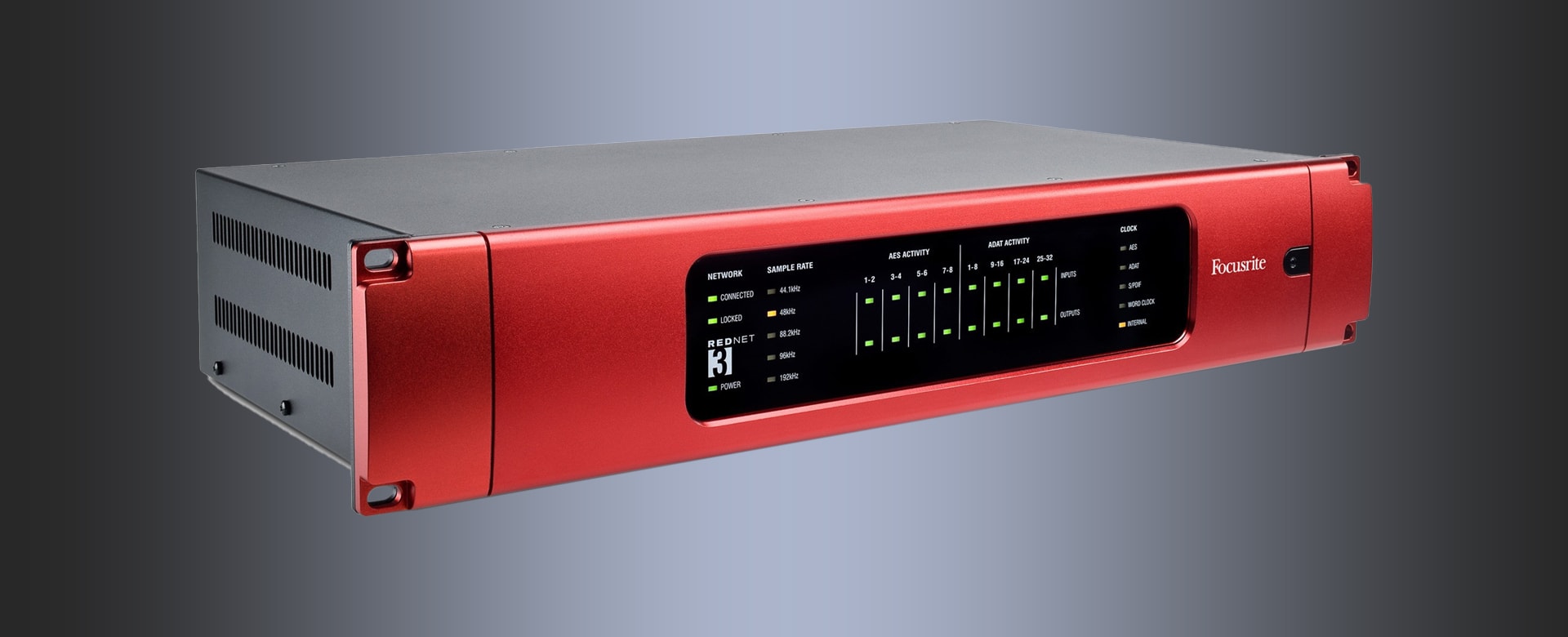

Focusrite Pro RedNet 3
32x32 ADAT I/O With 8x8 AES3 I/OProduct Highlights
- Total of 32 channels of ADAT and AES3 I/O for Dante audio-over-IP networks
- 24-bit operation up to 192kHz
- AES67 compliant; may require hardware update. Please contact us for further information
- 16 ADAT optical ports for 32x32 operation at up to 96kHz, 16x16 at 192kHz
- Eight channels of AES3 Combined Digital I/O to AES59 standard on single DB25 connector
- Comprehensive front-panel metering and indicators
- Remote monitoring software with powerful graphic user interface
- Overview
- Tech Specs
RedNet 3 interfaces your existing digital audio systems and components to any Dante™ audio-over-IP network, with up to 32 inputs and outputs and full software remote control. The unit includes support for AES3, S/PDIF and ADAT digital audio formats and allows the network to be synchronised to incoming signal clock or a word clock source.
| INPUTS | |
| AES/EBU Inputs | 8 channels, with switchable SRC |
| AES/EBU Connector | 25-way female Dsub, wired to AES 59 (combined I/O) |
| ADAT Inputs | 32 channels @ 44.1 / 48 / 88.2 / 96 kHz sample rate; 16 channels @ 192 kHz |
| ADAT Connectors | ADAT Connectors |
| S/PDIF Input | 2 channels, with switchable SRC 44.1 to 192 kHz |
| S/PDIF Connector | Phono (RCA) socket |
| OUTPUTS | |
| AES/EBU Outputs | 8 channels, sync-locked to RedNet system sample rate |
| ADAT Outputs | 32 channels @ 44.1 / 48 / 88.2 / 96 kHz sample rate; 16 channels @ 192 kHz |
| S/PDIF Output | 2 channels, sync-locked to RedNet system sample rate |
| ADAT Output Connectors | TOSLINK lightguides x 8 |
| S/PDIF Connector Output | Phono (RCA) socket |
| AES/EBU INPUT SAMPLE RATE CONVERTERS | |
| Input Sample Rate Range | 32 to 216 kHz |
| Gain Error | -0.3 dB |
| Dynamic Range | > 138 dB (-60 dBFS method) |
| THD N | < -130 dB (0.00003); 0 dBFS input |
| OPERATING MODES | |
| AES/EBU Inputs Mode | Chs. 1 to 8; ADAT inputs – Chs. 9 to 32* |
| AES/EBU Output Mode | Chs. 1 to 8; ADAT outputs – Chs. 1 to 32* |
| ADAT Input Mode | Chs. 1 to 32*; AES/EBU |
| ADAT Output Mode | Chs. 1 to 8; ADAT outputs – Chs. 1 to 32* |
| DIGITAL PERFORMANCE | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 192 kHz |
| Clock Sources | Local or from network master device |
| Local Clock Sources | Internal, Word Clock input, AES input 1, ADAT input 1, S/PDIF input |
| External Word Clock Range | Sample rate ±7.5 |
POWER
- PSU: Internal, 100 - 240 V, consumption 30 VA
