Focusrite Pro RedNet 1
8x8 Analogue I/OProduct Highlights
- Eight channels of high-quality line-level analogue I/O for Dante audio-over-IP networks
- 24-bit precision conversion up to 192kHz
- 119dB dynamic range, flat from 20Hz – 20kHz, +/-0.15dB
- Software-selectable +24dBu or +18dBu level alignment
- AES67 compliant; may require hardware update. Please contact us for further information
- Analogue I/O to AES59 standard on DB25 connectors
- Comprehensive front-panel metering and indicators
- Remote monitoring software with powerful graphic user interface
- Overview
- Tech Specs

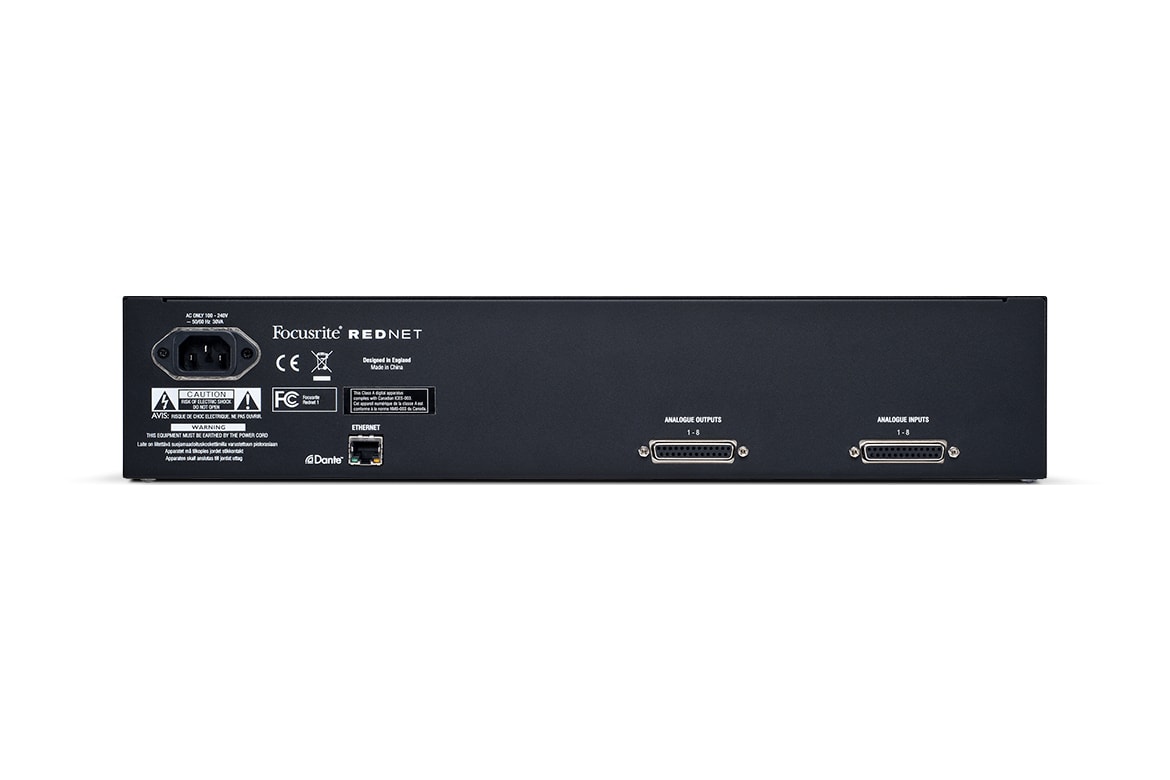

RedNet 1 connects to your Dante™ audio-over-IP network with a single Ethernet cable. It's remotely controlled via the network and can be placed anywhere in your facility. It offers eight channels of line-level analogue in and out, with Focusrite's precision 24-bit A-D and D-A conversion for superb audio performance, and 119dB dynamic range at sample rates up to 192kHz. The rear panel includes AES59 standard DB25 connectors for analogue patchbay or breakout cable interfacing.
| INPUTS | |
| Analogue Line Inputs | 8 |
| Connector | 25-way female Dsub, wired to AES 59 |
| 0 DBFS Reference Levels | +18 or +24 dBu (switchable) |
| Converter Dynamic Range | 120 dB |
| Frequency Response | 20Hz-20kHz 0.05dB |
| THD N | < 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz |
| Dynamic Range | 119 dB ‘A’-weighted (-60 dBFS method) |
| Signal-To-Noise Ratio | 119 dB ‘A’-weighted; 20 Hz – 20 kHz |
| OUTPUTS | |
| Analogue Line Outputs | 8 |
| THD N | <0.001 unweighted; -1 dBFS input, 20 Hz – 22 kHz |
| Dynamic Range Ouput | 119 dB ‘A’-weighted (-60 dBFS method) |
| Converter Dynamic Range Output | 120 dB |
| Signal-To-Noise Ratio Output | 119 dB ‘A’-weighted; 20 Hz – 20 kHz |
| 0 DBFS Reference Levels Outputs | +18 or +24 dBu (switchable) |
| CROSSTALK | |
| Input Or Output To Input | <-90 dB (all other channels at 0 dBFS) |
| Input Or Output To Output | <-100 dB (all other channels at 0 dBFS) |
| DIGITAL PERFORMANCE | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 192 kHz |
| Clock Sources | Internal or from network master device |
| POWER | |
| PSU | Internal, Universal type, consumption 30 VA |

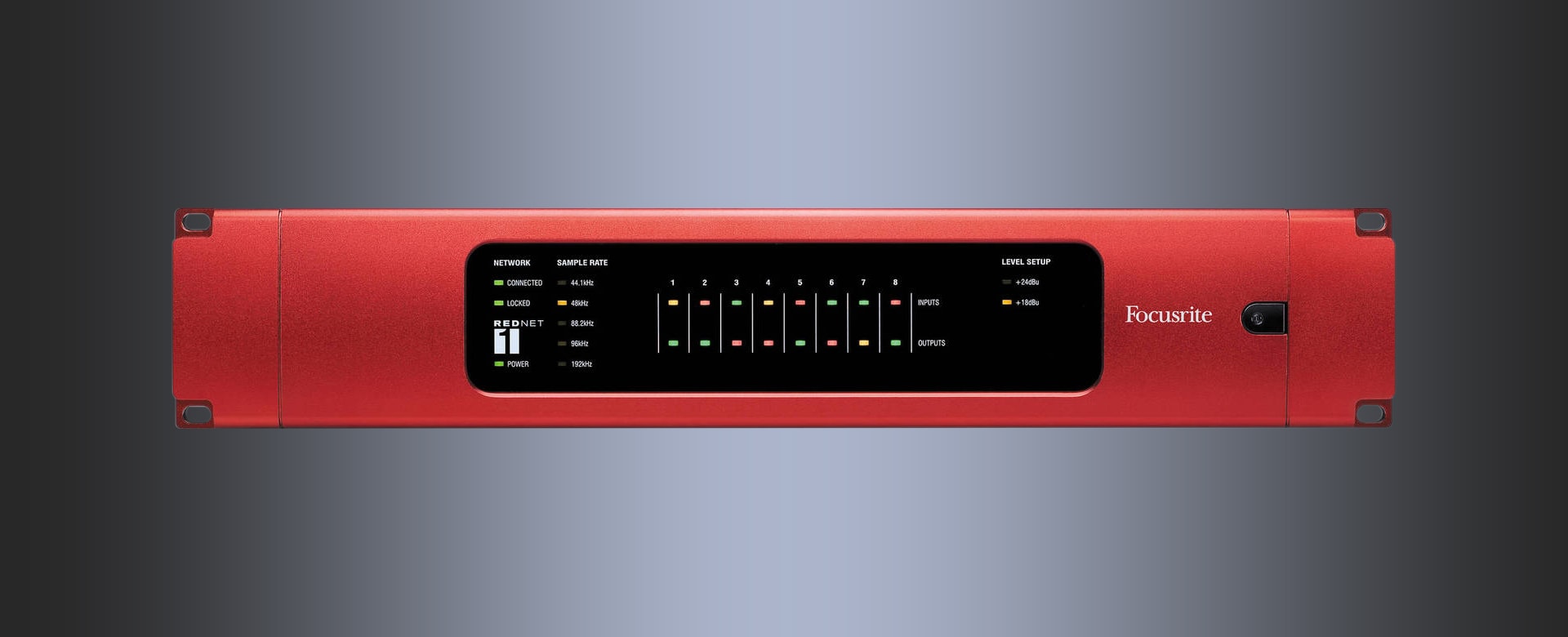

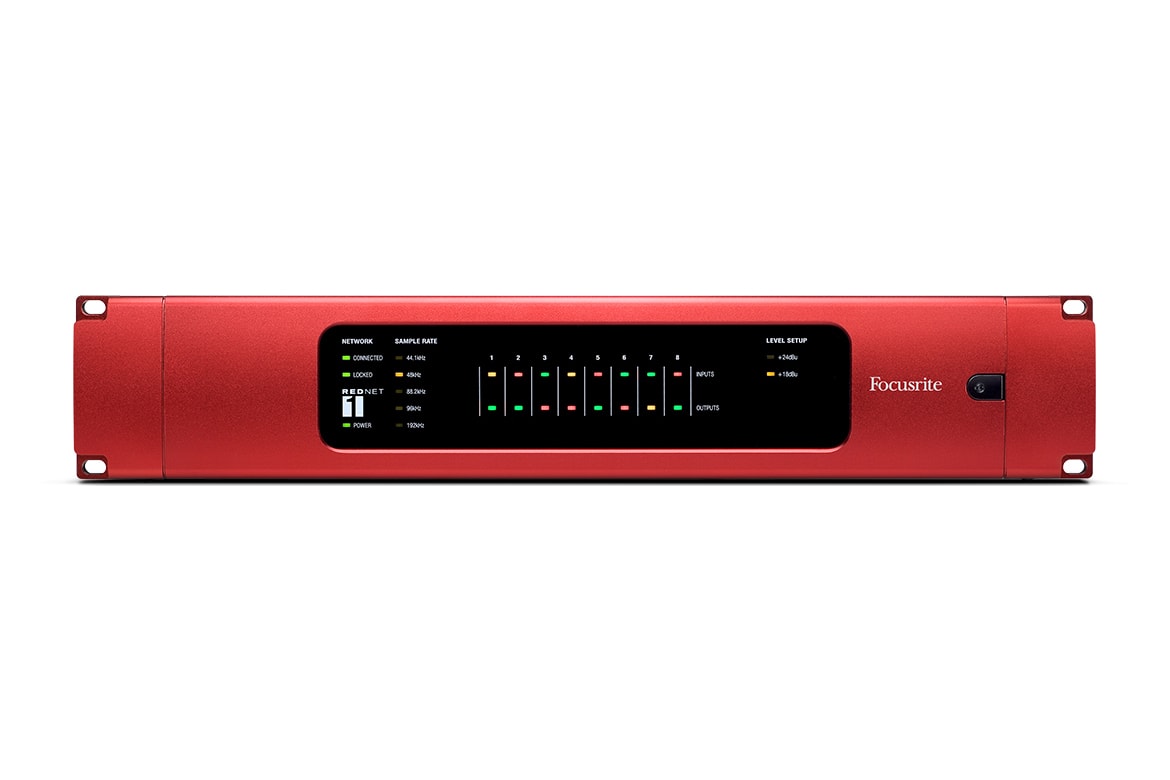

FRONT PANEL INDICATORS
- Power: Green
- Network Connected: Green
- Sync Lock: Green
- Sample Rate: Yellow x 5
- Input/Output Range: Yellow x 2
- Input/Output Signal Level: Bi-colour x 16 (Green = -42 dBFS; Orange = -6 dBFS; Red = overload)
