COLBOR CL330 and CL330M
COLBOR

CL330 and CL330M

LED Constant Light for Photography
CL330 Product Highlights
  • Vivid colors,CRI≥2700-5600K(±200K), 1260lux at 1m, 6500k without reflector; 10800lux at 1m, 6500K with reflector
  • Unique aluminum PowerCube design creats more possibility(300 power light could be assembled to higher power 600W/900W )
  • Magenta and Green compensation
  • Bowens mount and all NATO accessories available for a wide range of accessories
  • 299*128*232mm / 2kg, compact and easy carrying
  • Honeycomb intelligent cooling system and PWM intelligent control system
  • Optional mobile power solution, can be adapted to V-mount battery
  • OTA firmware upgrade, empower update feature and more possibility on APP
  • Useful Group control and RP repeater function (Each light could be TX/RX/TXRX)
  • Built-in special effects, maximum 46 kinds of realistic scenes

CL330M Product Highlights
  • Vivid colors,CRI≥5600K(±200K),
  • Unique aluminum PowerCube design creats more possibility(300 power light could be assembled to higher power 600W/900W )
  • Magenta and Green compensation
  • Bowens mount and all NATO accessories available for a wide range of accessories
  • 299*128*232mm / 2kg, compact and easy carrying
  • Honeycomb intelligent cooling system and PWM intelligent control system
  • Optional mobile power solution, can be adapted to V-mount battery
  • OTA firmware upgrade, empower update feature and more possibility on APP
  • Useful Group control and RP repeater function (Each light could be TX/RX/TXRX)

  • Overview
  • Tech Specs

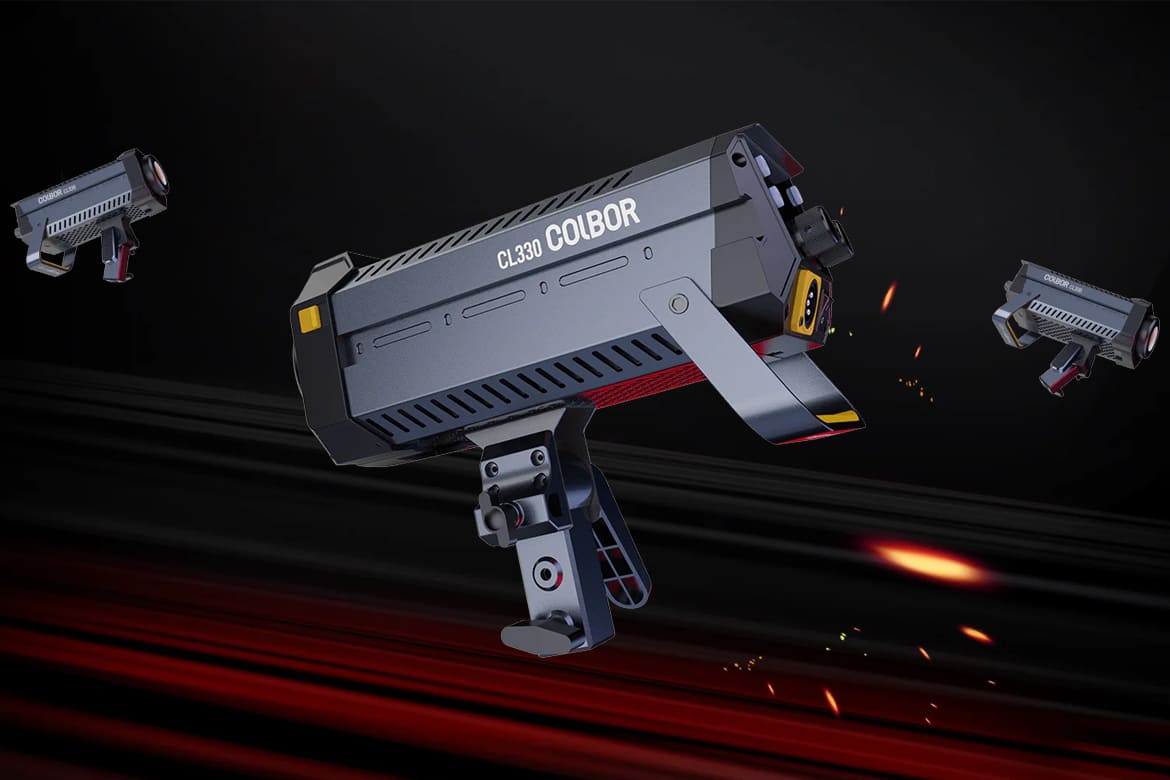

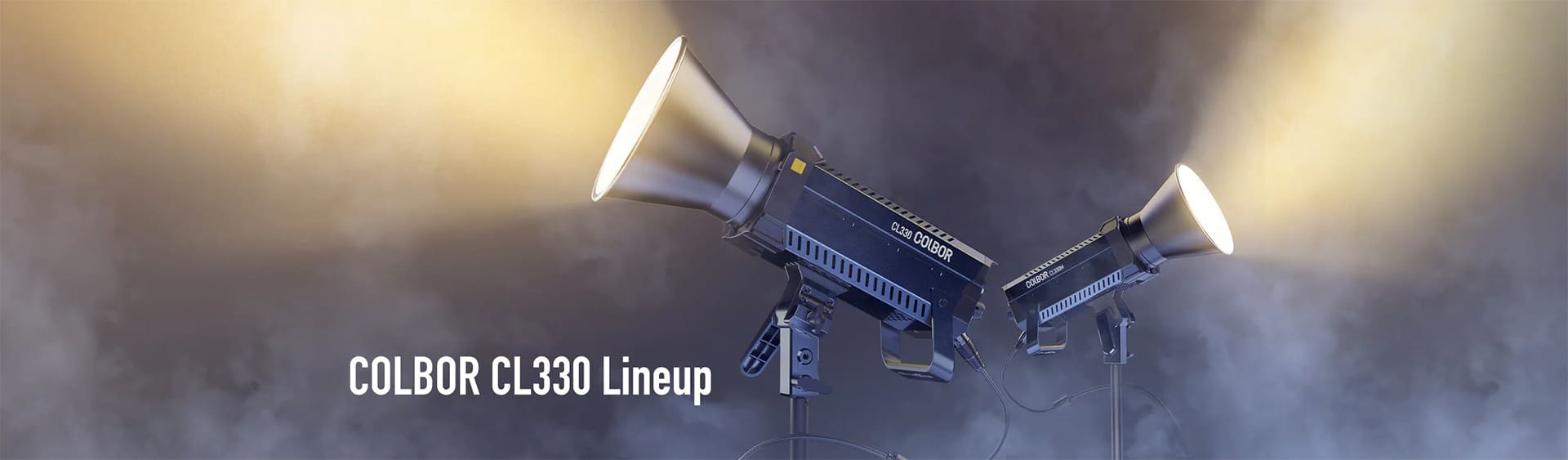

330W LED Lights for Photography Studio COLBOR CL330 and CL330M
The COLBOR CL330 and CL330M are LED lights for photography studio at 330W. It outputs accurate color with a TM-30 index of Rf96/Rg103 at constant 330W output. The Red-Green Color Compensation functions to achieve the color consistency of all lighting. The Bowens mount, NATO groove, and multiple power supply solutions offer great flexibility for lighting control and mobile shooting. Together with an intelligent temperature control system, the CL330 lineup is a professional choice for film shooting, photography, live streaming, etc.

Adjustable Duv For Color Consistency
The Red-Green Color Compensation functions to slightly adjust the Duv value of the CL330 and the color rendering, as a result, would be customized to get adapted to your light sources already in use to achieve the color consistency of all lighting. This is of great importance to the white-balancing in the video post-production.

Constant 330W Output for Consistent Intensity
The COLBOR CL330 and CL330M are high power LED lights for photography at 330W. Unlike conventional bi-color fixtures, the CL330 can keep the same power output of 330W at different color temperatures. This makes it an ideal choice of LED lighting for film shooting, photography, live streaming, and other scenarios where long-term continuous lighting of high intensity is crucial.

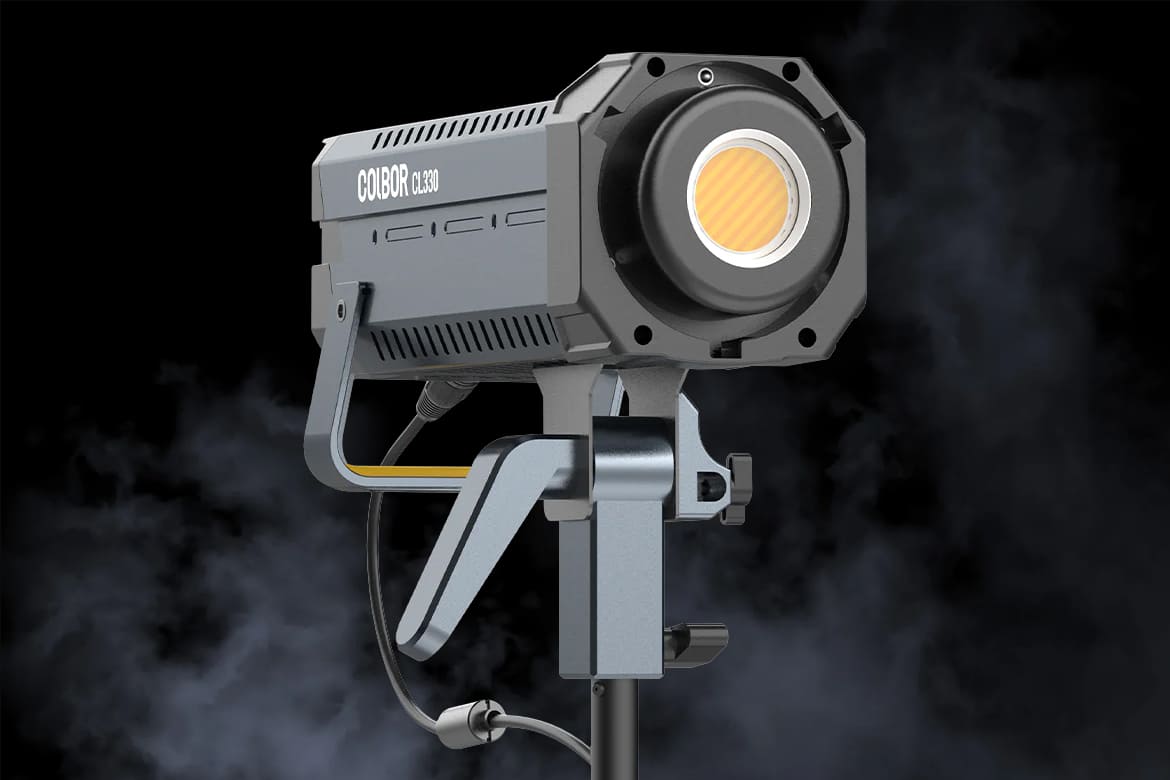

φ42mm COB Beads for High Illumination
The CL330 and CL330M LED lights for photography studio adopt φ42mm COB LED beads to improve the illumination. With included standard reflector, it provides 65800 lux of 5600K light at one meter after 15-min continuous use(* lab data) and 80200 lux of CL330M.

CRI ≥96 for Accurate Color Reproduction
The CL330 outputs reliable color with a TM-30 index of Rf96/Rg103 at 3200K, an SSI score of 85, a CRI of 97+, and a TLCI of 97+. And the CL330M provides white light accurately with high color accuracy measurements of CRI 96+, TM30 Rf93/Rg103 at 5600K.

Bowens Mount & NATO Groove for Flexible Light Control
The CL330 lineup is compatible with a wide range of light modifiers and photography accessories. Its Bowens mount fits softboxes like COLBOR BP90, diffusers, and other modifiers alike to offer maximum light control. The NATO groove on each side receives various NATO accessories, including tripods, gimbals, etc. With COLBOR NQD1 accessories, you can combine more fixtures together to create the PowerCube.

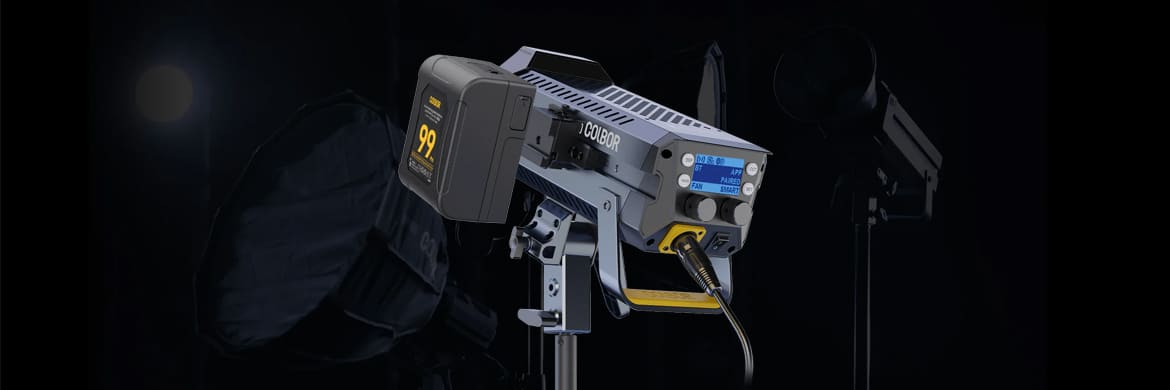

Multiple Power Supplies for Mobile Shooting
The CL330 lineup offers multiple power supply solutions for interior and exterior lighting setups. The gold-plated Neutrik REAN connector ensures power safety, especially on a filming set with stacked cables. In addition, it can be operated with a single 14.8V V mount battery, up to 45% of its output, or COLBOR dual V mount battery solution for full output.

Preset Lighting FX for Quick Accessibility
The CL330 LED lights for photography studio feature 10 preset lighting effects, which includes Fire, Pulsing, Faulty bulb, etc., to save the time of setting up the targeted effect. And the CL330M offers 7 lighting effects. They are adjustable at rate, brightness, and color temperature, allowing you to fine-tune the lighting to create a unique scene.

Physical & App Controls for Simple Adjustment
The CL330 lineup supports multiple control methods. The control wheels and LED display screen offer physical adjustment when the fixture stays close to you. The COLBOR Studio and the CTRL1 physical controller allow for remote control. Moreover, the Mesh Networking Module and upgraded 2.4G channel extend the control distance to 150m at max(LOS).

The COLBOR EdgeMax App is used to upgrade the fixture firmware for more lighting fun.

Intelligent Heat Dissipation for Optimal Working Temperature
The CL330 and CL330M LED studio lights for jewelry photography use 6 copper finned tubes for higher heat dissipation efficiency. Equipped with the NTC (= Negative Temperature Coefficient) thermistor, it monitors the working temperature in real time and adjusts the fan speed accordingly. The PWM intelligent temperature control system will activate the self-protection mechanism when the light is overheated so as to avoid accidents and extend its lifespan.

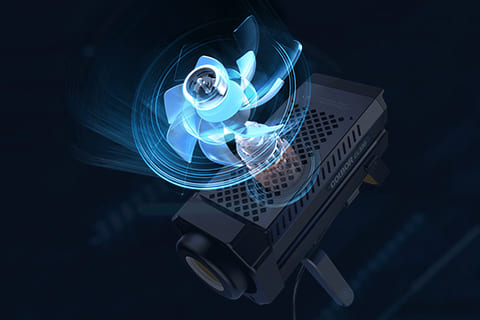

Upgraded FDB Fan for Noise-free Recording
The dual ultra-quiet fans produce low cooling noise. The upgraded FDB (= Fluid Dynamic Beating) fans feature a lower coefficient of friction. The noise level at 1m is lower than 30dB even when the CL330 or CL330M works in the high-temperature environment of 35°C, ensuring noise-free video recording.

Aluminum Alloy for Light & Robust Fixture
The fixture is made of aluminum alloy along with surface oxidation treatment and texturing process. This gives the CL330 lineup a robust housing and lightweight design of 2.07kg, which reduces the weight by 30% compared to those with the same power. The head of this photography studio lighting equipment is reinforced with high-temperature resistant ABS, preventing itself from suddenly tilting when a large light modifier is installed.

Model COLBOR CL330M daylight COLBOR CL330 Bi-color
COB Power Output 330W 330W
Max Power Consumption 360W 360W
Color Temperature 5600K ± 200K 2700K-6500K
Magenta/Green Compensation Yes Yes
CRI ≥96 ≥97
TLCI ≥97 ≥98
Photometrics To be confirmed 12400 Lux at 3.3' / 1 m, 5600K without Reflector
128000 Lux at 3.3' / 1 m, 5600K with Included Reflector
Cooling System Fan Fan
Dimming Yes, 0 to 100% Yes, 0 to 100%
Housing Material Aluminium + ABS Aluminium + ABS
Reflector Mount Bowens S-Type Bowens S-Type
NATO-standard grooves Yes Yes
Remote Control Type APP / Optional Remote controller APP / Optional Remote controller
Multiple Light Installation Yes Yes
Group Control Yes, by App, remote controller, on board Yes, by App, remote controller, on board
Communication and Repeator Function Yes Yes
AC Input Power 100 to 240 VAC, 50/60 Hz 100 to 240 VAC, 50/60 Hz
DC Input Power DC 14.8V/48VA DC 14.8V / DC48V, 7.5A
Power Source AC Adapter (Included) AC Adapter (Included)
External Power Source V-mount battery V-mount battery
Working Tem. -10°C-40°C -10°C-40°C

Dimension
  • 299*128*232mm (Light Base Included)

Weight
  • 2.07kg (Light Base Included)
