COLBOR CL220 and CL220M
COLBOR

CL220 and CL220M

LED Constant Light for Photography
CL220 Product Highlights
  • Vivid colors,CRI≥2700-5600K(±200K), 9430lux at 5600k 1m without reflector; 13000lux at 1m, 6500K with reflector
  • Unique aluminum PowerCube design creats more possibility(200 power light could be assembled to higher power 400W/600W )
  • Bowens mount and all NATO accessories available for a wide range of accessories
  • 212*128*219mm /1.6kg ,compact and easy carrying
  • Honeycomb intelligent cooling system and PWM intelligent control system
  • Optional mobile power solution, can be adapted to V-mount battery
  • New lamp bead packaging technology and double-sided coated optical glass for more stable light and longer life span, meanwhile less brightness attenuation and color bias cased by overheating
  • OTA firmware upgrade, empower update feature and more possibility on APP
  • Useful Group control and RP repeater function (Each light could be TX/RX/TXRX)
  • Built-in special effects, maximum 46 kinds of realistic scenes

CL220M Product Highlights
  • Vivid colors,CRI≥5600K(±200K),
  • Unique aluminum PowerCube design creats more possibility(200 power light could be assembled to higher power 400W/600W )
  • Bowens mount and all NATO accessories available on booth sides for a wide range of accessories for a wide range of accessories
  • 212*128*219mm /1.6kg ,compact and easy carrying
  • Honeycomb intelligent cooling system and PWM intelligent control system
  • Optional mobile power solution, can be adapted to V-mount battery
  • New lamp bead packaging technology and double-sided coated optical glass for more stable light and longer life span, meanwhile less brightness attenuation and color bias cased by overheating
  • OTA firmware upgrade, empower update feature and more possibility on APP
  • Useful Group control and RP repeater function (Each light could be TX/RX/TXRX)
  • Built-in special effects, maximum 46 kinds of realistic scenes

  • Overview
  • Tech Specs

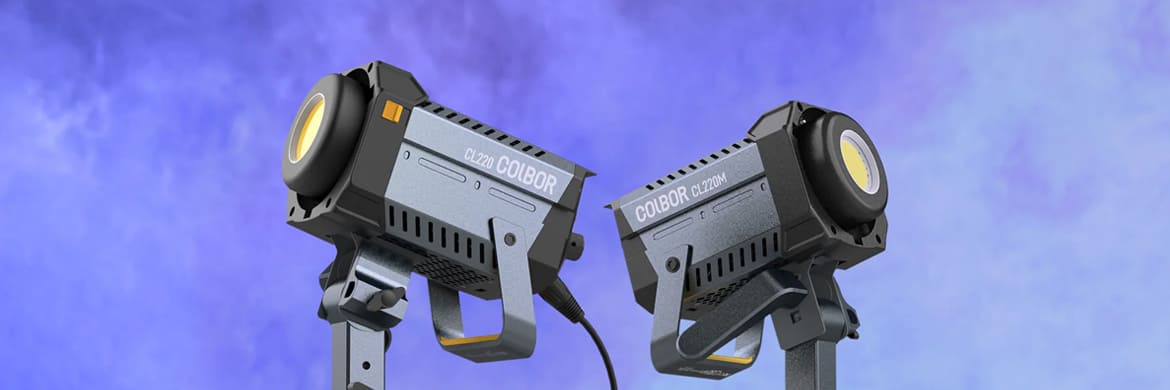

220W LED Constant Light for Photography COLBOR CL220 and CL220M
The COLBOR CL220 lineup is all-new LED constant light for photography at 220W constant output, a go-to option for content creators, videographers, and filmmakers. The novel bead assembling technology, robust metal material and steady power supply facilitate the constant output of 220W at every color temperature. The BOWENS adaptability, NATO compatibility, Accessory expansibility, and Power flexibility help create even more lighting possibilities. Launches including 2700-6500K bi-color CL220 and 5600K daylight CL220M bring high color quality and high power output to the COLBOR COB light series.

Constant Light source for photography at 220W
The COLBOR CL220 expands the color temperature from 2700-6500K while the CL200M stays at 5600K. However it changes, the fixture maintains the same output of 220W. This removes all worries about illuminance inconsistency and allow you to focus on your production.

Ultra Bright 52700 Lux at 1m
With included standard reflector, the CL220 offers powerful 52700 lux of 5600K daylight-balanced light at 1 meter (* lab data) and 58100 lux of CL220M.

High Tungsten SSI and Stable CRI ≥96
The all new lamp bead assembling technology effectively reduces the heat of lamp beads and the double-sided coated optical glass on the surface of the beads allows the light to pass through properly - this helps keep the light brightness and color accuracy, and as a result, offers sustainable CRI 97+ output. The 85 tungsten SSI and TM30 Rf94 and Rg102+ at 3200K together enhance the color rendition to capture every shooting in true colors. The CL220M also features high lighting quality index values (CRI 96+, TM30 Rf93 and Rg104 at 5600K) to offer consistently accurate white light.

Very Compact 1.57kg of Aluminum Alloy
Aluminum alloy is used to manufacture the fixture, which with surface oxidation treatment and texturing process builds the CL220/CL220M LED constant light for photography of rugged reliability. However, all this does not result in great heaviness and instead, video lighting equipment of only 1.57kg that is 50% lighter than those of the same output.

2 Optimal Heat Sink Solutions
The NTC (= Negative Temperature Coefficient) thermistor and the PWM (= Pulse Width Modulation) control are combined to work in an intelligent mode where the inbuilt fan could monitor the COB light temperature itself and adjust itself to cool the fixture properly. When the fixture is overheat, a self-protection mechanism would initiate to prevent any accidents.

28dB Quiet Overheat Fixes

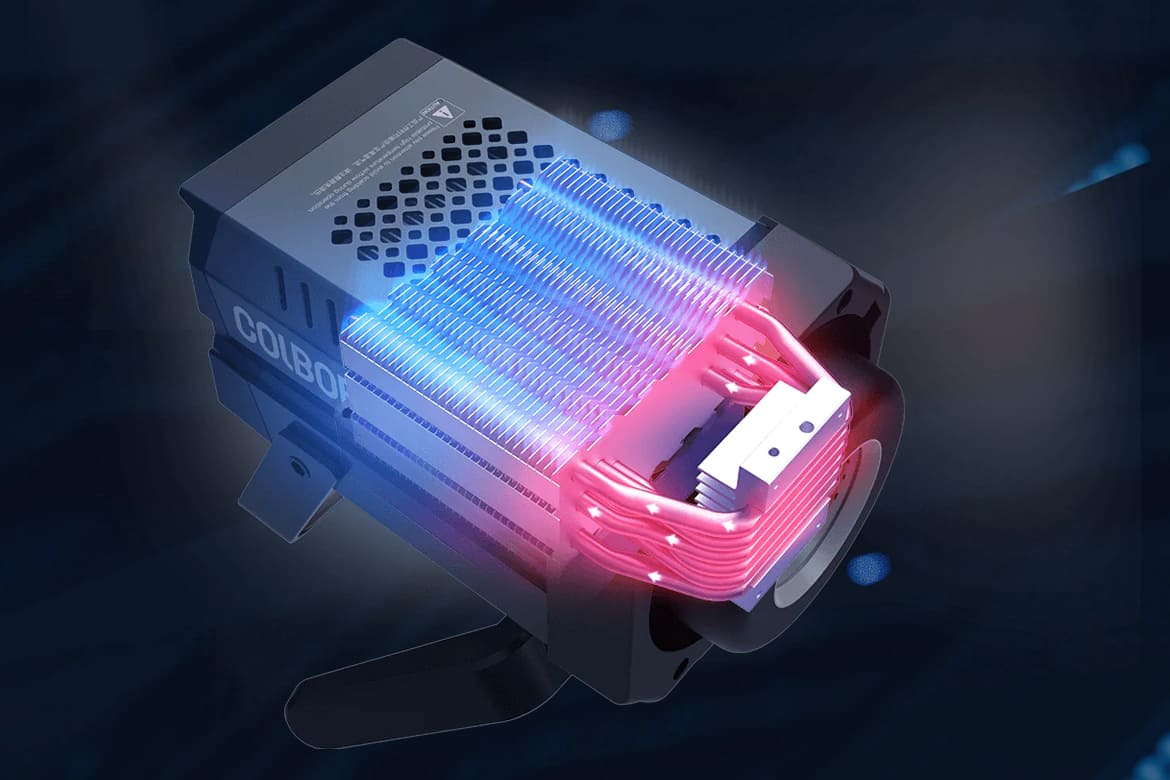

The copper heatsink based dissipation regime runs to transport and dissipate the COB thermal energy quickly and efficiently. The upgraded FDB (= Fluid Dynamic Beating) built in the cooling fan is much more quiet, significantly decreasing high-frequency mechanical noises. Under this, the CL220 lineup is able to keep a balance between high output (= 220W) and low noise (= 28dB (±2dB) at 1m) even when the temperature outside reaches 35°C.

Multiple Power Supplies

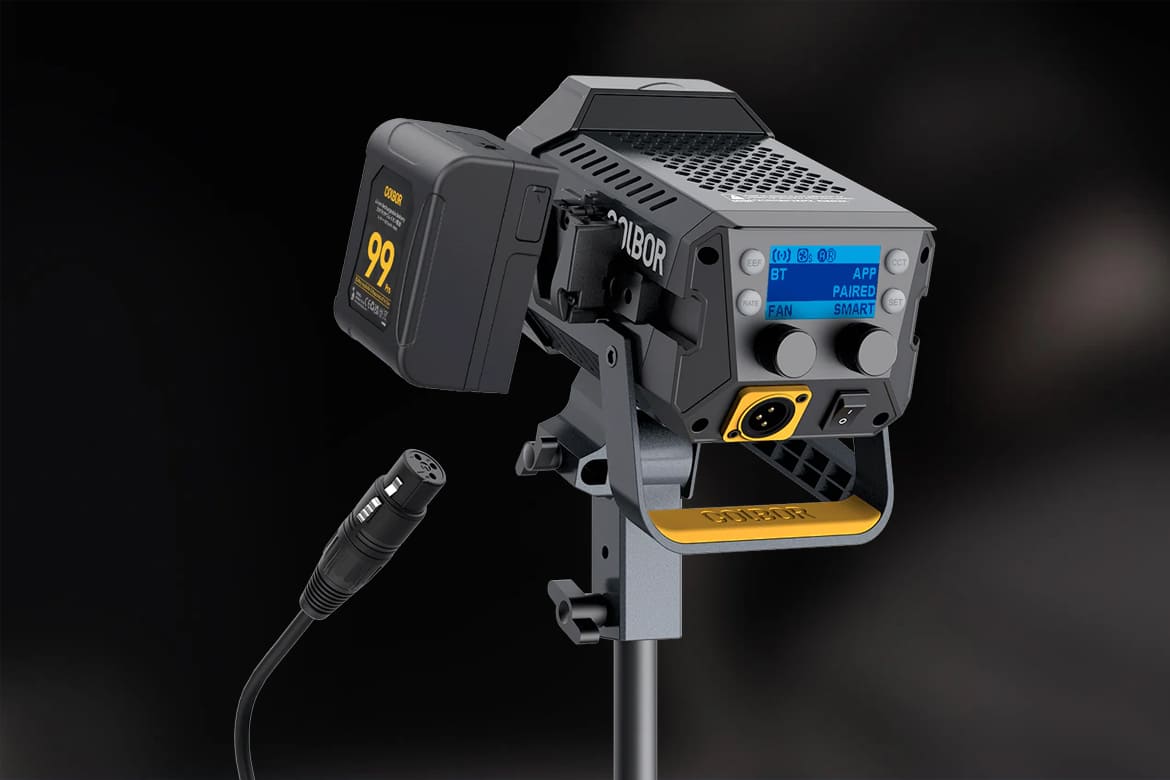

The COLBOR CL220 lineup uses Neutrik REAN connectors which is plated with gold finish to bring power of great safety and reliability. Additionally, this filming lighting equipment can work with a single V mount battery to output half of its maximum power. The coming-soon mobile solution of dual V mounts allows the fixture for full output. This makes the CL220 lineup an ideal option for LED light for outdoor photography.

Various Built-in Lighting FX
The CL220 comes with 10 built-in lighting effects, such as strobe, pulsing, lightning, TV and fire with adjustable color temperature control while the CL220M offers 7 lighting effects. Whether you are intended to light small studios or have a live-streaming setup, press the button to enhance your creativity.

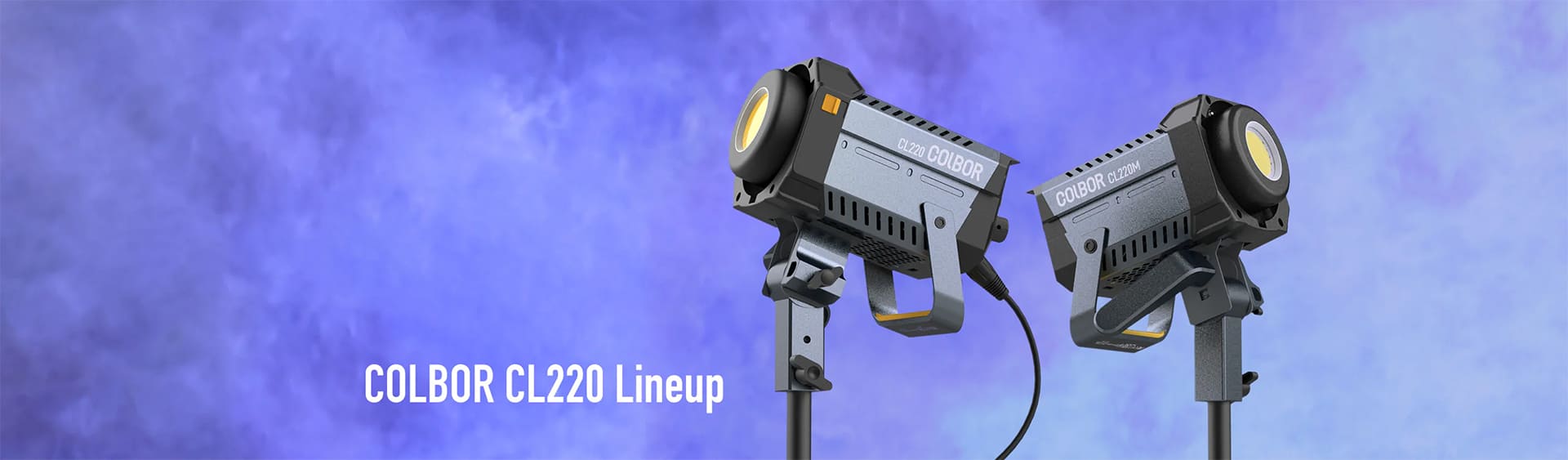

LED Constant Light for Photography with Versatile Options
The COLBOR CL220 lineup consists of the 2700-6500K bi-color CL220 and the 5600K daylight balanced CL220M. Both of them are available in 2 versions - the carrying bag and reflector are packed in the Standard version and are excluded in the Lite one.

Model COLBOR CL220M daylight COLBOR CL220 Bi-color
COB Power Output 220W 220W
Max Power Consumption 250W 250W
Color Temperature 5600K ± 200K 2700K-6500K
CRI ≥96 ≥96
TLCI ≥97 ≥97
Photometrics To be confirmed 9430 Lux at 3.3' / 1 m, 5600K without Reflector
105000 Lux at 3.3' / 1 m, 5600K with Included Reflector
Cooling System Fan Fan
Dimming Yes, 0 to 100% Yes, 0 to 100%
Housing Material Aluminium + ABS Aluminium + ABS
Reflector Mount Bowens S-Type Bowens S-Type
NATO-standard grooves Yes Yes
Remote Control Type APP / Optional Remote controller APP / Optional Remote controller
Multiple Light Installation Yes Yes
Group Control Yes, by App, remote controller, on board Yes, by App, remote controller, on board
Communication and Repeator Function Yes Yes
AC Input Power 100 to 240 VAC, 50/60 Hz 100 to 240 VAC, 50/60 Hz
DC Input Power DC 14.8V / DC48V, 5.6A DC 14.8V / DC48V, 5.6A
Power Source AC Adapter (Included) AC Adapter (Included)
External Power Source V-mount battery V-mount battery
Working Tem. -10°C-40°C -10°C-40°C

Dimension
  • 212*128*219mm (Light Base Included)

Weight
  • 1570g (Light Base Included)
