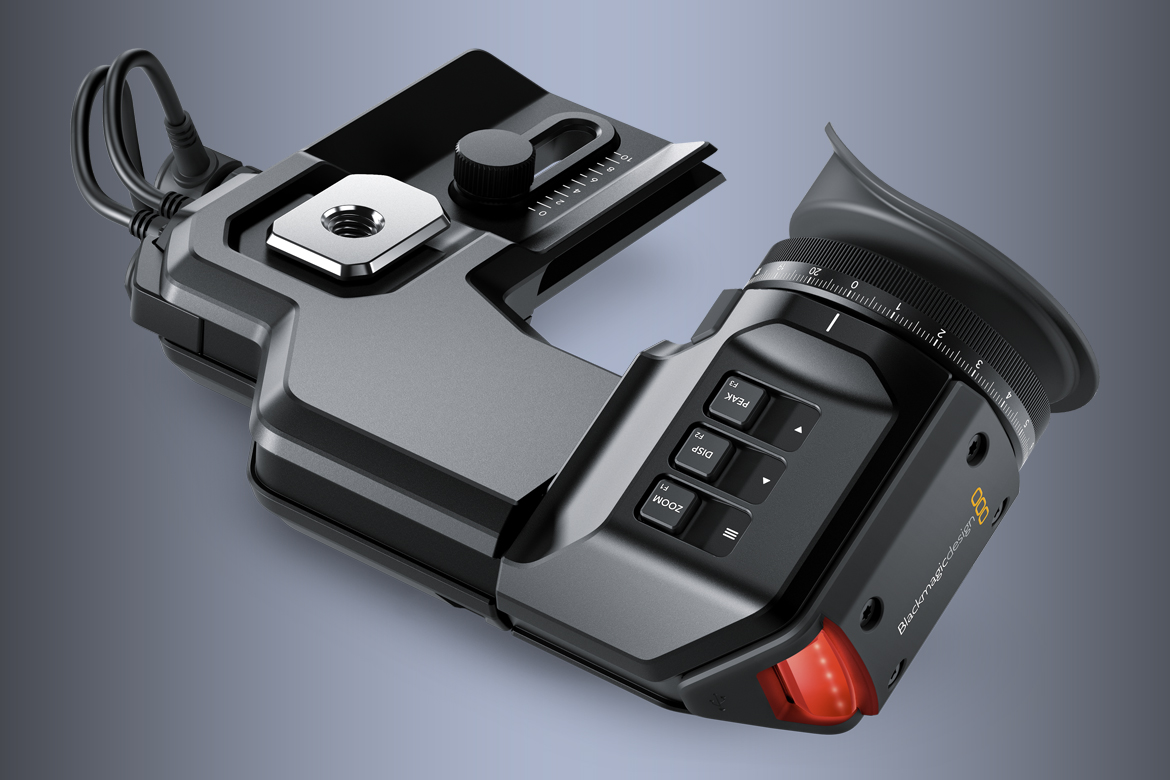

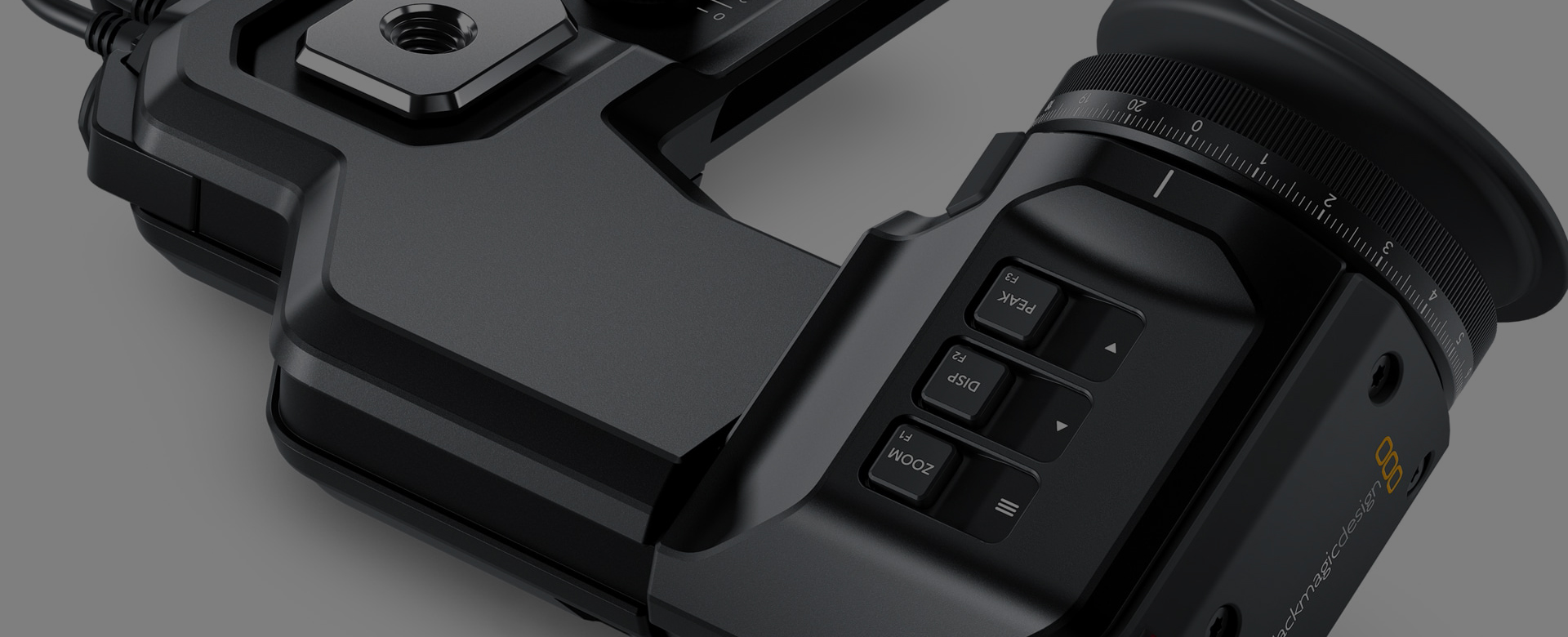

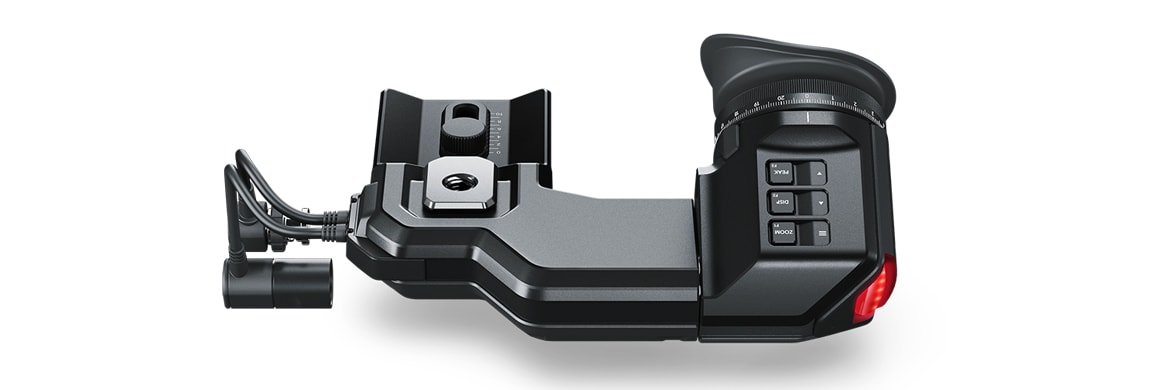

Blackmagic URSA Viewfinder
High resolution viewfinder for URSA range of cameras includes full HD OLED display and true glass optics for perfect focus.Product Highlights
- Designed for URSA & URSA Mini
- 1920 x 1080 OLED Display
- Glass Optics
- Adjustable Diopter
- Digital Focus Chart
- Overview
- Tech Specs

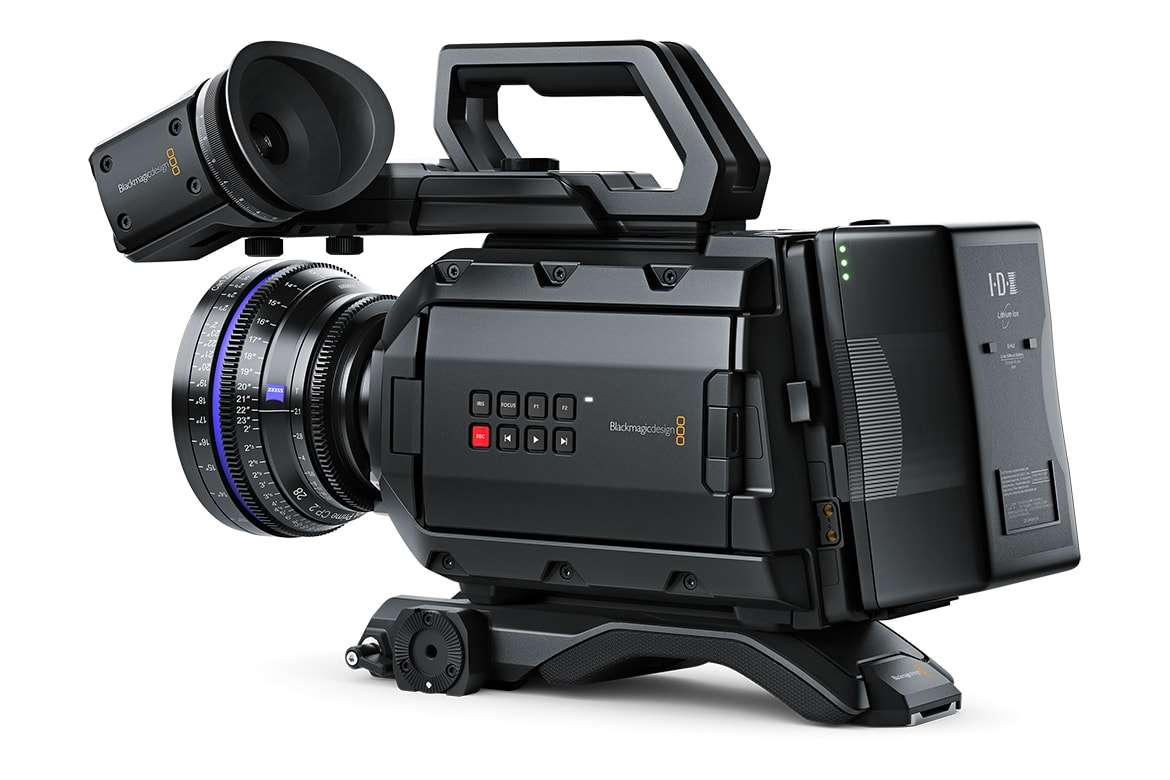

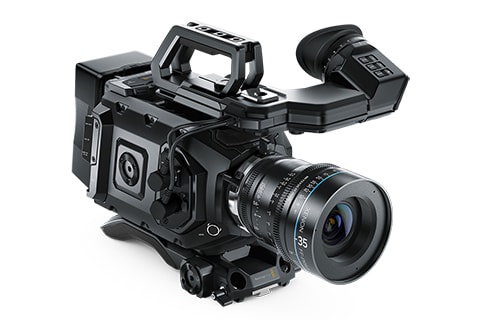

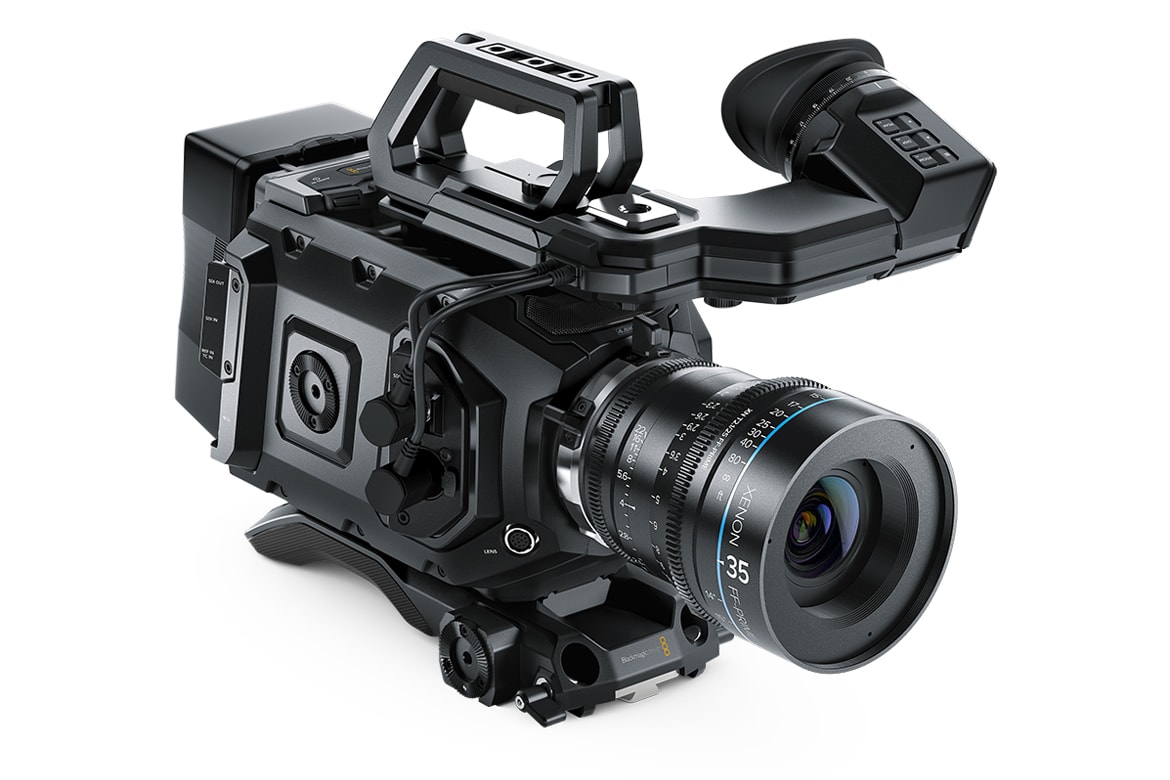

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digtal focus chart!
| Connections | |
| SDI Video Inputs | 1 x 3G-SDI BNC |
| Power Input | 1 x 4 pin XLR 12V |
| Computer Interface | USB 2.0 Mini-B port for software updates |
| Features | |
| Display Resolution | Full 1920 x 1080 |
| Frame Rate | Up to 60fps |
| Display Type | OLED |
| Display Pixels | 6.22 Million Pixels |
| Color Precision | 24 bit RGB, 16.7 million colors |
| Focus | 4 Element diopter |
| Diopter Range | -4 to +3 |
| Controls | Buttons for settings, short cut features and navigating menus |
| Overlays | Built in overlay display processor and top mounted buttons |
| Eyepiece | Can be tilted vertically and extended for left or right eye use |
| Tally | LED tally light. |
| Mounting Options | Camera mount with adjustment |
| Metadata Support | Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino |
| Physical Specifications | |
| Width | 209 mm |
| Height | 68 mm |
| Depth | 159.6 mm |
| Weight | 695 g |
| Environmental Specifications | |
| Operating Temperature | 5° C to 50° C (41° - 122°F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating System
- Mac
Mac 10.12 Sierra,
Mac 10.13 High Sierra or later - Windows
Windows 8.1 or Windows 10.
Power Requirements
- 12V power input via 4 pin XLR connected via 12v power output.
