Product Highlights
- Quad-Link 12G-SDI Input
- 2 Single-Link 12G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-bit, 48 kHz Audio
- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- sRequires IEC C14 Power Cable
- Overview
- Tech Specs
Rack mount up to 3 Teranex Mini’s side by side with this lightweight, 1 RU shelf that’s perfect for road cases or equipment racks.

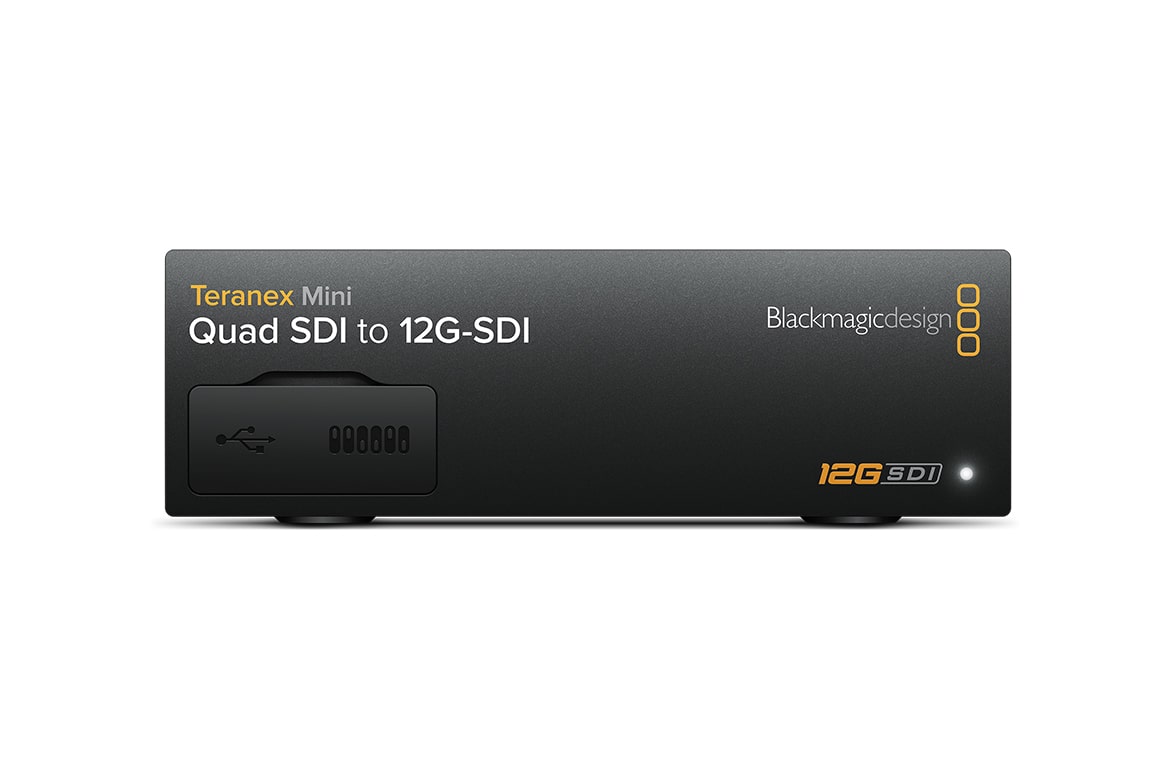

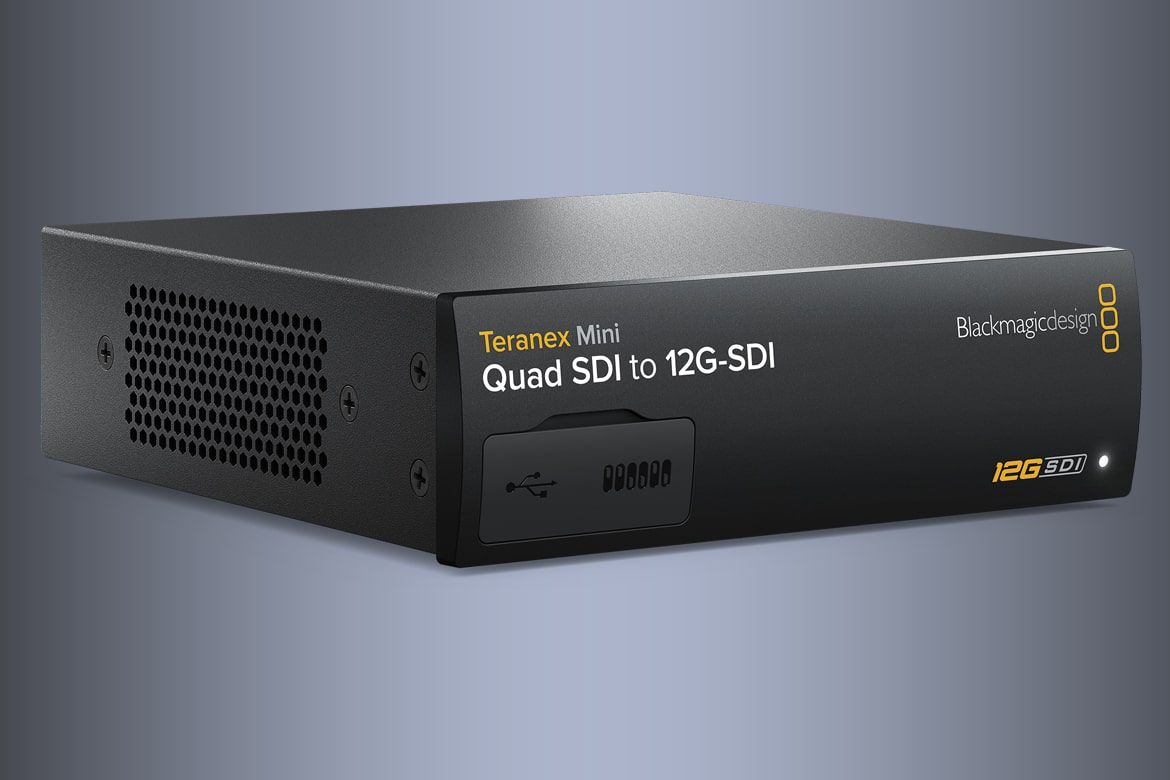

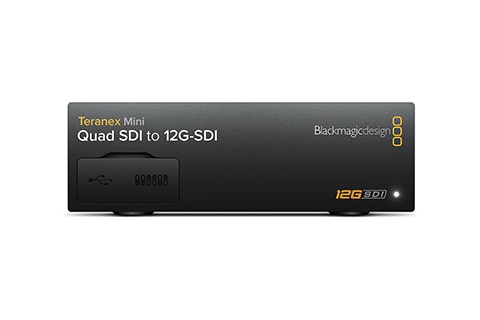

Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.

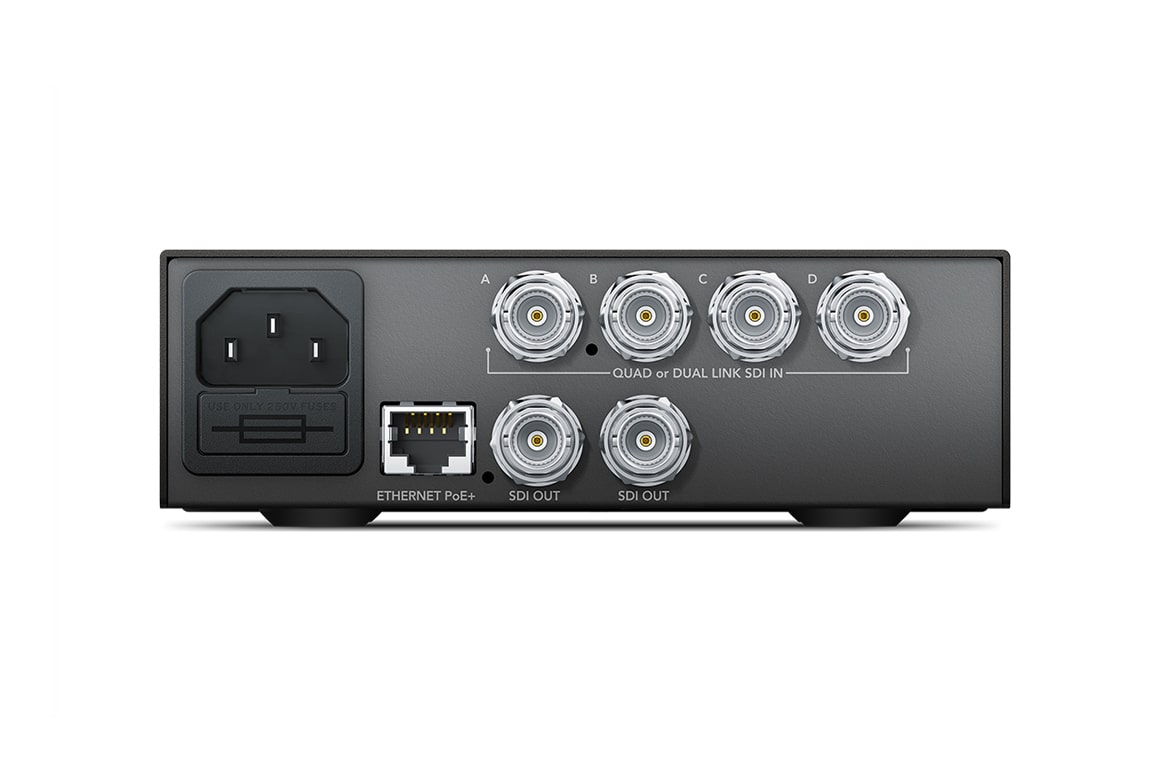

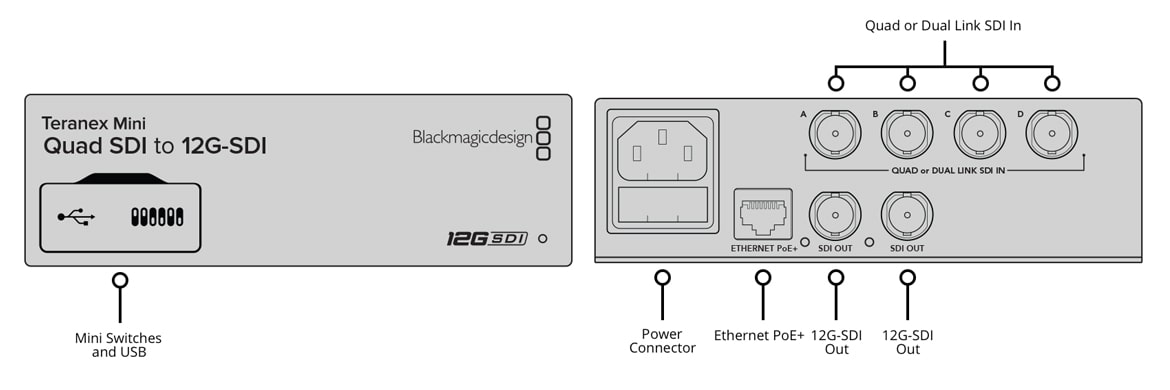

| Connections | |
| SDI Video Input | 4 x 12G-SDI SD/HD/2K/4K auto switching |
| SDI Video Output | 2 x 12G-SDI. |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
| Embedded Audio Support | 16 channels. |
| Updates and Configuration | USB or Ethernet |
| Re-Clocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF29.97, 1080PsF25 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-1 and SMPTE 2082-10 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Color Space | YUV & RGB |
| Software | |
| Software Control | Mac™ and Windows™ software upgrade via USB and Ethernet. |
| Internal Software Upgrade | Via included updater application. |
| Setting Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| Physical Specifications | |
| Width | 5.51 in |
| Height | 1.75 in |
| Depth | 6.69 in |
| Weight | 1.28 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. - Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet). - Power Consumption
16 Watts - Operational Voltage Range
90 - 240V AC
