Product Highlights
- 4 x 12G-SDI SD/HD/2K/4K auto switching
- 1 x 12G-SDI output
- Automatic switching between SD/HD/2K and 4K
- Re-Clocking : Yes
- Supports both Level A and Level B 3G-SDI equipment
- Overview
- Tech Specs
Rack mount up to 3 Teranex Mini’s side by side with this lightweight, 1 RU shelf that’s perfect for road cases or equipment racks.

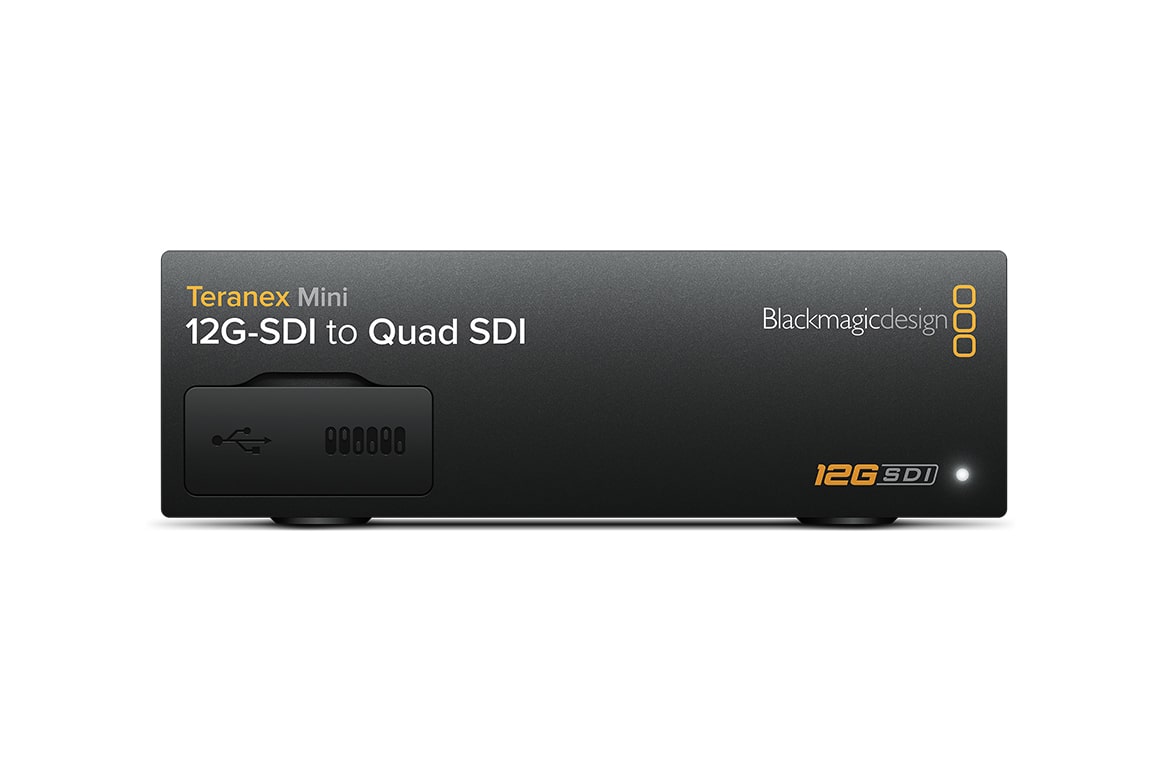

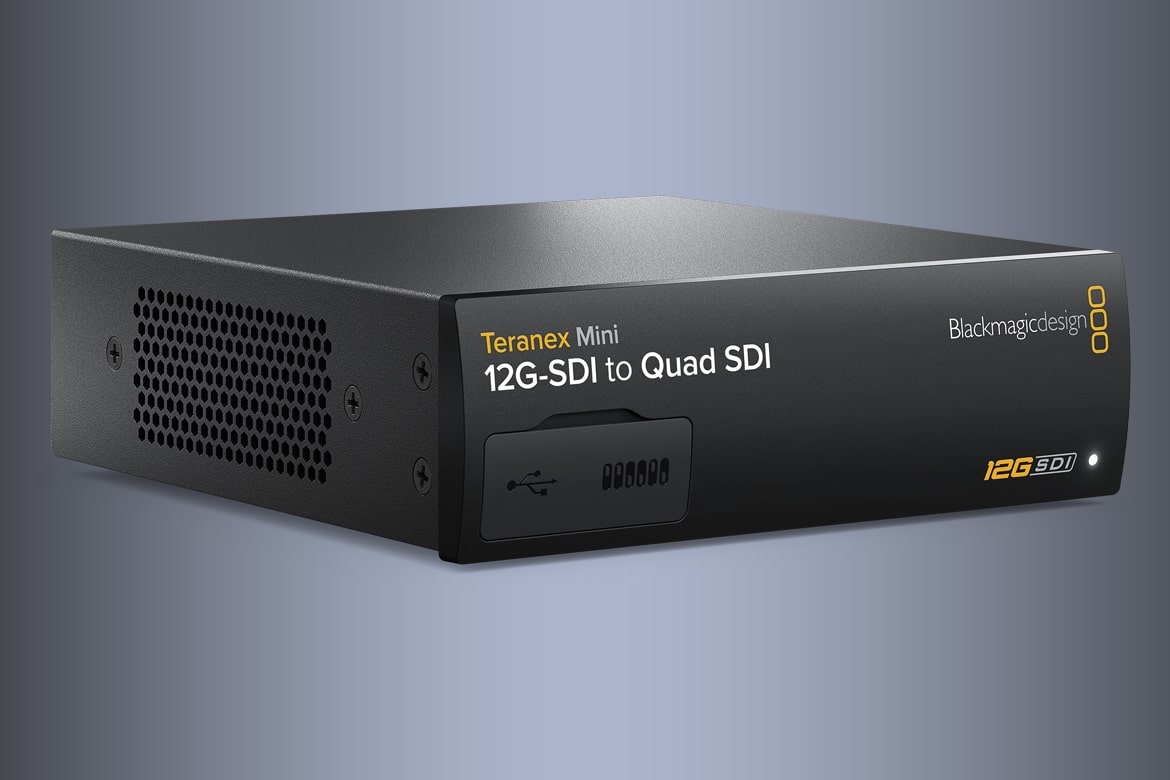

Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.

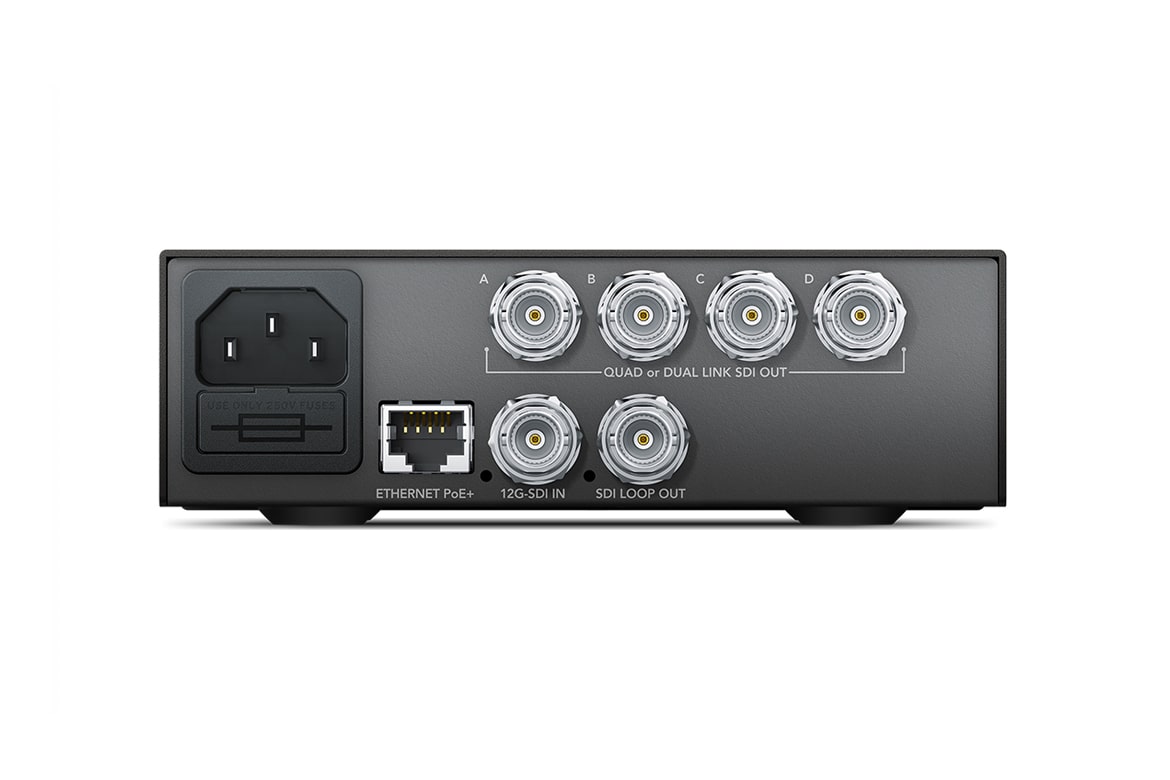

| Connections | |
| SDI Video Input | 1 x 12G-SDI SD/HD/2K/4K auto switching. |
| SDI Video Output | 4 x 3G-SDI outputs |
| Embedded Audio Support | 16 channels. |
| Multi Rate Support | Automatic switching between SD/HD/2K and 4K |
| Updates and Configuration | USB or Ethernet |
| Re-Clocking | Yes |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2081-11, SMPTE 2082-1 and SMPTE 2082-10 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit. |
| SDI Color Space | YUV & RGB |
| Software | |
| Software Control | Mac™ and Windows™ software upgrade via USB and Ethernet. |
| Internal Software Upgrade | Via included updater application. |
| Setting Control | |
| Basic Settings Control | Mini Switches, USB and Ethernet via free software utility |
| Optional Front Panel Control | Front mounted Smart Panel with LCD, rotary knob and six settings buttons |
| Physical Specifications | |
| Width | 5.51 in |
| Height | 1.75 in |
| Depth | 6.69 in |
| Weight | 1.28 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input. - Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet). - Power Consumption
16 Watts - Operational Voltage Range
90 - 240V AC
