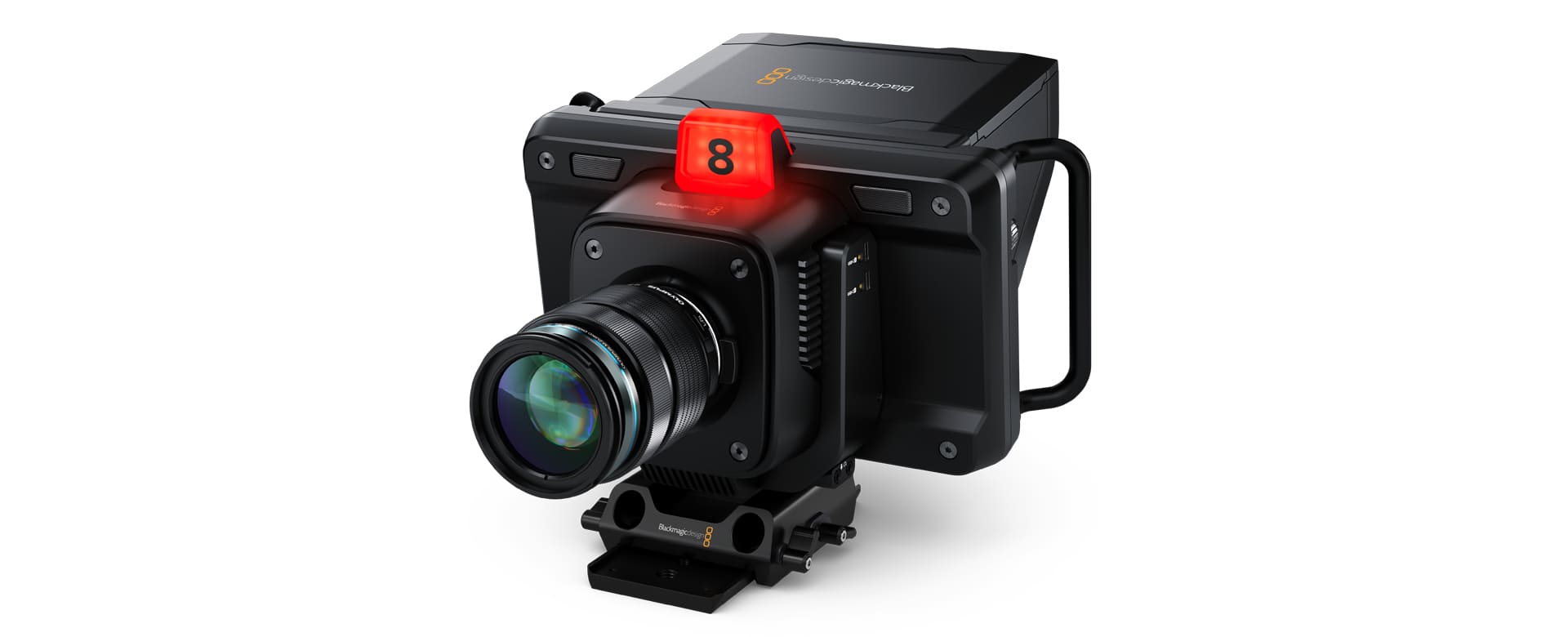

Blackmagic Studio Camera 4K Plus
Designed as the perfect studio camera for ATEM Mini, this model has a 4K sensor up to 25,600 ISO, MFT lens mount, HDMI output, 7" LCD with sunshade, built in color correction and recording to USB disks.Product Highlights
- Micro Four Thirds Lens Mount
- Capture up to UHD 4K 3840 x 2160p60
- 7" High-Brightness HDR Touchscreen LCD
- HDMI Video Output Designed for ATEM Mini
- Record to External USB Type-C Disks
- Records Blackmagic RAW, Up to 25,600 ISO
- 3.5mm Audio Input, Built-In Mics
- Built-In DaVinci Resolve Color Corrector
- Large Tally Light
- Light Carbon Fiber Polycarbonate Body
- Overview
- Tech Specs
The Blackmagic Studio Camera 4K Plus has been specifically designed as the perfect camera for ATEM Mini. It's the same high quality broadcast camera, but the HDMI centric design removes all the expensive broadcast connections so it's much lower cost. The HDMI is incredibly powerful as it connects video to the ATEM Mini, while at the same time camera control, tally and the remote record trigger is sent to the camera using the same HDMI connection. That makes it very fast to set up for a job.
| Camera Features | |
| Effective Sensor Size | 17.78mm x 10mm (Four Thirds) |

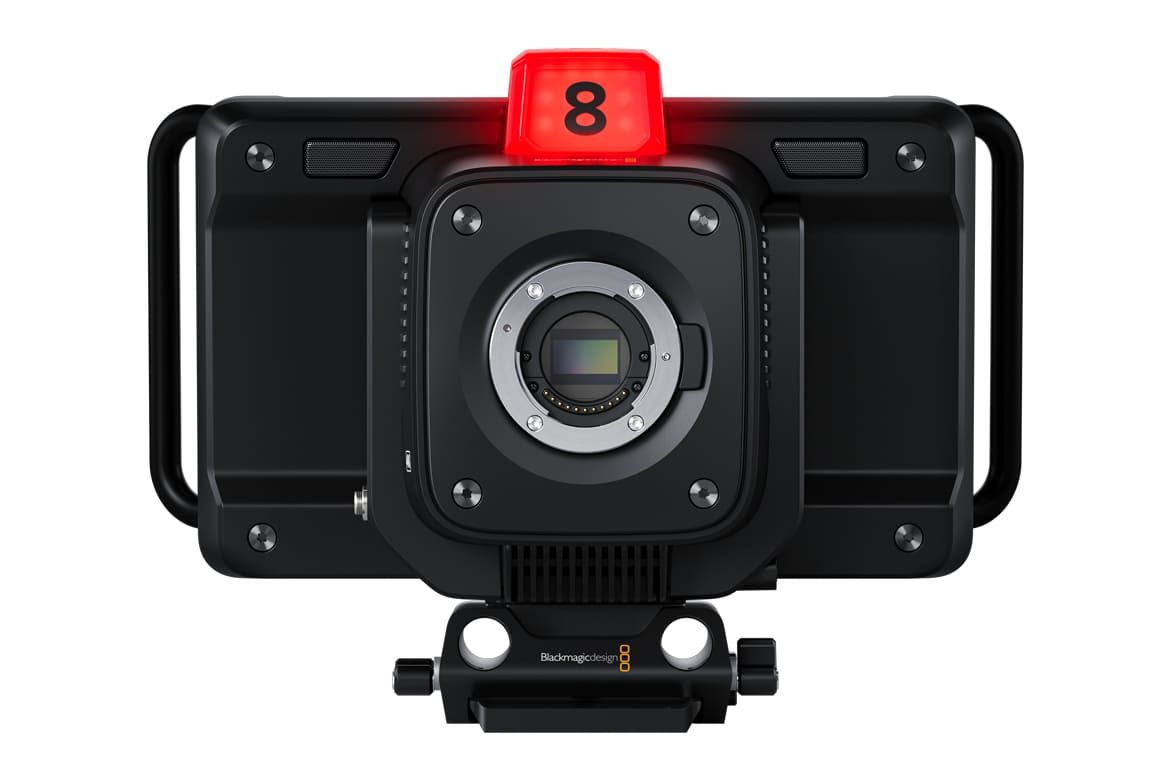

| Lens Mount | Active MFT mount |
| Lens Control | Iris, focus, zoom on supported lenses. |
| Dynamic Range | 13 Stops |
| Dual Native ISO | 0dB and 18dB gain. |
| Sensitivity at 0dB Gain | f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
| Signal to Noise Ratio | 63dB for 2160p. |
| Shooting Resolutions | 3840 x 2160 (Ultra HD) up to 60 fps. |
| Frame Rates | 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. |
| Focus | Auto focus available using compatible lenses. |
| Screen Dimensions | 7 inch 1920 x 1200 |
| Screen Type | LCD capacitive touchscreen. |
| Screen Brightness | 600 nits |

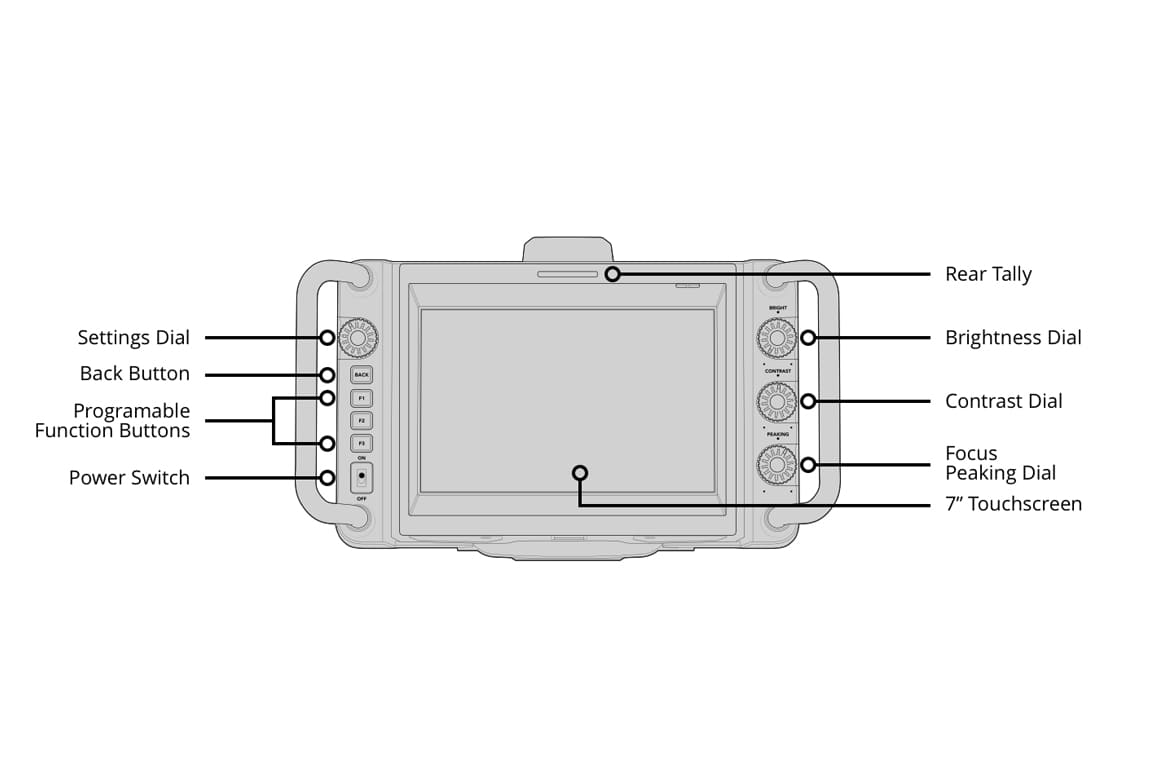

| Controls | Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. |

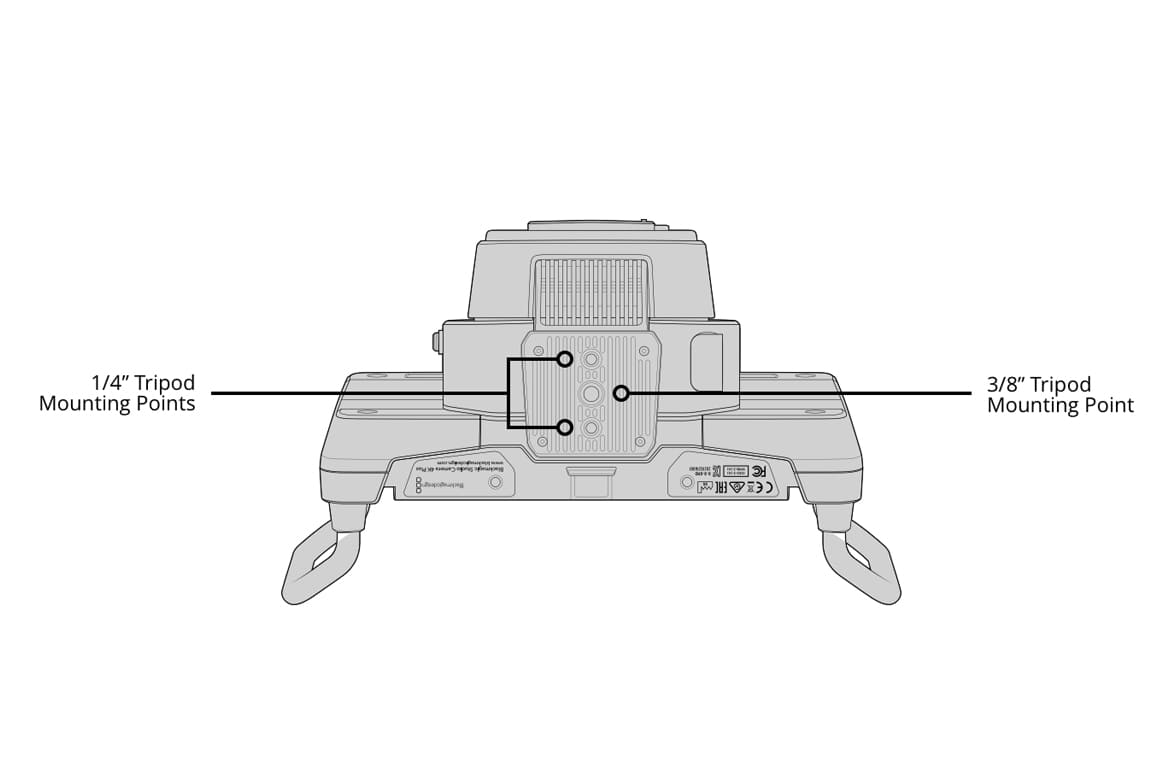

| Mounting Options | 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount. |

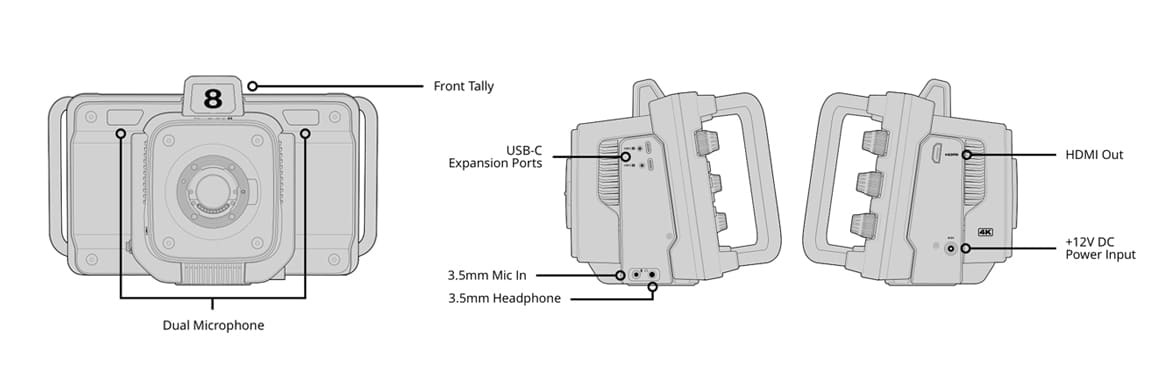

| Connections | |
| HDMI 2.0 Video Outputs | 1 |
| Analog Audio Input | 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
| Analog Audio Output | 1 x 3.5mm mini jack for headphones. |
| Remote Control | Remote camera control over HDMI. |
| Computer Interface | 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A. |
| Audio | |
| Microphone | Integrated stereo microphone |
| Built in Speaker | 1 x mono speaker |
| Standards | |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| HDMI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. |
| Media | |
| Media | 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Codecs | |
| Codecs | Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5 |
| Control | |
| External Control | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port. |
| Color Corrector | |
| Color Corrector | DaVinci YRGB. |
| Storage Features | |
| Storage Type | 2 x USB‑C 3.1 Gen 1 expansion ports for external media. |
| Recording Formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate. |
| Storage Rates | Storage rates based on 30 frames per second. 3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s |
| Software | |
| Software Included | Blackmagic Camera Setup for Mac and Windows. |
| Power Requirements | |
| Power Supply | 1 x External 12V DC 60W power supply. |
| Power Inputs | 1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies. |
| Power Usage | 26 ‑ 40 W using DC input. 30 ‑ 46 W using PoE input. |
| Accessories | |
| Optional Accessories | Blackmagic Focus Demand Blackmagic Zoom Demand Blackmagic Studio Converter ATEM Mini switchers ATEM Television Studio Pro switchers Blackmagic 3G‑SDI Shield for Arduino |
| Environmental Specifications | |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Storage Temperature | -20°to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later. - Windows
Windows 10, 64-bit.
Physical Specifications
- Width
10.77 in - Depth
6.68 in - Height
6.59 in - Weight
3 lb
