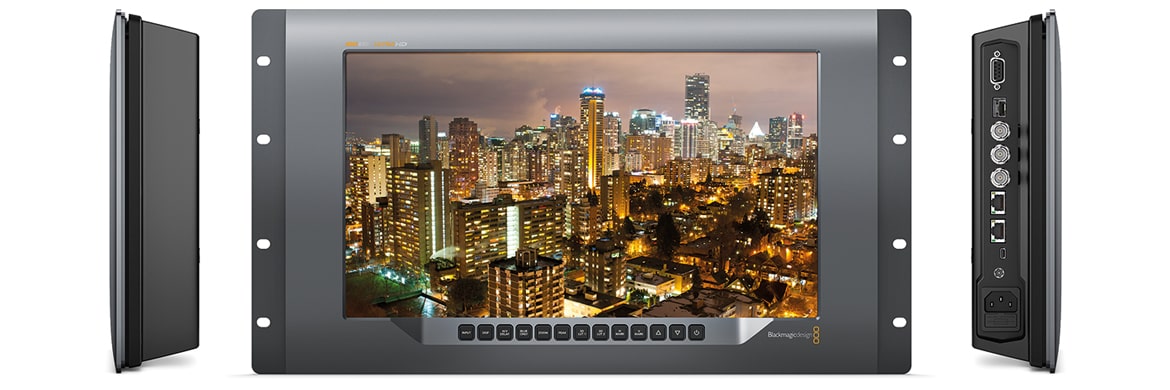

SmartView 4K 2
Elegant machined metal full resolution Ultra HD broadcast monitor with 12G-SDI for SD, HD and Ultra HD support up to 2160p60!
Product Highlights
- 15.6" 3840x2160 Active-Matrix TFT LCD
- Supports Up to Ultra HD 2160p60
- Two Multi-Rate 12G-SDI Inputs
- SDI Loop Output
- Dual 3D LUT Support
- H/V Delay, Blue Only, & Frame Markers
- Front Panel & Ethernet Control
- 6RU Machined Metal Frame

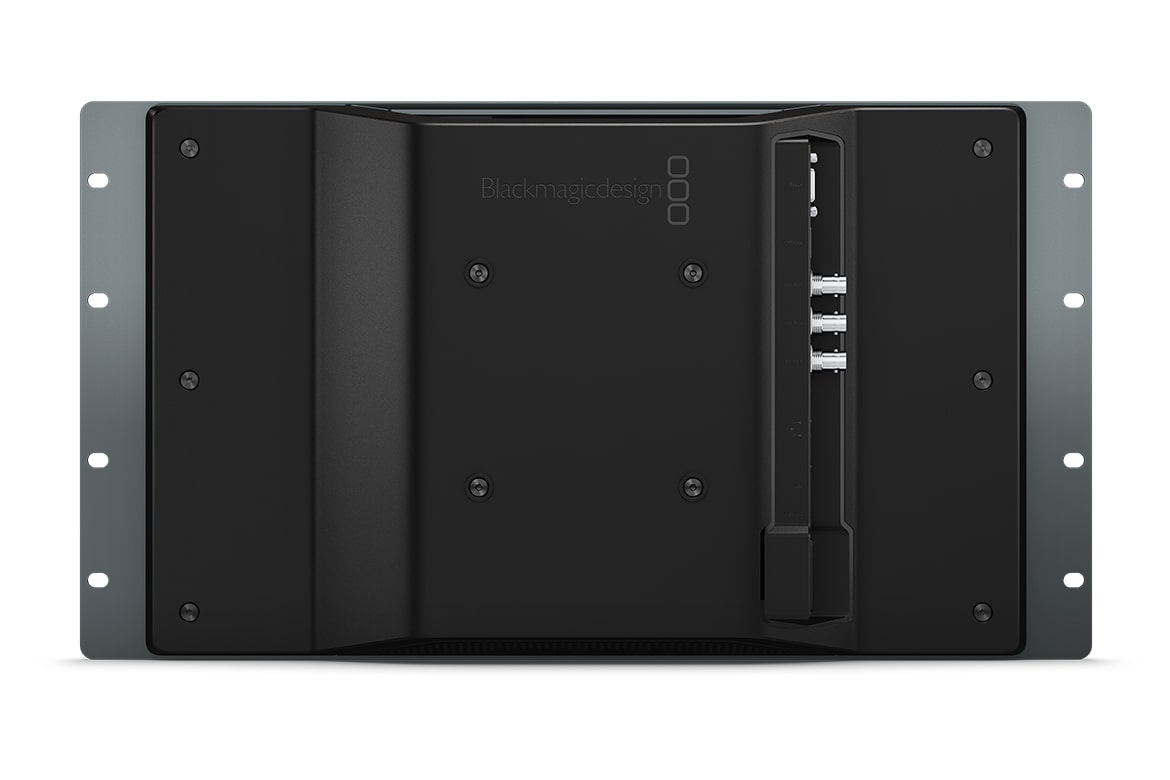

- VESA Mounting Holes
- 12VDC & 110/220 VAC Power Inputs
- Overview
- Tech Specs
The world’s first full resolution Ultra HD broadcast monitor with multi rate 12G-SDI, an extremely bright display with wide viewing angle, plus advanced broadcast features like 3D LUT support, H/V delay, blue only, adjustable frame guides and more! SmartView 4K 2 is compatible with all SD, HD and Ultra HD formats up to 2160p60. With both AC and DC power connections, SmartView 4K 2 can be used in broadcast studios or on set.

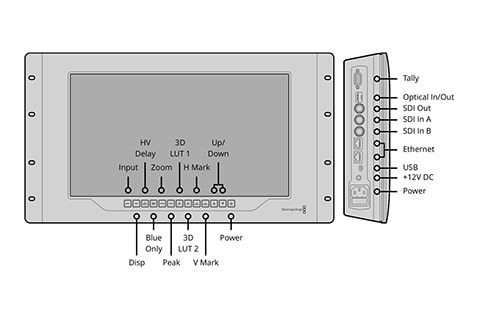

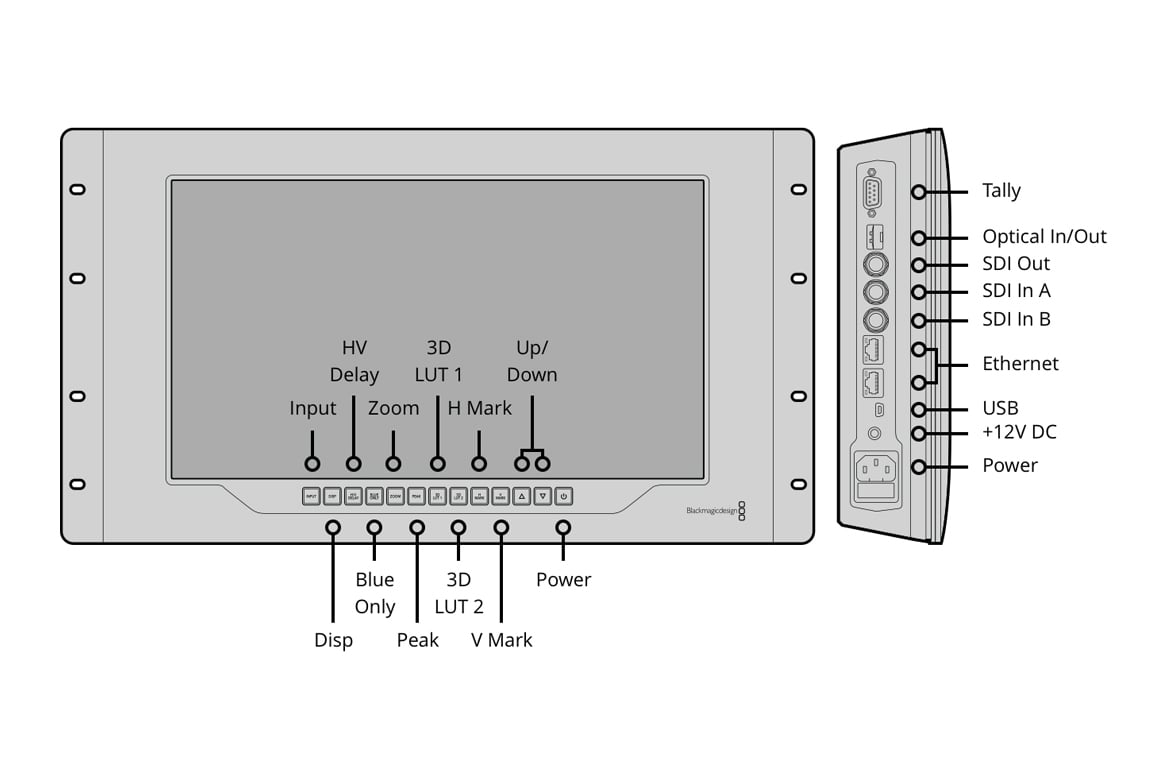

| Connections | |
| SDI Video Input | 2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI. Reclocked video output. |
| Optical Video Input | SFP Optical Fiber connector cage. |
| SDI Video Output | Automatically switches to input selection. |
| Multi Rate Support | Auto detection of 4K, 2K, HD or standard definition inputs. |
| Updates and Configuration | USB |
| Ethernet | Gigabit ethernet with loop through. |
| Tally | 9-pin D connector |
| Standards | |
| SDI Format Support | 525i59.94 NTSC, 625i25 PAL |
| HD Format Support | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Format Support | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30 |
| Ultra HD Format Support | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Format Support | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M. |
| SDI Color Space | REC 601, REC 709 |
| SDI Auto Switching | Automatically selects between SD, HD, 3G, 6G and 12G-SDI. |
| Video Sampling | 4:2:2 and 4:4:4 |
| Software | |
| Internal Software Upgrade | Via included firmware updater software. |
| Settings Control | Via USB or Ethernet. |
| Operating Systems | |
| Mac | Mac 10.13 High Sierra, Mac 10.14 Mojave or later. |
| Windows | Windows 8.1 or Windows 10. |
| Display | |
| Display Element | TFT Active Matrix LCD |
| Display Resolution | 3840 x 2160 pixels |
| Response | 25 ms |
| Contrast Ratio | 1000:1 |
| Color Depth | 16.7 million colors |
| Power Requirements | |
| Power Supply | Built in IEC 90 - 240V AC power supply, plus DC input jack for external power. |
| Power Consumption | 24 Watts |
| Physical Specifications | |
| Width | 18.98 in |
| Depth | 2.75 in |
| Height | 10.47 in |
| Weight | 7.94 lb |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.13 High Sierra,
Mac 10.14 Mojave or later. - Windows 8.1 or Windows 10.
Display
- Display Element
15.6" TFT Active Matrix LCD - Display Resolution
3840 x 2160 pixels - Response
25 ms - Contrast Ratio
1000:1 - Color Depth
16.7 million colors
Power Requirements
- Power Supply
Built in IEC 90 - 240V AC power supply, plus DC input jack for external power. - Power Consumption
24 Watts
