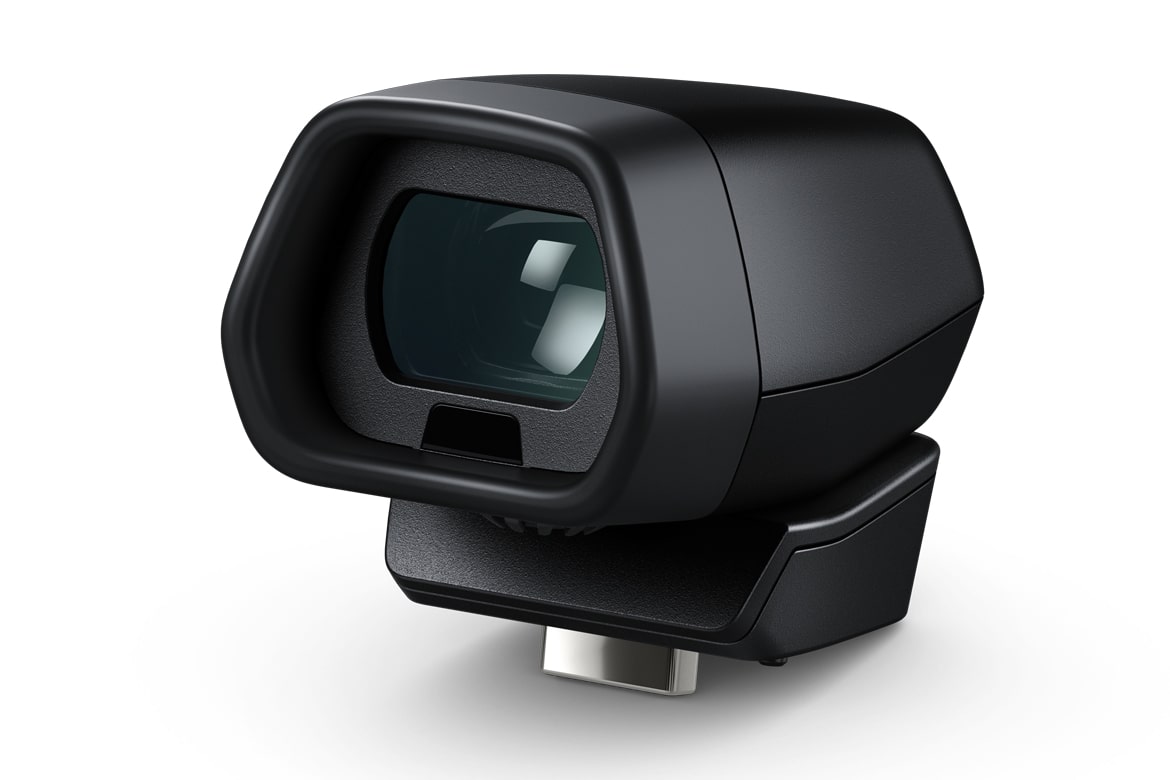

Blackmagic Pocket Cinema Camera Pro EVF
High quality viewfinder with built in proximity sensor, 4 element glass diopter, built in status information, and a digital focus chart.Product Highlights
- EVF for Pocket Cinema Camera 6K Pro
- Glass Diopter with -4 to +4 Adjustment
- Built-In Status & Digital Focus Chart
- 70° Swivel, 1280 x 960 Resolution
- Micro OLED, 24-Bit RGB, 16.7M Colors
- Set of 4 Eyecups for Right & Left Eyes
- Overview
- Tech Specs
The Blackmagic Pocket Cinema Camera Pro EVF is the perfect accessory to make outdoors and handheld shooting easy! You get a high quality viewfinder with built in proximity sensor, 4 element glass diopter with an incredible -4 to +4 adjustment, built in status information, and a digital focus chart. The Pocket Cinema Camera Pro EVF connects quickly to the Blackmagic Pocket Cinema Camera 6K Pro via a single connector. The viewfinder has up to 70 degree swivel, and comes with a set of 4 eyecups including left and right eye.
| Connections | |
| Video and Power Inputs | Via Pocket Cinema Camera 6K Pro EVF connector |
| Fixing | Integrated M4 x 3.3 (0.7 pitch) locking screw |
| Features | |
| Display Resolution | 1280 x 960 |
| Display Pixels | 3.68 million dots |
| Display Type | Micro OLED |
| Frame Rates | Up to 60 fps |
| Color Precision | 24 bit RGB, 16.7 million colors |
| Focus | 4 element diopter. |
| Diopter Range | -4 to +4 |
| Power | Auto ON/OFF controlled by inbuilt proximity sensor. |
| Controls | Viewfinder display configuration set via Monitor Page in camera menu settings. |
| Overlays | Camera settings, status and meters displayed in top and bottom blank area. |
| Eyepiece | Can be tilted +70° vertically. |
| Eye Cup | 4 x interchangeable silicone eye cups including small, medium, left eye and right eye. |
| Mounting Options | Compatible with Pocket Cinema Camera 6K Pro. |
| Metadata Support | Supports camera information from Pocket Cinema Camera 6K Pro. |
| Environmental Specifications | |
| Operating Temperature | 0°to 40°C (32° to 104°F) |
| Storage Temperature | -20°to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
Physical Specifications
- Width
2.56 in - Depth
1.59 in - Height
1.91 in - Weight
2.82 oz
