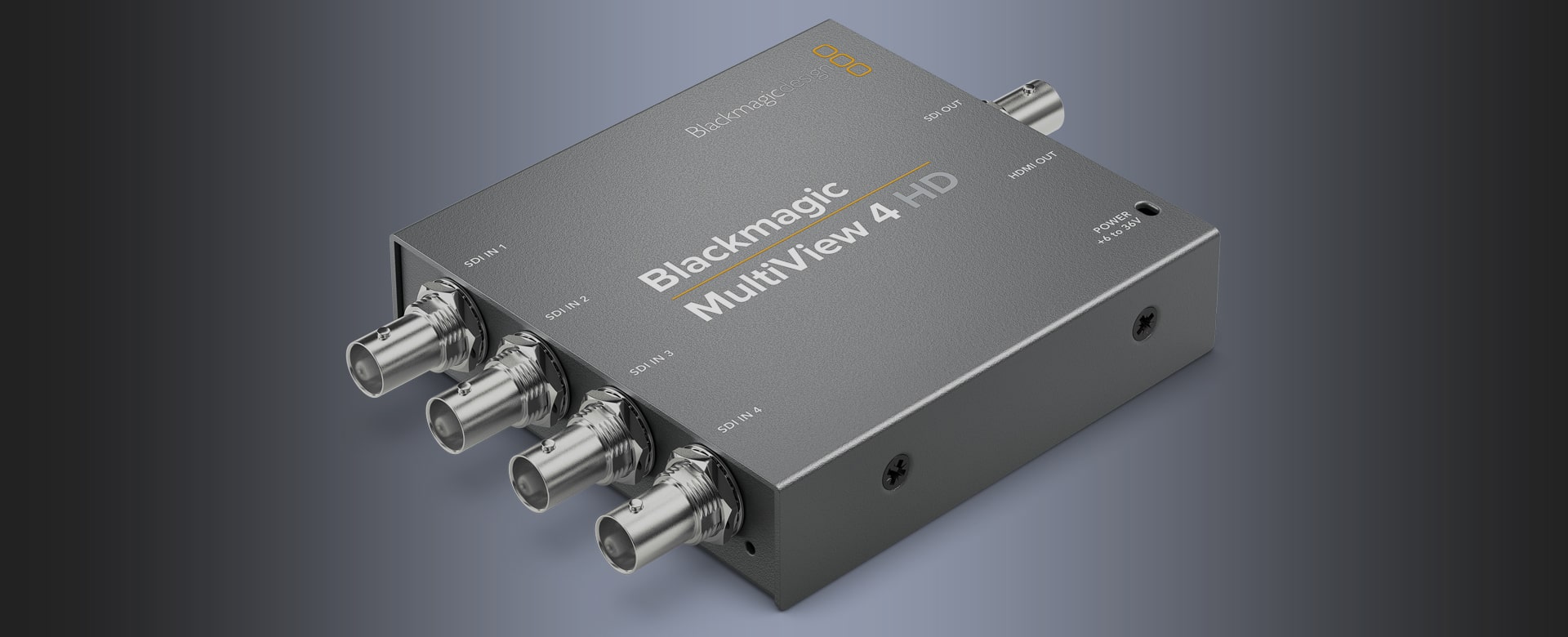

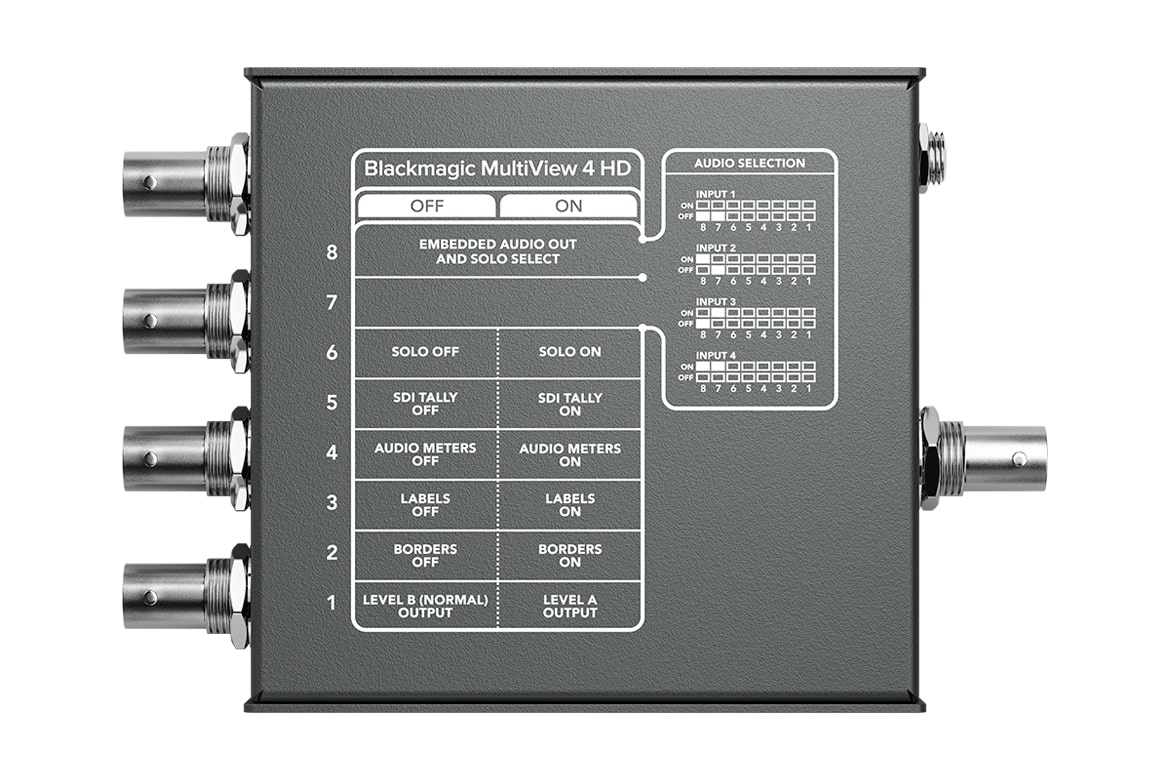

Blackmagic MultiView 4 HD

Monitor up to four different SD and HD sources on the same display at the same time!
Product Highlights
  • 4 x SD/HD/3G-SDI Inputs
  • 1 x SDI & 1 x HDMI Outputs
  • Automatic Signal Detection
  • SDI Re-Clocking on Output
  • Monitor EDID Support
  • Display Custom Labels & Audio Metering
  • Compact Metal Housing
  • Quad Multiviewer

  • Overview
  • Tech Specs

Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custom labels, audio meters and more. MultiView 4 HD has both SDI and HDMI outputs for monitoring on professional SDI displays, projectors or even big screen televisions!

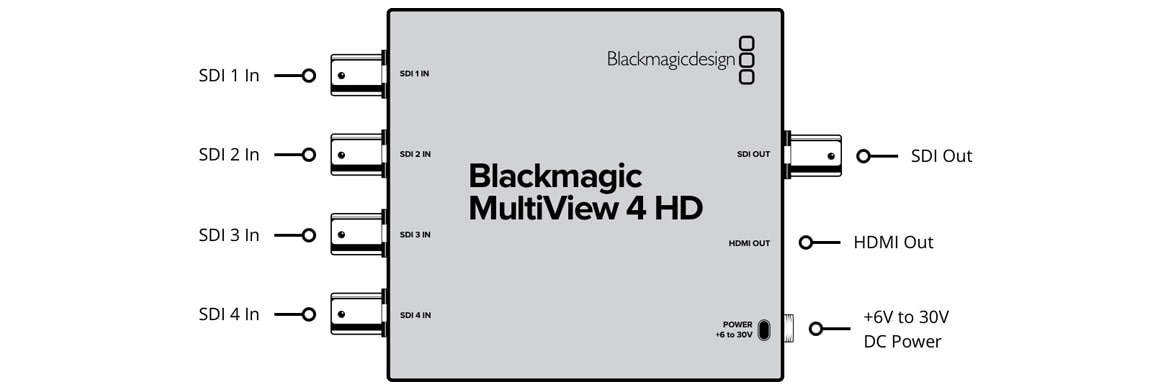

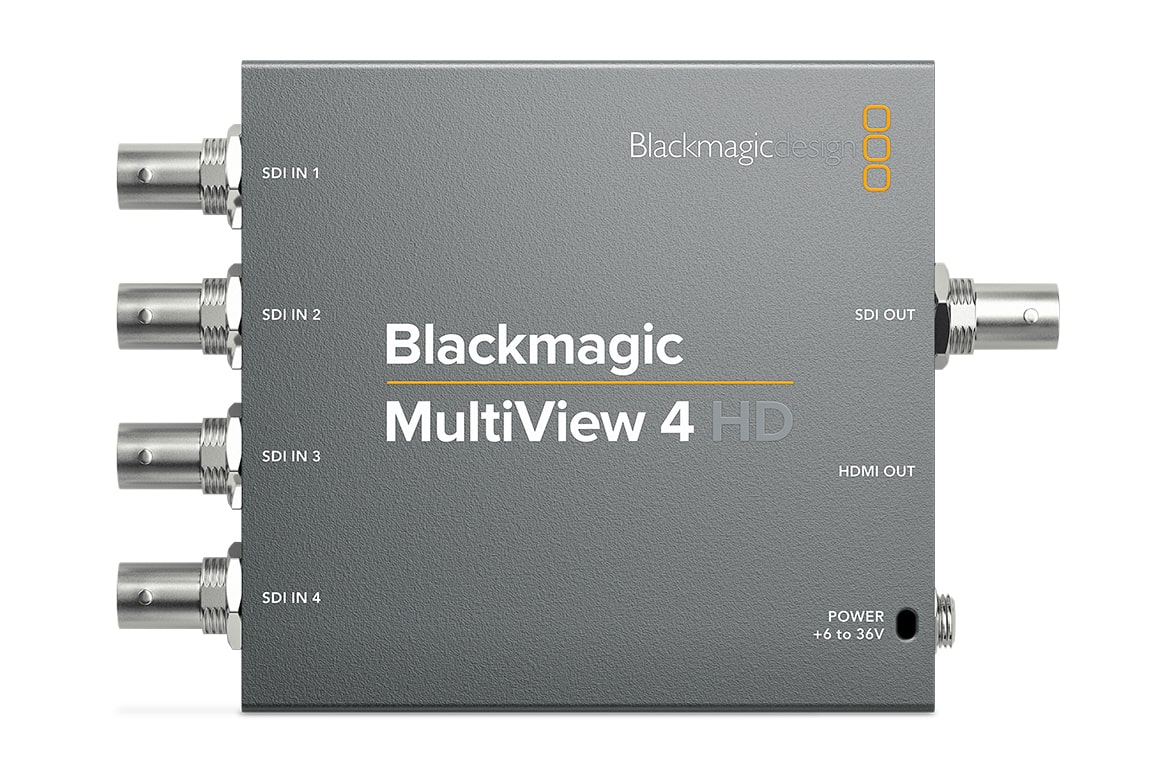

Connections
SDI Video Input 4 x 10-bit SD-SDI and HD-SDI.
SDI Video Output 1 x HD-SDI.
SDI Rates 270Mb, 1.5G, 3G.
SDI Video Multi View Outputs 1 x 10-bit HD-SDI.
HDMI Video Multi View Outputs 1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking On all SDI outputs, auto switching between standard definition or high definition.
Reference Input None
Multi Rate Support Auto detection of SD or HD
Updates USB 2.0 high speed (480Mb/s) interface.
Configuration USB 2.0
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
Audio Meters Each view, VU standard.
Source Routing None
SDI Video Sampling 4:2:2 and 4:4:4.
SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision 10-bit 4:2:2 and 4:4:4.
SDI Color Space YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel None
External Control Panel None
Display
Display None
Software
Software Control MultiView software included free for Windows™ and Mac™.
Internal Software Upgrade Via included updater application.
Physical Specifications
Width 3.62 in
Height 0.86 in
Depth 5.27 in
Weight 8.53 Oz
Environmental Specifications
Operating Temperature 5° C to 50° C (41° - 122°F)
Storage Temperature -20° to 60° C (-4° to 140° F)

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Fail Protection
    MultiView 4 HD settings preserved and restored instantly at power on.
  • Power Consumption
    5.5 Watts
  • Operational Voltage Range
    6 to 36V DC
