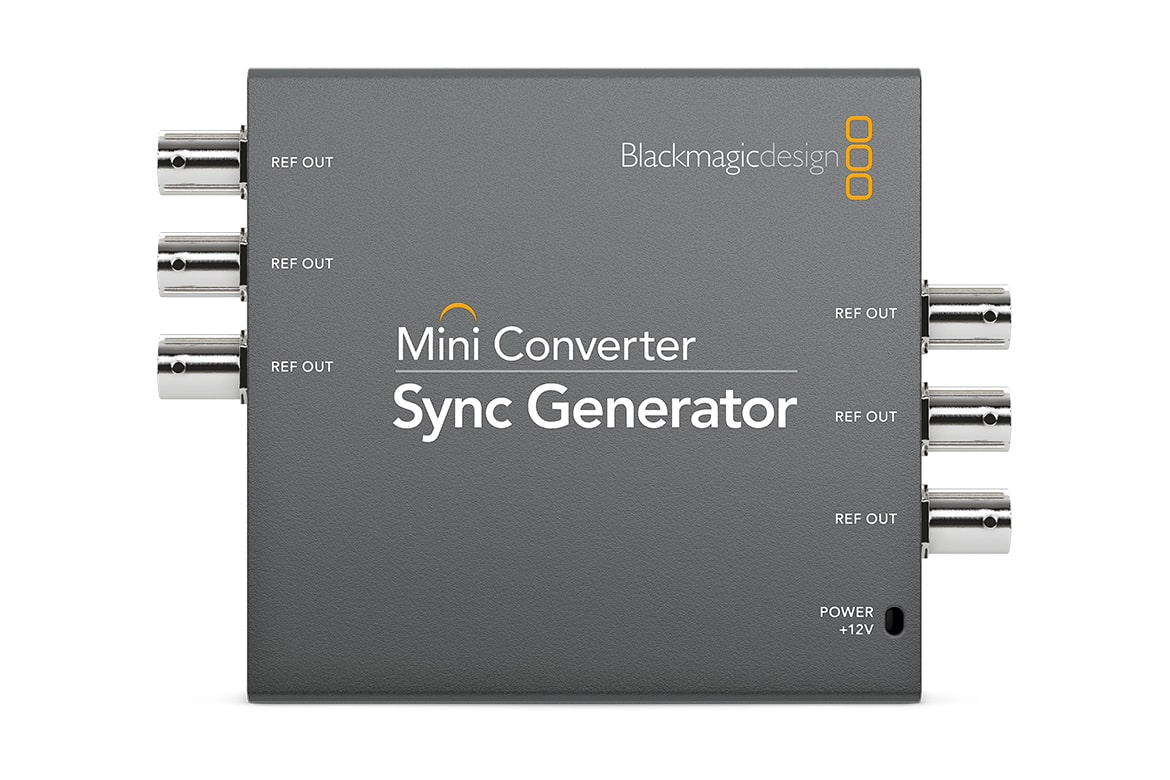

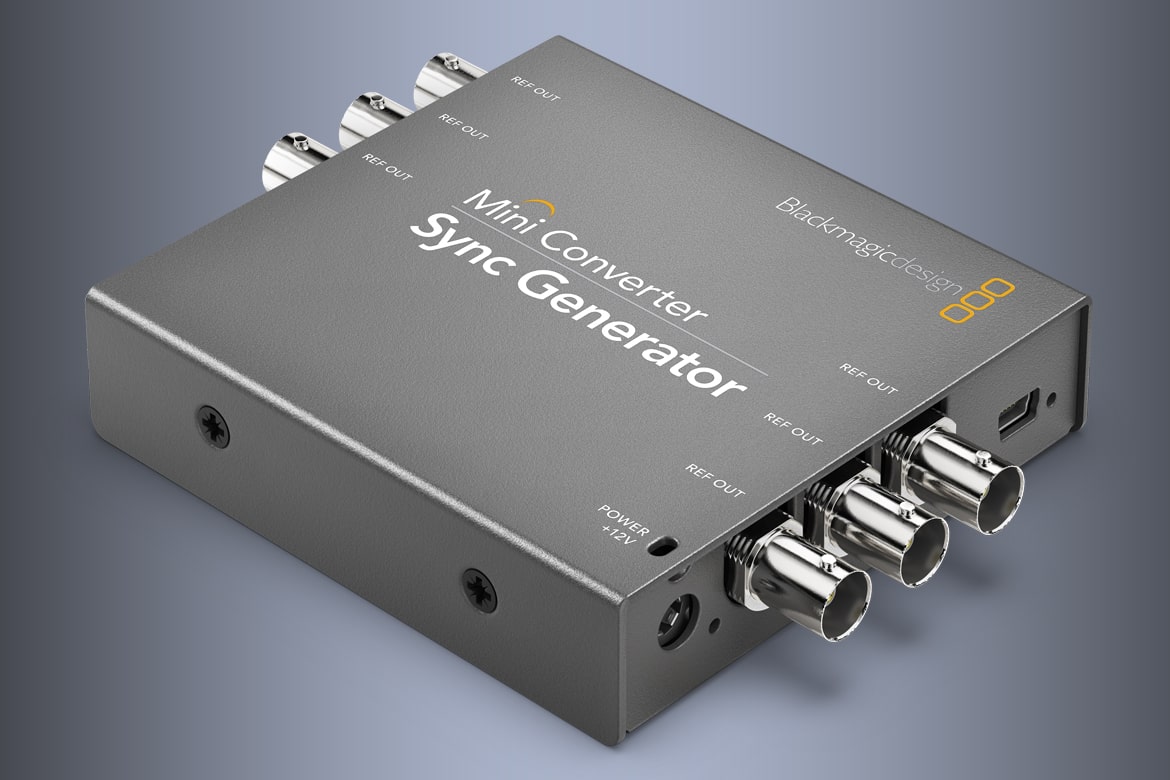

Mini Converter Sync Generator
Sync generator for black burst and HD tri-sync reference signals!
Product Highlights
- Mini Converter Series
- Six Output
- Tri-Sync or Black Burst
- Overview
- Tech Specs
Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!

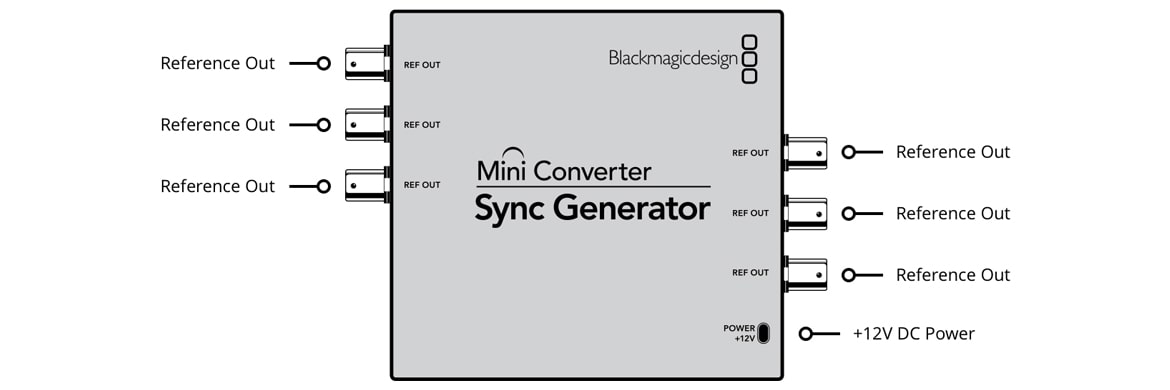

| Connections | |
| Analog Video | 6 x common reference outputs. |

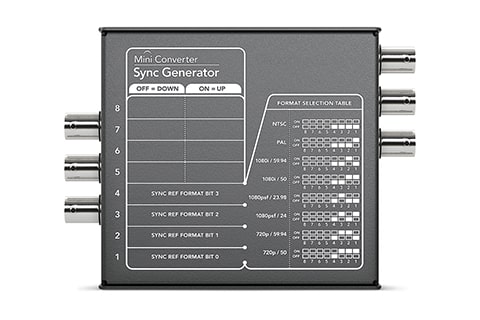

| Multi Rate Support | Via mini switches |
| Updates and Configuration | USB |
| Standards | |
| Analog Format Support | 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60 |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | |
| Settings Control | Mini Switches or USB software. |
| Power Requirements | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 3.00 Watts |
| Operational Voltage Range | 12V DC |
| Physical Specifications | |
| Width | 4.84 in |
| Depth | 3.63 in |
| Height | 0.90 in |
| Weight | 8.46 oz |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. - Power Consumption
3.00 Watts - Operational Voltage Range
12V DC
