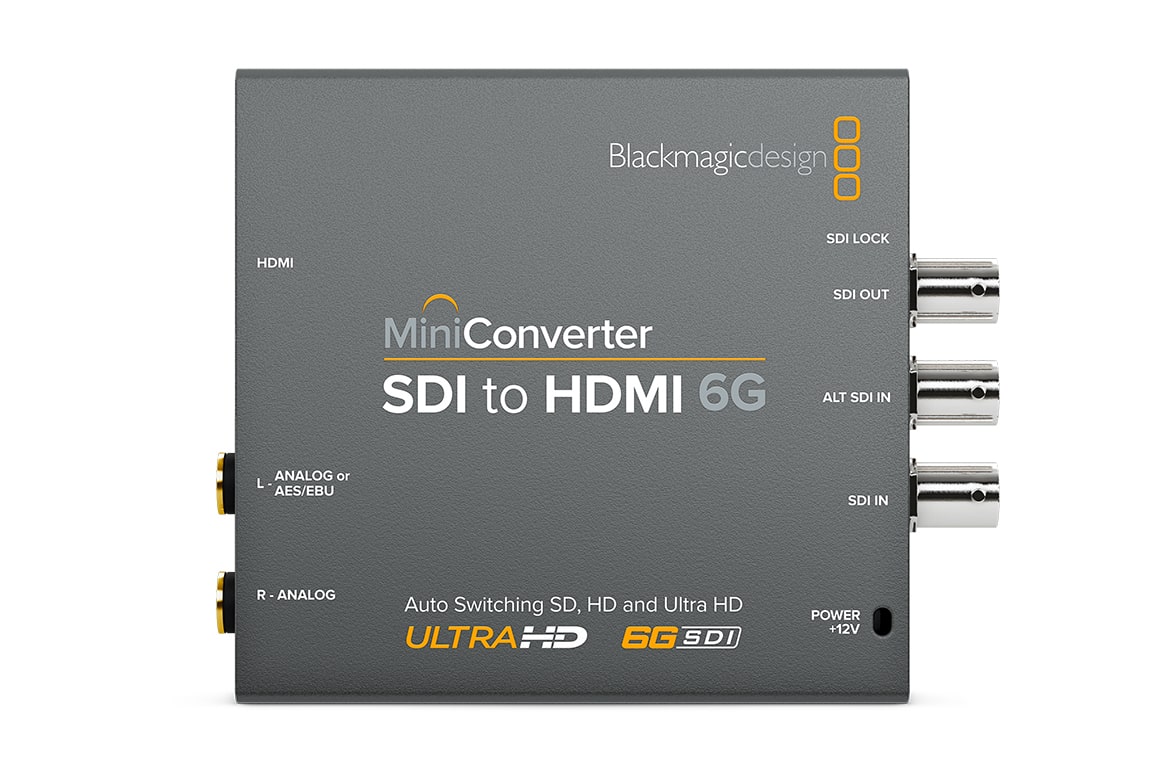

Mini Converter SDI to HDMI 6G
Convert SDI in SD, HD and Ultra HD to HDMI 4K with analog and AES audio!
Product Highlights
- 2 x 4K SDI Input
- 1 x HDMI Type A and 1 x SDI Output
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Outputs
- De-Embeds Audio from SDI

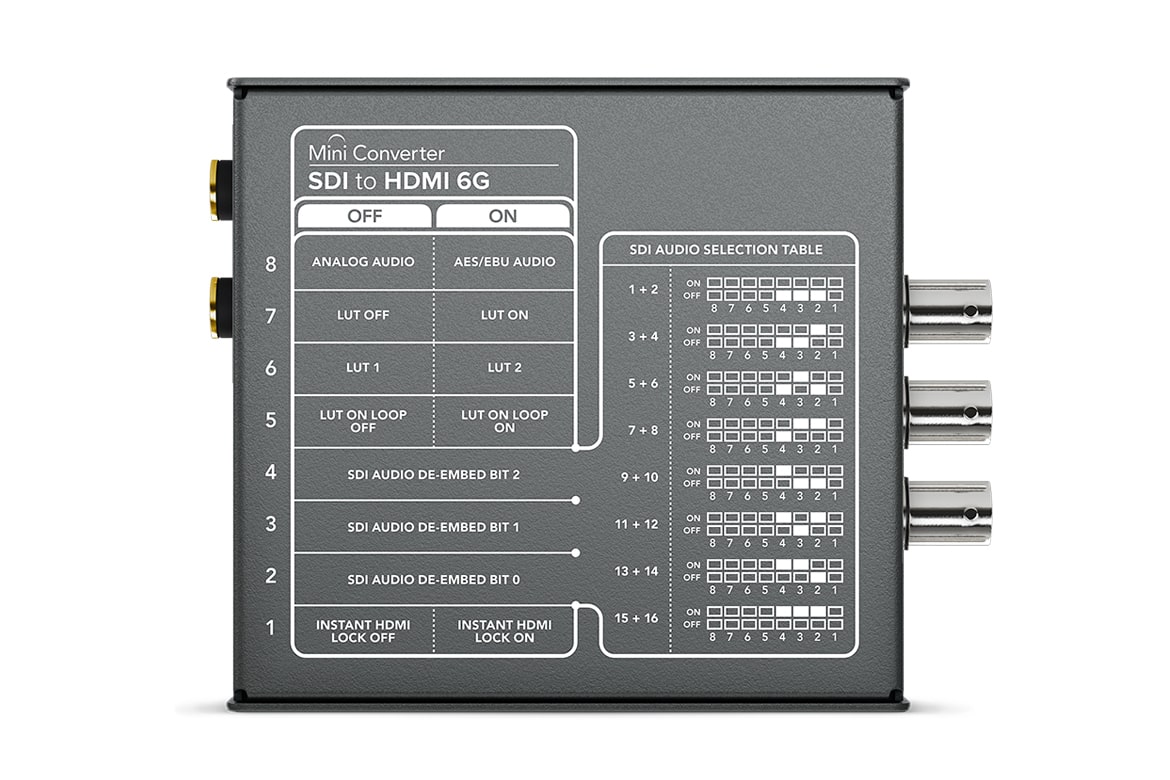

- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- Overview
- Tech Specs
Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected!
| Connections | |
| SDI Video Input | 1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails. |
| SDI Video Output | 1 x SDI Video Loop Output. |
| HDMI Video Outputs | HDMI type A out. |
| Analog Audio Outputs | 2 channels of balanced analog audio. |
| Digital Audio Outputs | 4 channels of AES/EBU digital audio |
| SDI Redundant Input | Automatically switches over if main SDI input is lost. |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 625i50 PAL, 525i59.94 NTSC |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
| 2K Format Support | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081 |
| SDI Video Rates | SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2 and 4:4:4 |
| SDI Color Space | YUV and RGB |
| SDI Auto Switching | Automatically detects SD, HD or 3G-SDI. |
| HDMI Format Support | 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | |
| | Mini Switches or USB software. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Physical Specifications | |
| Width | 4.49 in |
| Depth | 3.63 in |
| Height | 0.90 in |
| Weight | 7.06 oz |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- +12V universal power supply included with international socket adapters for all countries. Cable tie point.
- Operational Voltage Range
12 ‑ 18V DC - Power Consumption
5.2 Watts
