Mini Converter SDI to Analog 4K
Blackmagic Design

Mini Converter SDI to Analog 4K

Convert SDI in SD, HD or Ultra HD to analog video with down converter and audio!
Product Highlights
  • Single Link SD/HD/3G/6G-SDI Input
  • Component, Composite, & S-Video Output
  • SD, HD, UHD 4K & DCI 4K Input Signals
  • Automatic Input Signal Detection
  • Redundant SDI Input & Looped SDI Output
  • Analog & AES-EBU Digital Audio Outputs
  • 24-bit, 48 kHz Audio
  • Control via DIP Switches or Software
  • USB 2.0 Port for Firmware Updates
  • 12V Universal Power Supply Included

  • Overview
  • Tech Specs

Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analog equipment such as Betacam SP, VHS, and video monitors!

Connections

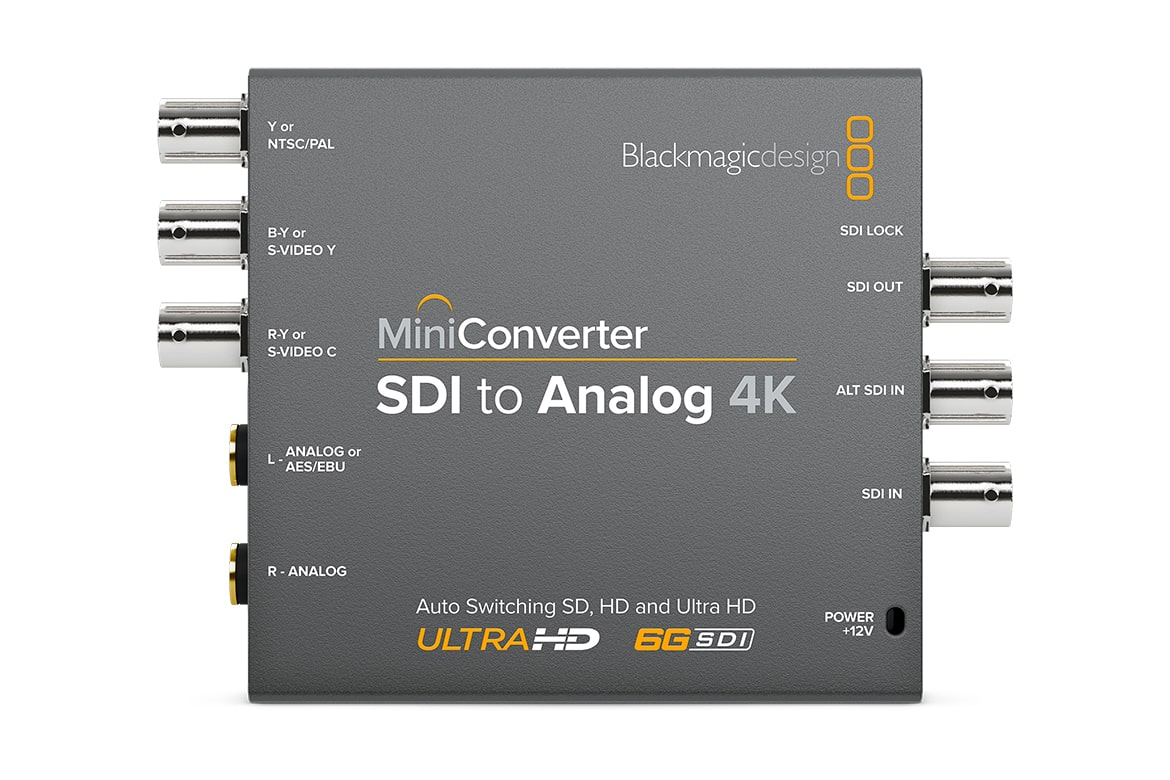

SDI Video Inputs 1 x SD, HD or 6G‑SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
SDI Video Output 1 x SDI Video Loop Output.
Analog Video Outputs NTSC, PAL, S‑Video and component SD/HD from 6G‑SDI input.
Analog Audio Outputs 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
Digital Audio Outputs 2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input Automatically switches over if main SDI input is lost.
Multi Rate Support Auto detection of SD, HD or 6G‑SDI.
Updates and Configuration USB
Reclocking Yes
Standards
SD Format Support 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‑B, SMPTE 425M, SMPTE ST‑2081, ITU‑R BT.656, ITU‑R BT.601.
SDI Video Rates SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling 4:2:2
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically detects SD, HD or 6G‑SDI.
Analog Format Support 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
Analog Color Space YUV
Analog Color Precision 4:2:2
Format Conversion
Format Conversion HD down conversion
Software
Software Control Mac and Windows software upgrade via USB.
Internal Software Upgrade Via included updater application.
Settings Control

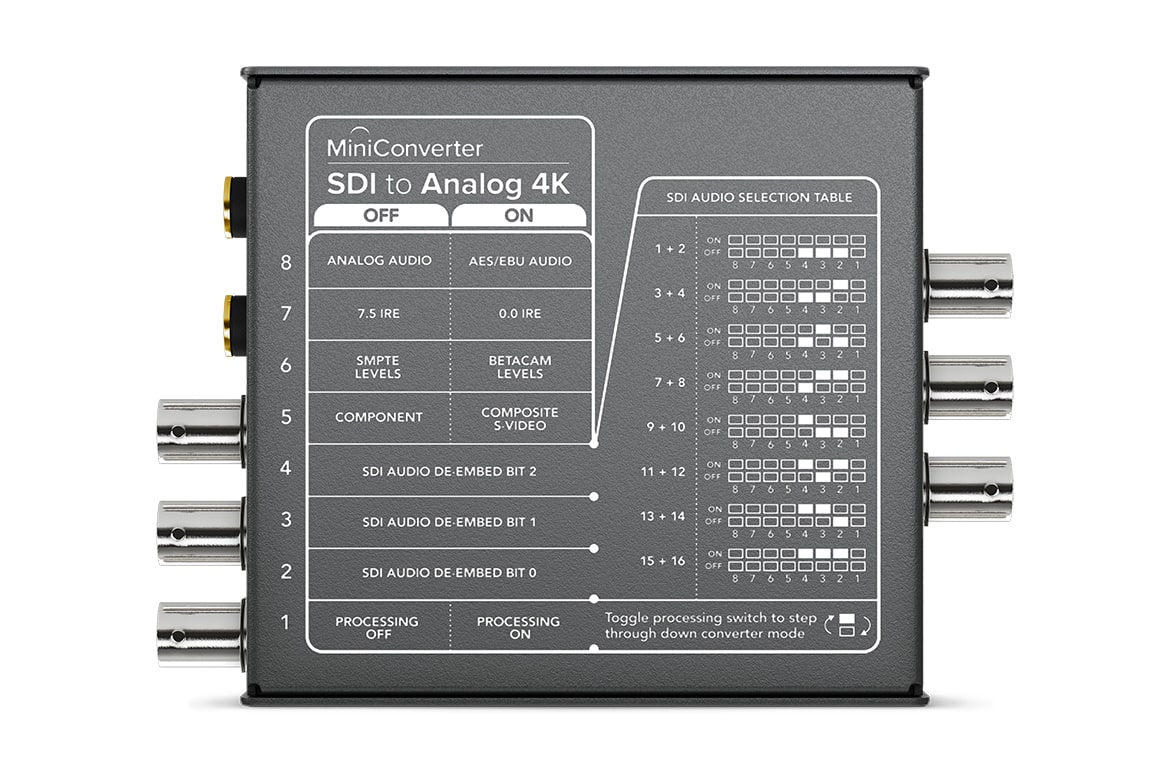

Settings Control Mini Switches or USB software.
Physical Specifications
Width 4.84 in
Height 0.90 in
Depth 3.63 in
Weight 10.68 oz
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing

Operating Systems
  • Mac 10.12 Sierra,
    Mac 10.13 High Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements
  • Power Supply
    +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption
    8.04 Watts
  • Operational Voltage Range
    12 ‑ 31V DC
