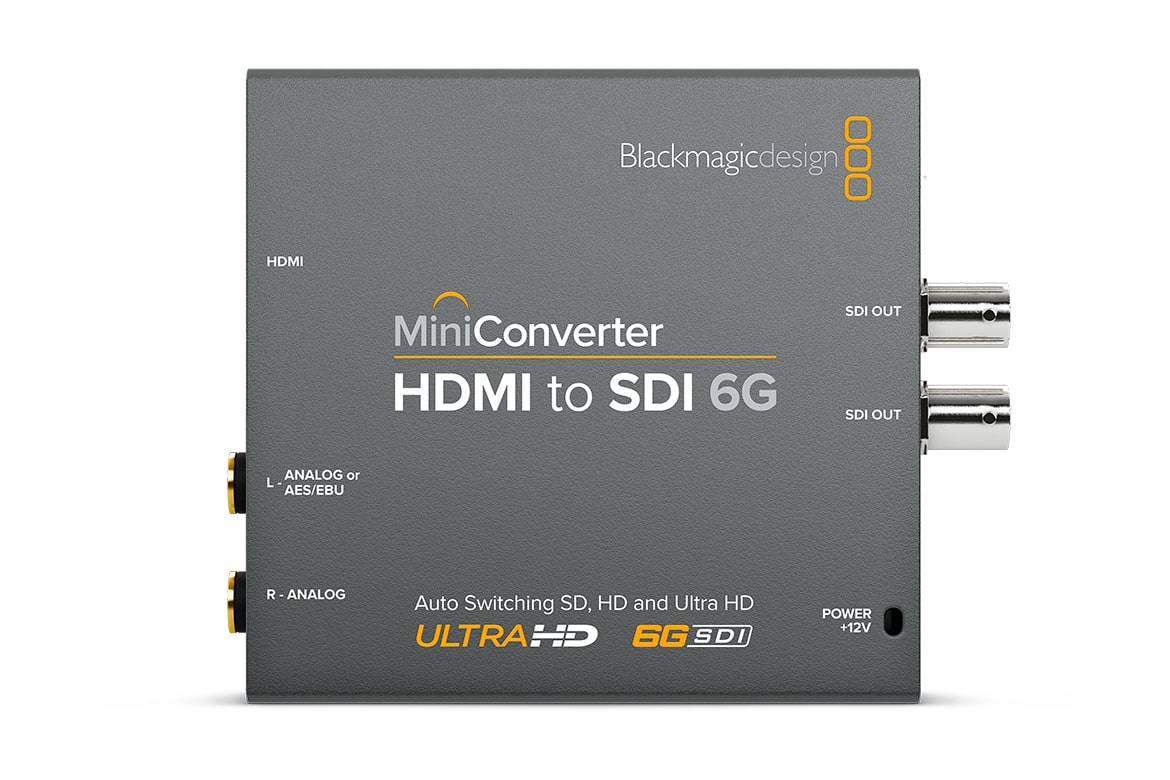

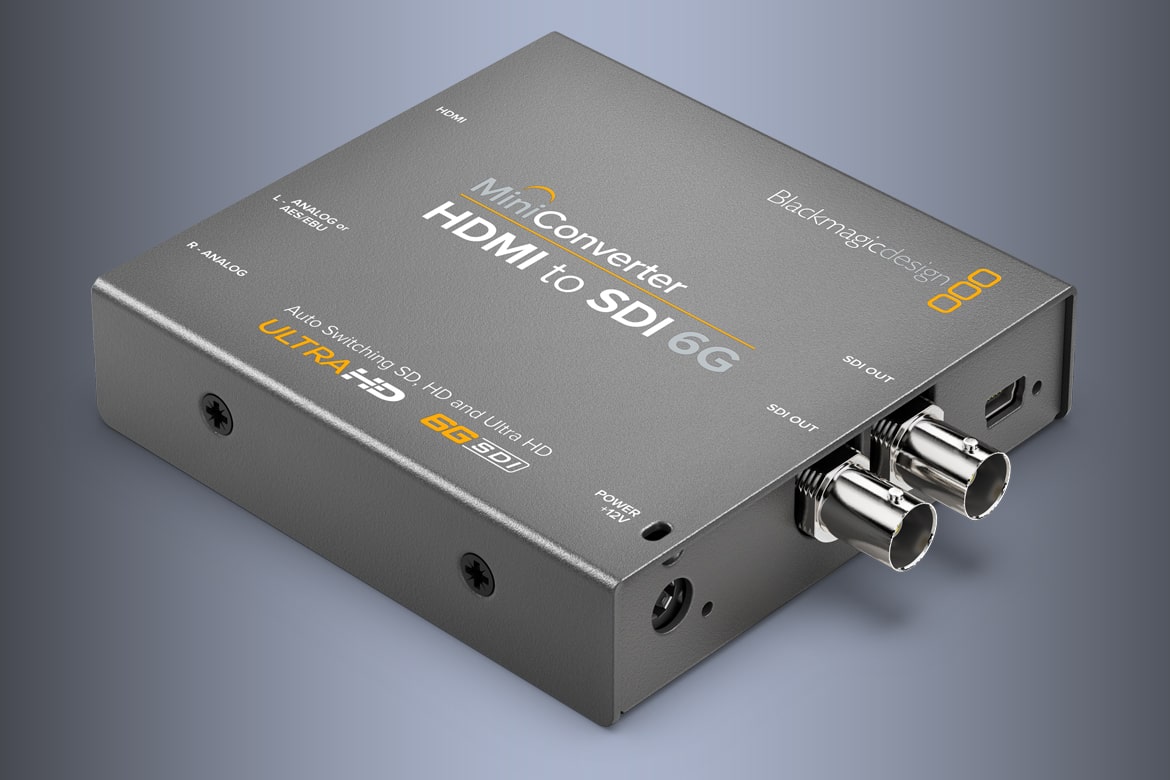

Mini Converter HDMI to SDI 6G
Convert SD, HD and Ultra HD HDMI with HDMI/analog or AES audio to SDI!
Product Highlights
- 4K HDMI Input
- 2 x 6G-SDI Outputs
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- 24-Bit, 48 kHz Audio
- Analog & AES-EBU Digital Audio Inputs
- Embeds Audio Into SDI Output

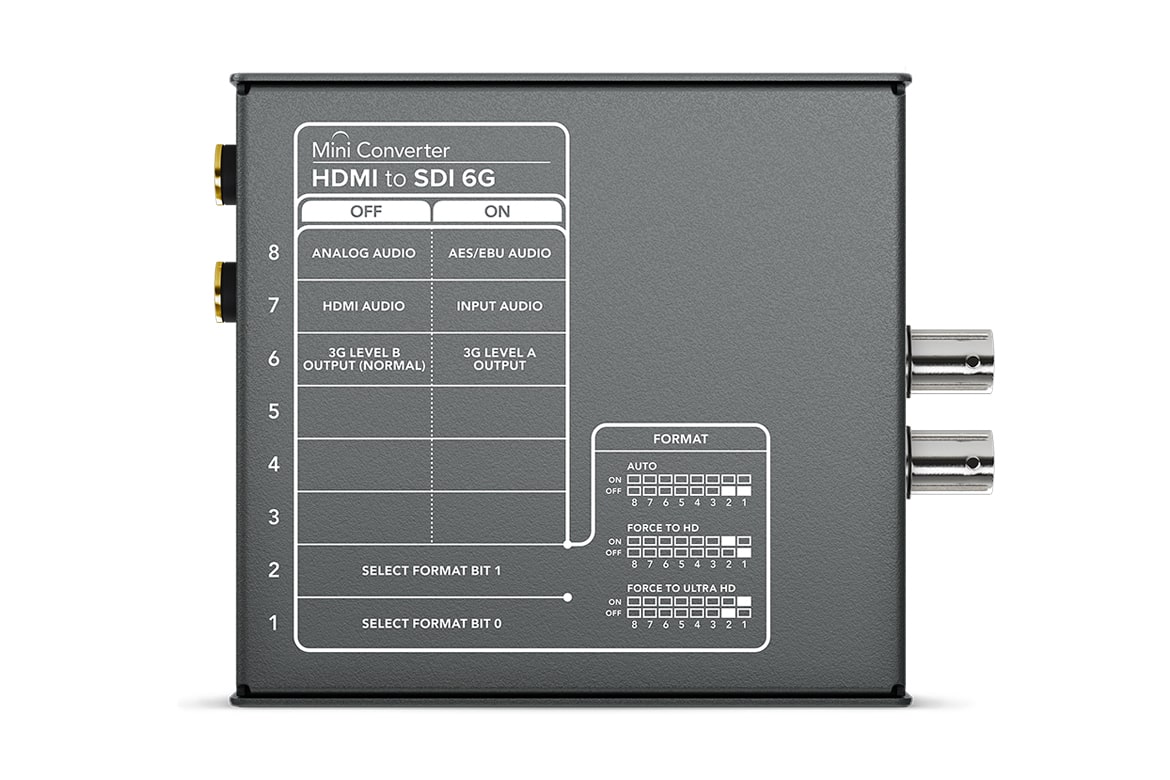

- Settings via Mini Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- Overview
- Tech Specs
Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI 6G is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!
| Connections | |
| SDI Video Output | 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input. |
| HDMI Video Outputs | HDMI type A in. |
| Analog Audio Outputs | 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Digital Audio Outputs | 4 channels of AES/EBU digital audio |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| Standards | |
| SD Video Standards | 625i50 PAL, 525i59.94 NTSC |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601. |
| SDI Video Rates | SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K. |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD or 6G-SDI. |
| HDMI Format Support | 625i25 PAL, 525i29.97 NTSC 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Color Space | YUV and RGB |
| HDMI Color Precision | 4:2:2 and 4:4:4 |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Settings Control | |
| | Mini Switches or USB software. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Physical Specifications | |
| Width | 4.49 in |
| Depth | 3.63 in |
| Height | 0.90 in |
| Weight | 8.60 oz |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
Power Requirements
- Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point. - Power Consumption
4.44 Watts - Operational Voltage Range
12 ‑ 18V DC
