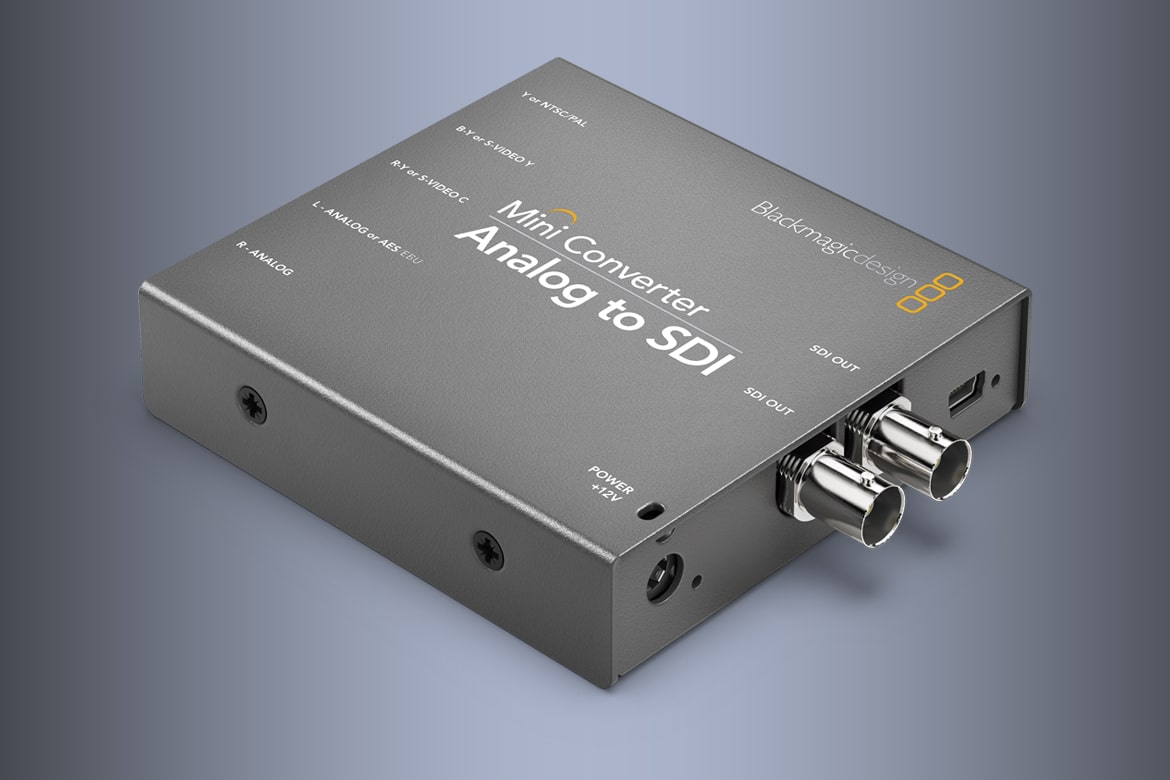

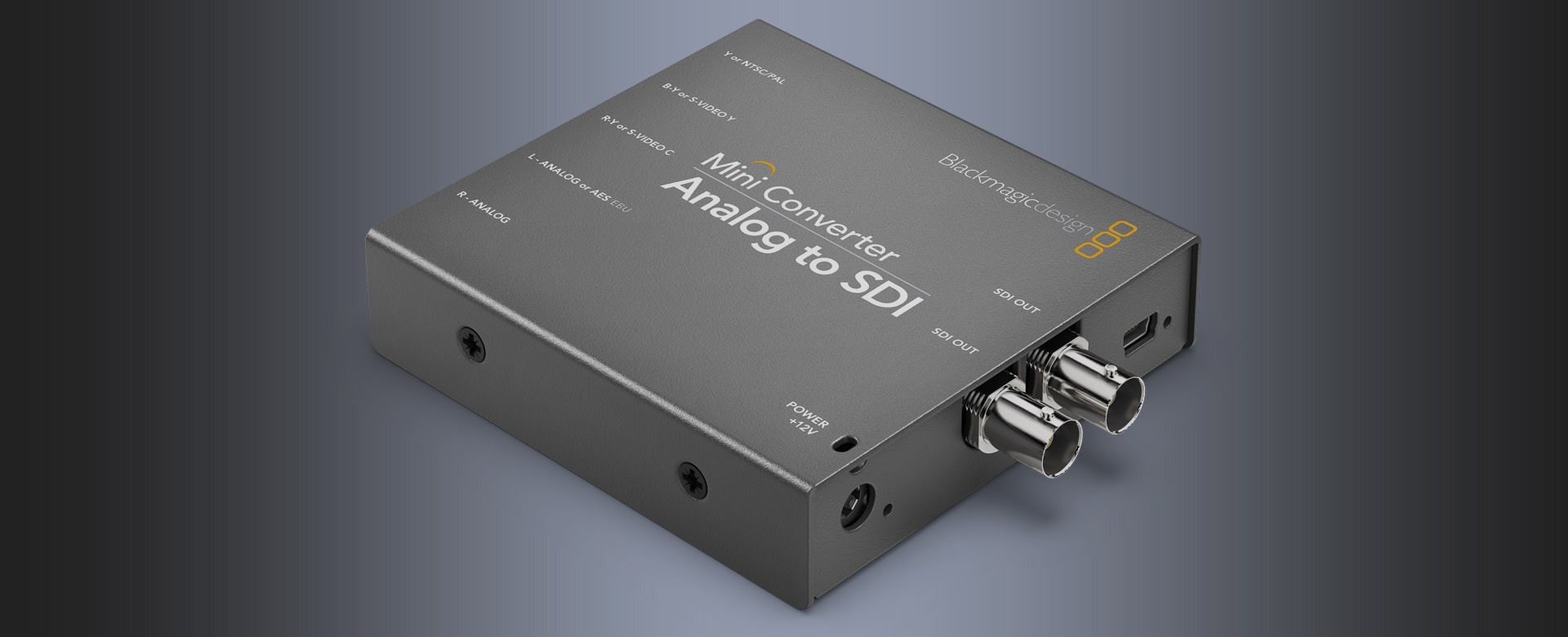

Mini Converter Analog to SDI
Convert analog SD and HD video to SDI with audio!
Product Highlights
- Analog to SDI Conversion
- Embedded Audio
- Overview
- Tech Specs
The ideal solution for converting analog component, s-video, NTSC/PAL composite to SDI video. Audio can be embedded from balanced analog or AES/EBU inputs. Now you can convert analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD-SDI video.

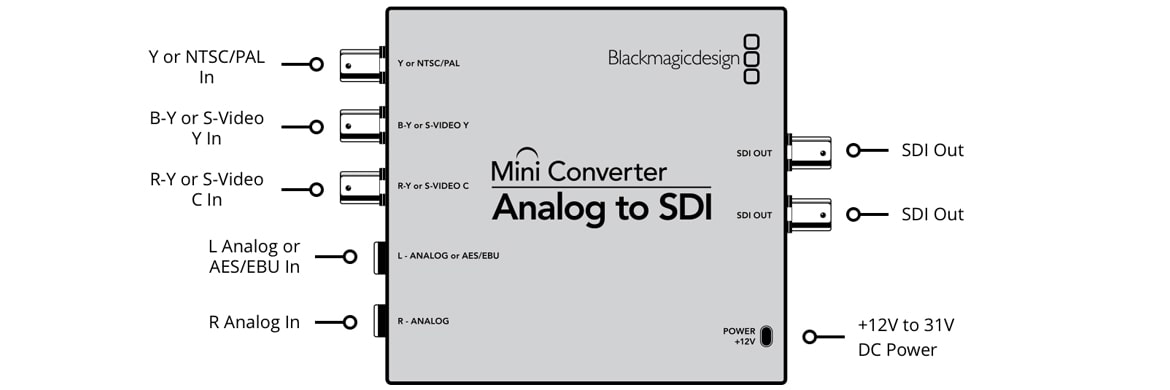

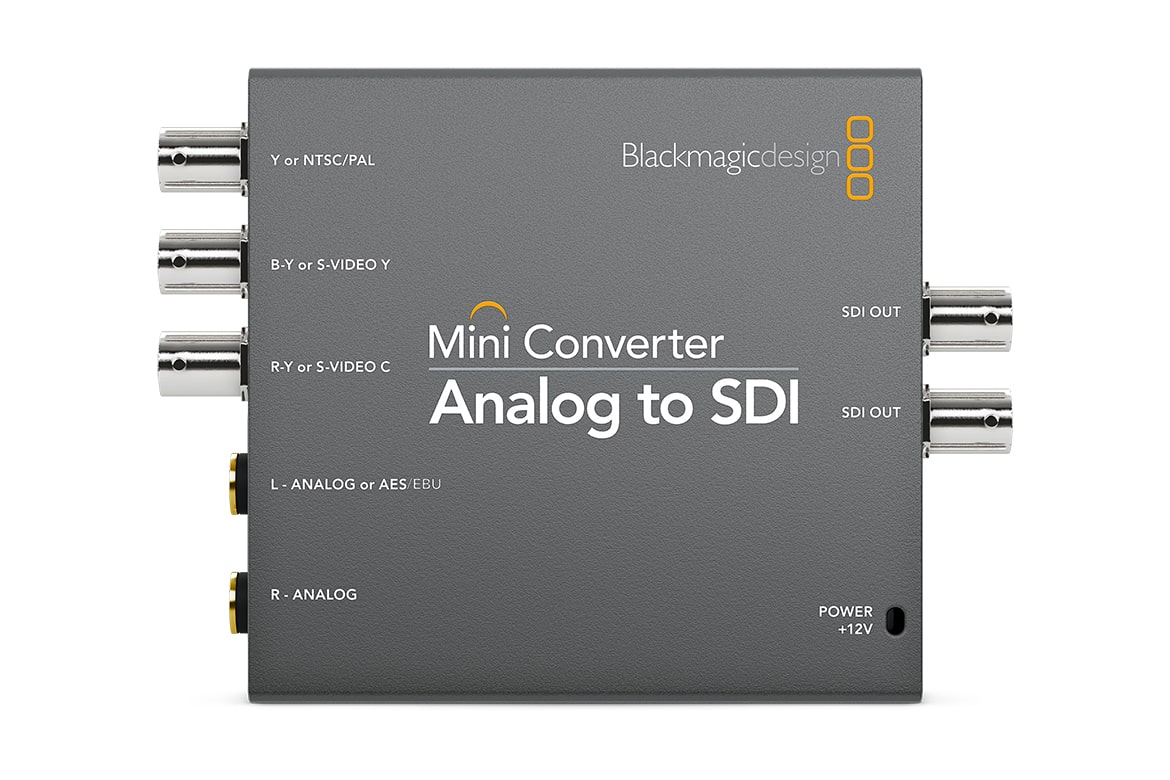

| Connections | |
| SDI Video Output | Automatically matches the SD and HD video input. |
| Analog Audio | 2 channels of professional balanced analog audio with standard 1/4 inch jack connections. |
| Analog Video | Component SD/HD, NTSC, PAL and S-Video. |
| AES/EBU Digital Audio | 2 channels of professional balanced digital with standard 1/4 inch jack connections. |
| Multi Rate Support | Auto detection of HD or standard definition inputs. |
| Updates and Configuration | USB |
| Reclocking | Yes |
| Standards | |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 424M-�-B, ITU-R BT.656 and ITU-R BT.601. |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition. |
| SDI Video Sampling | 4:2:2 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically follows format of analog input. |
| SDI Format Support | 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60. |
| Analog Format Support | 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60. |
| Analog Color Space | YUV |
| Analog Color Precision | 4:2:2 |
| Software | |
| Software Control | Mac OS X™ and Windows™ software upgrade via USB. |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | |
| Mac | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later. |
| Windows | Windows 8.1 or Windows 10. |
| Settings Control | |

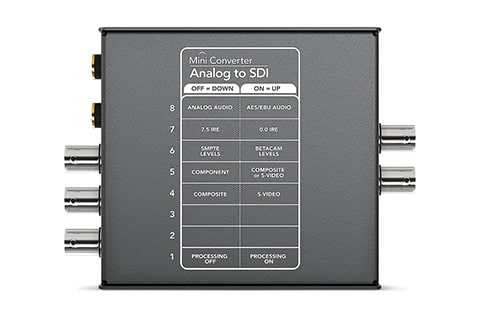

| Settings Control | Mini Switches or USB software. |
| Power Requirements | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point. |
| Power Consumption | 6.50 Watts |
| Operational Voltage Range | 12 - 31 V DC |
| Physical Specifications | |
| Width | 4.84 in |
| Height | 0.90 in |
| Depth | 3.63 in |
| Weight | 8.36 oz |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
Operating Systems
- Mac 10.12 Sierra,
Mac 10.13 High Sierra or later. - Windows 8.1 or Windows 10.
